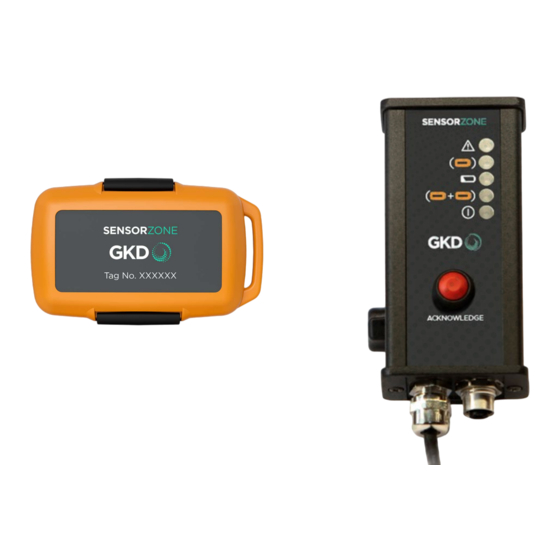

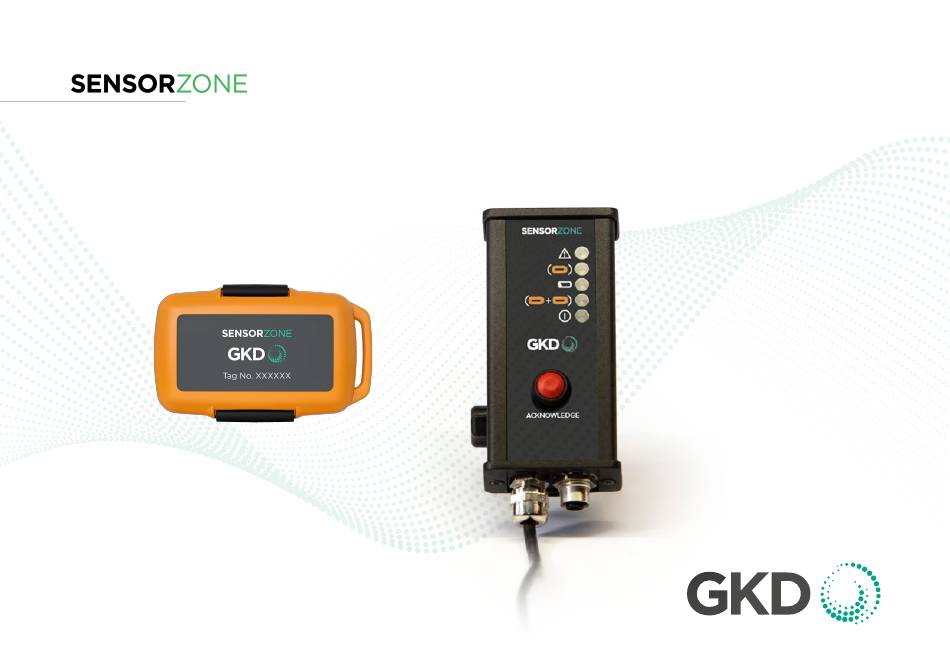

- Page 1 USER MANUAL M4000001 V2.3 - 03/2023...
- Page 2 M4000001 V2.3 - 03/2023...
-
Page 3: Table Of Contents
CONTENTS Page SAFETY AND WARNINGS 2 GENERAL INTRODUCTION 3 IN-CAB OPERATION 4 SYSTEMS FITTED WITH AN OPERATOR DISPLAY 5 SYSTEMS FITTED WITH A PUSH BUTTON DISPLAY 6 TAG TEST UNIT www.sensorzone.io M4000001 V2.3 - 03/2023... -
Page 4: Safety And Warnings
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. www.s www.sensorzone.io M4000001 V2.3 - 03/2023... - Page 5 The battery in the tag cannot be recharged, and attempting to do so can create fire, explosion and severe burn hazard. Tags that have reached end of life or are no longer required must be disposed of according to local regulations. www.sensorzone.io M4000001 V2.3 - 03/2023...
- Page 6 For optimum battery life, base stations and tag test units should be stored in a cool, regulated (preferably around 20ºC and never more than 30ºC), dry and ventilated area away from possible sources of heat and open flames. Avoid exposure to direct sunlight for long periods of time. www.sensorzone.io M4000001 V2.3 - 03/2023...
- Page 7 Personnel using pacemakers should keep a safe distance from the magnets and should move away from the magnets if they notice any effect. www.sensorzone.io M4000001 V2.3 - 03/2023...
-
Page 8: General Introduction
Every tag detection is recorded in the built-in Datalogger. www.sensorzone.io M4000001 V2.3 - 03/2023... - Page 9 • A base station • One or two external antenna • An operator display • External sounder and visual warning beacon (optional) • SensorZone vibrating tag Watch our SensorZone introduction to find out how the system works. www.sensorzone.io M4000001 V2.3 - 03/2023...
-
Page 10: In-Cab Operation
When the alarm/beep sounds (approximately 3 seconds after startup) press the “Acknowledge” button. If the “Acknowledge” button is not pressed within 15 seconds of the system start-up beep then switch off and start the procedure again. www.sensorzone.io M4000001 V2.3 - 03/2023... - Page 11 That your tag is functioning. Test your tag at a Tag Test station. That the cable to the antenna is not disconnected or cut. When the system is in operation, tags that enter the exclusion zone are automatically detected. www.sensorzone.io M4000001 V2.3 - 03/2023...
-
Page 12: Systems Fitted With An Operator Display
• Once acknowledged the alarms will be silenced and the beacon will stop flashing. “Tag Present” LED will remain on and “! Warning” LED will flash to show the number of tags in the zone. www.sensorzone.io M4000001 V2.3 - 03/2023... - Page 13 More than one tag in the zone on power up: Multiple beeps, multiple flashes on “! Warning” and “New Tag” LEDs, with “Tag Present” LED constantly on. • Antenna Fault: 12 beeps, 12 flashes on “! Warning” and “New Tag” LEDs. www.sensorzone.io M4000001 V2.3 - 03/2023...
-
Page 14: Systems Fitted With A Push Button Display
Base Station both the alarm will sound and the beacon will flash. Alarm LED • This will repeat until the operator presses the “Acknowledge” button. • Once acknowledged the alarms will silence and the beacon will stop flashing. www.sensorzone.io M4000001 V2.3 - 03/2023... - Page 15 10 Tags detected = 10 flashes and 10 beeps. • • To acknowledge more than one tag, the “Acknowledge” button must be pressed for each tag. A one-second pause is required between each press of the “Acknowledge” button. www.sensorzone.io M4000001 V2.3 - 03/2023...
- Page 16 6 OPERATIONAL SAFETY NOTES External Sounder/Beacon If the GKD SensorZone Sounder Beacon is selected the following operating modes will apply: • System on = Beacon will flash slowly. • Zone Incursion = Beacon flashes and alarm sounds. • Incursion acknowledged = Beacon flashes slowly and no alarm sounding.
- Page 17 • You are always protected. • If you exit your machine, shut the machine down. • If you come back into the field, the tag vibrates but the system on the machine does not alarm. www.sensorzone.io M4000001 V2.3 - 03/2023...
-
Page 18: Tag Test Unit
The unit will Beep to indicate the presence of a tag and the “Tag Seen” LED will light. • Press the “Acknowledge” button (if fitted) to log the tag. A short pause should be left before the next tag is tested. www.sensorzone.io M4000001 V2.3 - 03/2023... - Page 19 Tag Seen indicator Battery Low indicator Acknowledge Power button connection www.sensorzone.io M4000001 V2.3 - 03/2023...
- Page 20 GKD Technologies reserve the right to change these instructions in line with the policy of continuous improvement. 17 Cobham Road, Ferndown Industrial Estate, Wimborne, Dorset, UK. BH21 7PE +44 (0)1202 861 961 enquiries@sensorzone.io www.sensorzone.io ©GKD Technologies - M4000001 V2.3 - 03/2023...
