Summary of Contents for iCheckTPMS IC005

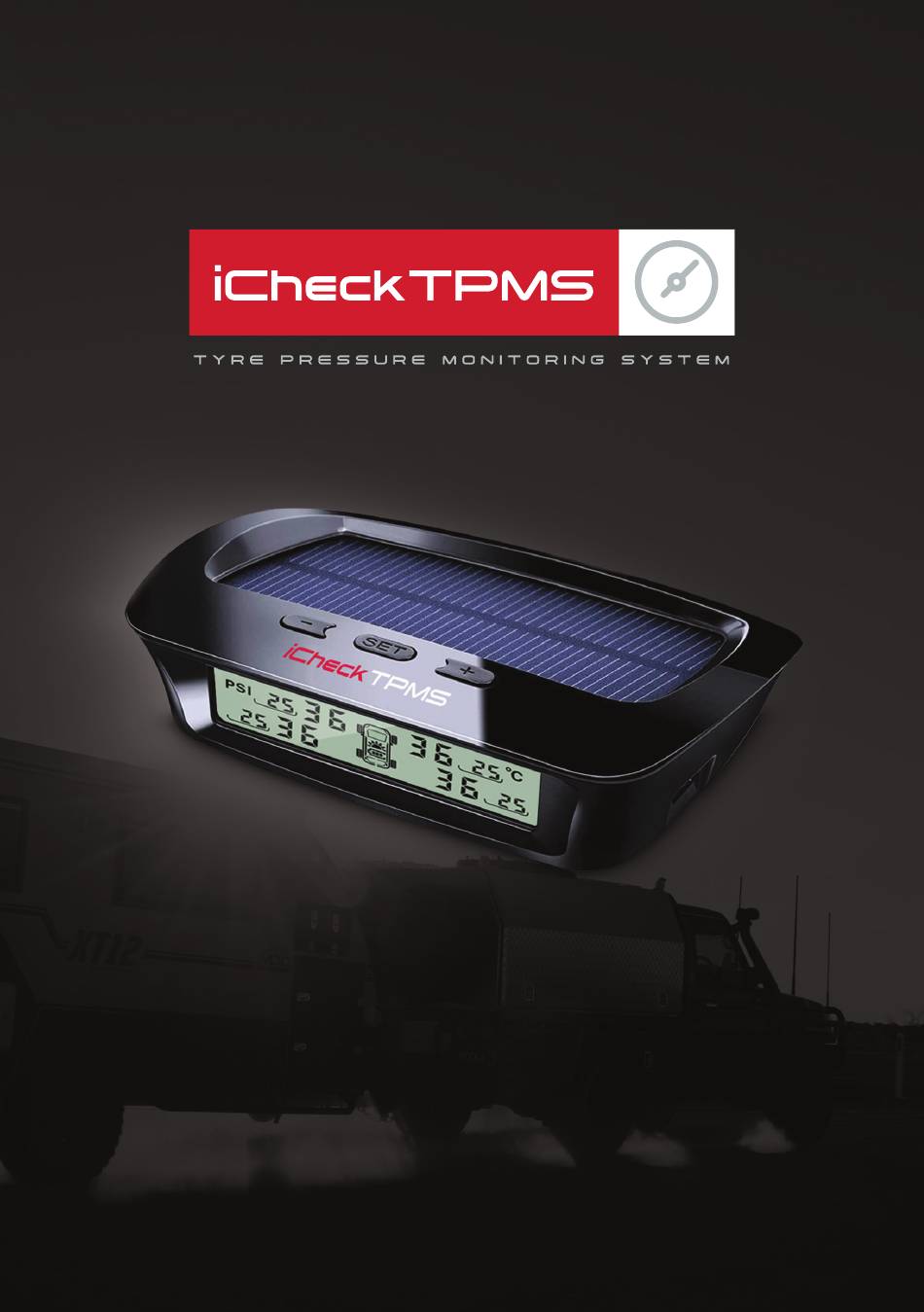

- Page 1 Instruction Manual Model IC005 / IC008 / IC010...
- Page 2 PROTECT MORE THAN JUST YOUR TYRES. WITH AUSTRALIA’S BEST.
-
Page 3: Table Of Contents
CONTENTS 1. Product Information ....................... 4 1-1. Product Feature ....................... 4 1-2. iCheckTPMS IntelliData™ ..................4 1-3. Intelligent Off Road Mode ..................4 1-4. iCheckTPMS InstaData™ ..................5 2. Product Accessories ....................... 6 3. Sensor Installation ........................8 4. Product Settings ........................9 4-1. -
Page 4: Product Information
1-2. iCheckTPMS IntelliData™ What is IntelliData™? Unlike iCheckTPMS, other tyre pressure monitoring systems can be difficult to set up, especially when setting your high and low alarm pressures for each wheel, for car and then caravan, which generally run different pressures. -
Page 5: Ichecktpms Instadata
(unless checked manually with a tyre pressure gauge). The iCheckTPMS wheel sensors send data every five minutes to the monitor whether in motion or not via our exclusive InstaData™. This means as soon as you hop in your car with your caravan on tow you will have... -
Page 6: Product Accessories

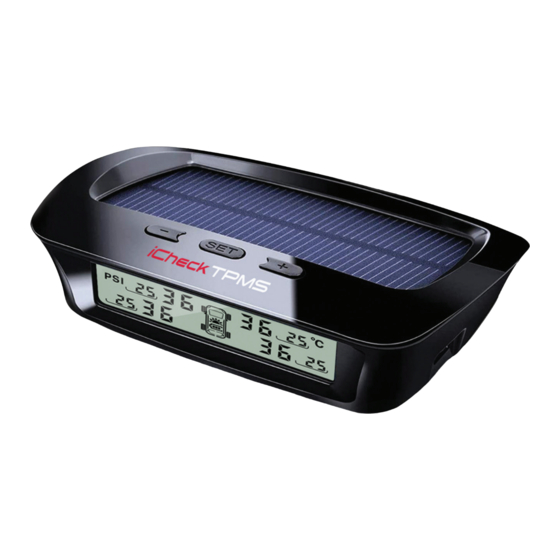

2. PRODUCT ACCESSORIES Monitor Components and Icons Power On/Off Press and hold the + and - buttons for 3 seconds. Caravan / Trailer Solar Panel Power Socket... - Page 7 Icon Indication Tyre Position Sensor Low Battery Monitor Power Level Tyre Alarm Status Solar Power Indicator Booster Indicator Non Slip Pad USB Power Wheel Sensor Cable LCD Monitor Sensor Lock Nut Lock Nut Rubber O Ring Opening Tool Spanner Caravan Wheel Bearing Signal Booster Rubber Dust Sensor (Optional)
-
Page 8: Sensor Installation
3. SENSOR INSTALLATION Each sensor has been marked with a position number and has been paired to the monitor from factory. Please install the sensors according to the below diagram. Wheel IC005 IC008 IC010 Sensor Location Insert dust proof cover onto... -
Page 9: Product Settings
4. PRODUCT SETTINGS Factory Default Setting Pressure Unit Temperature Unit °C High Temperature Alert 70°C 4-1. Change Unit In standby mode, press and hold the ‘+’ button for 3 seconds to switch between PSI / BAR pressure units. In standby mode, press and hold the ‘-’ button for 3 seconds to switch between °F / °C temperature units. -
Page 10: Caravan Connect Feature
4-6. Caravan Connect Feature Press and hold the ‘+’ button for 6 seconds and release after the second beep. 4-7. Restore Factory Settings Turn off the monitor. Then turn the monitor back on and ‘within’ 3 seconds, press and hold the ‘set’ button and release after the beep. 5. -
Page 11: Special Features
6. SPECIAL FEATURES 6-1. Monitor Battery Saving Mode The monitor has a battery saving mode and will automatically go into ‘sleep mode’ after ten minutes of no movement and will automatically ‘wake up’ upon entering the vehicle. 6-2. Automatic Backlight The monitor has an auto backlight feature that is activated in low light situations and for night-time driving. -
Page 12: Monitor Features
Press the ‘+/-‘ buttons to switch to spare tyre status 7-2. Signal Booster Icon If using an iCheckTPMS signal booster, the monitor display will show the signal booster icon indicating it is powered on and receiving data correctly. Signal Booster Icon... -
Page 13: Alarm Status
8. ALARM STATUS Tyre Pressure Tyre Position Temperature TPMS Alert Sensor Low Battery Alert Alert Status High Pressure Alert +25% PSI Low Pressure Alert -15% PSI High Temperature Alert Fast Leakage Alert Sensor Low Battery Alert Sensor Lost Signal Alert... -
Page 14: Sensor Pairing
9. SENSOR PAIRING 9-1. TPMS Sensor Pairing If the need arises to replace a sensor or change the location of pre-paired sensors follow these simple steps. Press the ‘set’ and ‘+’ buttons for 3 seconds until a beep is heard to enter the sensor pairing mode. -
Page 15: Wheel Bearing Sensor Installation
10. WHEEL BEARING SENSOR INSTALLATION Remove the centre caps from your wheels to expose the metal bearing dust cap. Make sure there is enough room between the bearing dust cap and the inside of the wheel centre cap for the sensor to be installed. Please note that some wheel types may need to be removed to gain access to the dust cap. -
Page 16: Monitoring Your Hub / Bearing Temperatures
11. MONITORING YOUR HUB / BEARING TEMPERATURES When monitoring your bearing temperatures, you are generally looking for one, or maybe more, bearings that are running hotter than the others. If all the temperatures are within a couple of degrees of each other this is a good sign that there all operating correctly. -
Page 17: Tpms Sensor Parameters
12-2. TPMS Sensor Parameters Pressure Range 0 ~ 6 BAR (0 ~ 99PSI) Working Temperature -40°C ~ 80°C Storage Temperature -40°C ~ 85°C Input Voltage / Current DC 3V Frequency 433.92 MHz Transmission Power <10dBm + _ 0.1 BAR ( + _ 1.5 PSI) Pressure Accuracy + _ 3°C Temperature Accuracy... -
Page 18: Sensor Battery Replacement
13. SENSOR BATTERY REPLACEMENT When the sensor low battery icon ‘ ’ shows on the monitor and the corresponding tyre icon in flashing, the sensor battery needs replacement. Replace using CR1632 Lithium batteries. 1. Hold the sensor inside the sensor opening tool and open sensor cover in a clockwise direction. -
Page 19: Faq's / Special Notes
14. FAQ’S / SPECIAL NOTES Q. What if my car already has a factory tyre pressure monitoring system? A. You can still use the iCheckTPMS at is will also show your tyre temperatures and your spare tyre data. Q. What is the battery life of the wheel sensors? A. - Page 20 Distributed by iCheckTPMS Australia - Ph: + 61 ( 03 ) 9110 3095 ichecktpms.com.au...
