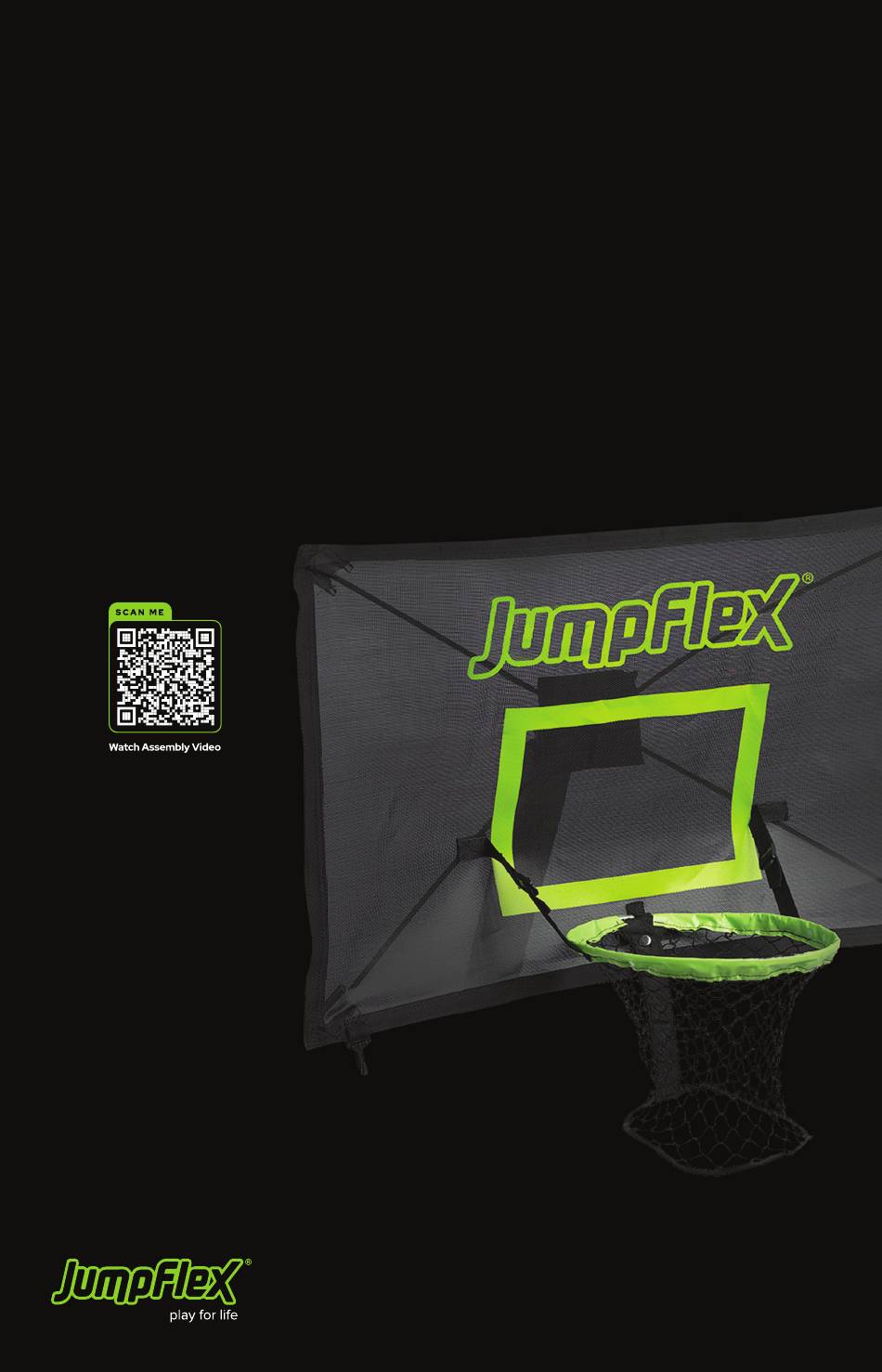

- Page 1 Version PJ1.0 PROJAM™ Hero Series Assembly Manual...
- Page 2 Warning: Read all assembly, installation, care maintenance and usage instructions in the manual prior to assembling and using the Jumpflex® product. These products are for personal use only by one person aged 6 years and older. These products are for outdoor use only.
- Page 3 Contents PROJAM™ Parts List Setup Options High Mount Assembly Instructions Low Mount Assembly Instructions PROJAM™ Hero Series Assembly Manual...
- Page 4 PROJAM™ Parts List Part Description Quantity Backboard and Hoop Fibreglass Rod Connector Fibreglass Rod End High Mount Cross Bracket Low Mount Cross Bracket Low Mount Net Connector Low Mount Pole Strap Basketball Ball Pump PROJAM™ Hero Series Assembly Manual...
- Page 5 Setup Options High Mount High mount option, ideal for big jumpers and big air slam dunks! Please follow assembly instructions on page 6. Low Mount Low mount option, compatible with SMARTSHADE™ sun cover and great for little jumpers. Please follow assembly instructions on page 17. PROJAM™...
- Page 6 High Mount Assembly Instructions Lay the Backboard and Hoop (1) face down. PROJAM™ Hero Series Assembly Manual...
- Page 7 Join together 4x Fibreglass Rod Connectors (2) and 4 x Fibreglass Rod Ends (3). PROJAM™ Hero Series Assembly Manual...
- Page 8 Thread one connected fibreglass rod assembly through the webbing loop on the backboard and into the bottom corner pocket. PROJAM™ Hero Series Assembly Manual...
- Page 9 Repeat step 03 on the other side. PROJAM™ Hero Series Assembly Manual...
- Page 10 Insert each end of the fibreglass rods into the High Mount Cross Bracket (4) as shown. PROJAM™ Hero Series Assembly Manual...
- Page 11 Thread another fibreglass rod assembly into the High Mount Cross Bracket (4) and insert the other end into the corner pocket. PROJAM™ Hero Series Assembly Manual...
- Page 12 Repeat step 6 on the other side. Pull the corner of the backboard away from the center and pre-bend the fibreglass rod to create enough space to insert the rod into the corner pocket. PROJAM™ Hero Series Assembly Manual...
- Page 13 Attaching to your Jumpflex® Trampoline Select any of the enclosure net poles on your Jumpflex® Hero Series Trampoline where you would like to position the PROJAM™. Remove the top screw cap on the selected net pole, place the assembled High...
- Page 14 Clip the backboard carabiners through the safety net to secure the bottom corners in place. PROJAM™ Hero Series Assembly Manual...
- Page 15 Adjust the hoop straps to ensure the hoop is sitting horizontally. PROJAM™ Hero Series Assembly Manual...
- Page 16 Use the provided Ball Pump (9) to inflate the Basketball (8). PROJAM™ Hero Series Assembly Manual...
- Page 17 Low Mount Assembly Instructions Lay the Backboard and Hoop (1) face down. PROJAM™ Hero Series Assembly Manual...
- Page 18 Join together 4x Fibreglass Rod Connectors (2) and 4 x Fibreglass Rod Ends (3). PROJAM™ Hero Series Assembly Manual...
- Page 19 Thread one connected fibreglass rod assembly through the webbing loop on the backboard and into the bottom corner pocket. PROJAM™ Hero Series Assembly Manual...
- Page 20 Repeat step 03 on the other side. PROJAM™ Hero Series Assembly Manual...
- Page 21 Insert each end of the fibreglass rod assembly into the Low Mount Cross Bracket (5) as shown. PROJAM™ Hero Series Assembly Manual...
- Page 22 Thread 1x fibreglass rod assembly through 1x Low Mount Pole Strap (7) as shown. PROJAM™ Hero Series Assembly Manual...
- Page 23 Connect together the Fibreglass Rod Connector (2) into 1 x Fibreglass Rod End (3), and thread into the Low Mount Cross Bracket (5). Insert the other end into the corner pocket. PROJAM™ Hero Series Assembly Manual...
- Page 24 Repeat step 07 on the other side. Pull the corner of the backboard away from the center and pre-bend the fibreglass rod to create enough space to insert the rod into the corner pocket. PROJAM™ Hero Series Assembly Manual...
- Page 25 Attaching to your Jumpflex® Trampoline Select any two enclosure net poles on your Jumpflex® Hero Series Trampoline where you would like to position the PROJAM™. Remove the top screw caps on the selected net poles, place the assembled Low Mount Pole Straps (7) over the thread and re-screw the top screw caps.
- Page 26 From the outside of the net enclosure, attach the hook end of the Low Mount Net Connector (6) through net and around the bottom corner of the fibreglass rod assembly. PROJAM™ Hero Series Assembly Manual...
- Page 27 Strap the webbing length around the enclosure pole and re-attach onto the buckle. PROJAM™ Hero Series Assembly Manual...
- Page 28 Repeat steps 11 and 12 on the other side, tighten each webbing strap so the PROJAM™ is sitting vertically level. PROJAM™ Hero Series Assembly Manual...
- Page 29 Adjust the hoop straps to ensure the hoop is sitting horizontally. PROJAM™ Hero Series Assembly Manual...
- Page 30 Use the provided Ball Pump (9) to inflate the Basketball (8). PROJAM™ Hero Series Assembly Manual...
- Page 31 Enjoy! PROJAM™ Hero Series Assembly Manual...
- Page 32 Canada ph. 1866 305 7238 ph. 1866 305 7238 ph. 0330 010 4301 www.jumpflex.com www.jumpflex.ca www.jumpflex.co.uk New Zealand Australia ph. 0800 586 735 ph. 1800 586 735 www.jumpflex.co.nz www.jumpflex.com.au...
