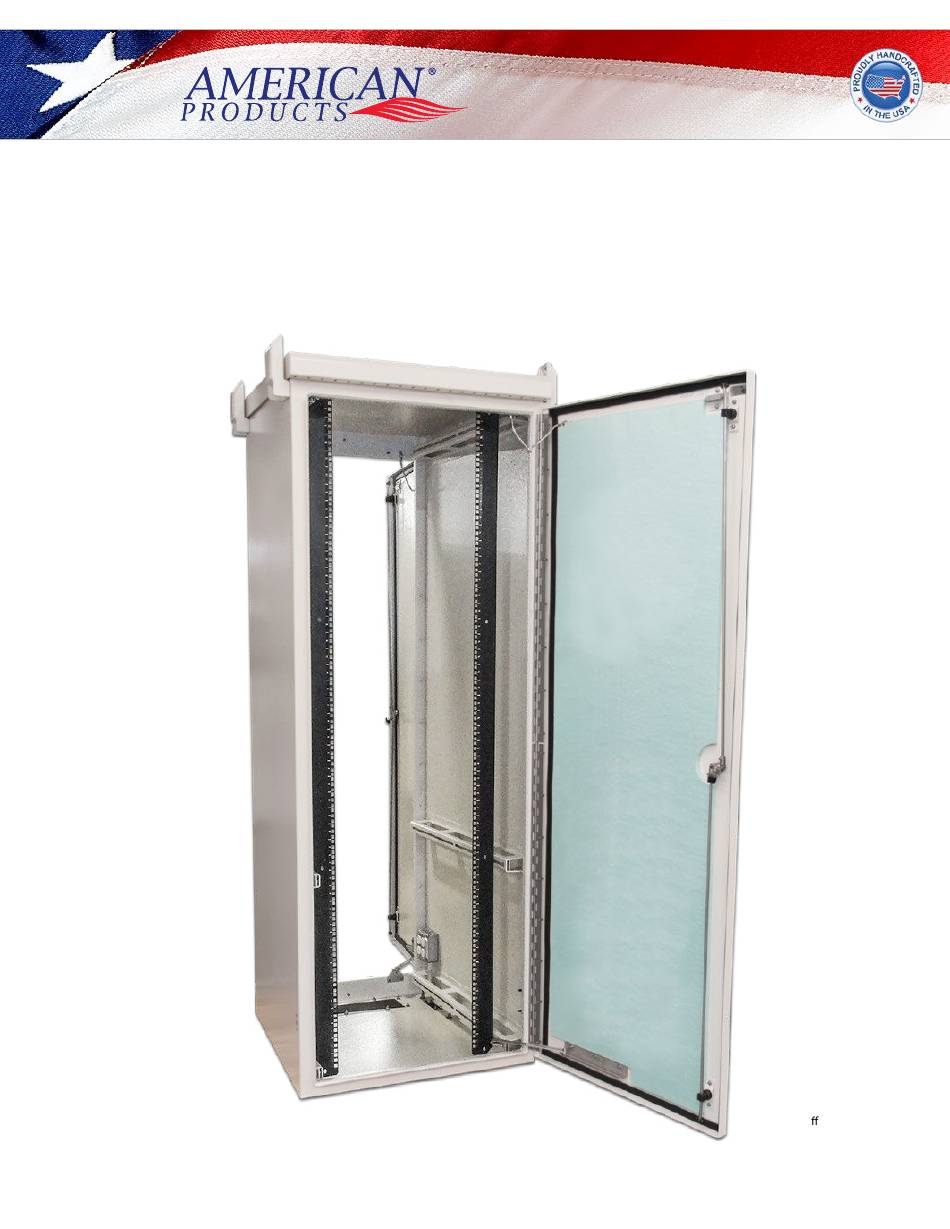

- Page 1 Turn-Key Enclosure Solutions AP FREEDOM ™ Telecommunications Enclosure Owner’s Manual 597 Evergreen Road Stra ord MO 65757 417-736-2135 Toll Free: 855-736-2135 Form 36-0061-08 Web: www.amprod.us Ver. 07/07/2023...
- Page 2 AP FREEDOM ™ THIS PAGE INTENTIONALLY LEFT BLANK Page: 2...
-
Page 3: Table Of Contents
AP FREEDOM ™ Table of Contents Contacting Us & Technical Support ..........................4 Safety First ..................................5 Labeling Information ..............................6 Product Overview ................................. 7 Product Speci cations ..............................8 Lifting Provisions ................................. 9 Installation ..................................10 Door Latches ................................11 Quarter Turn 3-Point Locking Door Latches ...................... -
Page 4: Contacting Us & Technical Support
AP FREEDOM ™ Contacting Us American Products can be contacted for any issues that arise with the supplied product. Technical assistance is available 9am to 4pm central standard time. • Toll Free: (855) 736-2135 • Phone: (417) 736-2135 • Fax: (417) 736-9535 •... -
Page 5: Safety First
AP FREEDOM ™ Safety First This publication provides a description of the American Products AP FREEDOM™ Enclosure. The mechanical descriptions, typical applications, installation instructions, safety guidelines, grounding and bonding are included. Four types of messages may appear throughout this manual, identi ed by the following icons and signal words: Read equipment manufacturer’s manual and this... -
Page 6: Labeling Information
AP FREEDOM ™ Important Labeling Information Serial Number Label American Products Label Accepted Label Inspected Label AP FREEDOM™ Enclosure for Type 4 Page: 6... -
Page 7: Product Overview
AP FREEDOM ™ Product Overview • The cabinet is constructed of Aluminum\Galvanized or Stainless Steel with optional powder coat painted nish for reduced weight and superior corrosion resistance. The front door is equipped with three point pad-lockable door latches. The top of the cabinet has a double wall construction to reduce the e ects of solar radiation and for structural integrity. -
Page 8: Product Speci Cations
AP FREEDOM ™ Product Speci cations 32” Min Available 47” Cabinet 58” Heights 68” 78” Max 30” Min 30” 36” Max Available Available Cabinet Cabinet Dept Depth Page: 8... -
Page 9: Lifting Provisions
Use only concrete for new pad construction. Do not use substitute materials since they lack the rigidity for enclosure placement. • Observe local building practices for pad construction. American Products recommends that the pad should extend a minimum of 8” beyond the enclosure base on all sides. •... -
Page 10: Installation
AP FREEDOM ™ Installation The AP FREEDOM™ cabinet should be mounted on a concrete pad. See the gure below for pad mounting hole patterns. During cabinet mounting, xture the cabinet securely WARNING to avoid personal injury or cabinet damage. REAR OF CABINET... -
Page 11: Door Latches
™ Mounting Hardware When securing the American Products AP FREEDOM™ enclosure to a concrete pad, we recommend utilizing a minimum of a 3/8” nominal diameter expansion anchor for maximum stability. Speci cations below are for the Truebolt brand wedge type expansion anchor (or equivelant). -
Page 12: Quarter Turn 3-Point Locking Door Latches
AP FREEDOM ™ Quarter Turn 3-Point Locking Door Latches The cabinet doors are equipped with quarter-turn 3-point padlock-able door latches. The latches are secured by turning the handle a quarter turn clockwise until the stop is reached. Convenient security padlock hole to allow for a standard Master lock (or equivalent) to be installed. -
Page 13: Clearance Requirements
AP FREEDOM ™ Clearance Requirements When selecting a location to mount the cabinet, ensure that proper clearance is available to allow the cabinet door to open fully. Top View 30” 36” DEPTH 96” 30” DEPTH 90” Page: 13... -
Page 14: Grounding
AP FREEDOM ™ Grounding Information Bonding and grounding should be done in accordance with industry standard procedures and comply with local electrical codes. The main cabinet ground bar is located in the rear of the cabinet as shown below. Page: 14... -
Page 15: Warranty Policy
RMA number. For warranty claims in the USA and Canada, freight will be managed and paid by American Products. For warranty claims outside of the USA and Canada, the customer will be responsible for managing the freight and freight expenses. Products being returned from other than US or Canada are to be returned to the factory in Stra ord, MO to receive warranty resolution, once approved with an RMA. - Page 16 597 Evergreen Road Stra ord, Missouri 65757 Phone: 417 736 2135 Toll Free: 855 736 2135 www.amprod.us...
