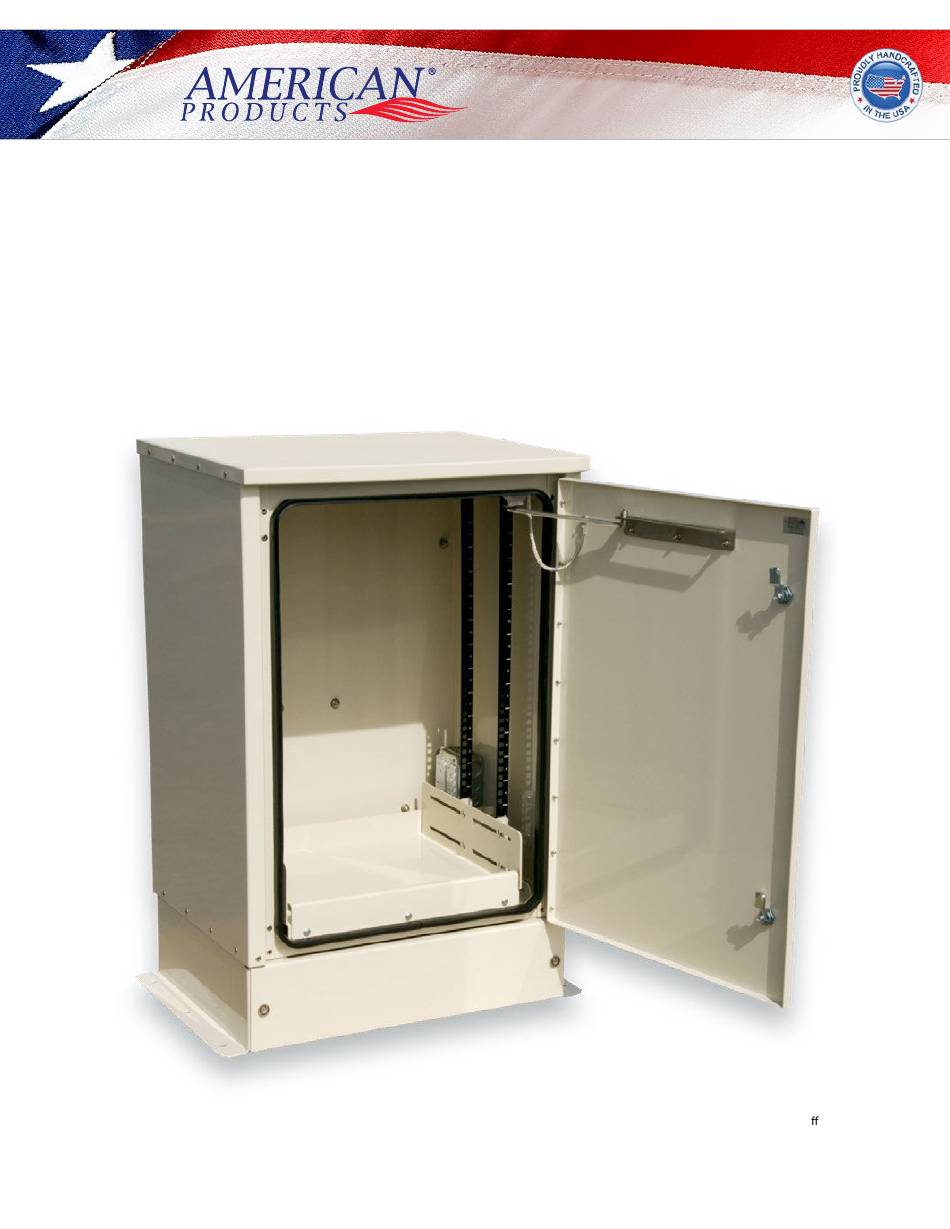

- Page 1 Turn-Key Enclosure Solutions AP MINIFORT ® Telecommunications Enclosure Owner’s Manual 597 Evergreen Road Stra ord MO 65757 417-736-2135 Toll Free: 855-736-2135 Form 36-0061-05 Web: www.amprod.us Ver. 07/07/2023...
- Page 2 AP MINIFORT ® THIS PAGE INTENTIONALLY LEFT BLANK Page: 2...
-
Page 3: Table Of Contents
AP MINIFORT ® Table of Contents Contacting Us & Technical Support ..........................4 Safety First ................................... 5 Labeling Information ..............................6 Product Overview ................................ 7 Product Speci cations ..............................8 Options ..................................9 Installation ................................... 10 Mounting Hardware ..............................11 Mounting Provisions .............................. -
Page 4: Contacting Us & Technical Support
AP MINIFORT ® Contacting Us American Products can be contacted for any issues that arise with the supplied product. Technical assistance is available 9am to 4pm central standard time. • Toll Free: (855) 736-2135 • Phone: (417) 736-2135 • Fax: (417) 736-9535 •... -
Page 5: Safety First
AP MINIFORT ® Safety First This publication provides a description of the American Products AP MINIFORT® enclosure. The mechanical descriptions, typical applications, installation instructions, safety guidelines, grounding and bonding are included. Four types of messages may appear throughout this manual, identi ed by the following icons and signal words: Read equipment manufacturer’s manual and this... -
Page 6: Labeling Information
Important Labeling Information Serial Number Label American Products Label Accepted Label Inspected Label AP MINIFORT® Enclosure for Type 3R Tested to Standards: UL 50, UL 50E, CSA C22.2 No. 94.1, C22.2 No.94.2 Certi cation Testing performed at Intertek, Plano TX. Page: 6... -
Page 7: Product Overview
AP MINIFORT ® Product Overview • The cabinet is constructed of Aluminum\Galvanized or Stainless Steel with optional powder coat painted nish for reduced weight and superior corrosion resistance. The front door is equipped with two quarter-turn latches. • The equipment-mounting bay has a 9RU to 24RU of vertical 19”or 23” rack space in the front of the equipment bay. -
Page 8: Product Speci Cations
AP MINIFORT ® Product Speci cations Page: 8... -
Page 9: Options
AP MINIFORT ® Options Page: 9... -
Page 10: Installation
AP MINIFORT ® Installation The AP MINIFORT® cabinet should be mounted on a concrete pad. See the gure below for pad mounting hole patterns. During cabinet mounting, xture the cabinet securely WARNING to avoid personal injury or cabinet damage. Page: 10... -
Page 11: Mounting Hardware
® Mounting Hardware When securing the American Products AP MINIFORT® enclosure to a concrete pad, we recommend utilizing a minimum of a 3/8” nominal diameter expansion anchor for maximum stability. Speci cations below are for the Truebolt brand wedge type expansion anchor (or equivelant). -
Page 12: Mounting Provisions
AP MINIFORT ® Mounting Provisions Page: 12... -
Page 13: Clearance Requirements
AP MINIFORT ® Clearance Requirements When selecting a location to mount the cabinet, ensure that proper clearance is available to allow the cabinet door to open fully. See Figure below for top view of cabinet footprint. Page: 13... -
Page 14: Grounding
AP MINIFORT ® Grounding Information Bonding and grounding should be done in accordance with industry standard procedures and comply with local electrical codes. The main cabinet ground bar is located in the rear of the cabinet as shown below. Page: 14... -
Page 15: Fan Ventilation
® FAN VENTILATION SYSTEM (OPTIONAL) The AP MINIFORT® can be equipped with a fan ventilation system and thermostat control. The cabinet has two lters. The inlet lters are on the inside of the cabinet. To replace the lter remove the four nuts that secure the lter frame, remove old lter media and replace with new media and reinstall the lter frame. -
Page 16: Wiring Diagram
AP MINIFORT ® 100 CFM Fan Wiring Diagram Page: 16... -
Page 17: Warranty Policy
RMA number. For warranty claims in the USA and Canada, freight will be managed and paid by American Products. For warranty claims outside of the USA and Canada, the customer will be responsible for managing the freight and freight expenses. Products being returned from other than US or Canada are to be returned to the factory in Stra ord, MO to receive warranty resolution, once approved with an RMA. - Page 18 597 Evergreen Road Stra ord, Missouri 65757 Phone: 417 736 2135 Toll Free: 855 736 2135 www.amprod.us...
