Summary of Contents for American Products AP FREEDOM

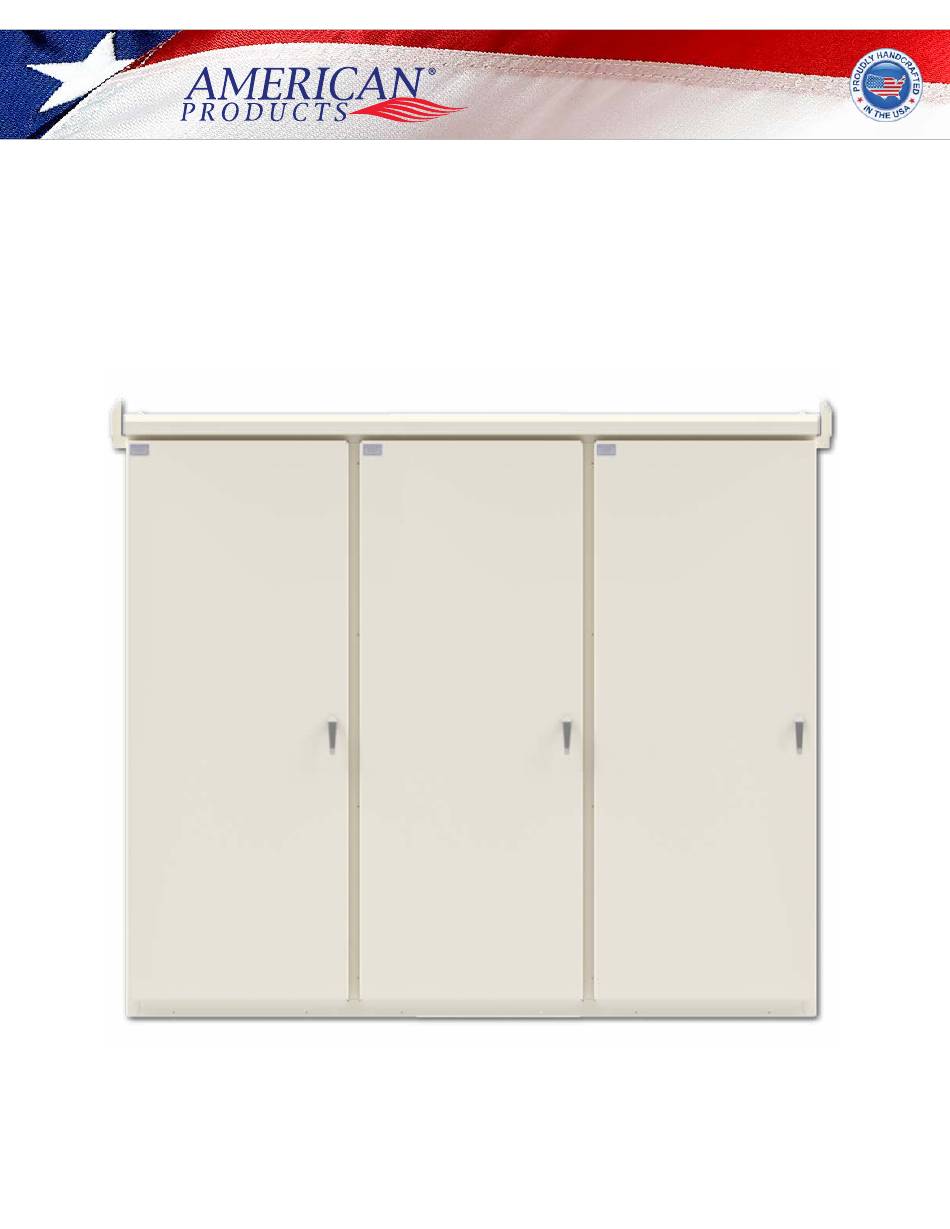

- Page 1 Turn-Key Enclosure Solutions AP FREEDOM ™ Triple Bay Telecommunications Enclosure Owner’s Manual 597 Evergreen Road Strafford MO 65757 417-736-2135 Toll Free: 855-736-2135 Form 36-0068-00 Web: www.amprod.us Updated: 04/28/2022...
- Page 2 AP FREEDOM ™ THIS PAGE INTENTIONALLY LEFT BLANK Page: 2...
-
Page 3: Table Of Contents
AP FREEDOM ™ Table of Contents Contacting Us ................................4 Safety First ..................................5 Labeling Information ..............................6 Product Overview ................................. 7 Product Measurements ..............................8 Door Latches ................................9 Clearance Requirements ............................. 10 Lifting Provisions ................................. 11 Grounding ................................... 12 Appendix A ................................ -
Page 4: Contacting Us
AP FREEDOM ™ Contacting Us American Products can be contacted for any issues that arise with the supplied product. Technical assistance is available 9am to 4pm central standard time. • Toll Free: (855) 736-2135 • Phone: (417) 736-2135 • Fax: (417) 736-9535 •... -
Page 5: Safety First
AP FREEDOM ™ Safety First This publication provides a description of the American Products AP FREEDOM™ Triple Bay Enclosure. The mechanical descriptions, typical applications, installation instructions, safety guidelines and grounding are included. Four types of messages may appear throughout this manual, identified by the following icons and signal words: Read equipment manufacturer’s manual and this... -
Page 6: Labeling Information
AP FREEDOM ™ Important Labeling Information American Products Label ETL & Serial Number Label Accepted Label Inspected Label AP FREEDOM™ Triple Bay Enclosure for NEMA Type 4 Powder Coating Tested to Standards: Telcordia GR487 for Telecommunications Enclosures Page: 6... -
Page 7: Product Overview
AP FREEDOM ™ Product Overview • The cabinet is constructed of Aluminum and Stainless Steel with powder coat painted finish for reduced weight and superior corrosion resistance. The front doors are equipped with three point pad-lockable door latches. The top of the cabinet has a double wall construction to reduce the effects of solar radiation and for structural integrity. -
Page 8: Product Measurements
AP FREEDOM ™ Product Measurements 94” Available Cabinet Height 81.45” 78” 36” Min 90” 42” Max Available Available Cabinet Cabinet Width Depth AP FREEDOM™ Triple Bay Enclosure for Type 4 Page: 8... -
Page 9: Door Latches
AP FREEDOM ™ Quarter Turn 3-Point Locking Door Latches The cabinet doors are equipped with quarter-turn 3-point padlock-able door latches. The latches are secured by turning the handle a quarter turn clockwise until the stop is reached. Convenient security padlock hole to allow for a standard Master lock (or equivalent) to be installed. -
Page 10: Clearance Requirements
AP FREEDOM ™ Clearance Requirements When selecting a location to mount the cabinet, ensure that proper clearance is available to allow the cabinet door to open fully. See Figure below for top view of cabinet footprint. 30” 30” 30” 36” DEPTH 96”... -
Page 11: Lifting Provisions
Use only concrete for new pad construction. Do not use substitute materials since they lack the rigidity for enclosure placement. • Observe local building practices for pad construction. American Products recommends that the pad should extend a minimum of 8” beyond the enclosure base on all sides. •... -
Page 12: Grounding
™ Grounding Information Bonding and grounding should be done in accordance with industry standard procedures and comply with • The AP FREEDOM™ triple bay applicable electrical codes and local jurisdictions. cabinet includes three (ten position) ground bars. • The Master Ground Bar is labeled with the letters “MGB”. -
Page 13: Technical Support
RMA number. For warranty claims in the USA and Canada, freight will be managed and paid by American Products. For warranty claims outside of the USA and Canada, the customer will be responsible for managing the freight and freight expenses. Products being returned from other than US or Canada are to be returned to the factory in Strafford, MO to receive warranty resolution, once approved with an RMA. - Page 14 597 Evergreen Road Straff ord, Missouri 65757 Phone: 417-736-2135 Toll Free: 855-736-2135 www.amprod.us...
