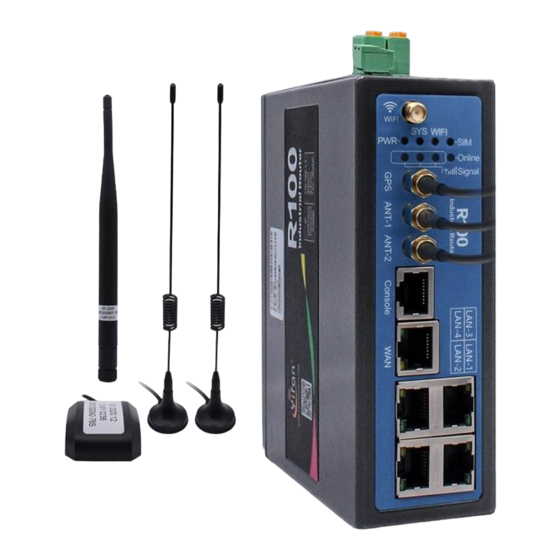

R100 Series
Industrial Router
User Manual
R100 Series 2G/3G/4G Cellular Router 1x WAN, 4 x LAN, 1 x RS232/RS485
Model No.
R100-L
R100-L/L
Product Version
V1.0.1
Product Name：R100 Series
User Manual
Description
4G Industrial Router
4G Industrial Router
Yifan Industry
Add：Room 618, No.12,Gaodian Road, HuLi District,
XiaMen, China
Tel：+86 592-6101492
Fax:+86 592-5222813
http://www.yifanwireless.com
Limited.
Zip Code: 361000
Page
Total:80

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Yifan R100 Series

Summary of Contents for Yifan R100 Series

  • Page 1 Page R100 Series Industrial Router V1.0.1 User Manual Product Name：R100 Series Total:80 User Manual R100 Series 2G/3G/4G Cellular Router 1x WAN, 4 x LAN, 1 x RS232/RS485 Model No. Description 4G Industrial Router R100-L 4G Industrial Router R100-L/L Yifan Industry Limited.
  • Page 2 R100 Series Industrial Router User Manual Files Revised Record Date Version Remark Author 2016.05.24 V1.0.0 Initial version Cm.chen/WT 2021.07.1 V1.0.1 Cm.chen/WT...
  • Page 3 R100 Series Industrial Router User Manual...

  • Page 4: Table Of Contents

    R100 Series Industrial Router User Manual Chapter 1 Brief Introduction of Product ................... 6 1.1 General ..........................6 1.2 Features and Benefits ....................... 7 1.3 Working Principle ......................8 1.4 Specifications ........................8 Chapter 2 Installation Introduction ....................12 2.1 General ........................... 12 2.2 Encasement List ......................
  • Page 5 R100 Series Industrial Router User Manual 3.3.1.1 Port Forwarding ..................55 3.3.1.2 Port Range Forward ..................56 3.3.1.3 DMZ ......................57 3.3.8 QoS Setting ......................57 3.3.8.1 Basic ......................57 3.3.8.2 Classify ......................58 3.3.9 Applications ......................58 3.3.2.1 Serial Applications ..................58 3.3.2.2 GPS Settings....................

  • Page 6: Chapter 1 Brief Introduction Of Product

    Chapter 1 Brief Introduction of Product 1.1 General Yifan Industrial Router R100 series is an intelligent 3G/4G Router to provide the necessary M2M applications for all types of terminals. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It...

  • Page 7: Features And Benefits

    R100 Series Router User Manual 1.2 Features and Benefits Design for Industrial Application  High-powered industrial cellular module  High-powered industrial 32bits CPU  Adapt dual SIM design to ensure the stable and reliable of the router  Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional) ...

  • Page 8: Working Principle

     Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc  Schedule Reboot, Schedule Online and Offline,etc  Supports Yifan Cloud Platform (Centralized M2M management platform, to remote monitor, remote configure, update firmware etc.). 1.3 Working Principle...
  • Page 9 R100 Series Router User Manual FDD-LTE FDD-LTE: <23dBm <-93.3 dBm Band1/3/5/7/8/20/28, 150Mbps(DL), 50Mbps(UL) B1/2/3/4/5/7/8/28(Optional) HSPA+: B2/4/5/12/13/17/66/71(Optional) 42Mbps(DL),5.76Mbps(UL) TDD-LTE HSUPA: 5.76Mbps(UL) Band38/40/41 HSDPA: 7.2Mbps(DL) DC-HSPA+/HSPA+/HSDPA/HSUPA/W UMTS: CDMA/UMTS 384Kbps(DL), 384Kbps(UL) 2100/1900/900/850MHz EDGE/GPRS/GSM 850/900/1800/1900MHz WIFI Specification Item Content Standard IEEE802.11b/g/n Bandwidth IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max)
  • Page 10 R100 Series Router User Manual Input ON Voltage: 5 to 30 VDC Input OFF Voltage: 0 to 3 VDC Output < 50mA @ 30VDC Relay:1A 250VAC/30VDC Antenna Cellular:2 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: 1 Standard SMA male interface, 50 ohm, lighting...
  • Page 11 R100 Series Router User Manual condition Schedule 2.57~4.2mA@12DVC shutdown R100-L LTE/WCDMA WIFI Router Standby 280~330mA@12VDC Communication 325~562mA@12VDC Physical Characteristics Item Content Housing Iron, providing IP30 protection Dimensions 134.8x115.7x45 mm Weight 520 g Environmental Limits Item Content Operating -35~+75º C(-31~+167℉) Temperature Storage -40~+85º...

  • Page 12: Chapter 2 Installation Introduction

    R100 Series Router User Manual Chapter 2 Installation Introduction 2.1 General The router must be installed correctly to make it work properly. Warning: Forbid to install the router when powered! 2.2 Encasement List Name Quantity Remark Router host Cellular antenna (Male SMA)
  • Page 13 R100 Series Router User Manual Router Size Installation of SIM/UIM card: 1、Firstly power off the router 2、Unscrewed the screw 3、Press the out button of the SIM/UIM card outlet with a needle object. Then the SIM/UIM card sheath will flick out at once 4、Put SIM/UIM card into the card sheath (Pay attention to put the side which has metal point...
  • Page 14 R100 Series Router User Manual Step 3 Step 4 Step 5 Installation of antenna: Screw the SMA male pin of the cellular antenna to the female SMA interface of the Router “ANT-1” and “ANT-2”. with sign Screw the SMA female pin of the WIFI antenna to the male SMA interface of the router with...
  • Page 15 R100 Series Router User Manual Warning: The cellular antenna and the WIFI antenna can not be connected wrongly. And the antennas must be screwed tightly, or the signal quality of antenna will be influenced! Installation of cable: Insert one end of the network cable into the switch interface with sign“LAN1/LAN2/LAN3/...

  • Page 16: Power

    R100 Series Router User Manual Green Transmit Data Input White/ Data Terminal Ready Input Brown Brown Request To Send Input 2.4 Power The power range of the router is DC 5~36V. Warning: When we use other power, we should make sure that the power can supply power above 8W.

  • Page 17: Reset Button Introduction

    R100 Series Router User Manual Online Router has logged on network Router hasn’t logged on network The SIM card has been identified The SIM card is not recognized The corresponding interface of switch is not connected ON / The corresponding interface of switch is connected...

  • Page 18: Chapter 3 Configuration And Management

    R100 Series Router User Manual Chapter 3 Configuration and Management This chapter describes how to configure and manage the router. 3.1 Configuration Connection Before configuration, you should connect the router and your configuration PC with the supplied network cable. Plug the cable’s one end into the Local Network port of the router, and another end into your configure PC’s Ethernet port.
  • Page 19 R100 Series Router User Manual Users need to input user name and password if it is their first time to login.

  • Page 20: Management And Configuration

    R100 Series Router User Manual Input correct user name and password to visit relevant menu page. Default user name is admin, password is admin. ( available to modify user name and password on management page, then click submit) 3.3 Management and configuration 3.3.1 Setting...
  • Page 21 R100 Series Router User Manual Static IP WAN IP Address: Users set IP address by their own or ISP assigns Subnet Mask: Users set subnet mask by their own or ISP assigns Gateway: Users set gateway by their own or ISP assigns...
  • Page 22 R100 Series Router User Manual User Name: login users' ISP(Internet Service Provider) Password: login users' ISP Dial String: dial number of users' ISP APN: access point name of users' ISP PIN: PIN code of users' SIM card Connection type Connection type: Auto, Force 3G, Force 2G, Prefer 3G, Prefer 2G options. If using 4G module, there has 4G network option.
  • Page 23 R100 Series Router User Manual is valid for method "Ping" and "Route". Note: When users choose the “Route” or “Ping” method, it’s quite important to make sure that the “Primary Detection Server IP” and “Backup Detection Server IP” are usable and stable, because they have to response the detection packet frequently.
  • Page 24 R100 Series Router User Manual Gateway: set internal gateway of the Router. If default, internal gateway is the address of the Router Local DNS: DNS server is auto assigned by network operator server. Users enable to use their own DNS server or other stable DNS servers, if not, keep it default...

  • Page 25: Dynamic Dns

    R100 Series Router User Manual Static DNS (1-3): the Domain Name System (DNS) is how the Internet translates domain or website names into Internet addresses or URLs. Users' ISP will provide them with at least one DNS Server IP address. If users wish to utilize another, enter that IP address in one of these fields.

  • Page 26: Clone Mac Address

    R100 Series Router User Manual User Name: users register in DDNS server, up to 64 characteristic Password: password for the user name that users register in DDNS server, up to 32 characteristic Host Name: users register in DDNS server, no limited for input characteristic for now Type: depends on the server Wildcard: support wildcard or not, the default is OFF.

  • Page 27: Advanced Router

    R100 Series Router User Manual Clone MAC address can clone three parts: Clone LAN MAC, Clone WAN MAC, Clone Wireless MAC. Noted that one MAC address is 48 characteristic, can not be set to the multicast address, the first byte must be even. And MAC address value of network bridge br0 is determined by the smaller value of wireless MAC address and LAN port MAC address.

  • Page 28: Vlans

    R100 Series Router User Manual Select set number: 1-50 Route Name: defined routing name by users, up to 25 characters Metric: 0-9999 Destination LAN NET: the Destination IP Address is the address of the network or host to which users want to assign a static route...

  • Page 29: Networking

    R100 Series Router User Manual VLANs function is to divide different VLAN ports by users' will. The system supports 15 VLAN port from VLAN1-VLAN15. However there is only 5 time ports (1 WAN port and 4 LAN port) divided by users themselves,and LAN port and WAN port disable to divide into one VLAN port meanwhile.
  • Page 30 R100 Series Router User Manual Bridging - Assign to Bridge: allows users to assign any valid interface to a network bridge. Consider setting the Wireless Interface options to Bridged if they want to assign any Wireless Interface here. Any system specific bridge setting can be overridden here in this field.
  • Page 31 R100 Series Router User Manual To make br1 bridge has the same function with DHCP assigned address, users need to set multiple DHCP function, see the introduction of multi-channel DHCPD: Port Setup: Set the port property, the default is not set...

  • Page 32: Wireless

    3.3.2 Wireless 3.3.2.1 Basic Settings Wireless Network：“Eanble”, radio on. “Disable”, radio off. Wireless Mode：AP, Client, Adhoc, Repeater, Repeater Bridge Yifan options。 Wireless Network Mode： Mixed：Support 802.11b, 802.11g, 802.11n wireless devices. BG-Mixed：Support 802.11b, 802.11g wireless devices. B-only：Only supports the 802.11b standard wireless devices.
  • Page 33 R100 Series Router User Manual B-only：Only supports the 802.11b standard wireless devices. G-only：Only supports the 802.11g standard wireless devices. NG-Mixed：Support 802.11g, 802.11n wireless devices. N-only：Only supports the 802.11g standard wireless devices. 8021.11n Transmission Mode：In the wireless network mode to "N-only" choose to transfer its transmission mode.

  • Page 34: Wireless Security

    Encryption：There are two levels of WEP encryption, 64-bit (40-bit) and 128-bit. To utilize WEP, select the desired encryption bit, and enter a passphrase or up to Yifan WEP key in hexadecimal format. If you are using 64-bit (40-bit), then each key must consist of exactly 10 hexadecimal...
  • Page 35 R100 Series Router User Manual characters. Valid hexadecimal characters are "0"-"9" and "A"-"F". ASCII/HEX: ASCII, the keys is 5 bit ASCII characters/13bit ASCII characters. HEX, the keys is 10bit/26 bit hex digits. Passphrase：The letters and numbers used to generate a key.

  • Page 36: Services

    R100 Series Router User Manual 3.3.3 Services 3.3.4.1 Services DHCP Server DHCPd assigns IP addresses to users local devices. While the main configuration is on the setup page users can program some nifty special functions here. Use NVRAM for client lease DB: users can store data to the system NVRAM area is enabled Used domain: users can select here which domain the DHCP clients should get as their local domain.
  • Page 37 R100 Series Router User Manual Local DNS: enables DHCP clients on the LAN to resolve static and dynamic DHCP hostnames No DNS Rebind: when enabled, it can prevent an external attacker to access the Router's internal Web interface. It is a security measure Additional DNSMasq Options: some extra options users can set by entering them in Additional DNS Options.
  • Page 38 R100 Series Router User Manual SSH TCP Forwarding: enable or disable to support the TCP forwarding admin Password Login: allows login with the Router password (username is Port: port number for SSHd (default is 22) Authorized Keys: here users paste their public keys to enable key-based login (more secure than...

  • Page 39: Vpn

    R100 Series Router User Manual 3.3.4 VPN 3.3.6.1 PPTP PPTP Server Broadcast support: enable or disable broadcast support of PPTP server Force MPPE Encryption: enable of disable force MPPE encryption of PPTP data DNS1/DNS2/WINS1/WINS2: set DNS1/DNS2/WINS1/WINS2 Server IP: input IP address of the Router as PPTP server, differ from LAN address Client IP(s): IP address assigns to the client, the format is xxx.xxx.xxx.xxx-xxx...

  • Page 40: L2Tp

    R100 Series Router User Manual Server IP or DNS Name: PPTP server’s IP Address or DNS Name Remote Subnet: the network of the remote PPTP server Remote Subnet Mask: subnet mask of remote PPTP server MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption。...

  • Page 41: Openvpn

    R100 Series Router User Manual L2TP Client Gateway(L2TP Server): L2TP server’s IP Address or DNS Name Remote Subnet: the network of remote PPTP server Remote Subnet Mask: subnet mask of remote PPTP server MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption...
  • Page 42 R100 Series Router User Manual Network: network address allowed by OPENVPN server Netmask: netmask allowed by OPENVPN server Bridge (TAP): DHCP-Proxy mode: enable or disable DHCP-Proxy mode Pool start IP: pool start IP of the client allowed by OPENVPN server...
  • Page 43 R100 Series Router User Manual Use LZO Compression: enable or disable use LZO compression for data transfer Redirect default Gateway: enable or disable redirect default gateway Allow Client to Client: enable or disable allow client to client Allow duplicate cn: enable or disable allow duplicate cn...
  • Page 44 R100 Series Router User Manual TLS Auth Key: authority key of Transport Layer Security Certificate Revoke List: configure some revoke certificates OPENVPN Client Server IP/Name: IP address or domain name of OPENVPN server Port: listen port of OPENVPN client Tunnel Device: TUN----Router mode, TAP----Bridge mode Tunnel Protocol: UDP and TCP protocol Encryption Cipher: Blowfish CBC，AES-128 CBC，AES-192 CBC，AES-256 CBC，AES-512...

  • Page 45: Ipsec

    R100 Series Router User Manual Bridge TAP to br0: enable or disable bridge TAP to br0 Local IP Address: set IP address of local OPENVPN client TUN MTU Setting: set MTU value of the tunnel TCP MSS: mss of TCP data...
  • Page 46 R100 Series Router User Manual Reconnect: this action will remove current tunnel, and re-launch tunnel establish request Enable: when the connection is enable, it will launch tunnel establish request when the system reboot or reconnect, otherwise the connection will not do it...

  • Page 47: Gre

    R100 Series Router User Manual Action: set the action of connect detection Advanced Settings: this part contains relevant setting of IKE, ESP, negotiation mode, etc. Enable Advanced Settings: enable to configure 1 and 2 phase information, otherwise it will automic negotiation according to opposite end...
  • Page 48 R100 Series Router User Manual GRE Tunnel: enable or disable GRE function Number：Switch on/off GRE tunnel app Status：Switch on/off someone GRE tunnel app Name：GRE tunnel name Through：The GRE packet transmit interface Peer Wan IP Addr：The remote WAN address Peer Subnet：The remote gateway local subnet, eg: 192.168.1.0/24 Peer Tunnel IP：The remote tunnel ip address...

  • Page 49: Security

    R100 Series Router User Manual 3.3.5 Security 3.3.5.1 Firewall You can enable or disable the firewall, filter specific Internet data types,and prevent anonymous Internet requests,ultimately enhance network security. Firewall Protection Firewall enhance network security and use SPI to check the packets into the network.To use firewall protection, choose to enable otherwise disabled.
  • Page 50 R100 Series Router User Manual outside. Click the check box to enable the function otherwise disabled. Block WAN SNMP access: This feature prevents the SNMP connection requests from the WAN. After Complete the changes, click the Save Settings button to save your changes. Click the Cancel Changes button to cancel unsaved changes.

  • Page 51: Access Restrictions

    R100 Series Router User Manual Incoming Log: To see a temporary log of the Router's most recent incoming traffic, click the Incoming Log button. Outgoing Log: To see a temporary log of the Router's most recent outgoing traffic, click the Outgoing Log button.
  • Page 52 R100 Series Router User Manual "filter"，It will block specific computers to access the specific sites at a specific time period. You can set up 10 Internet access policies filtering specific PCs access Internet services at a particular time period. Access Policy: You may define up to 10 access policies. Click Delete to delete a policy or Summary to see a summary of the policy.
  • Page 53 R100 Series Router User Manual set up Internet access policy 1. Select the policy number (1-10) in the drop-down menu. 2. For this policy is enabled, click the radio button next to "Enable" 3. Enter a name in the Policy Name field.

  • Page 54: Url Filter

    R100 Series Router User Manual 11. To create or edit additional policies, repeat steps 1-9. 12. To delete an Internet Access Policy, select the policy number, and click the Delete button. Note: 3.3.3.1 The default factory value of policy rules is "filtered". If the user chooses the default policy rules for "refuse", and editing strategies to save or directly to save the settings.

  • Page 55: Nat

    Source IP: packet's source IP address Destination IP: packet's destination IP address Note: "Source Port" ,"Destination Port" ,"Source IP" ,"Destination IP" could not be all empty ,you have to input at least one of these Yifan parameters. 3.3.7 3.3.1.1 Port Forwarding Port Forwarding allows you to set up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications.

  • Page 56: Port Range Forward

    R100 Series Router User Manual applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. When users send this type of request to your network via the Internet, the Router will forward those requests to the appropriate PC. If you want to forward a whole range of ports, see Port Range Forwarding.

  • Page 57: Dmz

    R100 Series Router User Manual Enable: Click the Enable checkbox to enable port forwarding for the application. Check all values and click Save Settings to save your settings. Click the Cancel changes button to cancel your unsaved changes. 3.3.1.3 The DMZ (DeMilitarized Zone) hosting feature allows one local user to be exposed to the Internet for use of a special-purpose service such as Internet gaming or videoconferencing.

  • Page 58: Classify

    R100 Series Router User Manual Uplink (kbps)：In order to use bandwidth management (QoS) you must enter bandwidth values for your uplink. These are generally 80% to 90% of your maximum bandwidth. Downlink (kbps)： In order to use bandwidth management (QoS) you must enter bandwidth values for your downlink.
  • Page 59 R100 Series Router User Manual the serial port is encapsulated by TCP/IP protocol stack and then is sent to the destination server. This function can work as a DTU (Data Terminal Unit). Baudrate: Baud rate indicates the number of bytes per second transported by device, commonly used baud rate is115200, 57600, 38400, 19200.

  • Page 60: Gps Settings

    R100 Series Router User Manual TCP Server Listen Port: This item is valid when Protocol Type is “TCP Server” Custom Heartbeat Packet : This item is valid when Protocol Type is “TCST” Custom Registration Packets: This item is valid when Protocol Type is “TCST”...

  • Page 61: Administration

    R100 Series Router User Manual 3.3.10 Administration 3.3.10.1 Management The Management screen allows you to change the Router's settings. On this page you will find most of the configurable items of the Router code. The new password must not exceed 32 characters in length and must not include any spaces.
  • Page 62 R100 Series Router User Manual Remote Access：This feature allows you to manage the Router from a remote location, via the Internet. To disable this feature, keep the default setting, Disable. To enable this feature, select Enable, and use the specified port (default is 8080) on your PC to remotely manage the Router.

  • Page 63: Keep Alive

    R100 Series Router User Manual Remote Upgrade: custom-developed remote management server for this station Router monitoring and management, configuration parameters, WIFI advertising updates. 3.3.10.2 Keep Alive Schedule Boot&Shutdown The user can set the startup or shutdown time: For example,the user want to set the start time at 8:07 and boot time at 9:07.

  • Page 64: Commands

    R100 Series Router User Manual You can schedule regular reboots for the Router : Regularly after xxx seconds. At a specific date time each week or everyday. Note： For date based reboots Cron must be activated. See Management for Cron activation.

  • Page 65: Firmware Upgrade

    R100 Series Router User Manual Reset Router settings：Click the Yes button to reset all configuration settings to their default values. Then click the Apply Settings button. Note： Any settings you have saved will be lost when the default settings are restored. After restoring the Router is accessible under the default IP address 192.168.1.1 and the default...

  • Page 66: Status

    R100 Series Router User Manual Backup Settings： You may backup your current configuration in case you need to reset the Router back to its factory default settings.Click the Backup button to backup your current configuration. Restore Settings：Click the Browse... button to browse for a configuration file that is currently saved on your PC.Click the Restore button to overwrite all current configurations with the ones in...
  • Page 67 R100 Series Router User Manual MAC Address: MAC address of WAN, settingClone MAC Address to modify Host Name: host name of the Router, settingbasic setting to modify WAN Domain Name: domain name of WAN, settingbasic setting to modify LAN Domain Name: domain name of LAN, unavailable to modify...

  • Page 68: Wan

    R100 Series Router User Manual Active IP Connections: total active IP connections Protocol: connection protocol Timeouts: connection timeouts, unit is second Source Address: source IP address Remote Address: remote IP address Service Name: connecting service port Status: displayed status 3.3.11.2 WAN...
  • Page 69 R100 Series Router User Manual IP Address: IP address of Router WAN Subnet Mask: subnet mask of Router WAN Gateway: the gateway of Router WAN DNS1, DNS2, DNS3: DNS1/DNS2/DNS3 of Router WAN Remaining Lease Time: remaining lease time of IP address in DHCP way...

  • Page 70: Lan

    R100 Series Router User Manual Total Flow: flow from power-off last time until now statistics, download and upload direction Monthly Flow: the flow of a month, unit is MB Last Month: the flow of last month Next Month: the flow of next month...
  • Page 71 R100 Series Router User Manual MAC Address: MAC Address of the LAN port ethernet IP Address: IP Address of the LAN port Subnet Mask: Subnet Mask of the LAN port Gateway: Gateway of the LAN port Local DNS: DNS of the LAN port...

  • Page 72: Wireless

    R100 Series Router User Manual User Name: user name of PPPoE client Local IP: IP address assigned by PPPoE client Delete: click to delete PPPoE client Interface: the interface assigned by dial-up system Local IP: tunnel IP address of local L2TP...
  • Page 73 R100 Series Router User Manual MAC Address: MAC address of wireless client Radio: display whether radio is on or not Mode: wireless mode Network: wireless network mode SSID: wireless network name Channel: wireless network channel TX Power: reflection power of wireless network...

  • Page 74: Bandwidth

    R100 Series Router User Manual SNR: the signal to noise ratio of wireless client Signal Quality: signal quality of wireless client Neighbor's Wireless Network: display other networks nearby SSID: the name of wireless network nearby Mode: operating mode of wireless network nearby...
  • Page 75 R100 Series Router User Manual Bandwidth Monitoring-WAN Graph abscissa axis: time vertical axis: speed rate Bandwidth Monitoring-Wireless (W10) Graph abscissa axis: time vertical axis: speed rate...

  • Page 76: Sys-Info

    R100 Series Router User Manual 3.3.11.6 Sys-Info Router Name: the name of the Router Router Model: the model of the Router LAN MAC: MAC address of LAN port WAN MAC: MAC address of WAN port Wireless MAC: MAC address of the wireless...
  • Page 77 R100 Series Router User Manual Received (RX): received data packet Transmitted (TX): transmitted data packet MAC Address: MAC address of wireless client Interface: interface of wireless client Uptime: connecting uptime of wireless client TX Rate: transmit rate of wireless client...
  • Page 78 R100 Series Router User Manual Free: free memory, the Router will reboot if the memory is less than 500kB Used: used memory, total available memory minus free memory Buffers: used memory for buffers, total available memory minus allocated memory Cached: the memory used by high-speed cache memory...

  • Page 79: Appendix

    R100 Series Router User Manual Appendix The following steps describe how to setup Windows XP Hyper Terminal. 1. Press “Start””Programs””Accessories””Communications””Hyper Terminal” 2. Input connection name, choose “OK” 3. Choose the correct COM port which connects to modem, choose “OK” 4. Configure the serial port parameters as following, choose “OK”...
  • Page 80 R100 Series Router User Manual Flow control: None 5. Complete Hyper Terminal operation, It runs as following Note: If the user is using the win7 system, you can download a win7 super terminal on the internet. Universal serial interface or other similar software.
  • Page 81 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation.
