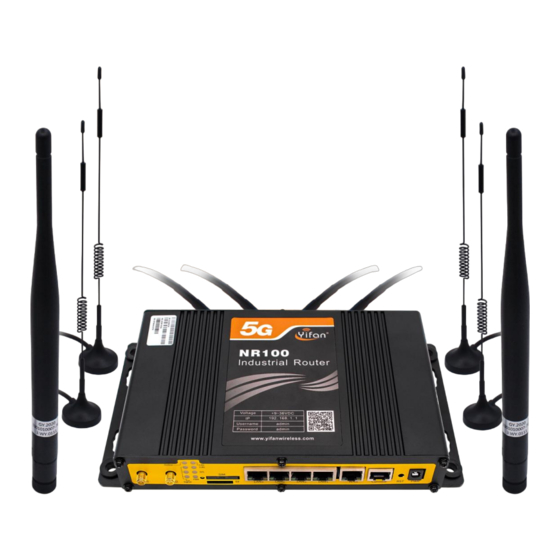

NR100 5G Router
Product Version
class
User Manual
V1.0.4
Product name：NR100
Page： 80
NR100 5G Router User Manual
Xiamen Yifan Communicaton Technology Co., Ltd
.
Add：Floor 14th, A06 Building, No. 370, ChengYi Street,
Jimei District, XiaMen, China
Zip Code: 361000
Tel：+86 592-6101492
Fax:+86 592-5222813
http://www.yifanwireless.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NR100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yifan NR100

Summary of Contents for Yifan NR100

  • Page 1 Product Version class User Manual V1.0.4 Product name：NR100 Page： 80 NR100 5G Router User Manual Xiamen Yifan Communicaton Technology Co., Ltd Add：Floor 14th, A06 Building, No. 370, ChengYi Street, Jimei District, XiaMen, China Zip Code: 361000 Tel：+86 592-6101492 Fax:+86 592-5222813...
  • Page 2 NR100 5G Router User Manual Version History Date Version Content 2020-4-17 V1.0.0 First Version 2020-4-20 V1.0.1 Modify picture 2020-4-29 V1.0.2 Delete Duplicate content 2020-4-29 V1.0.3 Modify Package Content Fish_yan 2020-09-18 V1.0.4 Xiamen Yifan Communication Technology Co.,Ltd. Page 2 of 80 Add: Floor 14,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China,361021.
  • Page 3 NR100 5G Router User Manual Xiamen Yifan Communication Technology Co.,Ltd. Page 3 of 80 Add: Floor 14,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China,361021. Web:www.yifanwireless.com Tel：0592-6101492 Fax：0592-5222813...

  • Page 4: Table Of Contents

    NR100 5G Router User Manual Content Chapter 1 Product Introduction ..................6 Chapter 2 Installation ....................8 2.4 Power supply ......................12 2.5 Indicators ......................12 2.6 Reset Button ......................12 Chapter 3 Configuration and Management ............... 13 3.1 Configuration Connection .................. 13 3.2 Access the Configuration Web Page ..............
  • Page 5 NR100 5G Router User Manual 3.3.8 QoS Setting ....................56 3.3.8.1 Basic ....................56 3.3.8.2 Classify .................... 57 3.3.9 Applications ....................58 3.3.9.1 Serial Applications ................58 3.3.10 Administration ................... 59 3.3.10.1 Management .................. 59 3.3.10.2 Keep Alive ..................61 3.3.10.3 Commands ..................

  • Page 6: Chapter 1 Product Introduction

    NR100 5G Router User Manual Chapter 1 Product Introduction 1.1 Product overview NR100 is a wireless communication router for the Internet of Things, which uses public 3G/4G/5G networks to provide users with wireless long-distance big data transmission functions. The product adopts high-performance industrial-grade 32-bit communication processor...
  • Page 7 NR100 5G Router User Manual 1.2 Block diagram of working principle Xiamen Yifan Communication Technology Co.,Ltd. Page 7 of 80 Add: Floor 14,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China,361021. Web:www.yifanwireless.com Tel：0592-6101492 Fax：0592-5222813...

  • Page 8: Chapter 2 Installation

    NR100 5G Router User Manual Chapter 2 Installation 2.1 Overview 5G routers must be installed correctly to achieve the designed functions. Usually the installation of the equipment must be carried out under the guidance of qualified engineers approved by the company.
  • Page 9 NR100 5G Router User Manual 2.3 Installation and cable connection Size(mm)： Antenna installation: The 5G antenna interface is an SMA female socket. Screw the SMA male of the matching wireless cellular antenna to the antenna interface and make sure to tighten it. In order to increase the isolation of the 5G antenna, try to keep the antenna at an angle of 30 degrees to enhance Signal quality.
  • Page 10 NR100 5G Router User Manual The WIFI antenna interface is an SMA male socket. Screw the SMA female of the matching WIFI antenna to the antenna interface and make sure to tighten it. In addition, to increase the isolation of the wifi antenna, it is recommended that the two wifi are placed at a 90 degree angle.
  • Page 11 NR100 5G Router User Manual Connect Console cable： Plug the RJ45 end of the Console line into the Console interface (RS232) of the Router, and plug the DB9 end into the RS232 serial interface of the user device. The signal...

  • Page 12: Power Supply

    NR100 5G Router User Manual 2.4 Power supply 5G routers are usually used in complex external environments. In order to adapt to the complex application environment and improve the stability of the system, the router adopts advanced power supply technology. Users can use the standard 12VDC/1.5A power adapter to power the 5G router, or directly use the DC 9~36V power supply to power the router.

  • Page 13: Chapter 3 Configuration And Management

    NR100 5G Router User Manual restore the parameter configuration of the 5G router to factory values. Methods as below: Power on device, let it running for 30 seconds, use a pen keep pressing the reset button for about 15 seconds, until all led turn off, the device will restart and reset to factory.

  • Page 14: Access The Configuration Web Page

    NR100 5G Router User Manual 3.2 Access the Configuration Web Page The chapter is to present main functions of each page. Users visit page tool via web browser after connect users' PC to the Router. There are eleven main pages: Setting, Wireless, Service, VPN, Security, Access Restrictions, NAT, QoS Setting, Applications, Management and Status.

  • Page 15: Management And Configuration

    NR100 5G Router User Manual Users need to input user name and password if it is their first time to login. Input correct user name and password to visit relevant menu page. Default user name is admin, password is admin. (available to modify user name and password on management page, then click submit) 3.3 Management and configuration...
  • Page 16 NR100 5G Router User Manual Disabled Forbid the setting of WAN port connection type Static IP WAN IP Address: Users set IP address by their own or ISP assigns Subnet Mask: Users set subnet mask by their own or ISP assigns...
  • Page 17 NR100 5G Router User Manual User Name: login users' ISP(Internet Service Provider) Password: login users' ISP Dial String: dial number of users' ISP APN: access point name of users' ISP PIN: PIN code of users' SIM card Connection type Connection type: Auto, Force 3G, Force 2G, Prefer 3G, Prefer 2G options. If using 4G module, there has 4G network option.
  • Page 18 NR100 5G Router User Manual Detection Method: None: do not set this function Ping: Send ping packet to detect the connection, when choose this method, users should also configure "Detection Interval", "Primary Detection Server IP" and "Backup Detection Server IP" items.
  • Page 19 NR100 5G Router User Manual Router Name: set Router name Host Name: ISP provides Domain Name: ISP provides MTU: auto (1500) and manual (1200-1492 in PPPOE/PPTP/L2TP mode, 576-16320 in other modes) Router Internal Network Settings Router IP Local IP Address: IP address of the Router Subnet Mask: the subnet mask of the Router Gateway: set internal gateway of the Router.
  • Page 20 NR100 5G Router User Manual DHCP Type: DHCP Server and DHCP Forwarder Enter DHCP Server if set DHCP Type to DHCP Forwarder as blow: DHCP Server: keep the default Enable to enable the Router's DHCP server option. If users have already have a DHCP server on their network or users do not want a DHCP...

  • Page 21: Dynamic Dns

    NR100 5G Router User Manual one of these fields. Users can enter up to three DNS Server IP addresses here. The Router will utilize them for quicker access to functioning DNS servers. WINS: the Windows Internet Naming Service (WINS) manages each PC's interaction with the Internet.
  • Page 22 NR100 5G Router User Manual forward traffic directed at their domain to their frequently-changing IP address. DDNS Service: Router currently support DynDNS, freedns, Zoneedit, NO-IP, 3322, easyDNS, TZO, DynSIP and Custom based on the user. User Name: users register in DDNS server, up to 64 characteristic...

  • Page 23: Clone Mac Address

    NR100 5G Router User Manual 3.3.1.3 Clone MAC Address Some ISP need the users to register their MAC address. The users can clone the Router MAC address to their MAC address registered in ISP if they do not want to re-register their...

  • Page 24: Vlans

    NR100 5G Router User Manual the WAN and LAN, select Both. To disable the Dynamic Routing feature for all data transmissions, keep the default setting, Disable. Note：Dynamic Routing is not available in Gateway mode Static Routing Select set number: 1-50...

  • Page 25: Networking

    NR100 5G Router User Manual VLANs function is to divide different VLAN ports by users' will. The system supports 15 VLAN port from VLAN1-VLAN15. However there is only 5 time ports (1 WAN port and 4 LAN port) divided by users themselves,and LAN port and WAN port disable to divide into one VLAN port meanwhile.
  • Page 26 NR100 5G Router User Manual Bridging-Create Bridge: creates a new empty network bridge for later use. STP means Spanning Tree Protocol and with PRIO users are able to set the bridge priority order. The lowest number has the highest priority.
  • Page 27 NR100 5G Router User Manual function is basically used for LAN port, and should not be binding with WAN port If bind success, bridge binding list in the list of current bridging table is as below: To make br1 bridge has the same function with DHCP assigned address, users need...

  • Page 28: Wireless

    NR100 5G Router User Manual Multiple DHCPD: using multiple DHCP service. Click 'Add' in multiple DHCP server to appear relevant configuration. The first means the name of port or bridge (do not be configured as eth0), the second means whether to on DHCP. Start means start...
  • Page 29 NR100 5G Router User Manual Wireless Network：“Eanble”, radio on. “Disable”, radio off. Wireless Mode：AP, Client, Adhoc, Repeater, Repeater Bridge four options。 Wireless Network Mode： Mixed：Support 802.11b, 802.11g, 802.11n wireless devices. BG-Mixed：Support 802.11b, 802.11g wireless devices. B-only：Only supports the 802.11b standard wireless devices.
  • Page 30 NR100 5G Router User Manual Wireless Network Name(SSID): The SSID is the network name shared among all devices in a wireless network. The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 alphanumeric characters, which may be any keyboard character.

  • Page 31: Wireless Security

    NR100 5G Router User Manual 3.3.2.2 Wireless Security Wireless security options used to configure the security of your wireless network. This route is a total of seven kinds of wireless security mode. Disabled by default, not safe mode is enabled. Such as changes in Safe Mode, click Apply to take effect immediately.
  • Page 32 NR100 5G Router User Manual ASCII/HEX: ASCII, the keys is 5 bit ASCII characters/13bit ASCII characters. HEX, the keys is 10bit/26 bit hex digits. Passphrase：The letters and numbers used to generate a key. Key1-Key4：Manually fill out or generated according to input the pass phrase.

  • Page 33: Services

    NR100 5G Router User Manual 3.3.3 Services 3.3.3.1 Services DHCP Server DHCPd assigns IP addresses to users local devices. While the main configuration is on the setup page users can program some nifty special functions here. NVRAM client lease users...
  • Page 34 NR100 5G Router User Manual Local DNS: enables DHCP clients on the LAN to resolve static and dynamic DHCP hostnames No DNS Rebind: Prevent an external attacker to access the Router's internal Web interface. It is a security measure Additional DNSMasq Options: some extra options users can set by entering them in Additional DNS Options.
  • Page 35 NR100 5G Router User Manual Enabling SSHd allows users to access the Linux OS of their Router with an SSH client SSH TCP Forwarding: enable or disable to support the TCP forwarding admin Password Login: allows login with the Router password (username is...

  • Page 36: Vpn

    NR100 5G Router User Manual WAN Traffic Counter Ttraff Daemon: enable or disable wan traffic counter function 3.3.4 VPN 3.3.4.1 PPTP PPTP Server Broadcast support: enable or disable broadcast support of PPTP server Force MPPE Encryption: enable of disable force MPPE encryption of PPTP data...

  • Page 37: L2Tp

    NR100 5G Router User Manual Server IP or DNS Name: PPTP server’s IP Address or DNS Name Remote Subnet: the network of the remote PPTP server Remote Subnet Mask: subnet mask of remote PPTP server MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption。...

  • Page 38: Openvpn

    NR100 5G Router User Manual CHAP Secrets: user name and password of the client using L2TP service Note: client IP must be different with IP assigned by Router DHCP. The format of CHAP Secrets is user * password *. L2TP Client Gateway(L2TP Server): L2TP server’s IP Address or DNS Name...
  • Page 39 NR100 5G Router User Manual Config via: GUI----Page configuration, Config File----config File configuration Server mode: Router (TUN)-route mode, Bridge (TAP)----bridge mode Router (TUN): Network: network address allowed by OPENVPN server Netmask: netmask allowed by OPENVPN server Bridge (TAP): DHCP-Proxy mode: enable or disable DHCP-Proxy mode...
  • Page 40 NR100 5G Router User Manual Use LZO Compression: enable or disable use LZO compression for data transfer Redirect default Gateway: enable or disable redirect default gateway Allow Client to Client: enable or disable allow client to client Allow duplicate cn: enable or disable allow duplicate cn...
  • Page 41 NR100 5G Router User Manual Additional Config: additional configurations of the server CCD-Dir DEFAULT file: other file approaches TLS Auth Key: authority key of Transport Layer Security Certificate Revoke List: configure some revoke certificates OPENVPN Client Server IP/Name: IP address or domain name of OPENVPN server...
  • Page 42 NR100 5G Router User Manual nsCertType verification: support ns certificate type Use LZO Compression: enable or disable use LZO compression for data transfer NAT: enable or disable NAT through function Bridge TAP to br0: enable or disable bridge TAP to br0...

  • Page 43: Ipsec

    NR100 5G Router User Manual Public Client Cert: client certificate Private Client Key: client key 3.3.4.4 IPSEC Connect Status and Control Show IPSEC connection and status of current Router on IPSEC page. Name: the name of IPSEC connection Type: The type and function of current IPSEC connection...
  • Page 44 NR100 5G Router User Manual Connection: this part contains basic address information of the tunnel Name: to indicate this connection name, must be unique Enabled: If enable, the connection will send tunnel connection request when it is reboot or re-connection, otherwise it is no need if disable Local WAN Interface: local addresss of the tunnel Remote Host Address: IP/domain name of end opposite;...

  • Page 45: Gre

    NR100 5G Router User Manual Enable Advanced Settings: enable to configure 1 and 2 phase information, otherwise will automic negotiation according to opposite end IKE Encryption: IKE phased encryption mode IKE Integrity: IKE phased integrity solution IKE Grouptype: DH exchange algorithm...
  • Page 46 NR100 5G Router User Manual GRE Tunnel: enable or disable GRE function Number：Switch on/off GRE tunnel app Status：Switch on/off someone GRE tunnel app Name：GRE tunnel name Through：The GRE packet transmit interface Peer Wan IP Addr：The remote WAN address Peer Subnet：The remote gateway local subnet, eg: 192.168.1.0/24 Peer Tunnel IP：The remote tunnel ip address...

  • Page 47: Security

    NR100 5G Router User Manual 3.3.5 Security 3.3.5.1 Firewall You can enable or disable the firewall, filter specific Internet data types,and prevent anonymous Internet requests,ultimately enhance network security. Firewall Protection Firewall enhance network security and use SPI to check the packets into the network.To use firewall protection, choose to enable otherwise disabled.
  • Page 48 NR100 5G Router User Manual detection of other Internet users. so that make More difficult to break into your network. The default state of this feature is enabled ,choose to disable allow anonymous Internet requests. Filter IDENT (Port 113): Enable this feature can prevent port 113 from being scaned from outside.

  • Page 49: Access Restrictions

    NR100 5G Router User Manual Log Level: Set this to the required log level. Set Log Level higher to log more actions. Options: When select Enable, the corresponding connection will be recorded in the journal, the disabled are not recorded.
  • Page 50 NR100 5G Router User Manual Use access restrictions, you can block or allow specific types of Internet applications. You can set specific PC-based Internet access policies. This feature allows you to customize up to ten different Internet Access Policies for particular PCs, which are identified by their IP or MAC addresses.
  • Page 51 NR100 5G Router User Manual Website Blocking by URL Address: You can block access to certain websites by entering their URL. Website Blocking by Keyword: You can block access to certain website by the keywords contained in their webpage Xiamen Yifan Communication Technology Co.,Ltd.

  • Page 52: Url Filter

    NR100 5G Router User Manual set up Internet access policy Select the policy number (1-10) in the drop-down menu. For this policy is enabled, click the radio button next to "Enable" Enter a name in the Policy Name field. Click the Edit List of PCs button.

  • Page 53: Packet Filter

    NR100 5G Router User Manual only discard the matching URL Discard packets conform to the following rules: address in the list . receive only with Accept only the data packets conform to the following rules: custom rules of network address, discarded all other URL address.

  • Page 54: Nat

    NR100 5G Router User Manual Direction input: packet from WAN to LAN output: packet from LAN to WAN Protocol: packet protocol type Source Ports: packet's source port Destination Ports: packet's destination port Source IP: packet's source IP address Destination IP: packet's destination IP address Note: "Source Port"...

  • Page 55: Port Range Forward

    NR100 5G Router User Manual Application: Enter the name of the application in the field provided. Protocol: Chose the right protocol TCP,UDP or Both. Set this to what the application requires. Source Net: Forward only if sender matches this ip/net (example 192.168.1.0/24).

  • Page 56: Dmz

    NR100 5G Router User Manual requires. IP Address: Enter the IP Address of the PC running the application. Enable: Click the Enable checkbox to enable port forwarding for the application. Check all values and click Save Settings to save your settings. Click the Cancel changes button to cancel your unsaved changes.

  • Page 57: Classify

    NR100 5G Router User Manual Uplink (kbps)：In order to use bandwidth management (QoS) you must enter bandwidth values for your uplink. These are generally 80% to 90% of your maximum bandwidth. Downlink (kbps) ： In order to use bandwidth management (QoS) you must enter bandwidth values for your downlink.

  • Page 58: Applications

    NR100 5G Router User Manual 3.3.9 Applications 3.3.9.1 Serial Applications There is a console port on Router. Normally, this port is used to debug the Router. This port can also be used as a serial port. The Router has embedded a serial to TCP program.

  • Page 59: Administration

    NR100 5G Router User Manual TCP(DTU) -- Data transmit with TCP protocol , work as a IP MODEM device which has application protocol and hear beat mechanism. Pure TCP -- Data transmit with standard TCP protocol, Router is the client.
  • Page 60 NR100 5G Router User Manual also activate or not the Router information web page. It's now possible to password protect this page (same username and password than above). Protocol： This feature allows you to manage the Router using either HTTP protocol or the HTTPS protocol Auto-Refresh：Adjusts the Web GUI automatic refresh interval.

  • Page 61: Keep Alive

    NR100 5G Router User Manual Cron：The cron subsystem schedules execution of Linux commands. You'll need to use the command line or startup scripts to actually use this. Language：Set up the Router page shows the type of language, including simplified Chinese and English.

  • Page 62: Commands

    NR100 5G Router User Manual The user can set the startup or shutdown time: For example,the user want to set the start time at 8:07 and boot time at 9:07. Schedule Reboot You can schedule regular reboots for the Router : Regularly after xxx seconds.

  • Page 63: Factory Defaults

    NR100 5G Router User Manual Run Command：You can run command lines via the web interface. Fill the text area with your command and click Run Commands to submit. Startup：You can save some command lines to be executed at startup's Router. Fill the text area with commands (only one command by row) and click Save Startup.

  • Page 64: Backup

    NR100 5G Router User Manual Firmware Upgrade：New firmware versions are posted at www..com and can be downloaded. If the Router is not experiencing difficulties, then there is no need to download a more recent firmware version, unless that version has a new feature that you want to use.

  • Page 65: Status

    NR100 5G Router User Manual current configuration. Restore Settings：Click the Browse... button to browse for a configuration file that is currently saved on your PC.Click the Restore button to overwrite all current configurations with the ones in the configuration file.
  • Page 66 NR100 5G Router User Manual Total Available: the room for total available of RAM (that is physical memory minus some reserve and the kernel of binary code bytes) Free: free memory, the Router will reboot if the memory is less than 500kB...

  • Page 67: Wan

    NR100 5G Router User Manual Active IP Connections: total active IP connections Protocol: connection protocol Timeouts: connection timeouts, unit is second Source Address: source IP address Remote Address: remote IP address Service Name: connecting service port Status: displayed status 3.3.11.2 WAN...
  • Page 68 NR100 5G Router User Manual IP Address: IP address of Router WAN Subnet Mask: subnet mask of Router WAN Gateway: the gateway of Router WAN DNS1, DNS2, DNS3: DNS1/DNS2/DNS3 of Router WAN Remaining Lease Time: remaining lease time of IP address in DHCP way...

  • Page 69: Lan

    NR100 5G Router User Manual Total Flow: flow from power-off last time until now statistics, download and upload direction Monthly Flow: the flow of a month, unit is MB Last Month: the flow of last month Next Month: the flow of next month...
  • Page 70 NR100 5G Router User Manual MAC Address: MAC Address of the LAN port ethernet IP Address: IP Address of the LAN port Subnet Mask: Subnet Mask of the LAN port Gateway: Gateway of the LAN port Local DNS: DNS of the LAN port...
  • Page 71 NR100 5G Router User Manual Host Name: host name of LAN client IP Address: IP address of the client MAC Address: MAC address of the client Expires: the expiry the client rents the IP address Delete: click to delete DHCP client...

  • Page 72: Wireless

    NR100 5G Router User Manual Interface: the interface assigned by dial-up system Local IP: tunnel IP address of local PPTP Remote IP: tunnel IP address of PPTP server Delete: click to disconnect PPTP Interface: the interface assigned by dial-up system...
  • Page 73 NR100 5G Router User Manual Received (RX): received data packet Transmitted (TX): transmitted data packet MAC Address: MAC address of wireless client Interface: interface of wireless client Uptime: connecting uptime of wireless client TX Rate: transmit rate of wireless client...

  • Page 74: Bandwidth

    NR100 5G Router User Manual Join Site: click to join wireless network nearby 3.3.11.5 Bandwidth Bandwidth Monitoring-LAN Graph abscissa axis: time vertical axis: speed rate Bandwidth Monitoring-WAN Graph abscissa axis: time vertical axis: speed rate Xiamen Yifan Communication Technology Co.,Ltd.

  • Page 75: Sys-Info

    NR100 5G Router User Manual Bandwidth Monitoring-Wireless (W10) Graph abscissa axis: time vertical axis: speed rate 3.3.11.6 Sys-Info Router Name: the name of the Router Router Model: the model of the Router LAN MAC: MAC address of LAN port WAN MAC: MAC address of WAN port...
  • Page 76 NR100 5G Router User Manual Radio: display whether radio is on or not Mode: wireless mode Network: wireless network mode SSID: wireless network name Channel: wireless network channel TX Power: reflection power of wireless network Rate: reflection rate of wireless network...
  • Page 77 NR100 5G Router User Manual DHCP Server: enabled or disabled ff-radauth: enabled or disabled USB Support: enabled or disabled Total Available: the room for total available of RAM (that is physical memory minus some reserve and the kernel of binary code bytes)

  • Page 78: Appendix

    NR100 5G Router User Manual Appendix The following steps describe how to setup Windows XP Hyper Terminal. 3.3.2.1 Press “Start””Programs””Accessories””Communications””Hyper Terminal” 3.3.2.2 Input connection name, choose “OK” 3.3.2.3 Choose the correct COM port which connects to modem, choose “OK” 3.3.2.4 Configure the serial port parameters as following, choose “OK”...
  • Page 79 NR100 5G Router User Manual Bits per second: 115200 Data bits: 8 Parity: None Stop bits: 1 Flow control: None 3.3.2.5 Complete Hyper Terminal operation, It runs as following Xiamen Yifan Communication Technology Co.,Ltd. Page 79 of 80 Add: Floor 14,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China,361021.
  • Page 80 NR100 5G Router User Manual Note: If the user is using the win7 system, you can download a win7 super terminal on the internet. Universal serial interface or other similar software. Xiamen Yifan Communication Technology Co.,Ltd. Page 80 of 80 Add: Floor 14,A06 building, No.370,Chengyi Street,Jimei District, Xiamen,China,361021.
