Yifan NR120 User Manual
  1. Manuals
  2. Brands
  3. Yifan Manuals
  4. Network Router
  5. NR120
  6. User manual

Yifan NR120 User Manual

5g industrial router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NR120
Version
Class
User Manual
V1.0.0
Device name：NR120

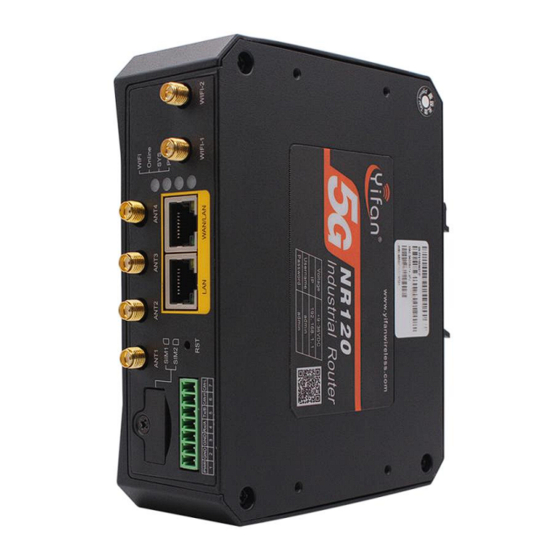

NR120 5G Industrial Router
User Manual
Xiamen Yifan Communicaton Technology Co., Ltd
.
Add：Floor 14th, A06 Building, No. 370, ChengYi Street,
Jimei District, XiaMen, China
Zip Code: 361000
Tel：+86 592-6101492
Fax:+86 592-5222813
http://www.yifanwireless.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NR120 and is the answer not in the manual?

Questions and answers

Related Manuals for Yifan NR120

Summary of Contents for Yifan NR120

  • Page 1 NR120 Version Class User Manual V1.0.0 Device name：NR120 NR120 5G Industrial Router User Manual Xiamen Yifan Communicaton Technology Co., Ltd Add：Floor 14th, A06 Building, No. 370, ChengYi Street, Jimei District, XiaMen, China Zip Code: 361000 Tel：+86 592-6101492 Fax:+86 592-5222813 http://www.yifanwireless.com...
  • Page 2 NR120 5G Router User Manual Document revision history Date Version Content Auther 2020-12-30 V1.0.0 First version...
  • Page 3 All contents in the files are protected by copyright law, and all copyrights are reserved by Xiamen Yifan Communication Technology Co., Ltd. Without written permission, all commercial use of the files from Yifan are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose,...
  • Page 4 NR120 5G Router User Manual Note: There may be differences in accessories and interfaces of different models, and the actual product shall prevail.

  • Page 5: Table Of Contents

    NR120 5G Router User Manual Content Chapter 1 Product Introduction ..................7 Chapter 2 Installation ....................... 9 2.1 Overview ........................9 2.2 Packing List ........................9 2.3 Installation and cable connection ................. 9 2.4 Power instruction ...................... 12 2.5 Indicator ........................12 2.6 Reset button description ..................
  • Page 6 NR120 5G Router User Manual 3.3.7.2 Port Range Forward ............... 55 3.3.7.3 DMZ ..................... 56 3.3.8 QoS Setting ....................57 3.3.8.1 Basic ...................... 57 3.3.8.2 Classify ....................58 3.3.9 Applications ..................... 58 3.3.9.1 Serial Applications ................58 3.3.10 Administration ..................... 60 3.3.10.1 Management ..................

  • Page 7: Chapter 1 Product Introduction

    NR120 5G Router User Manual Chapter 1 Product Introduction 1.1 Product overview NR120 is a wireless communication router for the Internet of Things, which uses public 3G/4G/5G networks to provide users with wireless long-distance big data transmission functions. The product uses high-performance industrial-grade 32-bit communication...
  • Page 8 NR120 5G Router User Manual 1.2 Block diagram of working principle The block diagram of the 5G industrial router is as follows...

  • Page 9: Chapter 2 Installation

    NR120 5G Router User Manual Chapter 2 Installation 2.1 Overview 5G industrial routers must be installed correctly to achieve the designed functions. Usually, the installation of the equipment must be carried out under the guidance of qualified engineers approved by the company.
  • Page 10 NR120 5G Router User Manual shown below The WIFI antenna interface is an SMA male socket (identified as "WIFI-1", "WIFI-2"). Screw the SMA female connector of the supporting WIFI antenna to the antenna interface, and make sure that it is tightened. In addition, it is necessary to increase the WIFI antenna.
  • Page 11 NR120 5G Router User Manual Connect the network cable： Plug one end of the direct network connection into the LAN or WAN/LAN port of the 5G industrial router, and plug the other end into the Ethernet interface of the user device. The network direct connection signal connection is as follows：...

  • Page 12: Power Instruction

    NR120 5G Router User Manual Connect the stripped end of the terminal serial cable to the 3.5mm terminal interface (GND RXD TXD) of the Router, and plug the DB9 end into the RS232 serial interface of the user device. Terminal serial line signal definition(RS232)

  • Page 13: Reset Button Description

    NR120 5G Router User Manual The 5G industrial router provides the following indicators: "PWR", "SYS", "Online", "WIFI". The description of the status of each indicator is as follows: Indicator Status Content Equipment power is normal The device is not powered on...

  • Page 14: Chapter 3 Parameter Configuration

    NR120 5G Router User Manual Chapter 3 Parameter Configuration 3.1 Configuration Connection Before configuration, you should connect the Router and your configuration PC with the supplied network cable. Plug the cable’s one end into the Local Network port of the Router, and another end into your configure PC’s Ethernet port.

  • Page 15: Log In To The Configuration Page

    NR120 5G Router User Manual The second way: specify the IP address Set the IP address of the PC to 192.168.1.9 (or other IP addresses in the 192.168.1 network segment), the subnet mask is set to: 255.255.255.0, and the default gateway is set to: 192.168.1.1. DNS is set to gateway address or local available DNS server.
  • Page 16 NR120 5G Router User Manual If you click the main menu for the first time, you need to enter the corresponding user name and password Enter the correct user and password to access the corresponding menu page The default user name is admin and the default password is admin.

  • Page 17: Management And Configuration

    NR120 5G Router User Manual 3.3 Management and configuration 3.3.1 Setting The Setup screen is the first screen users will see when accessing the Router. Most users will be able to configure the Router and get it work properly using only the settings on this screen.
  • Page 18 NR120 5G Router User Manual PPPOE User Name: login the Internet Password: login the Internet 3G/UMTS/4G/LTE User Name: login users' ISP(Internet Service Provider) Password: login users' ISP Dial String: dial number of users' ISP APN: access point name of users' ISP...
  • Page 19 NR120 5G Router User Manual This function is used to detect whether the Internet connection is active, if users set it and when the Router detect the connection is inactive, it will redial to users' ISP immediately to make the connection active. If the network is busy or the user is in , we recommend that Router mode will be better.
  • Page 20 NR120 5G Router User Manual algorithm achieves path redundancy, and loop network cuts to tree-based network without loop in the meantime, thus to avoid the hyperplasia and infinite circulation of a message in the loop network Optional Configuration Router Name: set Router name...
  • Page 21 NR120 5G Router User Manual DHCP Type: DHCP Server and DHCP Forwarder Enter DHCP Server if set DHCP Type to DHCP Forwarder as blow: DHCP Server: keep the default Enable to enable the Router's DHCP server option. If users have already have a DHCP server on their network or users do...

  • Page 22: Dynamic Dns

    NR120 5G Router User Manual WINS: the Windows Internet Naming Service (WINS) manages each PC's interaction with the Internet. If users use a WINS server, enter that server's IP address here. Otherwise, leave it blank. DNSMasq: users' domain name in the field of local...

  • Page 23: Clone Mac Address

    NR120 5G Router User Manual User Name: users register in DDNS server, up to 64 characteristic Password: password for the user name that users register in DDNS server, up to 32 characteristic Host Name: users register in DDNS server, no limited for input characteristic...

  • Page 24: Advanced Router

    NR120 5G Router User Manual Clone MAC address can clone three parts: Clone LAN MAC, Clone WAN MAC, Clone Wireless MAC. Noted that one MAC address is 48 characteristic, can not be set to the multicast address, the first byte must be even. And MAC address value of network bridge br0 is determined by the smaller value of wireless MAC address and LAN port MAC address.
  • Page 25 NR120 5G Router User Manual Select set number: 1-50 Route Name: defined routing name by users, up to 25 characters Metric: 0-9999 Destination LAN NET: the Destination IP Address is the address of the network or host to which users want to assign a static route...

  • Page 26: Vlans

    NR120 5G Router User Manual 3.3.1.5 VLANs VLANs function is to divide different VLAN ports by users' will. The system supports 15 VLAN port from VLAN1-VLAN15. However there is only 5 time ports (1 WAN port and 4 LAN port) divided by users themselves,and LAN port and WAN port disable to divide into one VLAN port meanwhile.
  • Page 27 NR120 5G Router User Manual Bridging-Create Bridge: creates a new empty network bridge for later use. STP means Spanning Tree Protocol and with PRIO users are able to set the bridge priority order. The lowest number has the highest priority.
  • Page 28 NR120 5G Router User Manual Note: corresponding interface of WAN ports interface should not be binding, this bridge function is basically used for LAN port, and should not be binding with WAN port If bind success, bridge binding list in the list of current bridging table is as...

  • Page 29: Wireless

    NR120 5G Router User Manual Masquerade/NAT: enable or disable Masquerade/NAT IP Address: set ra0's IP address, and do not conflict with other ports or bridge Subnet Mask: set the port's subnet mask Multiple DHCPD: using multiple DHCP service. Click 'Add' in multiple DHCP server to appear relevant configuration.
  • Page 30 NR120 5G Router User Manual Wireless Network：“Eanble”, radio on. “Disable”, radio off. Wireless Mode：AP, Client, Adhoc, Repeater, Repeater Bridge four options。 Wireless Network Mode： Mixed：Support 802.11b, 802.11g, 802.11n wireless devices. BG-Mixed：Support 802.11b, 802.11g wireless devices. B-only：Only supports the 802.11b standard wireless devices.
  • Page 31 NR120 5G Router User Manual among all devices in a wireless network. The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 alphanumeric characters, which may be any keyboard character. Make sure this setting is the same for all devices in your wireless network.。...

  • Page 32: Wireless Security

    NR120 5G Router User Manual 3.3.2.2 Wireless Security Wireless security options used to configure the security of your wireless network. This route is a total of seven kinds of wireless security mode. Disabled by default, not safe mode is enabled. Such as changes in Safe Mode, click Apply to take effect immediately.
  • Page 33 NR120 5G Router User Manual HEX, the keys is 10bit/26 bit hex digits. Passphrase：The letters and numbers used to generate a key. Key1-Key4：Manually fill out or generated according to input the pass phrase. Personal/WPA2 Personal/WPA2 Person Mixed: ， TKIP/AES/TKIP+AES，dynamic encryption keys. TKIP + AES, self-applicable TKIP or AES.

  • Page 34: Services

    NR120 5G Router User Manual 3.3.3 Services 3.3.3.1 Services DHCP Server DHCPd assigns IP addresses to users local devices. While the main configuration is on the setup page users can program some nifty special functions here. NVRAM client lease users...
  • Page 35 NR120 5G Router User Manual Local DNS: enables DHCP clients on the LAN to resolve static and dynamic DHCP hostnames No DNS Rebind: Prevent an external attacker to access the Router's internal Web interface. It is a security measure Additional DNSMasq Options: some extra options users can set by entering them in Additional DNS Options.
  • Page 36 NR120 5G Router User Manual client SSH TCP Forwarding: enable or disable to support the TCP forwarding admin Password Login: allows login with the Router password (username is Port: port number for SSHd (default is 22) Authorized Keys: here users paste their public keys to enable key-based login...

  • Page 37: Vpn

    NR120 5G Router User Manual Ttraff Daemon: enable or disable wan traffic counter function 3.3.4 VPN 3.3.4.1 PPTP PPTP Server Broadcast support: enable or disable broadcast support of PPTP server Force MPPE Encryption: enable of disable force MPPE encryption of PPTP data...

  • Page 38: L2Tp

    NR120 5G Router User Manual Server IP or DNS Name: PPTP server’s IP Address or DNS Name Remote Subnet: the network of the remote PPTP server Remote Subnet Mask: subnet mask of remote PPTP server MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption。...

  • Page 39: Openvpn

    NR120 5G Router User Manual Note: client IP must be different with IP assigned by Router DHCP. The format of CHAP Secrets is user * password *. L2TP Client Gateway(L2TP Server): L2TP server’s IP Address or DNS Name Remote Subnet: the network of remote PPTP server...
  • Page 40 NR120 5G Router User Manual Config via: GUI----Page configuration, Config File----config File configuration Server mode: Router (TUN)-route mode, Bridge (TAP)----bridge mode Router (TUN): Network: network address allowed by OPENVPN server Netmask: netmask allowed by OPENVPN server Bridge (TAP): DHCP-Proxy mode: enable or disable DHCP-Proxy mode...
  • Page 41 NR120 5G Router User Manual Use LZO Compression: enable or disable use LZO compression for data transfer Redirect default Gateway: enable or disable redirect default gateway Allow Client to Client: enable or disable allow client to client Allow duplicate cn: enable or disable allow duplicate cn...
  • Page 42 NR120 5G Router User Manual Additional Config: additional configurations of the server CCD-Dir DEFAULT file: other file approaches TLS Auth Key: authority key of Transport Layer Security Certificate Revoke List: configure some revoke certificates OPENVPN Client Server IP/Name: IP address or domain name of OPENVPN server...
  • Page 43 NR120 5G Router User Manual Use LZO Compression: enable or disable use LZO compression for data transfer NAT: enable or disable NAT through function Bridge TAP to br0: enable or disable bridge TAP to br0 Local IP Address: set IP address of local OPENVPN client...

  • Page 44: Ipsec

    NR120 5G Router User Manual 3.3.4.4 IPSEC Connect Status and Control Show IPSEC connection and status of current Router on IPSEC page. Name: the name of IPSEC connection Type: The type and function of current IPSEC connection Common name: local subnet, local address, opposite end address and...
  • Page 45 NR120 5G Router User Manual Connection: this part contains basic address information of the tunnel Name: to indicate this connection name, must be unique Enabled: If enable, the connection will send tunnel connection request when it is reboot or re-connection, otherwise it is no need if disable Local WAN Interface: local addresss of the tunnel Remote Host Address: IP/domain name of end opposite;...

  • Page 46: Gre

    NR120 5G Router User Manual Enable Advanced Settings: enable to configure 1 and 2 phase information, otherwise it will automic negotiation according to opposite end IKE Encryption: IKE phased encryption mode IKE Integrity: IKE phased integrity solution IKE Grouptype: DH exchange algorithm...
  • Page 47 NR120 5G Router User Manual GRE Tunnel: enable or disable GRE function Number：Switch on/off GRE tunnel app Status：Switch on/off someone GRE tunnel app Name：GRE tunnel name Through：The GRE packet transmit interface Peer Wan IP Addr：The remote WAN address Peer Subnet：The remote gateway local subnet, eg: 192.168.1.0/24 Peer Tunnel IP：The remote tunnel ip address...

  • Page 48: Security

    NR120 5G Router User Manual 3.3.5 Security 3.3.5.1 Firewall You can enable or disable the firewall, filter specific Internet data types,and prevent anonymous Internet requests,ultimately enhance network security. Firewall Protection Firewall enhance network security and use SPI to check the packets into the network.To use firewall protection, choose to enable otherwise disabled.
  • Page 49 NR120 5G Router User Manual from the Ping or detection of other Internet users. so that make More difficult to break into your network. The default state of this feature is enabled ,choose to disable allow anonymous Internet requests. Filter IDENT (Port 113): Enable this feature can prevent port 113 from being scaned from outside.

  • Page 50: Access Restrictions

    NR120 5G Router User Manual Log Level: Set this to the required log level. Set Log Level higher to log more actions. Options: When select Enable, the corresponding connection will be recorded in the journal, the disabled are not recorded.
  • Page 51 NR120 5G Router User Manual applications. You can set specific PC-based Internet access policies. This feature allows you to customize up to ten different Internet Access Policies for particular PCs, which are identified by their IP or MAC addresses. Two options in the default policy rules: "Filter" and "reject". If select "Deny”, you will deny specific computers to access any Internet service at a particular time period.
  • Page 52 NR120 5G Router User Manual Website Blocking by URL Address: You can block access to certain websites by entering their URL. Website Blocking by Keyword: You can block access to certain website by the keywords contained in their webpage set up Internet access policy Select the policy number (1-10) in the drop-down menu.

  • Page 53: Url Filter

    NR120 5G Router User Manual days and time, then keep the default setting, Deny. If you want the listed PCs to have Internet filtered during the designated days and time, then click the radio button next to Filter. Set the days when access will be filtered. Select Everyday or the appropriate days of the week.

  • Page 54: Packet Filter

    NR120 5G Router User Manual only discard the Discard packets conform to the following rules: matching URL address in the list . receive Accept only the data packets conform to the following rules: only with custom rules of network address, discarded all other URL address.

  • Page 55: Nat

    NR120 5G Router User Manual Source IP: packet's source IP address Destination IP: packet's destination IP address Note: "Source Port" ,"Destination Port" ,"Source IP" ,"Destination IP" could not be all empty ,you have to input at least one of these four parameters.

  • Page 56: Dmz

    NR120 5G Router User Manual such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. When users send this type of request to your network via the Internet, the Router will forward those requests to the appropriate PC.

  • Page 57: Qos Setting

    NR120 5G Router User Manual function. DMZ Host IP Address: To expose one PC to the Internet, select Enable and enter the computer's IP address in the DMZ Host IP Address field. To disable the DMZ, keep the default setting：Disable Check all values and click Save Settings to save your settings.

  • Page 58: Classify

    NR120 5G Router User Manual 3.3.8.2 Classify Netmask Priority You may specify priority for all traffic from a given IP address or IP Range. Check all values and click Save Settings to save your settings. Click the Cancel changes button to cancel your unsaved changes.
  • Page 59 Enable Serial TCP Function: Enable the serial to TCP function Protocol Type: The protocol type to transmit data. UDP(DTU) – Data transmit with UDP protocol , work as a Yifan IP MODEM device which has application protocol and hear beat mechanism.

  • Page 60: Administration

    NR120 5G Router User Manual 3.3.10 Administration 3.3.10.1 Management The Management screen allows you to change the Router's settings. On this page you will find most of the configurable items of the Router code. The new password must not exceed 32 characters in length and must not include any spaces.
  • Page 61 NR120 5G Router User Manual Remote Access：This feature allows you to manage the Router from a remote location, via the Internet. To disable this feature, keep the default setting, Disable. To enable this feature, select Enable, and use the specified port (default is 8080) on your PC to remotely manage the Router.

  • Page 62: Keep Alive

    NR120 5G Router User Manual Remote Upgrade: custom-developed remote management server for this station Router monitoring and management, configuration parameters, WIFI advertising updates. 3.3.10.2 Keep Alive Schedule Boot&Shutdown The user can set the startup or shutdown time: For example,the user want to set the start time at 8:07 and boot time at 9:07.

  • Page 63: Commands

    NR120 5G Router User Manual You can schedule regular reboots for the Router : Regularly after xxx seconds. At a specific date time each week or everyday. Note： For date based reboots Cron must be activated. See Management for Cron activation.

  • Page 64: Firmware Upgrade

    NR120 5G Router User Manual Reset Router settings：Click the Yes button to reset all configuration settings to their default values. Then click the Apply Settings button. Note： Any settings you have saved will be lost when the default settings are restored.

  • Page 65: Status

    NR120 5G Router User Manual Backup Settings：You may backup your current configuration in case you need to reset the Router back to its factory default settings.Click the Backup button to backup your current configuration. Restore Settings：Click the Browse... button to browse for a configuration file that is currently saved on your PC.Click the Restore button to overwrite all...
  • Page 66 NR120 5G Router User Manual Firmware Version: software version information MAC Address: MAC address of WAN, settingClone MAC Address to modify Host Name: host name of the Router, settingbasic setting to modify WAN Domain Name: domain name of WAN, settingbasic setting to modify...

  • Page 67: Wan

    NR120 5G Router User Manual Active IP Connections: total active IP connections Protocol: connection protocol Timeouts: connection timeouts, unit is second Source Address: source IP address Remote Address: remote IP address Service Name: connecting service port Status: displayed status 3.3.11.2 WAN...
  • Page 68 NR120 5G Router User Manual Connection Type: Disabled, static IP, automatic configuration-DHCP, PPPOE, PPTP, L2TP, 3G/UMTS,DHCP-4G/5G Connection Uptime: Connecting uptime; If disconnect, display Not available IP Address: IP address of router Subnet Mask: Subnet mask of router WAN Gateway: The gateway...

  • Page 69: Lan

    NR120 5G Router User Manual Total Flow: flow from power-off last time until now statistics, download and upload direction Monthly Flow: the flow of a month, unit is MB Last Month: the flow of last month Next Month: the flow of next month...
  • Page 70 NR120 5G Router User Manual MAC Address: MAC Address of the LAN port ethernet IP Address: IP Address of the LAN port Subnet Mask: Subnet Mask of the LAN port Gateway: Gateway of the LAN port Local DNS: DNS of the LAN port...
  • Page 71 NR120 5G Router User Manual Host Name: host name of LAN client IP Address: IP address of the client MAC Address: MAC address of the client Expires: the expiry the client rents the IP address Delete: click to delete DHCP client...

  • Page 72: Wireless

    NR120 5G Router User Manual Interface: the interface assigned by dial-up system User Name: user name of the client Local IP: tunnel IP address of PPTP client Remote IP: IP address of PPTP client Delete: click to delete PPTP client 3.3.11.4 Wireless...

  • Page 73: Bandwidth

    NR120 5G Router User Manual MAC Address: MAC address of wireless client Interface: interface of wireless client Uptime: connecting uptime of wireless client TX Rate: transmit rate of wireless client RX Rate: receive rate of wireless client Signal: the signal of wireless client...
  • Page 74 NR120 5G Router User Manual Bandwidth Monitoring-LAN Graph abscissa axis: time vertical axis: speed rate Bandwidth Monitoring-WAN Graph abscissa axis: time vertical axis: speed rate...

  • Page 75: Sys-Info

    NR120 5G Router User Manual Bandwidth Monitoring-Wireless (W10) Graph abscissa axis: time vertical axis: speed rate 3.3.11.6 Sys-Info Router Name: the name of the Router Router Model: the model of the Router...
  • Page 76 NR120 5G Router User Manual LAN MAC: MAC address of LAN port WAN MAC: MAC address of WAN port Wireless MAC: MAC address of the wireless WAN IP: IP address of WAN port LAN IP: IP address of LAN port...
  • Page 77 NR120 5G Router User Manual Signal Quality: signal quality of wireless client DHCP Server: enabled or disabled ff-radauth: enabled or disabled USB Support: enabled or disabled Total Available: the room for total available of RAM (that is physical memory minus some reserve and the kernel of binary code bytes)

  • Page 78: Appendix

    NR120 5G Router User Manual Appendix The following steps describe how to setup Windows XP Hyper Terminal. 3.3.2.1 Press “Start””Programs””Accessories””Communications””Hyper Terminal” 3.3.2.2 Input connection name, choose “OK” 3.3.2.3 Choose the correct COM port which connects to modem, choose “OK” 3.3.2.4 Configure the serial port parameters as following, choose “OK”...
  • Page 79 NR120 5G Router User Manual Data bits: 8 Parity: None Stop bits: 1 Flow control: None 3.3.2.5 Complete Hyper Terminal operation, It runs as following Note: If the user is using the win7 system, you can download a win7 super terminal on internet.
