Table of Contents
Related Manuals for Seagate One Touch with Hub
Summary of Contents for Seagate One Touch with Hub

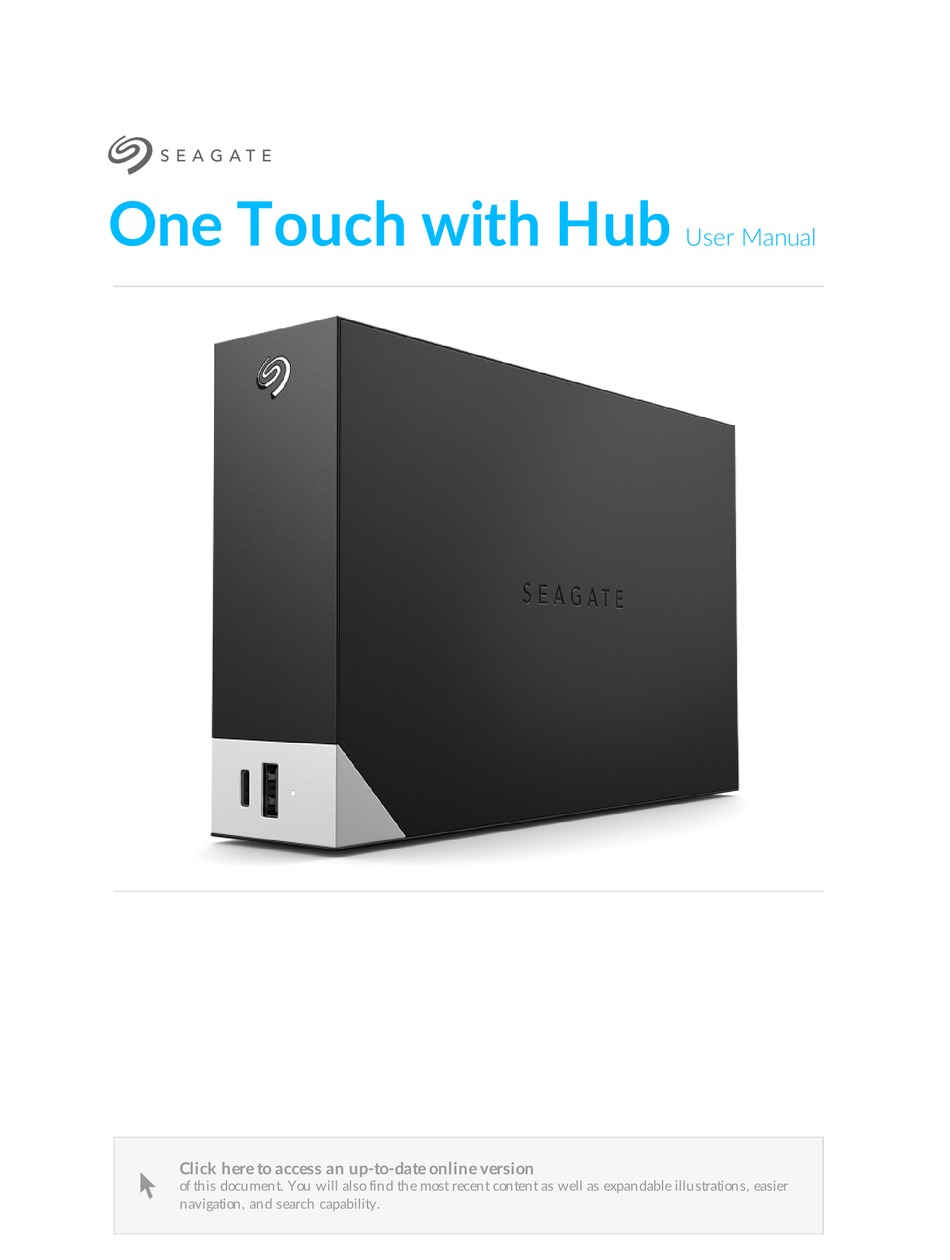

- Page 1 One Touch with Hub User Manual Model: Click here to access an up-to-date online version of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
- Page 2 ......................... . Set up One Touch with Hub .
- Page 3 ......................... . All users .
-
Page 4: Box Contents
USB 3.0 cable (USB micro-B to USB-A) Quick start guide Minimum system requirements Ports You can connect your Seagate device to a computer with a USB-A port. This device supports connections to computer ports that are USB 3.0 and higher. Opera ng system Go to Operating System Requirements for Seagate Hardware &... - Page 5 1. USB-C port 2. USB-A port Back 1. USB micro-B port 2. Power input...
-
Page 6: Connect Power
1. Place the adapter plug for your location into the channel on the power supply. Slide it down to lock it in place. 2. Connect the power cable to Seagate One Touch with Hub. 3. Connect the power supply to a live power outlet. -
Page 7: Connect To Computer
Connect to computer 1. Connect the USB micro-B end of the cable to the USB micro-B port on One Touch with Hub. 2. Connect the USB-A end of the cable to your computer’s USB-A port. You can connect your Seagate device to a USB-C port on your computer. The USB-C port must ... -
Page 8: Start Here
Your computer must be connected to the internet to register your device and install Toolkit. Start here Start Here Win Using a file manager such as Finder or File Explorer, open One Touch with Hub and launch Start Here Mac. Register your device... -
Page 9: Download Toolkit
Enter your information and click Register. Download Toolkit Download Click the button. Install Toolkit... - Page 10 Using a file manager such as Finder or File Explorer, go to the folder where you receive downloads. SeagateToolkit.exe Windows—Click on the file to launch the application. SeagateToolkit.zip Seagate Toolkit Installer Mac—Open the file. Click on the to launch the application. Your computer must be connected to the internet to install and update Toolkit.
-
Page 11: Enable Security
Toolkit provides useful tools that let you easily manage security, set up backup plans, and more. Enable security Toolkit is required to enable security for One Touch with Hub. Be sure to install Toolkit in order to password-protect your device using Seagate Secure 256-bit encryption. - Page 12 Op onal Forma ng and Par oning Your device is preformatted exFAT (Extended File Allocation Table) for compatibility with both Mac and Windows computers. Choosing a file system format When choosing a file system format, consider whether compatibility or performance is more important in your everyday use of the drive.
-
Page 13: Learn More
default. APFS (Apple File System) is an Apple file system optimized for solid state drives (SSDs) and flash-based storage systems, though it also works with hard disk drives (HDDs). It was first introduced with the release of macOS High Sierra (version 10.13). APFS can only be read by Macs running High Sierra or later. When choosing between Apple file systems, consider the following: Windows cannot natively read or write to APFS or HFS+ volumes. -
Page 14: Eject Via Finder Window
Safely Remove Device From Your Computer Always eject a storage drive from your computer before physically disconnecting it. Your computer must perform filing and housekeeping operations on the drive before it is removed. Therefore, if you unplug the drive without using the operating system’s software, your files can become corrupt or damaged. Windows Use the Safely Remove tool to eject a device. - Page 16 Q: Is the hard drive connected to a Hi-Speed USB 2.0 port on your computer or hub? A: If your hard drive is connected to a Hi-Speed 2.0 port or hub, the inferior performance is normal. Seagate One Touch with Hub performance will improve when it is connected to a SuperSpeed USB 3.0 port.
-
Page 17: Problem: The Provided Usb Cables Are Too Short
Q: Can I use my hard drive with a longer cable? A: Yes, provided it is a cable that meets USB standards. However, Seagate recommends using the cable shipped with your hard drive for the best results. If you use a longer cable and experience problems with detection, transfer rates or disconnection, use the original cable included with your hard drive. -
Page 18: Problem: The Hard Drive Icon Doesn't Appear In Computer
Plus (+) icon to view the full list of devices. If you’re uncertain that your drive is listed, safely unplug it and then reconnect it. The entry that changes is your Seagate hard drive. Q: Is your hard drive listed next to an unusual icon? A: Windows Device Manager usually provides information about failures with peripherals. - Page 19 A: Review the installation steps in Getting Started.
-
Page 20: Regulatory Compliance
Regulatory Compliance Product Name Seagate One Touch with Hub Regulatory Model Number SRD0FL2 China RoHS China RoHS 2 refers to the Ministry of Industry and Information Technology Order No. 32, effective July 1, 2016, titled Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products. - Page 21 Beginning on January 1, 2018, Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663. This product is Taiwan RoHS compliant. The following table meets the Section 5 “Marking of presence” requirements. 台灣RoHS是指台灣標準局計量檢驗局(BSMI)對標準CNS15663要求的減排電子電氣設備限用化學物質指引。從2018 年1月1日起，Seagate產品必須符合CNS15663第5節「含有標示」要求。本產品符合台灣RoHS。...
