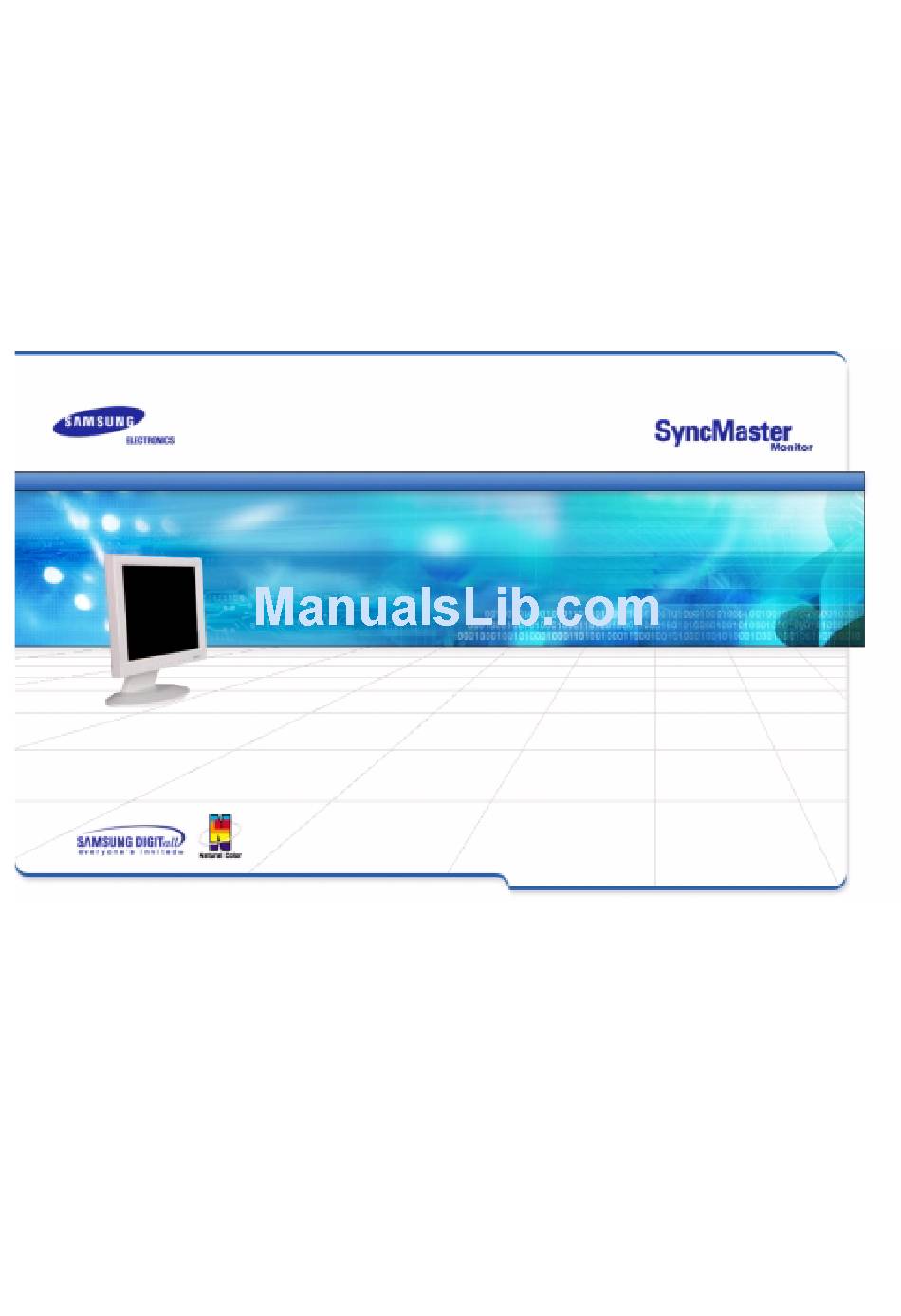

  • Page 1 Samsung SyncMaster B1530/B 1730...
  • Page 2 Safety Instructions Notational Power Installation Cleaning Other Introduction Unpacking Front Rear Setup Connecting Your Monitor Installing the Monitor Driver Automatic Manual Installing VESA compliant mounting On-Screen Display Troubleshooting Check List Q & A Self-Test Feature Check Specifications General Specifications PowerSaver...
  • Page 3 Notational Power Installation Clean Other Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Do not disassemble Do not touch Important to read and understand at all times Disconnect the plug from the outlet Grounding to prevent an electric shock...
  • Page 4 Notational Power Installation Clean Other When not used for extended periods of time, set your PC to DPMS. If using a screen saver, set it to the active screen mode. Do not use a damaged or loose plug. This may cause an electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands.
  • Page 5 Do not cover the vents on the monitor cabinet. Bad ventilation may cause a breakdown or fire. Put your monitor in a location with low humidity and a minimum of dust. An electric shock or fire could result inside the monitor.
  • Page 6 Power Installation Clean Other When cleaning the monitor case or the surface of the TFT-LCD, wipe with a slightly moistened, soft fabric. Do not spray detergent directly on the monitor. Use the recommended detergent with a smooth cloth. If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth.
  • Page 7 Do not use or store inflammable substances near the monitor. This may cause an explosion or fire. Do not try to move the monitor by pulling on the wire or the signal cable. This may cause a breakdown, electric shock or a fire due to damage to the cable.
  • Page 8 If you view a fixed screen for an extended period of time, residual image or blurriness may appear. Change the mode to energy save or set a screensaver to moving picture when you need to be away from the monitor for an extended period of time.
  • Page 9 Unpacking Front Rear Please make sure the following items are included with your monitor. If any items are missing, Monitor and Stand contact your dealer. Power Cord Signal Cable Quick Setup Guide Warranty Card (Not available in all locations) User's Guide and Driver Installation CD...
  • Page 10 Power indicator Note: See PowerSaver functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. Use this button to auto adjustment direct access. / Use this button to Exit the active menu or the OSD.
  • Page 11 Unpacking Front Rear (The configuration at the back of the monitor may vary from product to product.) 1. Power port 2. Signal port Note: See Connecting Your Monitor Connect the power cord for your monitor to the power port on the back of the monitor.
  • Page 12 2. Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor. 3. Connect the monitor to the Macintosh computer using the D-SUB connection cable. 4. In the case of an old model Macintosh, you need to connect the monitor using a special Mac adaptor.
  • Page 13 1. Insert CD into the CD-ROM drive. 2. Click "Windows ME Driver". 3. Choose your monitor model in the model list, then click the "OK" button. 4. Click the "Install" button in the "Warning" window. 5. Monitor driver installation is completed.
  • Page 14 5. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor Homepage http://www.samsung-monitor.com/. 6. Monitor driver installation is completed.

  • Page 15: Windows Xp Operating System

    Connecting Your Monitor Installing the When prompted by the operating system for the monitor driver, insert the CD-ROM Monitor Driver included with this monitor. Driver installation is slightly different from one operating Installing VESA system to another. Follow the directions as appropriate for the operating system you compliant mounting have.
  • Page 16 5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button. 6. Select "Don't search ,I will.." then click "Next" and then click "Have disk". 7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next" button.

  • Page 17: Microsoft ® Windows ® 2000 Operating System

    This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor Homepage http://www.samsung-monitor.com/. 9. Click the "Close" button then click "OK" button continually. 10. Monitor driver installation is completed.

  • Page 18: Linux Operating System

    5. Set a Keyboard for your computer. 6. The next screen is for setting your monitor. 7. First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.) 8. Set a vertical frequency for your monitor. (You can enter the frequency directly.) 9.
  • Page 19 1. Turn off your monitor and unplug its power cord. 2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen. 3. Remove the four screws and then remove the Stand from the LCD monitor.

  • Page 21: Check List

    Can you see "Video mode not supported" on the screen? There is no image on the screen. Is the power indicator on the monitor blinking at 1 second intervals? Have you locked the On Screen Display (OSD) Menu to prevent...
  • Page 22 DDC) function can be supported. Check the following items if there is trouble with the monitor. 1. Check if the power cord and the cable are properly connected to the computer. 2. Check if the computer beeps more than 3 times when booting.
  • Page 23 Disconnect the power cord and then clean the monitor with a soft cloth, using either a cleaning solution or plain water. Do not leave any remains of the detergent nor scratch the case. Do not allow any water to go inside the monitor. Answer...
  • Page 24 2. Unplug the video cable from the back of the computer. 3. Turn on the monitor. If the monitor is functioning properly, you will see a box with a border and text inside as shown in the following illustration: The three boxes inside the border are red, green and blue.
  • Page 25 A monitor recreates visual signals received from the PC. Therefore, if there is trouble with the PC or the video card, this can cause the monitor to become blank, have poor coloring, noise, Video mode not supported, etc. In this case, first check the source of the problem, and then contact a service center or your dealer.
  • Page 26 Environmental considerations Operating Storage Plug and Play Capability This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and Samsung SyncMaster B1530 15.0 inch diagonal 304.1 (H) x 228.1 (V) 0.297 (H) x 0.297 (V)
  • Page 27 In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings. Dot Acceptable TFT LCD panel manufactured by using advanced semiconductor technology with precision of 99.999% above is used for this product.
  • Page 28 VESA Mounting Interface 100mm x 100mm (for use with Specialty(Arm) Mounting hardware.) Environmental considerations Operating Storage Dot Acceptable Samsung SyncMaster B1730 17.0 inch diagonal 337.92 (H) x 270.336 (V) 0.264 (H) x 0.264 (V) a-si TFT active matrix 31 ~ 81 kHz...
  • Page 29 For example, the no. of TFT LCD pixels that is contained in this product are 3,932,160. Plug and Play Capability This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases,...
  • Page 30 This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you move the computer's mouse or press a key on the keyboard.
  • Page 31 This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you move the computer's mouse or press a key on the keyboard.

  • Page 32: Horizontal Frequency

    Samsung SyncMaster B1530 If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.
  • Page 33 Samsung SyncMaster B1730 If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.
  • Page 34 Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm Terms...

  • Page 35: User Information

    UL Listed personal computer with similar configuration. Before making the connection, make sure the voltage rating of the computer convenience outlet is the same as the monitor and that the ampere rating of the computer convenience outlet is equal to or exceeds the monitor voltage rating.
  • Page 36 Cet appareil Numérique de classe B respecte toutes les exigences du Règlemont NMB-03 sur les équipements produisant des interférences au Canada. MPR II Compliance This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields. European Notice(Europe Only)

  • Page 37: Environmental Requirements

    Nature. There are also other characteristics of a monitor, such as energy consumption levels, that are important from both the working and natural environment viewpoints. Since all types of conventional electricity generation have a negative effect on the environment (acidic and climate- influencing emissions, radioactive waste, etc.) it is vital to conserve energy.

  • Page 38: Cfcs (Freons)

    Mercury Mercury is sometimes found in batteries, relays and switches. Mercury damages the nervous system and is toxic in high doses. TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit.
  • Page 39 TCO Development SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire.
  • Page 40 Ergonomics Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy • Energy-saving mode after a certain time – beneficial both for the user and the environment •...
  • Page 41 For more information, refer to Help (F1) in the software program. How to install the Natural Color software Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the program installation will be executed. Click Natural Color on the initial screen to install the Natural Color software.
  • Page 42 This is not from bad quality and you can use it without uneasiness. 3. When you clean the monitor and the panel outside, please apply the recommended small amount of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced but to be scrubbed out softly.
  • Page 43 This is not from bad quality and you can use it without uneasiness. 3. When you clean the monitor and the panel outside, please apply the recommended small amount of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced but to be scrubbed out softly.
  • Page 44 Co., Ltd. is strictly forbidden. Terms Regulatory Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or Natural Color consequential damages in connection with the furnishing, performance, or use of this material. For Better Display Samsung is the registered trademark of Samsung Electronics Co., Ltd.;...
