Next ROMA 811968 Assembly Instructions Manual

Next ROMA 811968 Assembly Instructions Manual

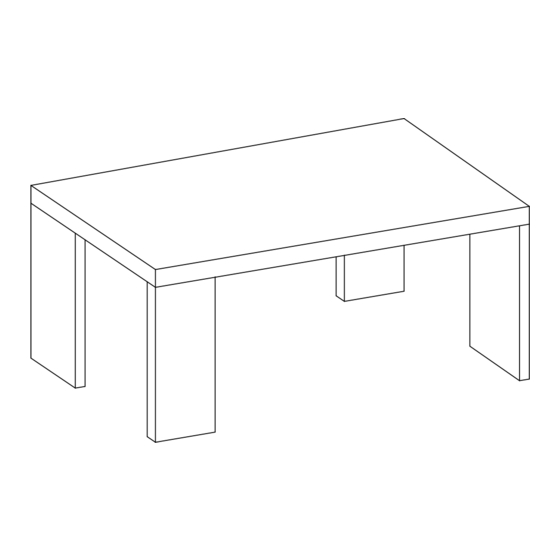

Coffee table

Advertisement

Actual product size
H47 x W90 x D45cm
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in Poland for Next Retail Ltd
811968-2014-V2

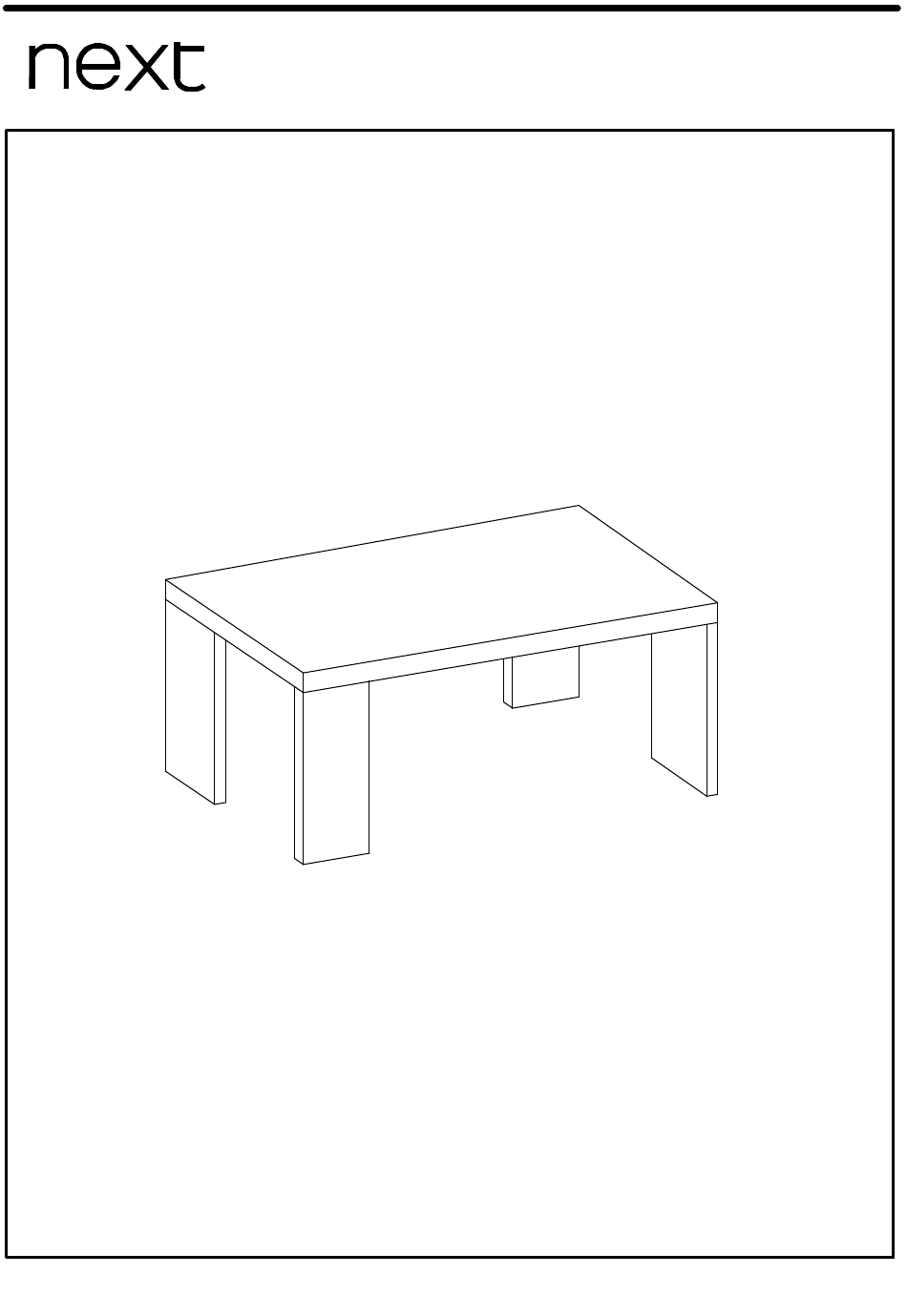

ROMA COFFEE TABLE
811968
Assembly instructions
Need Help?
With: Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROMA 811968 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Next ROMA 811968

  • Page 1 ROMA COFFEE TABLE 811968 Assembly instructions Actual product size H47 x W90 x D45cm Need Help? With: Assembly instructions Missing or damaged parts IMPORTANT - RETAIN FOR FUTURE REFERENCE CALL: 0333 777 8999 Produced in Poland for Next Retail Ltd 811968-2014-V2...
  • Page 2 Never allow any kind of liquid to remain on your furniture. Absorption can cause finishes to de-laminate and or stain To View our full furniture range please visit www.next.co.uk Ensure that the product is protected with mats & coasters when items are placed on to its surface.
  • Page 3 GETTING TO KNOW YOUR PRODUCT RH-880 RH-885 RH-885 RH-885 RH-885 Components supplied. Please use this guide if you require replacement parts. Dimensions Visual QtyCtn RH-880 90 x 45cm RH-885 43 x 15cm Produced in Poland for Next Retail Ltd 811968-2014-V2...
  • Page 4 ROMA COFFEE TABLE 811968 Assembly instructions Fixtures and fittings supplied (actual size) Ref Dimensions Qty 6 x 43 mm 15 x 15 mm 5 x 20 mm 8 x 60 mm Produced in Poland for Next Retail Ltd 811968-2014-V2...
  • Page 5 ROMA COFFEE TABLE 811968 Assembly instructions RH-880 CAM-LOCK Tighten until shoulder is flush Shoulder with panel. Do not overtighten or undertighten (see example below) NO GAP Panel Panel RH-885 8x60mm D1x8 Produced in Poland for Next Retail Ltd 811968-2014-V2...
  • Page 6 ROMA COFFEE TABLE 811968 Assembly instructions RH-885 RH-885 RH-885 RH-885 RH-880 WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTIL SECURE CORRECT WRONG B1x8 Produced in Poland for Next Retail Ltd 811968-2014-V2...
  • Page 7 ROMA COFFEE TABLE 811968 Assembly instructions Actual product size H47 x W90 x D45cm Produced in Poland for Next Retail Ltd 811968-2014-V2...
