IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.

Tools Needed

Helpline
If you have any problems with this product or
require any replacement fittings please contact
Customer Services Tel: 0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the
item is found to be faulty. Should you need to return the unassembled product, please repack in the
original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
• Carefully check that you have all parts before beginning assembly.
instructions.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
PRODUCT INFORMATION
• Upholstered with Fabric
• Fabric composition: 58% cotton, 42% viscose.
• Made in China.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Clean regularly using a vacuum cleaner or clean soft brush.
• There may be indentations in the upholstery from the internal packaging; this will come out over time .
• Care should be taken to avoid spilling anything on the upholstery. If spillage occurs act promptly and
soak up any liquids by blotting with a clean absorbent cloth and allow to dry naturally. Never rub stains.
• For dirty marks, use a dampened cloth with cold clean water. For more stubborn stains soak the cloth
Never use a wet cloth.
first in soapy water: Use natural soap e.g. Lux flakes. Do not rub vigorously. Never use detergents or
abrasive cleaners.
• Avoid sharp objects that may damage the surface such as keys, buckles, coins etc .........

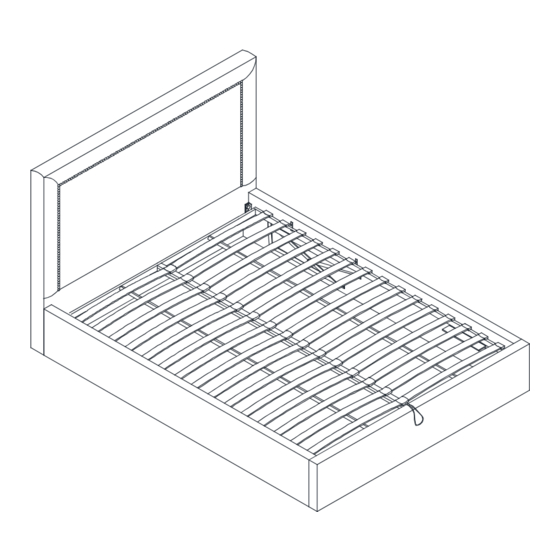

Rockwell Flip Storage
ASSEMBLY INSTRUCTIONS.
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rockwell and is the answer not in the manual?

Questions and answers

Summary of Contents for Next Rockwell

  • Page 1 Rockwell Flip Storage ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0333 777 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 FITTINGS PARTS Page 2 of 6...
  • Page 3 STEP ONE 1. Attach the Right Side Rail (3) to headboard (1) and footboard (2) using 4 x bolts (A) and 4 x washers (K). Tighten with Spanner (G). NOTE: Side rails are labelled right and left. STEP TWO 1. Attach the Left Side Rail (3) to headboard (1) and footboard (2) using 4 x bolts (A) and 4 x washers (K).
  • Page 4 STEP FOUR 1. Unscrew the bolt on the Gas Lift Frame (5) , which is pre-fixed , then attach the end of Gas lift by tighten back the screw by using Allen Key STEP FIVE 1. Fix the Gas Lift Frame (5) onto the Side Rail by using Allen Key( E) , Bolt (D) , Waser (L) NOTE: Gas Lift Frame are labelled right and left.
  • Page 5 STEP SEVEN 1. Attach one of Tubing slat (10) with 2x Center Rails (7) , 2x Centre Rail (9) and 1x Centre Rail , by using Allen Key (E) , Bolt (B) , Bolt (D) , Washer (L) STEP EIGHT 1.
  • Page 6 1. Attach the slat frame to Gas Lift Frame YOUR BED IS NOW READY FOR USE 1. Attach the Fabric Pull Handle (12) at the end of slat frame , see picture beside Bed Assembly Completed Next Retail Ltd, Desford Road, Leicester, LE19 4AT Page 6 of 6...
