Summary of Contents for GAS MAX A2

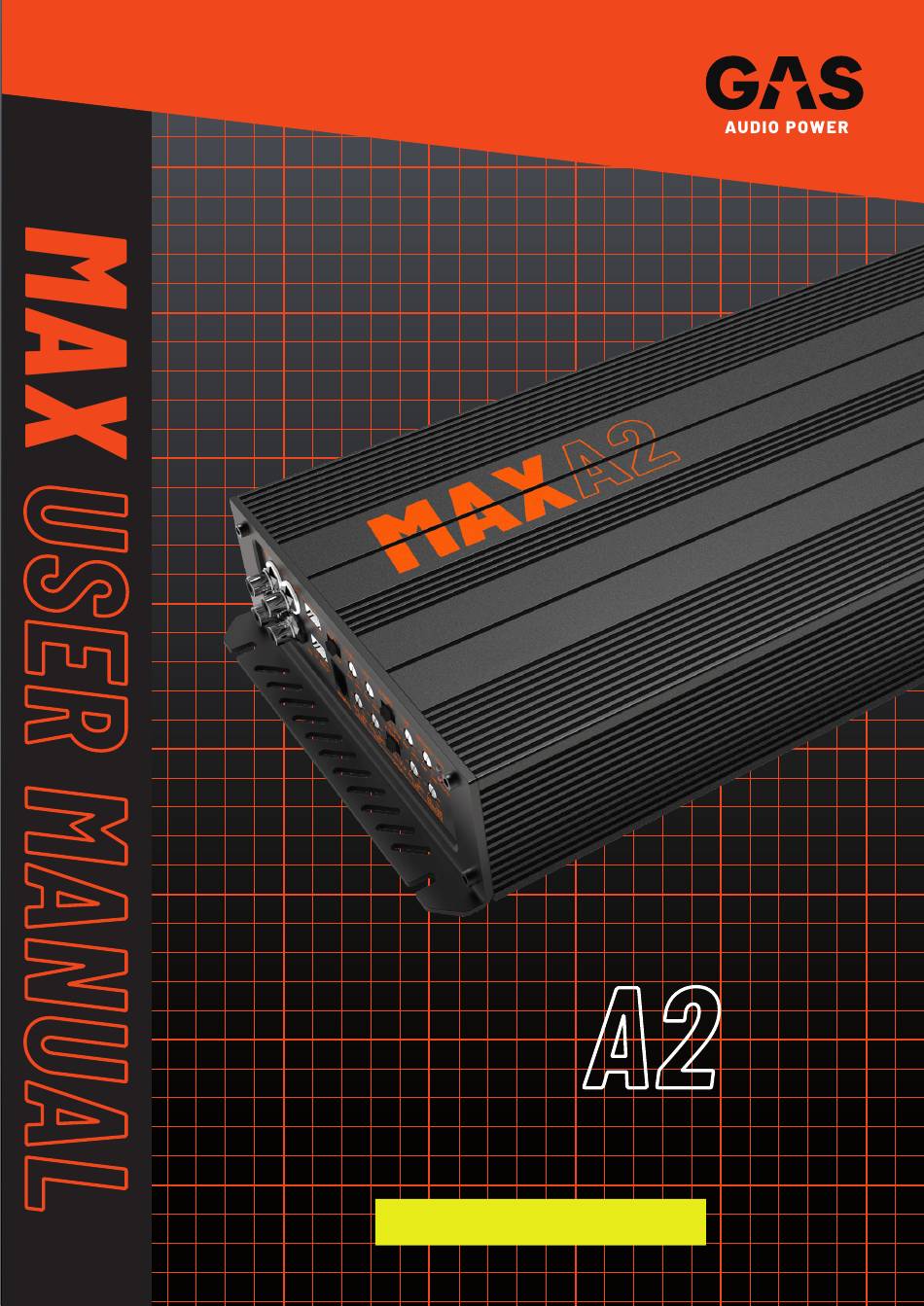

- Page 1 A2-100.2 / A2-150.4 HARDCORE CAR AUDIO...
- Page 2 We are the NO BULLSH!T car audio brand! Every single product with the GAS logo on it is born out of passion, the same that has driven us for two generations and that will keep us rolling up to your...
-
Page 3: Table Of Contents
TABLE OF CONTENT SAFETY....................UNPACKING..................DIMENSIONS....................SPECIFICATIONS................. MAX A2-100.2................... MAX A2-150.4................... Recommended cable sizes............... FUNCTIONS....................Input / Output / HI Input..............Level (Gain) / Bass EQ / HPF / LPF............. Crossover / Mode / Indicators / Mode channels........ Bass remote / Ground / Remote / Power........... -
Page 4: Xsafety
There’s a first time for everything, if you need help - ask a friend or contact your local GAS AUDIO POWER dealer/installer. We want you to experience your products to the MAX, but we don’t want you to injure yourself or others. -
Page 5: Xunpacking
Make sure that the amplifier and all the accessories are included in the packaging. Allen keys Fuses Amplifier Manual (2 pcs) (2 or 3 pcs) Screws HI input cable Remote cable Remote (4 or 6 pcs) (1 or 2 pcs) Remote cable & Remote only included with MAX A2-150.4 DIMENSIONS A2-100.2 A2-150.4... -
Page 6: Xspecifications
We take pride in our work! True, honest specifications and power ratings are an important part of all amplifiers. Listening, measuring and engineering are essential parts in our workshop. That’s how we make sure to bring you an awesome product with NO BULLSH!T. MAX A2-100.2 MAX A2-150.4 Amplifier Amplifier... -
Page 7: Recommended Cable Sizes
SPECIFICATIONS RECOMMENDED CABLE SIZES MAX A2-100.2 RECOMMENDED MINIMUM SIZE MAX SIZE 4AWG (20mm2) 4AWG (20mm2) Power cable Speaker cable 14AWG (1,5mm2) 12AWG (4mm2) REM cable 18AWG (0,75mm2) 12AWG (4mm2) MAX A2-150.4 RECOMMENDED MINIMUM SIZE MAX SIZE Power cable 4AWG (20mm2) -
Page 8: Functions
- so you can get the most out of your drivers! With the MAX A2 series we’ve created a diverse range of high-performing amplifiers that will both impress and astonish, no matter the setup. This also means that not all of the models will have all of the features presented in this chapter, and placement might differ. -
Page 9: Level (Gain) / Bass Eq / Hpf / Lpf
FUNCTIONS LEVEL (GAIN) LEVEL. Sync your head unit’s output signal with the amplifier. Follow the HOW TO instructions BASS EQ BASS EQ. Boosts the bass at 45Hz, Variable between 0-12dB. Follow the HOW TO instructions HIGH PASS FILTER HPF. Limits the output below selected freq- uency. -
Page 10: Crossover / Mode / Indicators / Mode Channels
FUNCTIONS CROSSOVER X-OVER. Choose the type of crossover to use: High pass, Full- range or Low/Band pass setting. Follow the HOW TO instructions INDICATORS POWER - PROTECT. Power = Illuminates when the amplifier is connected and on. Protect = Illuminates when the amplifier in- dicates a failure. -
Page 11: Bass Remote / Ground / Remote / Power
FUNCTIONS BASS REMOTE REMOTE. Use this to connect a remote level output control knob for an easy access and adjustement of the amplifier’s output. Works on A2-150.4 CH3 and CH4 GROUND GND. Terminal input connector for ground cable ( - power cable). The GND cable must be in direct contact to the vehicle chassis... -
Page 12: Fuses / Speaker Outputs
FUNCTIONS FUSES FUSE. Protects your amplifier from major damage in case of a power failure. Which fuse type the amplifier uses is in the SPECIFICATION. SPEAKER OUTPUTS SPEAKER OUTPUT. Connect left and right speaker or subwoofer to the amplfier. Connect positive & negative output to the equivalent con- nector on speaker... -
Page 13: How To
HOW TO A well-built sound system will set you aside from the rest and elevate your vehicle! It’s important that you carefully read the instructions on the following pages. This is to make sure that you install and use the amplifier correctly, for the true MAX EXPERIENCE! INSTALL AMPLIFIER Make sure your vehicle is up to task. - Page 14 HOW TO It’s time to find the perfect location to place your amplifier! Since the amplifier produces heat you don´t want to install it where it might get overheated. Find a place where air can circulate around it to stay cool. Also leave enough space so it´s easy to connect your cables and reach for the controls.
- Page 15 (only for the A2-100.2 model). This means you don’t need to connect the REM (remote cable) to the amplifier. The A2-150.4 still needs REM input for turn-on signal when using the high level inputs. MAX A2-100.2 MAX A2-150.4 Left +...
- Page 16 Remember that if you’re using the high level input connection on the MAX A2-100.2 model, you don’t need to connect the REM (remote) cable to the amplifier.
- Page 17 HOW TO Install the fuses in the fuse holder and reconnect the negative power source terminal. Be pre- pared to disarm your vehicle’s alarm and to enter your radio/source unit code. Time to test it out! Turn the ignition on your vehicle and turn the source/head unit on. Make sure that the amplifier’s power indicator is on and shows that there’s power coming all the way through, if not –...
-
Page 18: Connect Speakers
HOW TO CONNECT SPEAKERS Make sure you got everything you need when connecting your subwoofers/speakers to your sound system’s new powerhouse. Depending on what amplifier you have, and what type of speaker you want to connect, there are a few different ways to make the right connections. Make sure to have the correct load on your amplifier, going below specified impedance will damage your amplifier. - Page 19 HOW TO FOUR CHANNEL AMPLIFIER Four speakers (impedance per channel minimum 2 Ohm): Two bridged woofers (impedance minimum 4 Ohm):...
-
Page 20: Tweaking & Settings
HOW TO TWEAKING & SETTINGS The devil is in the details. Tweak the settings on your MAX amplifier using the following recommendations and cross the line that separates the average user from the hardcore high-power audio junkie! LEVEL (GAIN) Remember that the level/gain setting is not a volume control! It’s there to let you sync your head unit’s output signal with the amplifier. - Page 21 HOW TO Use an oscilloscope for high precision results When you are setting the level/gain on your amplifier with an oscilloscope you are measuring the output power of the amplifier. WARNING! Make sure that the positive speaker cable is removed from the amplifier. Set the level/gain to minimum.
- Page 22 The MAX A2 amplifiers are designed to offer you the option to either connect them to a subwoofer or to full range speakers/midrange drivers. The built-in crossovers need to be set correctly depending on type what type of setup you are going to apply.
- Page 23 HOW TO SUBWOOFER: Set the HPF dial to 10Hz, the LPF dial to 80Hz and the switch to LP/BP mode this gives you a good starting point for tweaking and finding the desired crossover points. All crossovers has a 12dB octave slope so if you for an example turn the HPF dial to 40 Hz the sound will be 12db lower at 20Hz.
- Page 24 HOW TO MODE SETTING MODE MONO / STEREO When the switch is on mono mode, signal sent from either left or right RCA input will be summarized and outputted on both the left and right speaker terminals (RCA input Left or Right - Speaker left and right terminal).
- Page 25 BASS EQ in default mode or consult with your local GAS AUDIO POWER dealer. If you use the BASS EQ, make sure to turn down your level/gain first (to 0) before you start adjusting it.
-
Page 26: Troubleshooting
Check your head unit to make sure no settings are limiting the amplifier functions. Check all signal cables. Check all speaker cables. Check all speakers. When all of the above has been tested/looked over, and all is as it should be but there’s still no sound, consult your local GAS AUDIO POWER dealer. -
Page 27: Warranty & Disposal
Alternative arrangements may apply in other jurisdictions. GAS Audio Power is a global partner of the European Mobile Media Association, an organization that focus on promoting the custom made mobile media installations to consumers. -
Page 28: The Gas World
THE GAS WORLD You’ve entered the world of GAS. We aim to please, and we’ve made sure to have products made for you. No matter what stage of the LOUD-addiction you might find yourself in, there is a GAS product to fill your need. - Page 29 THANKS FOR JOINING GAS AUDIO POWER! GAS AUDIO POWER and SHAKY are registered trademarks by Winn Scandinavia AB and is protected by relevant laws and jurisdictions such as Copyright and Trademark laws. Winn Scandinavia AB Adolfsbergsvägen 6, 70227 Örebro, Sweden www.winnscandinavia.com Winn Scandinavia AB reserves for possible typos, factual or numeric errors that may have been printed on any products, package designs, user manuals and/or other included accessories.
