Summary of Contents for Lydsto H4
- Page 1 品番：VC25005010020 品名：VC0201 手持吸尘器 工艺：105克哑粉，骑马钉 尺寸：150x180mm 颜色：80%K 制图： 审核：...

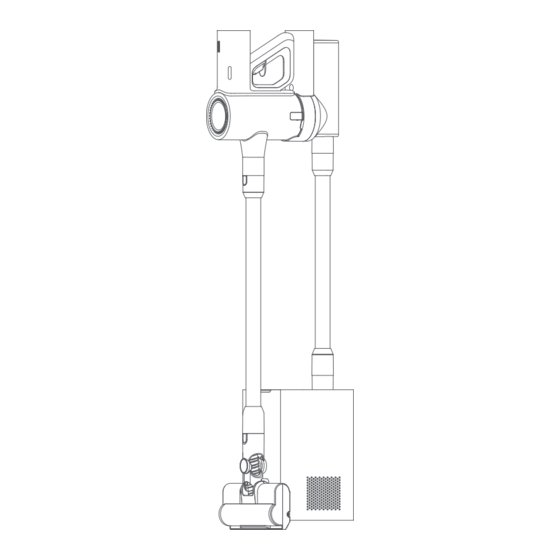

- Page 2 Lydsto H� Self-Dust collecting Handheld Vacuum Cleaner User Manual Thank you for purchasing Lydsto product! Please read the instructions carefully when using this product for the first time. It will guide you to use the product correctly and remind you of relevant precautions.
-
Page 4: Product Instruction
Product Instruction �、Electric Mite Removal Brush �、 �-in-� Flat Brush Head 、 除螨刷组件 、 二合一扁刷组件 、 扁吸组件 �、Flat Nozzle �、Hair Comb 、 去毛梳 、 主机组件 、 主 机连接管组件（带印刷） �、Main Machine �、Metal Extension Wand of Main Machine �、Floor Brush �、Dust Collection Base 、... -
Page 5: Power On/Off
Power on/off Vacuum Button:Press to switch, long press the vacuum button to vacuum, release to stop vacuuming; In lock mode, a single press to vacuum constantly, press again to stop vacuuming. Gear Button: slide Switch Low gear - > middle gear - > high gear cycle switch. Lock Button: Tap the button and click the lock button to lock the working state without continuously pressing the vacuuming button. -
Page 6: Usage Scenario
Usage Scenario 1.Flat Nozzle 3.Electric Mite Removal Brush Suitable for cleaning gap between Suitable for bed surface, curtain doors and windows, stairs ect. andother textile material surface dust and mite cleaning. 2.2-in-1 flat nozzle 4.Floor Brush For cleaning sofa , seat, etc. Suitable for cleaning floor tiles, floors and other scenes. - Page 7 Installing the Charging Bracket Assembly 1.Install the bracket in a cool and dry place with power supply nearby, and ensure that the walls of the installation area are free of wires or pipes and other facilities. 2.The hole height in the wall is 108/116.5cm in the vertical direction. 3.Select suitable mounting position and mark drilling position.
-
Page 8: Maintenance
Maintenance Product maintenance 1.Be sure to use the original parts, otherwise you may not be able to enjoy the warranty service. 2.If the filter and suction head are blocked, the motor will work intermittently for several times and pause, please clean the filter grid and suction head in time. 3.If the product is not used for a long time, please unplug the power and place it in a cool and dry place after being fully charged. - Page 9 Cleaning Filter HEPA 1.Press the dust cup button to open 2.Remove the HEPA and sponge the dust cup and rotate counterclockwise from the steel filter component. to remove the steel filter component. Dust cup button HEPA Component Steel filter component 3.Clean HEPA , sponges and steel filter 4.Dry the HEPA filter and steel filter mesh under running water.
- Page 10 Installing the Steel Filter Component 1.Turn the HEPA filter face up. 2.Place the sponge and HEPA components clockwise into the slot of the steel filter. 3 Align the air filter component with the Main Machine according to the position shown in the figure, and install the air filter in place by rotating it clockwise.
- Page 11 Cleaning Floor Brush 1.Place the floor brush facing you in 2.Rotate the end cover to the the direction shown in the figure. opening position and gently slide the roller from the suction head. End cover Lock batch Roller Clean the tangled hair of the roller 4.Reinstall the roller according to and end cover separately.
- Page 12 Cleaning Electric Mite Removal Brush 1.Put the side lock of the vacuum head 3.Rinse and clean the roller. in front of you, and rotate the lock counterclockwise with a coin until the lock falls off and is removed. Lock 2.After removing the lock, remove the 4.Place the roller vertically and roller from the mite removal brush.
-
Page 13: Basic Parameter
Put it back into the roller Lock Basic Parameter Vacuum cleaner Parameter Model YM-H4-W03、YM-H4-G03 Product Size 1197*248*323mm DC25.2V INR 18650 2500mAh Lithium Battery About 7.5kg （Including parts and dust Net Weight collection base） Working Voltage 25.2V... -
Page 14: Precautions For Use
Precautions for Use �.Please pay attention to sharp objects such as glass to prevent injury. �.The inside of the dust cup can not be washed. �.After cleaning all parts, it is necessary to dry them completely before they can be installed and used. -
Page 15: Troubleshooting
Troubleshooting Problem Possible Cause Solution Ambient temperature is Please charge it when too high or too low. The used in a suitable Running time battery is not fully charged environment becomes shorter suction reduced There is too much dust Clean up trash in time in the dust cup. - Page 16 (�) Hot objects, such as carbon butts and cigarette butts not extinguished. (�) Sharp fragments, such as glass. (�) Flammable and explosive articles, such as gasoline or alcohol products. �.This product is not intended for use by persons with physical, sensory or intellectual disabilities or those lacking experience and common sense (including children), unless supervised or directed by adults to ensure their safe use.
- Page 17 Guangdong Yimu Technology Co., Ltd. Manufacturer: Address: Room ���, Building �, No. �, Dongsan Lane, Hengjiang, Fushan, Liaobu Town, Dongguan, Guangdong, China +�� ���-���-���� Service phone:...
