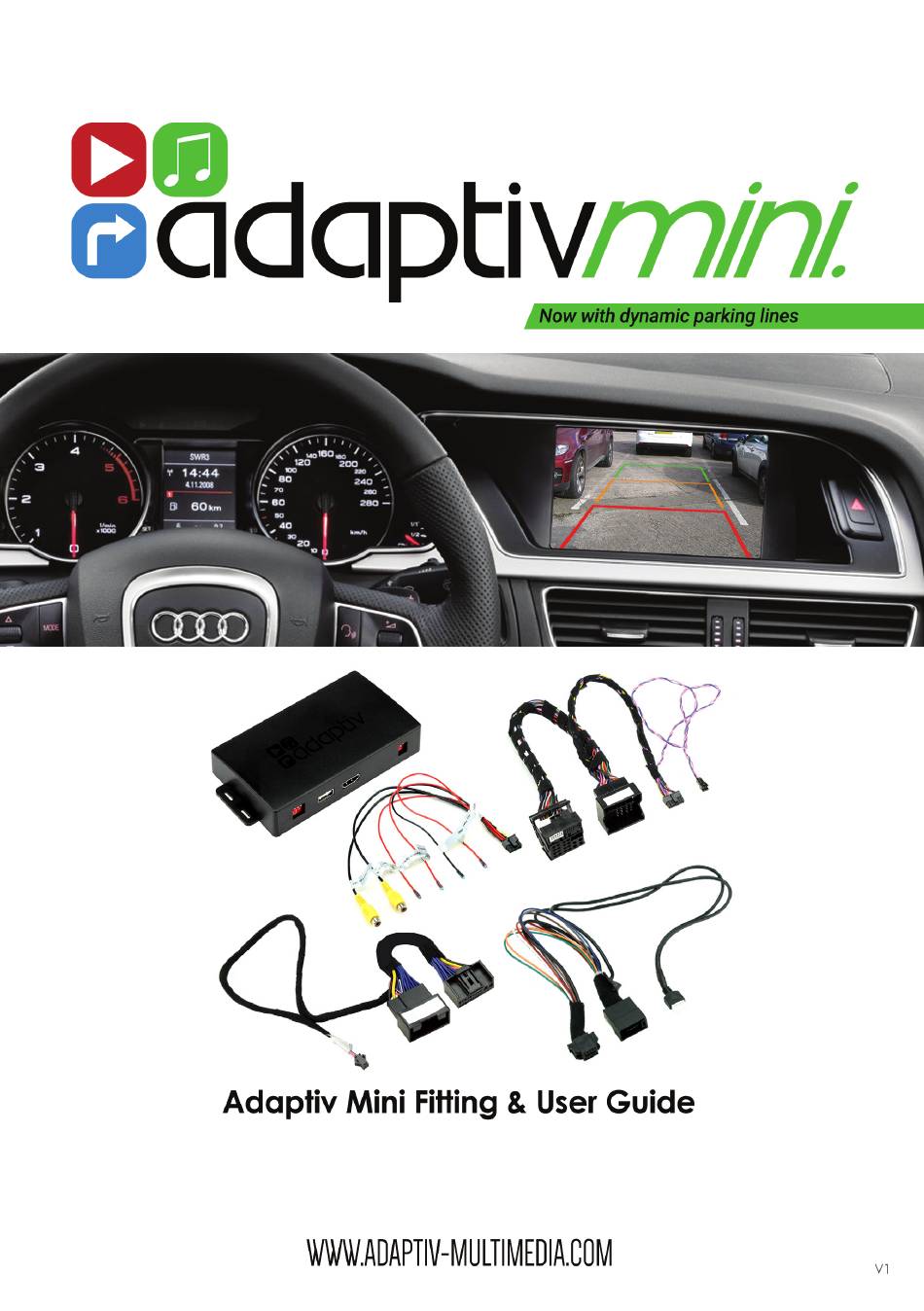

- Page 1 012020_V1 CAM-AU9-AD WWW.ADAPTIV-MULTIMEDIA.COM...

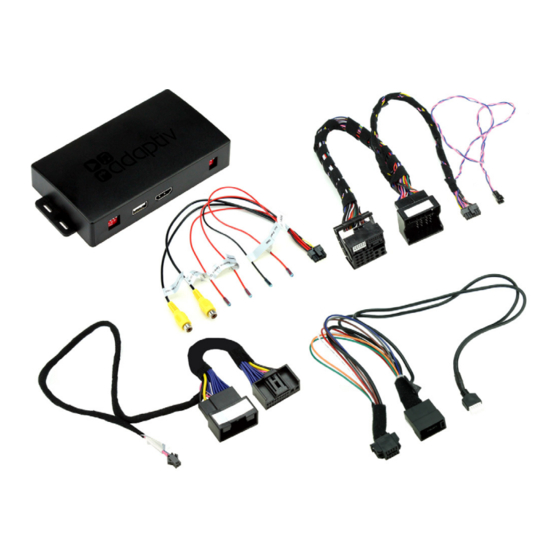

- Page 2 ABOUT Adaptiv Mini Adaptiv Mini allows HDMI and camera input to the OEM screen. Includes removable dynamic parking guidelines This plug and play Mini interface adds HDMI to connect your Apple or Android de- vice, allowing you to mirror your smartphone display on the vehicle’s original screen.
- Page 3 CONNECTION DIAGRAM NOTE: All connections are made at the rear of the OEM head unit. No connections need to be made directly to the display. DIP SWITCH SETTINGS DIP 3 DIP 1 If the vehicle has If the vehicle has OEM aftermarket reverse reverse camera camera...
- Page 4 HDMI Access Select Aux In from the OEM source menu. Hold BUTTON A for 2 seconds to switch between OEM screen and Adaptiv Mini HDMI screen Video In Motion Warning - 10 MPH Hold BUTTON B to disable the video in motion warning message...
