Summary of Contents for Adaptiv Mini ADVM-FD1

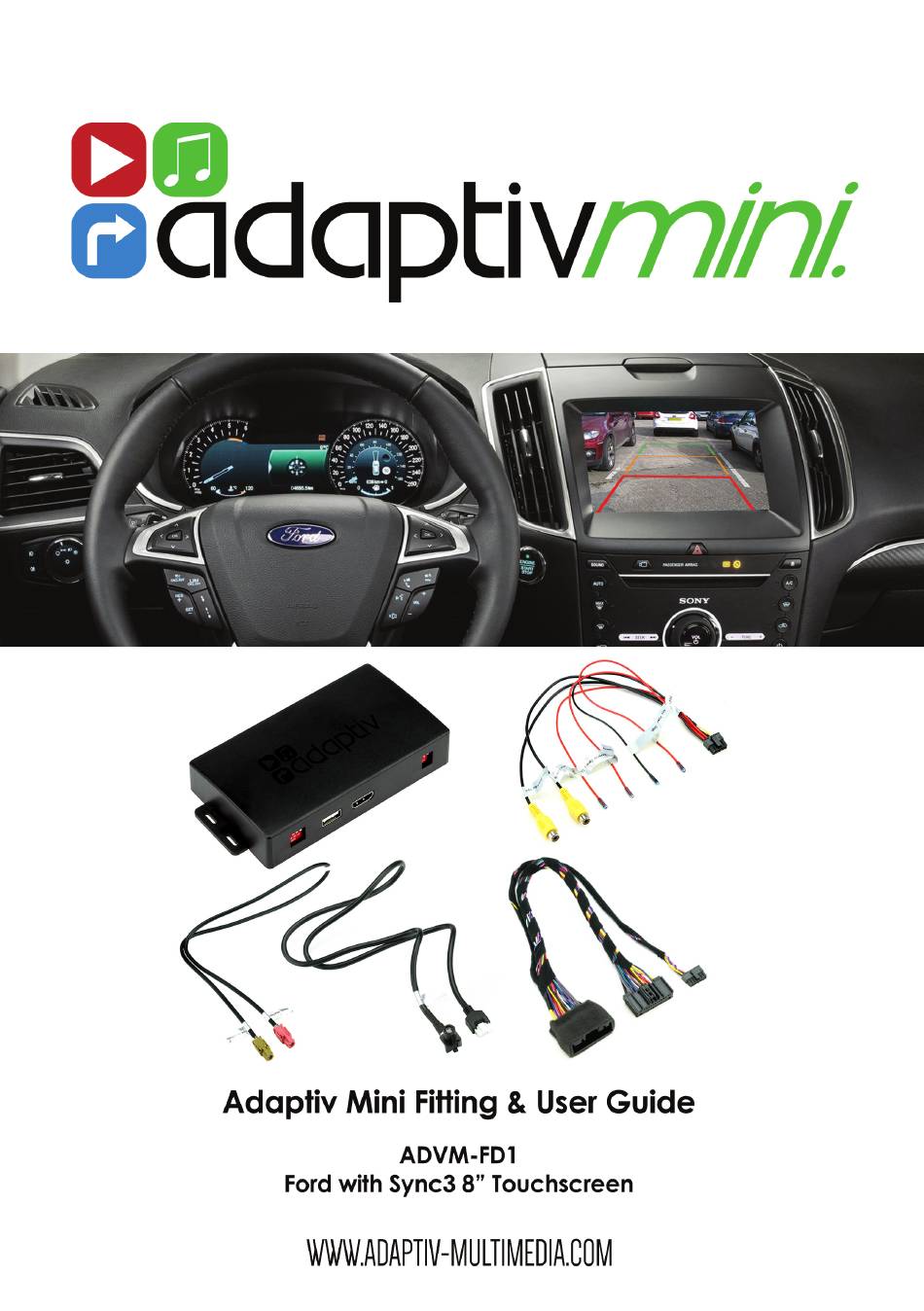

- Page 1 WWW.ADAPTIV-MULTIMEDIA.COM...
- Page 2 ABOUT Adaptiv Mini Adaptiv Mini allows HDMI & Camera input to the OEM screen. This plug and play Mini interface adds HDMI to connect your Apple or Android de- vice, allowing you to mirror your smartphone display on the vehicle’s original screen.
- Page 3 CONNECTION DIAGRAM DIP SWITCH SETTINGS DIP 1 DIP 3 If the vehicle has OEM If the vehicle has after- reverse camera market reverse camera ( ON: YES OFF: NO ) ( ON: YES OFF: NO ) DIP 2 DIP 4 If the vehicle has after- DIP 5 market front camera (...
-
Page 4: Button Configuration
Connect the USB dongle supplied to the Sync USB input**. Select USB source from the OEM menu sources. The dongle will appear as ‘USB AUX’. Hold BUTTON 1 for 2 seconds to switch between OEM screen and Adaptiv Mini HDMI screen Video In Motion Warning - 10 MPH...
