Summary of Contents for Adaptiv Mini CAM-AU6-AD

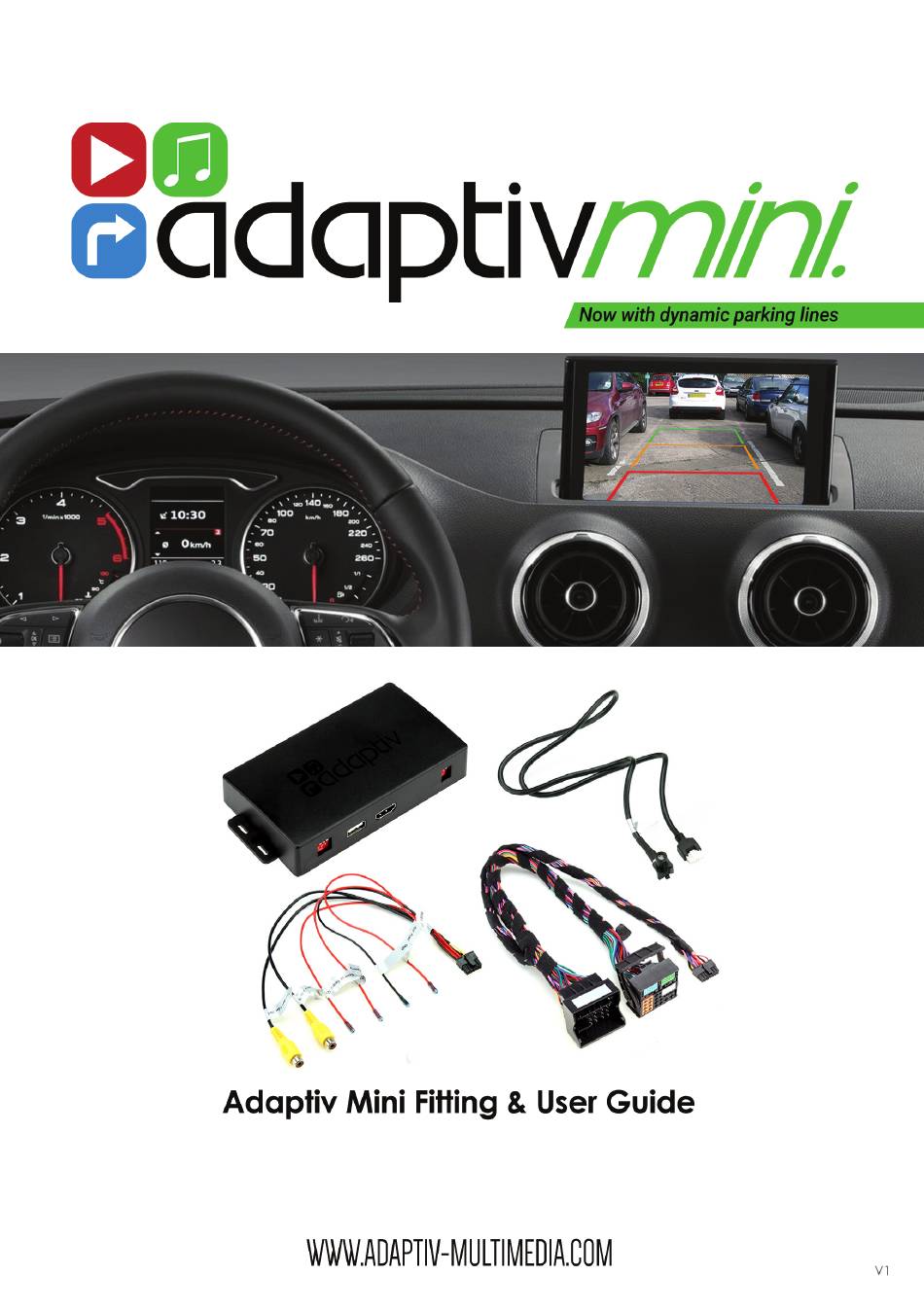

- Page 1 012020_V1 CAM-AU6-AD WWW.ADAPTIV-MULTIMEDIA.COM...

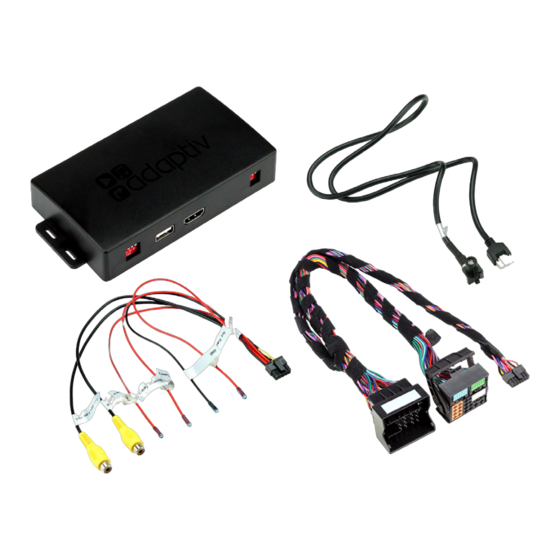

- Page 2 ABOUT Adaptiv Mini Adaptiv Mini allows HDMI and Camera input to the OEM screen. Includes remova- ble dynamic parking guidelines This plug and play Mini interface adds HDMI to connect your Apple or Android de- vice, allowing you to mirror your smartphone display on the vehicle’s original screen.
- Page 3 CONNECTION DIAGRAM NOTE: All connections are made at the rear of the OEM head unit. No connections need to be made directly to the display. DIP SWITCH SETTINGS DIP 1 DIP 3 If the vehicle has OEM If the vehicle has after- reverse camera market reverse camera ( ( ON: YES OFF: NO )
- Page 4 HDMI Access Select Aux In from the OEM source menu. Hold MENU Button for 2 seconds to switch between OEM screen and Adaptiv Mini HDMI screen Video In Motion Warning - 10mph Hold BACK Button to disable the video in motion warning message...
