Kyocera DuraXV Extreme
Verizon Push-to-Talk (PTT+)
"How To" Guide

Advertisement

Table of Contents
loading

Related Manuals for Kyocera DuraXV Extreme

Summary of Contents for Kyocera DuraXV Extreme

  • Page 1 Kyocera DuraXV Extreme Verizon Push-to-Talk (PTT+) “How To” Guide...

  • Page 2: Table Of Contents

    Table of Contents: 1. DuraXV Extreme Phone • Overview ------------------------------------------------------------------------------------- 4 • Keyguard ------------------------------------------------------------------------------------ 8 • Customizing your Main Menu ---------------------------------------------------------- 9 2. PTT+ Activation --------------------------------------------------------------------------- 10 3. How to Assign PTT key to PTT+ App -------------------------------------------- 13 4. General PTT+ Settings •...
  • Page 3 Table of Contents: 5. PTT+ Basic User Interface • PTT+ Menu ---------------------------------------------------------------------------------- 26 • One Touch Action -------------------------------------------------------------------------- 27 • Status Indicator -- -------------------------------------------------------------------------- 28 • How to Add Contacts ------------------------------------------------------------------- 29 • How to Add Personal Groups -------------------------------------------------------- 30 •...

  • Page 4: Duraxv Extreme Phone

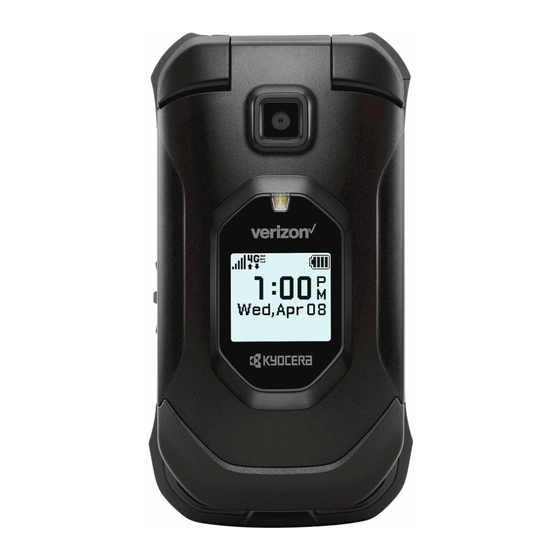

    DuraXV Extreme Phone Overview Model Numbers: • E4810 (camera version) • E4810NC (non-camera version)
  • Page 5 DuraXV Extreme Phone Overview (cont.)
  • Page 6 DuraXV Extreme Phone Overview (cont.)

  • Page 7: Keyguard

    DuraXV Extreme Phone Overview (cont.) Lets you display the recent call history (with the phone closed), Lets you place or receive ignore an incoming call, end calls in speakerphone mode the ongoing call, or unlock the (with the phone closed), turn keyguard (if configured).
  • Page 8 DuraXV Extreme: Keyguard Use this feature to lock the external keys while the phone is closed to prevent accidental key presses. Select one of the following options: • On - Long press to temporarily disable the keyguard by pressing and holding the External speaker key while the phone is closed.

  • Page 9: Customizing Your Main Menu

    DuraXV Extreme: Customizing your Main Menu To replace a Main Menu icon, press right soft key “Options” and select replace items. Custom Main Menu Default Main Menu In the above example, Media center has been replaced with PTT+ icon.

  • Page 10: Ptt+ Activation

    PTT+ Activation Select “Settings & tools” Select “3. Business tools” Select “1. Push To Talk+” from main menu from the menu from the menu...
  • Page 11 PTT Activation (cont.) 1. It will show “Push To Talk Plus Verizon” 2. On the next page, click “Yes” to activate the subscription. 3. It will show a message “Contacting server, please wait …” 4. Next page, it will ask to enable GPS. Click “YES”. Note: “High Accuracy”...
  • Page 12 PTT+ Activation (cont.) 5. Select one of the 3 options on Location. 6. It will next show the Terms and Conditions. Click the left softkey to select “Accept” 7. It will ask if you want to view a quick tutorial. If you want to view the quick tutorial, click “Yes”. Otherwise, click “No”...

  • Page 13: How To Assign Ptt Key To Ptt+ App

    How to assign the PTT key to PTT+ Application 1. Press and hold PTT key until pop-up appears on LCD screen. 2. “Would you like to select the function for this key now?” Select “OK”. 3. In PTT Key menu, select “Push To Talk+”. 4.

  • Page 14: General Ptt+ Settings

    General PTT+ Settings...

  • Page 15: How To Access The Ptt+ App Settings

    How to Access the PTT+ App Settings 1. From PTT+ main menu, Select “Options” (right soft key). 2. Scroll down to “Settings” using the navigation down key and press the center soft key.

  • Page 16: Important Settings

    Important Settings PTT+ Alert Tones In Settings, scroll down to Scroll down and select select “Alert Tone”. desired Alert Tone.

  • Page 17: Ptt+ Speed Dial

    Important Settings PTT+ Speed Dial Contact is now added Select desired In Settings, scroll down Scroll down and select to Speed Dial list. to select “Speed Dial”. contact. unassigned spot. After Speed Dial is set up: To make a Speed Dial call, press the speed dial # on the keypad and then press the PTT button.

  • Page 18: Call From Lock Screen

    Important Settings Call from Lock Screen To set up Lock screen, go to Phone Then select Screen lock In PTT App, go to Settings and settings and select “Security”. select “Call from Lock Screen”. type and finish set up. Once this is set up, you can make PTT calls by pressing PTT key even though phone is locked.

  • Page 19: Call History

    Call History To see a record of call history – with the newest at the bottom. Goto “Home” tab. Call Select a contact and press “View”. Detailed record of calls and alerts is shown. history is shown...

  • Page 20: Sharing Text, Location And Media With Your Ptt+ Contacts/Groups

    Sharing Texts, Location, and Media with your PTT Contacts/Groups Using Share feature, you can send text messages, your location, images, videos, voice messages and files. Scroll down and select item Select the Contact and Goto PTT homepage Press left soft key “Share”. you want to share.
  • Page 21 Send a Text Messages to your PTT contacts/groups Compose a text message and send it to your current contact or group. Enter message, press To change Text Entry mode, From Share menu, down Nav key, then right press left soft key “Abc”. select “Text”.
  • Page 22 Send Your Location to your PTT contacts/groups Send your current location to your current contact or group. Press 1 or 3 key to zoom in/out. Press From Share menu, Press left soft key to Nav keys to move select “Location”. “Send”...

  • Page 23: How To Switch Ptt Call Audio From Speaker To Earpiece And Vice Versa

    How to switch PTT Call Audio from Speaker to Earpiece and vice versa 1. By default, the DuraXV Extreme PTT+ call audio is set to Speakerphone. 2. To change the audio to Earpiece, prior to or during an PTT call, press right soft key “Options”...
  • Page 24 Other ways to change PTT Audio from Speaker to Earpiece 1. Long Press Camera/Speaker key on main keypad or 2. Press External Speaker key (with Default Settings under External Speaker Key menu in Programmable Keys). External Camera/ Speaker key Speaker key...

  • Page 25: Ptt+ Basic User Interface

    PTT+ Basic User Interface...

  • Page 26: Ptt+ Menu

    Basic UI: PTT+ menus Contacts: Favorites: Call History: Groups: Displays your PTT+ Displays your favorite Displays your PTT+ Displays your PTT+ contacts and allows you contacts and groups. conversation history. groups and allows you to create/edit/delete a Allows you to easily You can also change your to created/edit/delete a contact or initiate an PTT...

  • Page 27: One Touch Action

    Basic UI: One Touch Action 1. In Settings list, scroll down to select One Touch Action. This setting allows you to configure what pressing the PTT key will do. 2. You can choose the following actions to happen when PTT key is pressed: A.

  • Page 28: Status Indicator

    Basic UI: Status indicator In the PTT App, under Home – select “My Status” using the navigation keys (up/down arrows) and the Center key. Available: You are available to accept calls and alerts. Do Not Disturb: Prevents incoming calls. To change status, use the navigation keys to highlight the item and then hit the center key to select it.

  • Page 29: How To Add Contacts

    Basic UI: How to Add Contacts 1. Open the PTT+ app, select Contacts tab and click the Options button (right softkey). 2. Select “New PTT Contact” to manually add a contact or if you have already entered contacts into your device phonebook, select “Import PTT Contact” to import from your phonebook.

  • Page 30: How To Add Personal Groups

    Basic UI: How to Add Personal Groups 1. Open the PTT+ app, select Groups tab and click the Options button. 2. Select “New Group” to manually create a talkgroup. 3. Enter the Group Name and Add/remove members 4. Save the Group...

  • Page 31: How To Make 1-To-1 Ptt+ Calls (Flip Open)

    Basic UI: How to make 1-to-1 PTT calls (Flip Open) 1. Open the PTT+ application, go to Contacts tab. 2. Scroll to the person you want to call, press the center key to select the contact and press the PTT key to connect. 3.

  • Page 32: How To Make 1-To-1 Ptt+ Calls (Flip Closed)

    Basic UI: How to make 1-to-1 PTT calls (Flip Closed) When One Touch Action is set to Landing Page / Contacts: 1. Press PTT key; PTT Contacts List appears. 2. Scroll to the person you want to call using the volume keys. 3.

  • Page 33: How To Make Ptt+ Group Calls (Flip Open)

    Basic UI: How to make PTT group calls (Flip Open) 1. Open the PTT application, go to Groups tab. 2. Scroll to the group you want to call, press the center key to select the group and press the PTT key to connect. 3.

  • Page 34: How To Make Ptt+ Group Calls (Flip Closed)

    Basic UI: How to make PTT group calls (Flip Closed) When One Touch Action is set to Call group: 1. Press PTT key. 2. The pre-defined group call will be initiated.
