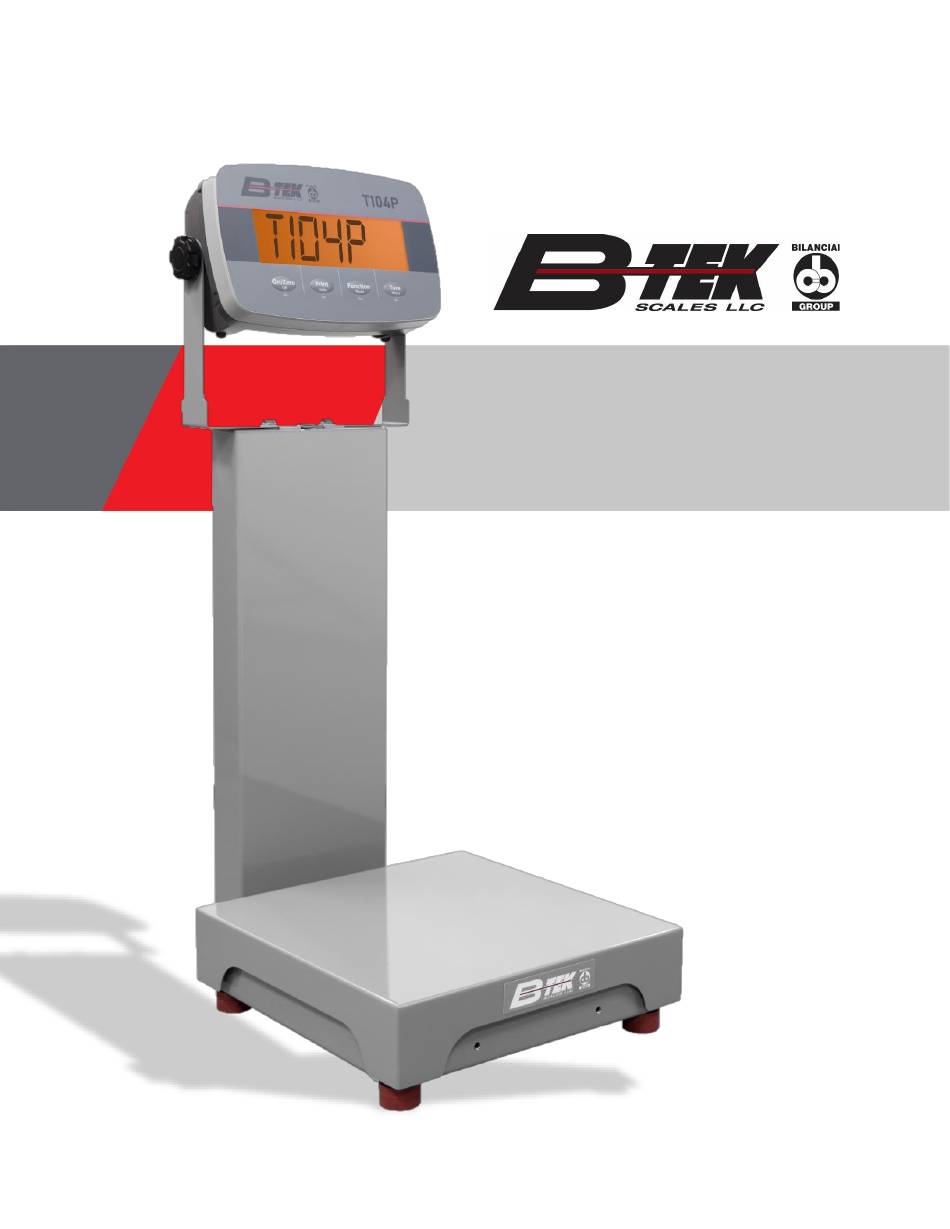

- Page 1 Instruction Manual DuraShield Check Weigh and Counting Bench Scale 3/15/23 V2023.1...
-
Page 2: Table Of Contents
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Table of Contents 1. Safety First……………………………………………………………………….…………. 3 2. Introduction………………………………………………………………………….………. 4 3. Specifications………………………………………………………………………..….…… 5 4. DuraShield Bench Scale Assembly…………………………….…………………….….6-8 5. Indicator Installation………………………………………………………………..…….…..9 6. Control Functions…….………………………………………….…………………….…...10 7. Display Layout/Operation…………………….…………………………………….….11-12 8. Counting Mode…………….……………………………………………………………..13 9. -
Page 3: Safety First
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Safety First Please call a B-TEK-authorized service provider for service or repairs. • Ensure that the area used for this equipment is safe for this equipment. • Allow only qualified personnel to work on electric/electronic components. -
Page 4: Introduction
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Introduction The information provided in this manual is a guide to installing the B-TEK, LLC. DuraShield series single-point bench scale. This document is intended as a guide only, and the actual installation should be performed by qualified personnel only. -
Page 5: Specifications
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Specifications MODEL DuraShield 12”x12” DuraShield 18”x18” Capacities 100lb/50kg 100lb/50kg Readability .02lb/.01kg .02lb/.01kg Max. Divisions 5000e Weighing Units lb, kg 12” x 12”, 18” x 18” Platter sizes Construction Powder Coated Carbon Steel Load Cell Operating 14°F - 104°F / -10°C - + 40°C... -
Page 6: Durashield Bench Scale Assembly
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Assembly Unpacking Carefully remove the bench scale from its box, ensure that it is not damaged, and that all the parts are included. This scale has been factory calibrated and only needs minor assembly. - Page 7 B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual After fastening the column to the base install all the bench scale and column leveling feet as shown in the image below. Leveling Foot Lock Nut Leveling Foot Place the bench scale on an environmentally sound level surface and adjust the feet on the bench base only.
- Page 8 B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Bullseye Level Adjusting Unlevel Level Overload Stop The overload stop is a set crew placed on the underside of the base and is designed so that the load cell bottoms out when more weight is applied than the scale’s capacity. To adjust this screw simply apply the weight that matches the capacity of the scale plus 5% and adjust the screw in until it hits the cell.
-
Page 9: Indicator Installation
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Indicator Installation Mount the indicator on the column mounting bracket. Tighten the wing nuts to secure the indicator to the column. Plug the load cell cable connector into the back side of the indicator load cell connector. -
Page 10: Control Functions
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Control Functions Figure 1-5 T104P Control Panel Figure 1-6 T104S Control Panel Button Primary Function On/Zero Print Function Initiates an Tare (Short Press) If the terminal is off, Sends the current value application mode. -
Page 11: Display Layout/Operation
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Display Layout Figure 1-7 Display Item Description Item Description NET symbol Pound, Ounce, Pound: Ounce symbols Center of Zero symbol Kilogram, Gram symbols Stable weight symbol Pieces symbol Negative symbol... - Page 12 B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual b) Release the Tare button and the tare weight will be displayed. 2. Add the item to the pan or the container. The display shows the weight of the item.
-
Page 13: Counting Mode
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Counting Mode Use this application to count the number of pieces on the pan based on an Average Piece Weight (APW). Enter the Mode 1. Press and hold the Mode button until COUNT is displayed. -
Page 14: Check Weigh Mode
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Application Settings The application can be customized for user preferences. Please refer to the T104 indicator instruction manual Application Settings section in Weighing Mode for details about how to enter application settings. The Counting Configurations are defined below (defaults in Bold). - Page 15 B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual 1. Repeat step 3 to 5 to set the over value. 2. If the values you set are invalid, the display will show –NO-- and go back to reset the Under and Overvalue.
-
Page 16: Load Cell Replacement
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Load Cell Replacement Install the load cell using supplied B-TEK ASP-1 load cell and shims. Torque the B-TEK ASP-1 load cells to 76 in. lbs. Spider assembly to load cell mounting bolts. -
Page 17: Exploded View
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual 1. Platter 3. Spider Assy. Leveling Feet 2. Spider Assembly 4. Load Cell Spacer 5. B-TEK ASP-1 Load Cell 8. Base Bare Bone 6. Base Feet (No Hardware) 7. Base Leveling Foot Lock Nut... -
Page 18: Replacement Part Numbers
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual Replacement Parts Parts List B-TEK Part # Parts Name 12”x12” SS Replacement Platter 100-160857-1 18”x18” SS Replacement Platter 100-121246A-1 12”x12” SS Replacement Spider Assembly 100-160858-3 18”x18” SS Replacement Spider Assembly... -
Page 19: B-Tek Contact Information
B-TEK DuraShield Check Weigh and Counting Series Bench Scale Instruction Manual B-TEK Scales, LLC 1510 Metric Ave. S.W. Canton, OH 44706 Tel: 330.471.8900 Fax: 330.471.8909 www.B-TEK.com - 19 -...
