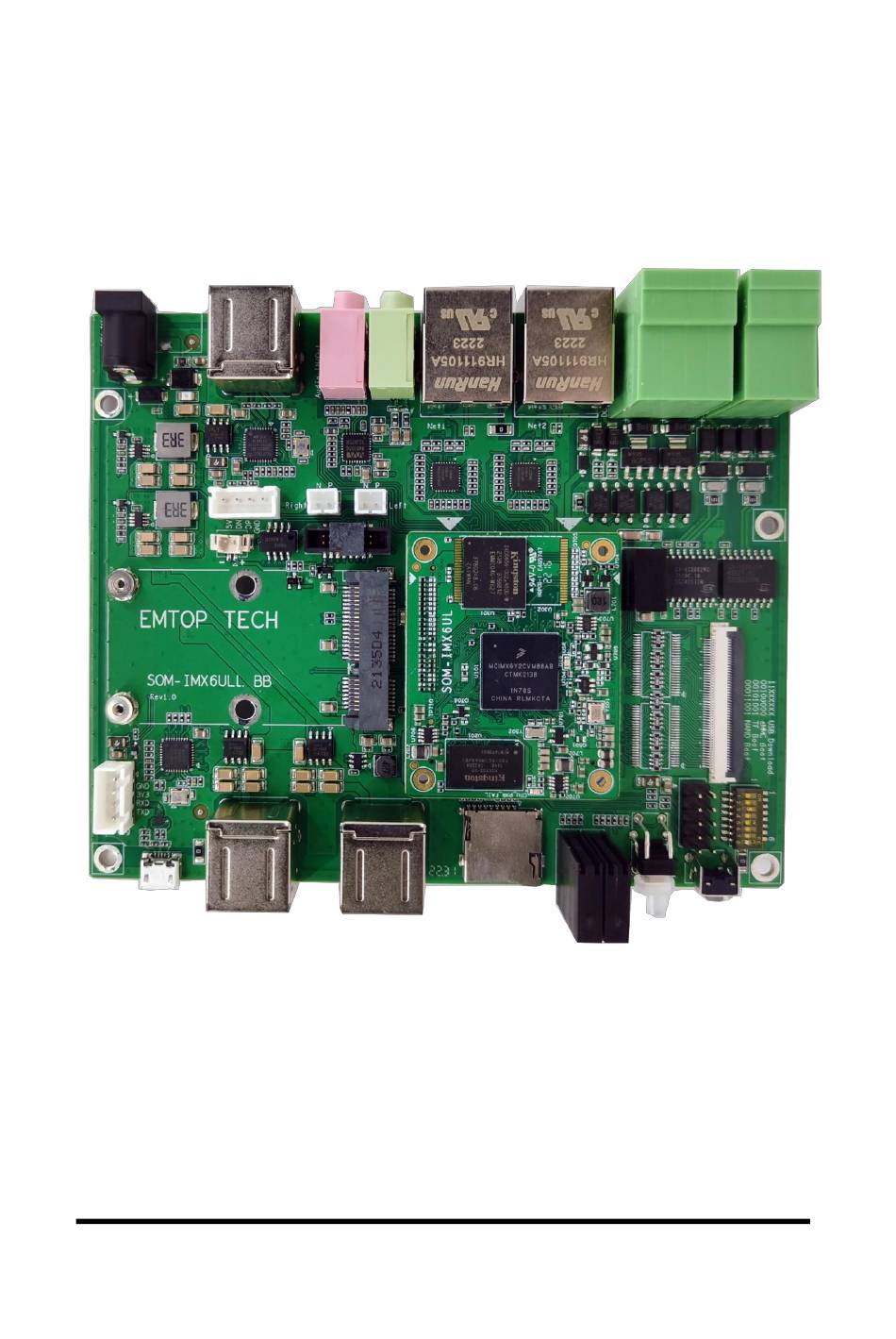

BB-ET6ULL
SOM-ET6ULL + SOM-ET6ULL-BB
User Manual
Version: 1.0
2023-01-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BB-ET6ULL and is the answer not in the manual?

Questions and answers

Related Manuals for EMTOP BB-ET6ULL

Summary of Contents for EMTOP BB-ET6ULL

  • Page 1 BB-ET6ULL SOM-ET6ULL + SOM-ET6ULL-BB User Manual Version: 1.0 2023-01-03...
  • Page 2 Revision History： Version Date Description 2023-01-03 Initial Release...

  • Page 3: Table Of Contents

    Table of Contents 1. PRODUCT OVERVIEW .................... 4 1.1 I .......................4 NTRODUCTION 1.2 H ................... 4 ARDWARE EATURES 1.2.1 SOM-ET6ULL ....................4 1.2.2 SOM-ET6ULL BB ..................6 1.3 M ..................7 ECHANICAL IMENSION 1.4 I ....................8 NTERFACE ETAILS 1.4.1 DC Power Input .....................8 1.4.2 USB Host .......................8 1.4.3 Audio Input/Output ..................

  • Page 4: Product Overview

    Product Overview Introduction The SOM-ET6ULL BB is a baseboard that design by Emtop tech for the SO M board SOM-ET6ULL. It features a lot of rich and flexible interfaces. Can be use d for the customers to develop their user programs, verify their expected functions and shorten product development cycle.
  • Page 5 Co-processor • General Interrupt Controller(GIC) • Global Timer • Snoop Control Unit • Target frequency of 528MHz • S/PDIF Input and Output Audio • SAI modules supporting I2S,AC97,TDM • Boot ROM (96KB) On-chip memory • Secure/non-secure RAM (32KB) Memory and storage •...

  • Page 6: Som-Et6Ull Bb

    I/O connectivity • 1x SDIO • 1x JTAG • 10x GPIOs • 10x SNVS_TAMPER • 2x OTG Display Interfaces • 24bits RGB LCD Camera • 8Bit CSI 1.2.2 SOM-ET6ULL BB Electrical Parameters Working Temperature：0 °C~ 70°C（Commercial）  -45°C~ 85°C（Industrial） Ambient Humidity：20% ~ 90%, non-condensing ...

  • Page 7: Mechanical Dimension

    1x MINI PCIe (For 4G module only)  1x SIM Card  1x MicroUSB Connector (For updated only)  1x 16Pin Extension Interface Include SPI, I2C and UART  1x 2.54mm Pin header for UART  1x 2.50mm Box header for Debug ...

  • Page 8: Interface Details

    Interface Details 1.4.1 DC Power Input The SOM-ET6ULL BB places a DC Jack to feature a 12V power supply input. The recommended power supply is 12V/2A. If some customized features are requested, please contact the sales. 1) Part Reference：J4 2) Not special Pin1 is defined. The center is positive power input, and the negative pole around.

  • Page 9: Audio Input/Output

    1.4.3 Audio Input/Output The SOM-ET6ULL BB order two 3.5mm audio connector to feature audio input and audio output function. The audio output can drive a headphone directly and the audio input can receive audio signal from microphone. 1) Part Reference：J16 for audio in, J13 for audio out. 2) Not special Pin1 is defined.

  • Page 10: 2X 1W Speaker Connector

    3) Specification for the double-deck USB Host as below: 1.4.4 2x 1W Speaker Connector The SOM-ET6ULL BB has two 2.00mm pin pitch 1x2pin WTB connectors that are used for 1W stereo speaker internal. These interfaces can drive 1W per channel into 8Ω...

  • Page 11: 10/100M Ethernet

    1.4.5 10/100M Ethernet The SOM-ET6ULL BB feature two 10/100M ethernet. These network ports are 10/100M adaptive. 1) Part Reference：J5, J6. 2) Not special Pin1 is defined. 3) Specification for the double-deck USB Host as below:...

  • Page 12: Din/Do

    1.4.6 DIN/DO The SOM-ET6ULL BB order a 3.81mm double-deck Terminal Block Header to feature two digital input and digital output. Upper layer features the digital output and the bottom layer features the digital input. 1) Part Reference：J24 2) Not special Pin1 is defined. The pin define for the digital input/output as below: Upper OUT1+ OUT1-...

  • Page 13: Can/Rs485

    1.4.7 CAN/RS485 The SOM-ET6ULL BB order a 3.81mm double-deck Terminal Block Header to feature CAN and RS485 function. Upper layer features the CAN interface and the bottom layer features the RS485 interface. 1) Part Reference：J19 2) Not special Pin1 is defined. The pin define for the CAN/RS485 as below: Upper CAN_H CAN_L...

  • Page 14: Lcd

    1.4.8 The SOM-ET6ULL BB order a 0.5mm pitch FPC connector to feature the LCD interface for display. It has a 24bits parallel display interface and include a resistance touch interface or capacitance touch interface with I2C bus. 1) Part Reference：J17 2) The 0.5mm pitch FPC connector has an special Pin1 defined that shows below.
  • Page 15 The pin defines for the FPC Connector as below: Num. Pin Name Level Description DSS_DATA0 3.3V Display color blue Bit0 DSS_DATA1 3.3V Display color blue Bit1 DSS_DATA2 3.3V Display color blue Bit2 DSS_DATA3 3.3V Display color blue Bit3 DSS_DATA4 3.3V Display color blue Bit4 DSS_DATA5 3.3V...
  • Page 16 DSS_DATA16 3.3V Display color red bit0 DSS_DATA17 3.3V Display color red bit1 DSS_DATA18 3.3V Display color red bit2 DSS_DATA19 3.3V Display color red bit3 DSS_DATA20 3.3V Display color red bit4 DSS_DATA21 3.3V Display color red bit5 DSS_DATA22 3.3V Display color red bit6 DSS_DATA23 3.3V Display color red bit7...

  • Page 17: Reset

    1.4.9 Reset The SOM-ET6ULL BB has a reset key to cause a cold reset for the board. 1) Part Reference：S1 2) Not special Pin1 is defined. Press the button will reset the board directly. 3) Specification for the reset button as below:...

  • Page 18: User Button

    1.4.10 User Button The SOM-ET6ULL BB has a user button key to for interrupt input. Short press the user button will generate an interrupt and long press the user button will turn down the system. 1) Part Reference：SW1 2) Not special Pin1 is defined. 3) Specification for the user button as below:...

  • Page 19: Led Indicator Light

    1.4.11 LED Indicator Light The SOM-ET6ULL BB has a 2x4 LED array indicator light to indicate the state of the board. These LED will indicate the power, system running, 4G running and the internet connecting. 1) Part Reference：LED1, LED2. 2) Not special Pin1 is defined. The defines for the LED as below table.

  • Page 20: Tf Card

    LED2 LED1 System/User LED Power User LED 4G 1PPS ETH1 ACT ETH1 Link ETH0 ACT ETH0 Link 3) Specification for the user button as below: 1.4.12 TF Card The SOM-ET6ULL BB has a TF Card connector to install a media card. This media card can be used for data storage or for firmware.
  • Page 21 1.4.13 The SOM-ET6ULL BB has a MiniPCIe and a SIM card connector used for 4G module. The 4G running state is indicated by the second LED of the LED1. 1) Part Reference：CN1 for 4G module and J12 for SIM Card. 2) Not special Pin1 is defined.
  • Page 22 4) Specification for the 4G module as below 5) Specification for the 4G SIM card as below:...

  • Page 23: 2.54Mm Extension Interface

    1.4.14 2.54mm Extension Interface The SOM-ET6ULL BB has a 2x5pin 2.54mm pitch pin header for IO extension. A four wire UART and four GPIOs through this pin header. Please note that the four GPIOs are the same signal with Digital Input/output. 1) Part Reference：J23.

  • Page 24: Usb Extension Interface

    Pin Num Signal Name Signal Name Pin Num 3.3V/500mA Output GND UART5_TXD UART5_RXD UART5_CTS UART5_RTS 4) Specification for the user button as below: 1.4.15 USB Extension Interface The SOM-ET6ULL BB has a 1x4pin 2.5mm pitch pin header with box for USB expansion.

  • Page 25: Io Extension

    3) The defines for the pin header as below table. Pin Num Signal Name 5V/500mA Output 4) Specification for the user button as below: 1.4.16 IO Extension The SOM-ET6ULL BB has a 2x8pin 1.27mm pitch pin header with box for IO expansion.

  • Page 26: Debug Port

    3) The defines for the pin header as below table. Pin Num Signal Name Signal Name Pin Num GPIO0(AIN) Reset Output EXT_INT ESPI1_SS0 UART3_RXD ESPI1_SCLK UART3_TXD ESPI1_MISO I2C2_SCL ESPI1_MOSI I2C2_SDA VDD3V3 VDD5V 4) Specification for the user button as below: 1.4.17 Debug Port The SOM-ET6ULL BB has a 1x4pin 2.5mm pitch pin header with box for...

  • Page 27: Serial Download

    1) Part Reference：CON2. 2) Pin1 position shows as below. 3) The defines for the pin header as below table. Pin Num Signal Name 3.3V/500mA Output 4) Specification for the user button as below: 1.4.18 Serial Download The SOM-ET6ULL BB has micro USB connector for Serial Download function. This port only for Serial Download purpose and when is connected to a host, the...
  • Page 28 USB host on front panel near to the microUSB will be disable. This ports will still invalid until the cable is removed from the Serial Download port. 1) Part Reference：J8. 2) Not special Pin1 is defined.. 3) Specification for the user button as below:...
