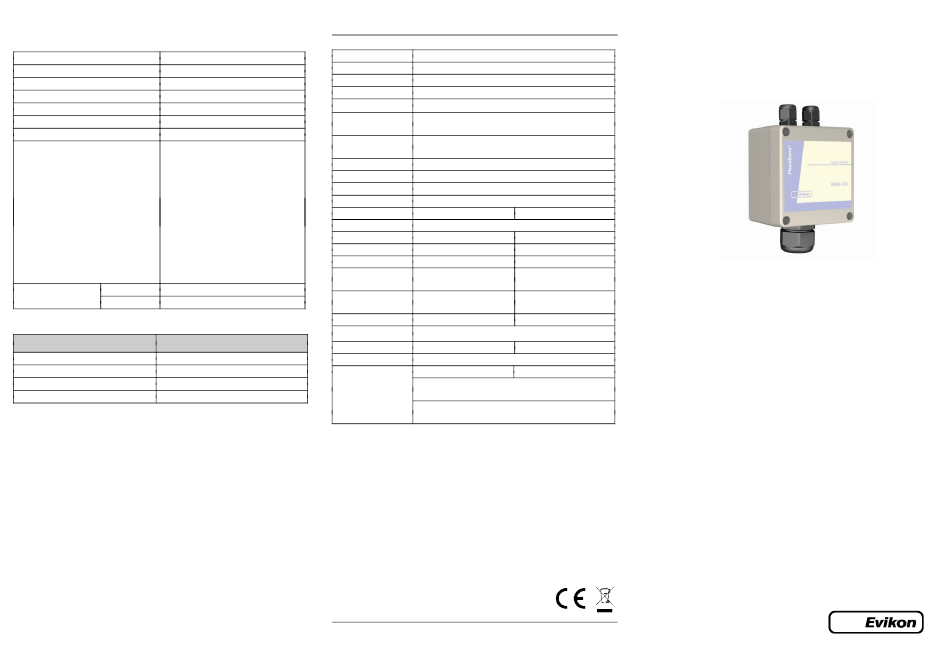

Evikon E2608-CO2 User Manual

Carbon dioxide
Synonyms: Carbonic acid gas, Carbonic anhydride, Carbon (IV) oxide; Dry ice (in
solid state).
Chemical formula CO
2
Molar weight 44
Relative gas density (to air) 1.52
Conversion 1 ppm = 1.80 mg/m
Boiling point Sublimes
Flammability Nonflammable
Odour Odourless
Hazards Dusts of various metals (Mg, Zr, Ti, Al,
Cr, Mn) are ignitable and explosive when
suspended in carbon dioxide.
In concentrations up to 1% (10 000
ppm), it will make some people feel
drowsy and give the lungs a stuffy
feeling. Concentrations of 7% to 10%
(70 000 to 100 000 ppm) may cause
suffocation, even in the presence of
sufficient oxygen, manifesting as
dizziness, headache, visual and hearing
dysfunction, and unconsciousness within
a few minutes to an hour.
Exposure limits TWA 9000 mg/m
(Directive 2006/15/EC)
STEL Not specified
Conversion of ppm to mg/m 3 is calculated for 25°C and 1 atm.
Indoor air quality in nonresidential buildings
CO2 level Description
< 450 ppm High quality (fresh air)
450-600 ppm Medium quality
600-1000 ppm Moderate quality
> 1000 ppm Low quality
Installation guidelines
(See Installation and connections section for general information.)
Since CO2 is heavier than air, it is recommended to locate the sensor not higher, than
the potential leakage. For air quality control place the sensor in the breathing zone.
Calibration
E2608-CO2 series detector have been calibrated by Manufacturer with standard
gas mixtures before delivery. Provided that the sensor is used under moderate
conditions, field recalibration is recommended every 5 years. Please contact your
dealer for more information.
Maintenance
Do not perform any maintenance operation with the power on.
Clean the device with soft damp cloth. Do not use any abrasive cleaning agents. Do
not immerse the device into water or any cleaning media.
E2608-CO2_UM_EN
Specifications
Signal update
Power supply options
Power consumption
Analog outputs
3
Relay otputs
Load resistance
Digital interface
Cable connections
Enclosure
Dimensions
CE marking
Sensor type
Sensor lifetime
Calibration interval
Detection range
Resolution / digital
unit
3
/5000 ppm
Accuracy
Response time T90
Outputs assignment
Outputs scale
Alarm setpoints
Operating conditions
Delivery set
–Detector-transmitter E2608 (wall mount or duct mount version)
– Mounting accessories:
-4 cross-shaped mounting lug with screws and 4 screws with plastic dowels for wall
mount version
-rubber flange for duct mount version
-fixing clamp for remote probe versions
Warranty
This product is warranted to be free from defects in material and workmanship for a
period of one year from the date of original sale. During this warranty period
Manufacturer will, at its option, either repair or replace product that proves to be
defective. This warranty is void if the product has been operated in conditions outside
ranges specified by Manufacturer or damaged by customer error or negligence or if
there has been an unauthorised modification.
Evikon MCI OÜ
Tel. +372 733 6310
Rev 19.12.2018
every 1 second
11...30 VDC, 24 VAC or 90...265 VAC
< 2 VA
2 × 4-20 mA / 0-10 V, user settable
2 × SPST, max 5 A, 30 VDC / 250 VAC
R < (Us - 2 V) / 22 mA for 4-20 mA
L
R > 250 kOhm for 0-10 V mode:
L
RS485, Modbus RTU protocol
no galvanic isolation, common-mode voltage -7...+12 V
screwless spring loaded terminals
grey ABS, wall mount, protection class IP65
H85 × W82 × D55 mm
according to 2014/30/EU and EN61326-1 requirements
CO2-10K CO2-50K
optical (NDIR)
ca. 10 years ca 10 years
up to 5 years up to 5 years
0...10 000 ppm 0...50 000 ppm
1 ppm 100 ppm
± (50 ppm + 3% of reading)
± (70 ppm + 5% of reading)
in the range 300...5000 ppm
ca. 2 minutes ut to 3 minutes
OUT1 2 gas; OUT2 2 gas
0-10 000 0-500
according to user's preferences
0...+50 °C, 0...85 %RH 0...+50 °C, 0...95 %RH
atmospheric pressure
non ATEXrated areas, non-aggressive atmosphere
For 50K an extended range -25...+50°C and sensor
heater (-40...+50 °C) are available upon request
Teaduspargi 7, Tartu info@evikon.eu
50411 Estonia www.evikon.eu

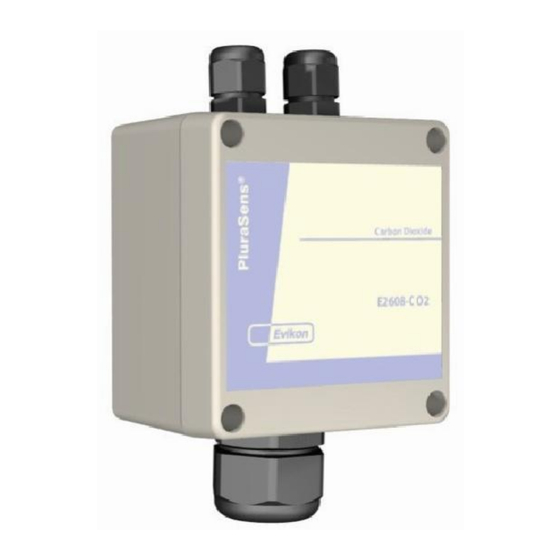

Carbon Dioxide Detector-Transmitter
E2608-CO2
User Manual
®
PluraSens
