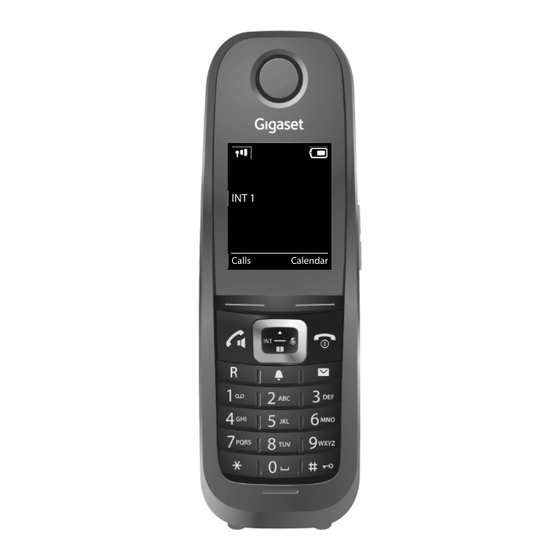

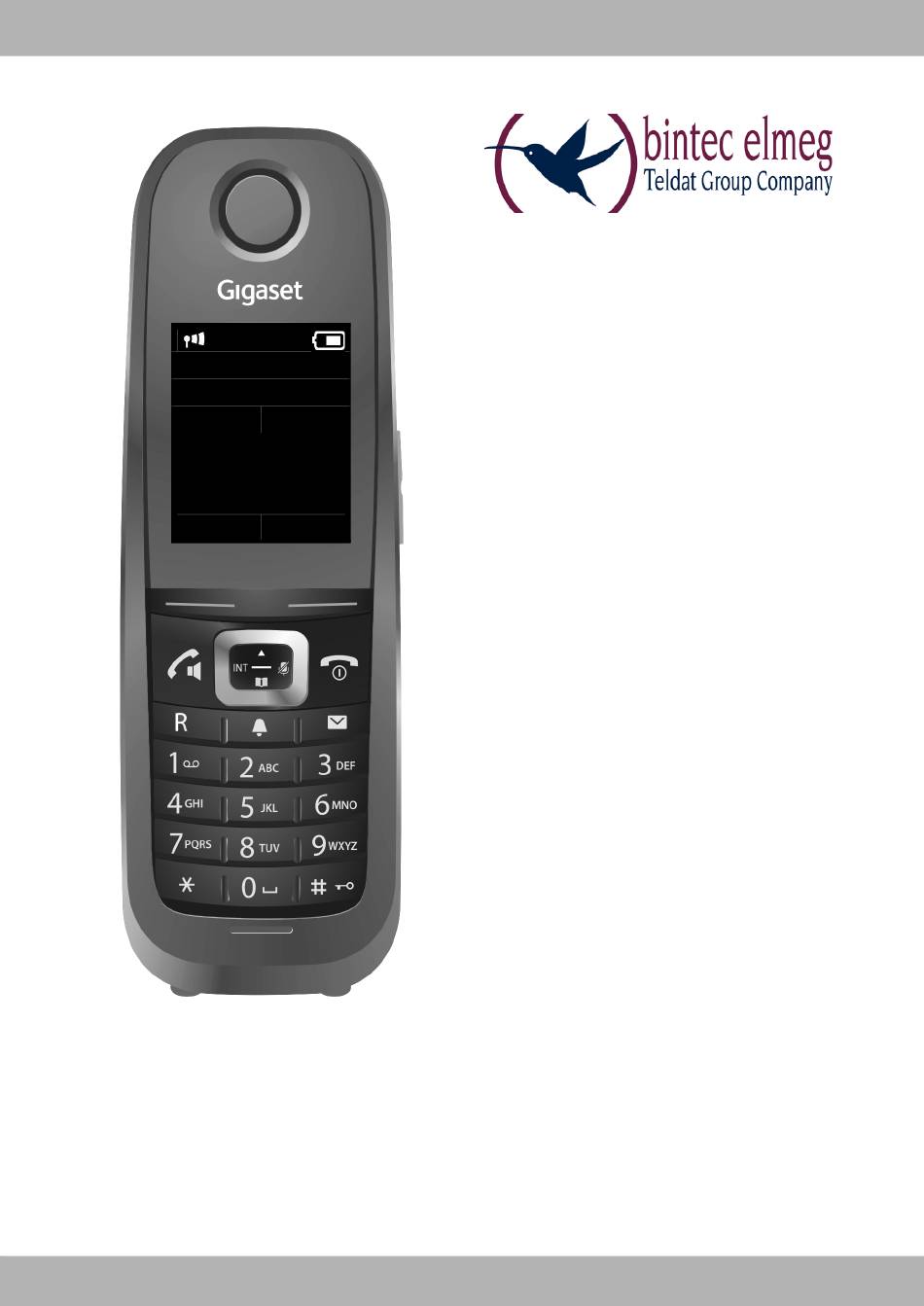

- Page 1 User Guide INT 1 Calls Calendar User Guide elmeg D151R Copyright© Version 1. , 2016 bintec elmeg GmbH elmeg D151R...
- Page 2 This manual has been put together with the greatest possible care. However, the information contained in this manual is not a guarantee of the properties of your product. bintec elmeg GmbH is only liable within the terms of its conditions of sale and supply and accepts no liability for technical inaccuracies and/or omissions.
- Page 4 GAP compatibility Basic telephony functions are available in GAP mode. For your further convenience, your elmeg D151R offers a locally managed list of missed calls. On DECT routers with CAT-iq 2.0 Your bintec elmeg CAT-iq handset is certified in accordance with the DECT/CAT-iq 2.0 standard.
-
Page 5: Overview Of Handset
Accept call; switch from earpiece to handsfree mode; Open the redial list (press briefly); start dialling (press and hold); 16 Control key / Menu key ( page The product images are depicted schematically and may differ from the actual appearance of the product. elmeg D151R... -
Page 6: Table Of Contents
Index ..................47 Not all functions described in the user guide are available in all countries or from all network providers. elmeg D151R... -
Page 7: Safety Precautions
If you use a medical device (e.g. a pacemaker), please contact the device manufacturer. They will be able to advise you regarding the susceptibility of the device to external sources of high frequency energy (for the specifications of your bintec elmeg product see "Specifications"). -
Page 8: Illustration In The User Guide
¤ Select OK to confirm. The submenu Telephony opens. ¤ Auto Answer The function to switch Auto answer on/off appears as the first menu item. ¤ Change Select Change to activate or deactivate. Function is activated /deacti- vated elmeg D151R... -
Page 9: Getting Started
Plug the power adapter into the power socket If you have to remove the plug from the charging cradle again: ¤ Disconnect the power adapter from the mains power supply. ¤ Press the release button and disconnect the plug elmeg D151R... - Page 10 Setting up the handset for use The display is protected by a plastic film. Please remove the protective film! Inserting the batteries and closing the battery cover Use only rechargeable batteries recommended by bintec elmeg GmbH page 45), as this could otherwise result in significant health risks and personal injury. For exam- ple, the outer casing of the batteries could be destroyed or the batteries could explode.
- Page 11 You can connect a headset to the underside If you do not wish to connect a headset, of your telephone with the 2.5 mm jack con- please insert the rubber cover supplied nector to guarantee the unit is still splash proof. elmeg D151R...
- Page 12 Set the date/time so that the correct date and time can be assigned to incoming calls, and so that you can use the alarm. ¤ Press the display key Time. OK Date/Time OK ¤ Setting the date and time: ¤ Save Your phone is now ready for use. elmeg D151R...
- Page 13 Use 3 sound profiles to adjust your phone to a quiet or loud background page 33). Register an existing bintec elmeg handset and add it to the phonebook Use available handsets to continue calling from your new base. Transfer directory entries from these handsets to your new handset ( page 31).
-
Page 14: Getting To Know Your Phone
These instructions demonstrate opening the main menu by pressing the right of the control key and confirming the functions by pressing the appropriate display key. However, if you prefer, you can also press the middle of the control key. elmeg D151R... - Page 15 Accessing a function, i.e. opening the corresponding submenu (next menu level): ¤ Use the control key to navigate to the required function and press the display key OK. Returning to idle status: Briefly press the display key Back or End call key Back elmeg D151R...
- Page 16 The other lists are only displayed if they contain messages. Opening the list: Select required list. Exception: If you select the network mailbox, the number of the network mailbox will be selected. Lists are not opened on the display. elmeg D151R...
- Page 17 Insert to select it. • Special letters: Umlauts or other marked/diacritic characters can be selected by pressing the corresponding letter several times. See the character table page elmeg D151R...
-
Page 18: Making Calls
You can also bring up the call list using the display key 01712233445566 Calls, but you must assign a display key accordingly 11/06/2016, 18:30 page 26). 0168123477945 • You can also open the list Missed calls using the Mes- 10/06/2016, 17:13 sage key View Options elmeg D151R... - Page 19 If you are going to let someone listen in, you should tell the other party that this is happening. ¤ Press Placing the handset in the charging cradle during a call: ¤ Press and hold for a further 2 seconds while placing the handset in the charging cradle. elmeg D151R...
- Page 20 Press and hold the . . . set the microphone sensitivity with Save . . . the change is immediately effective and also applies to subsequent calls If you do not save the setting, it only applies for the current call. elmeg D151R...
-
Page 21: Adjusting The Telephone Settings
¤ International code: Telephony OK Area Codes OK 00 - 49 Navigate to the entry field, delete the number using Local area code: needed Enter the number Save 0 - [8 Save elmeg D151R... - Page 22 The handset's standby time can be significantly reduced if the display backlight is acti- vated. Activating/deactivating visual call Incoming calls are signalled visually (e.g. in noisy environments). ¤ Telephony OK LED Call Signal Change ( = activated) Please note: Changes are only saved permanently in Profile Personal ( page 33). elmeg D151R...
- Page 23 You can set the volume of the earpiece and speaker at 5 levels independently of each other. During a conversation ¤ Handset Volume . . . use to select volume Save . . . the setting is saved The setting is automatically saved after around 3 seconds without saving. elmeg D151R...
- Page 24 ¤ Save Back Save When the telephone rings, you can permanently change the ring- tone volume using the side keys (louder) or (quieter). Please note: Changes are only saved permanently in Profile Personal ( page 33). elmeg D151R...
- Page 25 There is no battery warning when the room monitor is activated. ¤ Out of Range: On / Off Warning tone when the handset is moved out of range of the base station. ¤ Save Please note: Changes are only saved permanently in Profile Personal ( page 33). elmeg D151R...
- Page 26 The handset will not ring when placed in the charging cradle. The call is only indicated on the display. ¤ . . . use to select Settings Audio Settings Ringtones (Handset) Silent Charging Change ( = ringtone is switched off when in charging cradle) elmeg D151R...
- Page 27 Set up one touch call( page 18). Redial Show redial list ( page 17). Spot LED: LED light (torch function) on/off ( page 33). More Functions... You can also choose further functions: Call Lists Show call list ( page 32). elmeg D151R...
- Page 28 Handset update (only on a CAT-iq router which supports updating of the handset firmware) ¤ . . . use to select Settings System Handset Update Update OK . . . updating of the handset firmware is carried out elmeg D151R...
-
Page 29: Restoring Phone To Default Setting
Registration of handsets to the base and the current selection of the base, • Entries in the calendar and phonebook, • Redial list. When resetting the handset (Handset Reset), audio and display settings will be deleted. Resetting the handset ¤ System Handset Reset Confirm security prompt with Yes elmeg D151R... -
Page 30: Multiple Handsets
Accepting a call: Press the display key Accept. You are now speaking to the new caller. The previous call is placed on hold. Ending the current call and returning to the call on hold: Options End active call elmeg D151R... -
Page 31: Phonebook (Address Book)
Select the desired entry. View Display all components of the entry. Edit ¤ Options Edit entry Deleting an entry ¤ Open phonebook. Select the desired entry. Options Delete entry Delete all entries in the directory: ¤ Open phonebook. Options Delete List elmeg D151R... - Page 32 Your handset receives entries from a non-vCard handset: Entries with numbers that are already stored are discarded, otherwise a new entry is created. Transferring individual entries ¤ Open phonebook. Select the desired entry. Options Copy Entry to Internal Select the recipient handset. elmeg D151R...
-
Page 33: Call List
Options: You can delete the entry or transfer the number to the phonebook ( page 32). Calling back a caller from the call list: ¤ Select entry. Press the Answer call key elmeg D151R... -
Page 34: Sound Profiles
You can use your telephone as a torch. Activating/deactivating the torch function ¤ Press the Spot LED display key ( page 26). ¤ Spot LED After 2 minutes the function is automatically deactivated or press the OFF display key. elmeg D151R... -
Page 35: Calendar
Press OFF to acknowledge and end the reminder call. When you are on the phone, a reminder call is indicated on the handset with a single advisory tone. During the reminder call you can turn the ringtone volume (up) or (down) continuously using the side keys. elmeg D151R... - Page 36 View: Display appointment settings, change, if required using Edit. ¤ Options: Change settings or delete appointments. • Edit entry • Delete entry • Activate/Deactivate • Delete all Appoints. Confirm prompt with Yes. All appointments for the selected day are deleted. elmeg D151R...
-
Page 37: Alarm Clock
If you accept an incoming call, the room monitor mode is suspended for the duration of the call, but the function remains activated. The room monitor mode is not deactivated by switching the handset off and on again. elmeg D151R... - Page 38 . . . use to select On or Off Set microphone sensitivity: ¤ Sensitivity . . . use to select High or Low Save settings: Save The destination number is displayed in idle display when the room monitor is activated. elmeg D151R...
- Page 39 The alarm is deactivated and the handset is in idle status. The room monitor settings on the handset (e.g. no ringtone) will remain activated until you press the display key OFF. Reactivate room monitor with the same number: . . . Reactivate ( page Save elmeg D151R...
-
Page 40: Display Icons
Display key icons The following icons indicate the current function of the display keys according to the operating situation: Icon Action Icon Action Þ Â Opening phonebook Last number redial ß Û Copy number to the phonebook Deleting text elmeg D151R... - Page 41 ØÙÚ Ø External call Internal call Reminder call for anniversary ØìÚ Øá Ú Reminder call for Alarm call appointment Other display icons Ð Û · (Security) prompt Please wait... Information Õ ‰ Action complete Action failed (red) (green) elmeg D151R...
-
Page 42: Menu Tree
(further submenus depending on base) £ Display Screensaver page 21 £ Colour Schemes page 21 £ Backlight page 21 £ Auto Keypadlock page 22 £ Language page 20 £ Registration Register Handset page 11 (further submenus depending on base) elmeg D151R... - Page 43 £ Telephony Auto Answer page 22 £ Easy Acceptance page 18 £ LED Call Signal page 21 £ Area Codes page 20 (further submenus depending on base) £ System Reset Handset page 28 (further submenus depending on base) elmeg D151R...
-
Page 44: Service (Customer Care)
3. The phone does not ring if the caller has withheld his number. ¥ Activate the ringtone for unknown calls ( page 25). 4. The phone does not ring during a specific period or for certain numbers. ¥ Check time control for external calls ( page 25) . elmeg D151R... -
Page 45: Appendix
Switzerland) is subject to national approval. Country-specific requirements have been taken into consideration. We, bintec elmeg GmbH, declare that this device meets the essential requirements and other relevant regulations laid down in Directive 1999/5/EC. A copy of the Declaration of Conformity is available at this Internet address: bintec-elmeg.com/conformity... - Page 46 *No Radiation deactivated, without display backlight in idle status **No Radiation activated, without display backlight in idle status Power consumption of the handset in the charging cradle When charging: approx. 1.5 W To maintain the charge status: approx. 0.5 W elmeg D151R...
- Page 47 Press the relevant key the number of times indicated. ä á à â ã ç ë é è ê ï í ì î ö ñ ó ò ô õ ß ü ú ù û ÿ ý æ ø å elmeg D151R...
-
Page 48: Index
......Call signal, visual ......colour scheme elmeg D151R... - Page 49 ......registering ....restoring to default setting elmeg D151R...
- Page 50 ..... . . Numbers, entering ......Screensaver elmeg D151R...
- Page 51 ......general All rights reserved. Rights of modification reserved. elmeg D151R...
