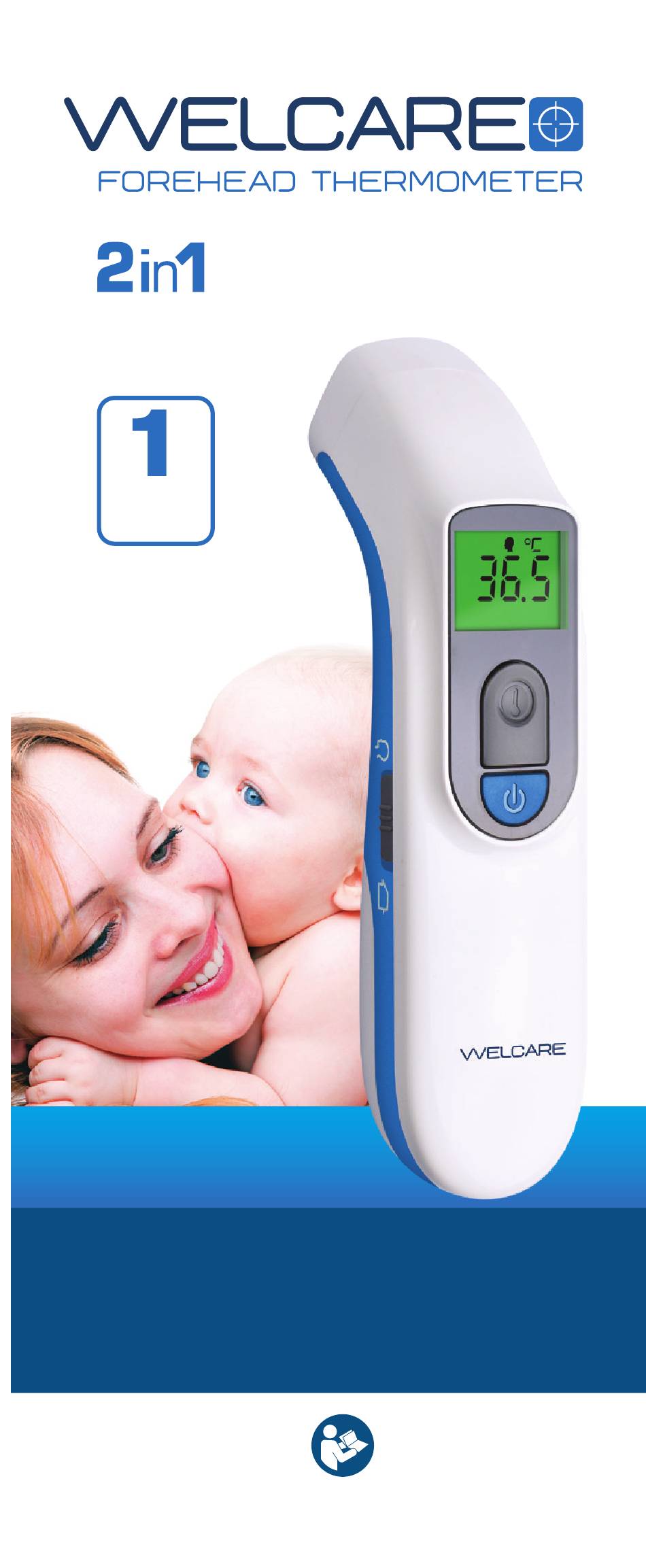

- Page 1 FOREHEAD OBJECT TEMPERATURE DETECTION SECOND READING Model: WFT200 (A200) Instruction Manual & Warranty Information Read Instructions Carefully Before Use...
- Page 2 Thank you for purchasing this Welcare Forehead Thermometer. Model: WFT200 (A200) Please keep this instruction manual in a safe place where it is readily available. Note: The illustrations in this manual may differ slightly from the product itself. Welcare Forehead Thermometer...
-
Page 3: Table Of Contents
Contents Important Safety Information ........ 4 Features .............. 6 Package Contents ..........6 Before Using the Forehead Thermometer .... 6 Components ............7 LCD Display ............7 Display Mode ............7 Backlit Screen ............ 8 Using the Thermometer ........9 Switching between °C and °F ...... -
Page 4: Important Safety Information
Please ensure you observe the safety instructions to avoid accidents, injury and damage. Intended purpose The Infrared Welcare Forehead Thermometer is intended for non-contact measurement of human body temperature only. It is designed for private use. The use of temperature readings for self-diagnosis is dangerous. - Page 5 Important Safety Information - continued • DO NOT touch the infrared sensor with a finger or breathe on it. • The Infrared sensor lens is the most delicate part of the thermometer. Take care when cleaning the lens to avoid damage. •...
-
Page 6: Features
• Check the product is intact. DO NOT use if broken. If any abnormalities are detected, please contact our service centre: In Australia - 1800 807 464 In New Zealand - 0800 523 583 Welcare Forehead Thermometer... -
Page 7: Components
Components 1. Infrared Sensor 2. LED Light 3. Display Screen 4. Measurement/ Memory Button 5. ON/OFF Button 6. Mode Switch 7. Battery Cover LCD Display A. Forehead Mode B. Object Mode C. Memory D. Temperature Reading E. Temperature Unit F. Battery Display Mode Forehead Mode: This mode is used to measure... -
Page 8: Backlit Screen
The display will light-up YELLOW High The display will light-up Object mode Note: The display screen will light up GREEN when the unit is ready for measurement. Once the OBJECT measurement is completed, the unit will illuminate GREEN. Welcare Forehead Thermometer... -
Page 9: Using The Thermometer
Using the Thermometer • Insert the 2 x AAA batteries into the unit (see p15) Note: The use of temperature readings for self- diagnosis is dangerous. Consult with a doctor for the interpretation of results. Self-diagnosis may lead to the worsening of medical conditions. Switching between °C and °F •... -
Page 10: Change To Forehead Or Object Mode
• When the thermometer is turned on, the device sounds 2 short beeps and the temperature unit flashes indicating the OBJECT mode is set and the unit is ready to take a measurement. This mode is used to measure the object temperature. Welcare Forehead Thermometer... -
Page 11: About Normal Body Temperature
In this case, the temperature measured by the Welcare Forehead Thermometer may be unusually low. If the measurement therefore does not match the patient’s own perception or is unusually low, repeat... -
Page 12: Measuring Forehead Temperature
≥ 37.5°C (99.5°F) and <38.0°C (100.4°F). High Fever The display will light-up when a measurement is completed with a reading equal to or higher than ≥38.0°C (100.4°F) and ≤43.0°C (109.4°F) Welcare Forehead Thermometer... -
Page 13: Measuring Object Temperature
Using the Memory Function Recalling the Memory After each measurement, the reading is saved into memory. The Welcare Forehead Thermometer stores 25 most recent readings 1. Ensure the thermometer is OFF before selecting recalling the Memory 2. Quickly press the Measurement... - Page 14 This could make the forehead temperature measurement lower than usual. Before the measurement, please stay in a stable environment for 5mins and avoid exercising or bathing for 30mins. Welcare Forehead Thermometer...
-
Page 15: Replacing The Battery
Replacing the Battery The Thermometer will display on the LCD screen when the power is running low. 1. Slide the battery cover as the arrow direction shows below 2. Remove the batteries and install 2 new AAA alkaline batteries ensuring the batteries match the Positive (+) and Negative (-) indications. -
Page 16: Cleaning And Maintenance
Possible Cause Solution Replace the battery. Please note: Ensure No display The battery has the batteries On the LCD run out. Incorrect match the Positive ( Screen battery polarity. + ) and Negative ( - ) indications. Welcare Forehead Thermometer... - Page 17 Troubleshooting - continued Problem Possible Cause Solution Measurement cannot be Wait until the °C taken (or an The thermometer or °F symbol is abnormal is not ready. displayed. value is displayed). Clean the probe tip as per instruction. An abnormal The probe Wait until you hear temperature...
-
Page 18: Electromagnetic Compatibility Information
Forehead uses Thermometer RF energy only for its internal function. Therefore, its RF RF emissions Group 1 emissions are very CISPR 11 low and are not likely to cause any interference in nearby electronic equipment. Welcare Forehead Thermometer... -
Page 19: Specifications
IEC 61000- used for domestic purposes. Specifications Model Name Welcare Forehead Thermometer Model Code WFT200 Colour White & Blue Forehead: 32.0°C~43.0°C (89.6°F~109.4°F) Measuring Range Object: 0.0°C to 100°C (32°F to 212°F) ±0.2°C (±0.4°F) from 36.0°C (96.8°F) to 39.0°C (102.2°F) - Page 20 Temperature: 10˚C to 40˚C Humidity: 15% – 93% Operating (non-condensing) Conditions Atmospheric Pressure: 700hPa-1060hPa Temperature: -25˚C to 55˚C Humidity: 15% – 93% Storage/Transport (non-condensing) Conditions Atmospheric Pressure: 700hPa-1060hPa Welcare Forehead Thermometer, Contents 1 x User Manual & Warranty Information, 2 x AAA Batteries Welcare Forehead Thermometer...
-
Page 21: Product Warranty
Please register your warranty information at: AUS - www.jadavey.com.au NZ – www.jadavey.co.nz This Welcare Forehead Thermometer product is warranted to be free of manufacturing defects for 1 year from the date of purchase*. This warranty is void if the product is modified or altered, is subject... - Page 22 Product Warranty - continued • Product instruction manuals can be downloaded online. • Contact Welcare customer service. Our staff are trained to assist you with most issues you may have experienced, without the need to send your product in for service.
-
Page 23: Warranty Form
Warranty Form PLEASE RETAIN THE WARRANTY INFORMATION. RETURN THIS PORTION ONLY WHEN YOU RETURN YOUR PRODUCT FOR REPAIR UNDER WARRANTY. NAME: ADDRESS: POSTCODE: DAYTIME PHONE: EMAIL: MODEL: DATE OF PURCHASE: PLEASE ATTACH PROOF OF PURCHASE RETAILER’S NAME: RETAILER’S ADDRESS: POSTCODE: BRIEF DESCRIPTION OF PROBLEM YOU ARE EXPERIENCING: WARRANTY IS VOID UNLESS THE ABOVE... - Page 24 Welcare Forehead Thermometer...
- Page 25 Instruction Manual & Warranty Information...
- Page 26 Welcare Forehead Thermometer...
- Page 27 Instruction Manual & Warranty Information...
-
Page 28: Disposal
Should you require any further information please do not hesitate to contact us. Manufacturer: SHENZHEN AEON TECHNOLOGY CO., LTD. RM6H02, Block 27-29, Tianxia IC Industrial Park, Majialong, No.133 of Yiyuan Road, Nantou Street, Nanshan District, 518052 Shenzhen, PRC. SHANGHAI INTERNATIONAL HOLDING CORP.
