OPERATION MANUAL OF TPMS SENSOR
Thank you for choosing our TPMS. This guide instructs the technician how to properly
mount and dismount a Baolong Huf TPMS clamp-in sensor.
Introduction of TMSS5C5
TMSS5C5 is the transmitting module in TPMS. Its working frequency is 2.4GHz;
Establish information communication via Bluetooth; 5dBm≥ EIRP. supply: Battery. The
communication mode between WARDKS and receiving module is RF wireless
communication. The module detects pressure and temperature inner the tire periodically
and sends these information via RF output circuit to the receiving module. One can
manually detect data inner tire by LF wake-up tools. Install it on the rim together with cycle
valve.
PART ONE MOUNTING AND DISMOUNTING OF TRANSMITTER
1. Mounting of Transmitter
1.1 Identify Transmitter

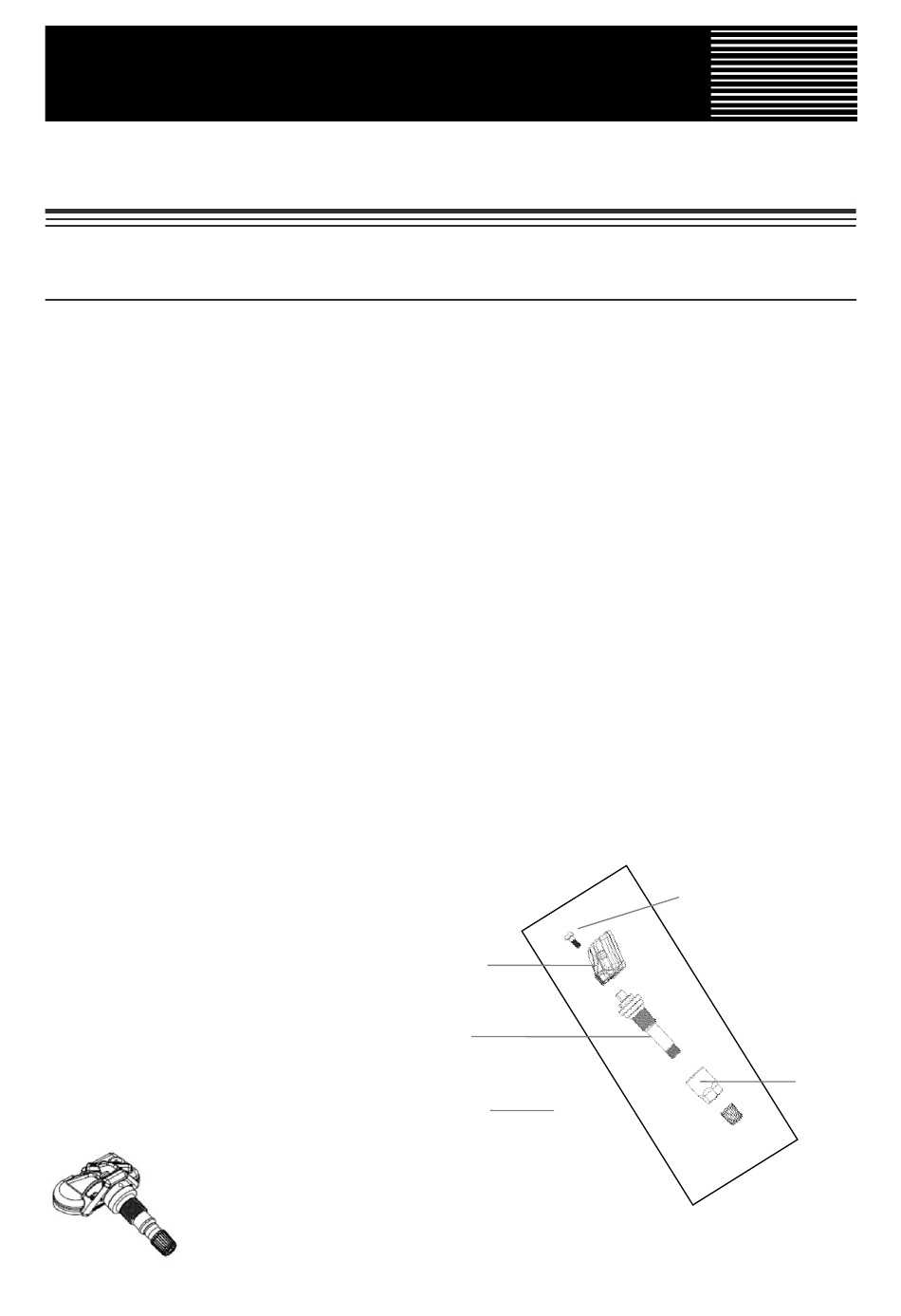

Check whether the prepared sensor is the same with the image below.
Note: Only plastic or aluminum caps, aluminum valves and nickel plated valve cores can be
used when replaced.
②
Electronal Module
③
Valve Stem
1
MODEL: TMSS5C5
①
Self-lock Screw
⑤
Valve Cap
Valve Stem
④
Nut
Valve
Stem
