OPERATION MANUAL OF TPMS SENSOR
MODEL: TPM-D pro-I
Thank you for choosing our TPMS. This guide instructs the technician how to properly
mount and dismount a Baolong Huf TPMS snap-in sensor.

Introduction of TPM-D pro-I

TPM-D pro-I is the transmitting module in TPMS. Its working frequency is 433.92MHz;
-15dBm ≥transmitting power@3m.supply: Battery. The communication mode between
TPM-D pro-I and receiving module is RF wireless communication. The module detects
pressure and temperature inner the tire periodically and sends these information via RF
output circuit to the receiving module. One can manually detect data inner tire by LF
wake-up tools. Install it on the rim together with cycle valve.

PART ONE MOUNTING AND DISMOUNTING OF TRANSMITTER

1. Mounting of Transmitter

1.1 Identify Transmitter

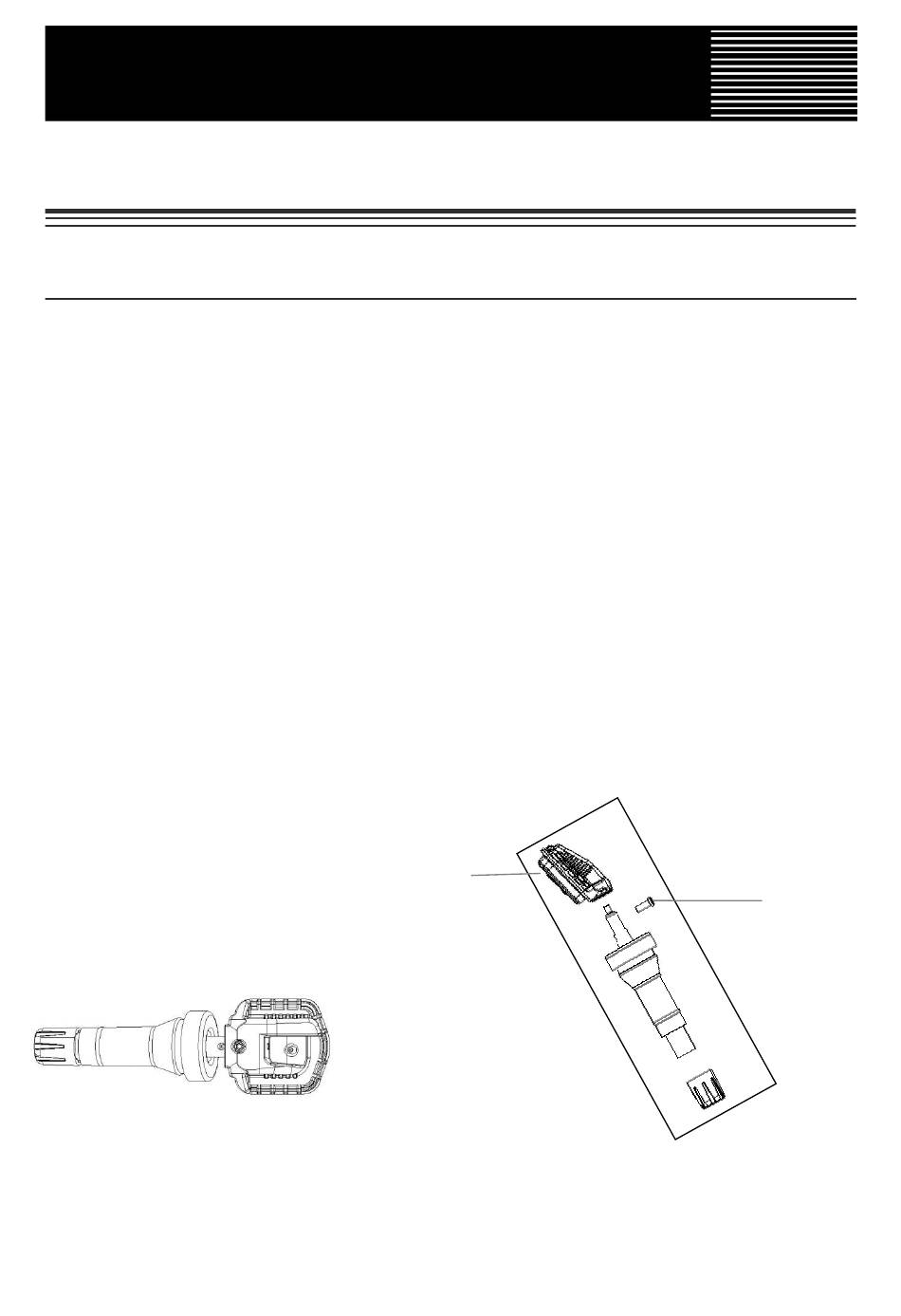

Check whether the prepared sensor is the same with the image below.
Note: Only plastic or aluminum caps, aluminum valves and nickel plated valve cores can be
used when replaced.

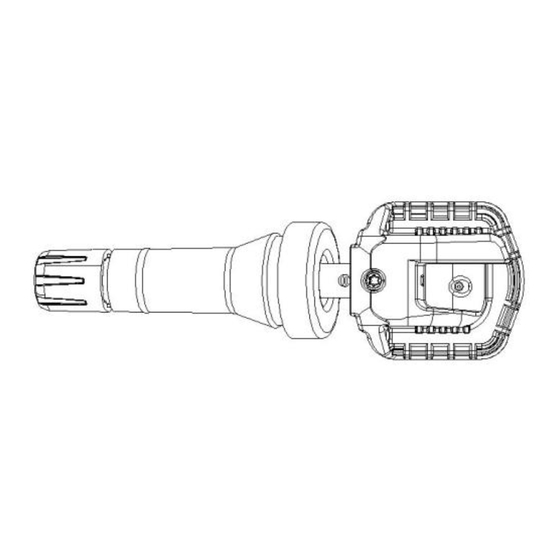

②
Electronal Module
①
Self-lock Screw
