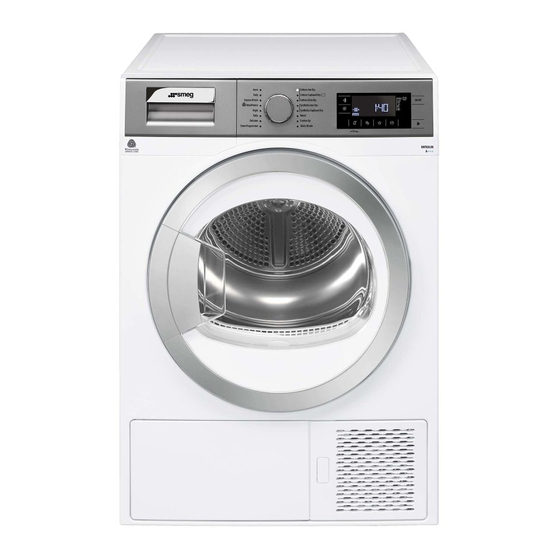

- Page 1 DHT83LIN Dryer User Manual Asciugatrice Manuale utente 2960311114_EN/090615.1528...
-
Page 2: Please Read This User Manual First
Dear Customer, Thank you for prefering a Smeg product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. -
Page 3: General Safety
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks... -
Page 4: Electrical Safety
Important instructions for safety and environment 1.1.1 Electrical safety Electrical safety instructions should be followed while electrical connection is made during the installation. • Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. -
Page 5: Product Safety
Important instructions for safety and environment 1.1.2 Product safety Points to be taken into consideration for fire hazard: Below specified laundry or items must not be dried in the dryer considering fire hazard. • Unwashed laundry items • Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer. - Page 6 Important instructions for safety and environment • You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect. Underwear that contains metal reinforcements should not be dried in the dryer.
-
Page 7: Mounting Over A Washing Machine
Important instructions for safety and environment 1.2 Mounting over a washing machine • A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent. • Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. -
Page 8: Intended Use
Important instructions for safety and environment 1.3 Intended use • Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use. • Use the dryer only for drying laundry that are marked accordingly. • The manufacturer waives any responsibility arisen from incorrect usage or transportation. -
Page 9: Compliance With Rohs Directive
Take them to the packaging material collection points designated by the local authorities. Please visit the following website to get more information on the product. http://www.smeg.com Dryer / User Manual 9 / 60 EN... -
Page 10: Technical Specifications
Important instructions for safety and environment 1.8 Technical Specifications Height (min. / max.) 84,6 cm / 86,6 cm* Width 59,5 cm Depth 60,9 cm Capacity (max.) 8 kg** Net weight (plastic front door usage) 50,5 kg Net weight (glass front door usage) 52,5 kg Voltage Rated power input... -
Page 11: Your Dryer
Your Dryer 2.1 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. Dryer / User Manual 11 / 60 EN... -
Page 12: Appropriate Installation Location
Installation Before the calling the nearest Authorized Service for the on the power Do not place the dryer installation of the dryer, ensure that electrical installation cable. and water drain is appropriate referring to the user's manual.(See 3.3 Connecting to the drain and 3.5 3.2 Removing the transportation Electrical connection) If they are not suitable, contact safety assembly... -
Page 13: Electrical Connection
Installation We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front. 3.7 Warnings about sounds It is normal to hear a metallic noise from the compressor sometimes during operation. -
Page 14: Laundry Not Suitable For Drying In The Dryer
Preparation 4.1 Laundry suitable for drying in the dryer Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme. LAUNDRY DRYING SYMBOLS Drying Suitable for... -
Page 15: Correct Load Capacity
Preparation • Clean the filter drawer regularly either when the Following weights are given as examples. Filter Drawer Cleaning warning symbol appears or Approximate weights after every 3 drying cycles. (See 6 Maintenance Laundry (g)* and cleaning) • Cotton quit covers (double) 1500 Ventilate the room, where the dryer is located, well during drying. -
Page 16: Operating The Product
Operating the product 5.1 Control panel 1. Programme Selection knob 2. Dryness Level Adjustment button 3. Audio Warning Level button 4. Display 5. On /Off/Cancel button 6. Start/Pause button 7. End Time button 8. Favourite button 9. Timer Programmes Selection button 10. -
Page 17: Additional Programmes
Operating the product Iron dry Cupboard Time Buzzer Anti-creasing Programmes Drying Child-proof Start Timer Delay Drying Favourites Level lock pause 5.3 Preparing the machine 5.5 Main programmes Plug in your machine. Depending on the fabric type, the following main Place the laundry in the machine. programmes are available. - Page 18 Operating the product • WoolProtect It is recommended to use a cloth bag Use this programme to dry woolen garments such as to avoid certain delicate garments and jumpers that are washed according to the instructions. laundry from getting creased or damaged. It is recomended that garments would be removed at the end Take your laundry immediately out of the dryer and hang them after the programme...
- Page 19 Operating the product 5.7 Programme selection and consumption table Spin speed in washing Approximate amount Programmes Capacity (kg) Drying time (minutes) machine (rpm) of remaining humidity Cottons / Coloreds Extra dry 1000 % 60 Cupboard dry 1000 % 60 Iron dry 1000 % 60 Night...
- Page 20 Operating the product 5.8 Auxiliary functions Dryness level adjustment selection Dryness level adjustment button is used to adjust Audio Warning the required dryness level. Programme duration can The machine will give an audio warning when the change depending on the selection. programme comes to an end.
- Page 21 Operating the product Anti-creasing Anti-creasing symbol will illuminate at the Anti-creasing programme duration may be end of the programme if Anti-creasing changed with the Anti-creasing selection button. You function is activated. can use Anti-creasing function to prevent laundry from Favourite selection button creasing if you will not take the laundry out after the A programme with the set auxiliary function is saved program has come to an end.
-
Page 22: Warning Symbols
Operating the product Draining the water tank If loading door is opened and closed When the programme is completed, a warning symbol during the End Time duration, the will appear continously to remind that the water tank programme will switch to pause mode. needs to be drained. -
Page 23: Progress Of Programme
Operating the product 5.10 Starting the programme To deactivate the childproof lock: • Press and hold Child Lock button for 3 seconds. Press the Start/Pause button to start the program. • Child Lock is deactivated when the dryer is Start symbol will light up to indicate that the switched off and on with On/Off/Cancel button. -
Page 24: End Of Programme
Operating the product 5.14 Canceling the programme To cancel the programme after the dryer is started: • Press and hold Start / Pause button for 1 seconds to pause the programme and turn the programme selection knob. • Press and hold On / Off / Cancel Button for 3 seconds and the programme will be cancelled. -
Page 25: Maintenance And Cleaning
Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 6.1 Cleaning Lint Filter / Loading Door Inner Surface Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter. - Page 26 Maintenance and cleaning 6.2 Cleaning the sensor 6.3 Draining the water tank There are dampness sensors in the dryer that detect Dampness of the laundry is removed and condensed whether the laundry is dry or not. during drying process and the water that arise To clean the sensors: accumulates in the water tank.
- Page 27 Maintenance and cleaning • 6.4 Cleaning the filter drawer Open the filter drawer by pressing the red button. Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Filter Drawer Cleaning warning light will light up maximum at every 3 drying cycles as a reminder.
-
Page 28: Cleaning The Evaporator
Maintenance and cleaning • • Wash the filter drawer sponge by hand to remove Close the kick plate cover. the fiber and lint on the surface. After washing the sponge, squeeze it by hand and remove the excess water. Well-dry the sponge before storing it. It is not necessary to clean the sponge if lint and fiber accumulation on it is not significant. -
Page 29: Troubleshooting
Troubleshooting Drying process takes too much time. • Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer. • Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids. •... - Page 30 Troubleshooting Lint Filter Cleaning symbol is on. • Lint filter is not cleaned. >>> Clean the lint filter. Lint Filter Cleaning symbol is flashing. • Filter housing is clogged with lints. >>> Clean the lint filter housing. • A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water. • Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer. Water leaks from the loading door •...
