Summary of Contents for Samsung RZ32T Series

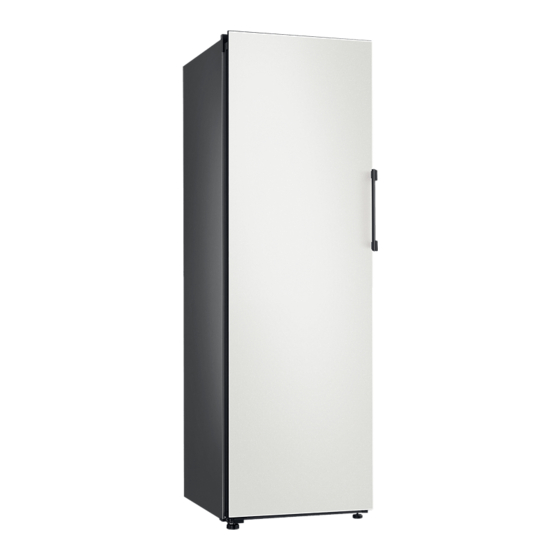

- Page 1 Refrigerator User manual (fridge/freezer) RZ32T* Free Standing Appliance Untitled-1 1 2021-12-10 10:57:37...
-
Page 2: Table Of Contents
Contents Safety information Important safety symbols and precautions: Severe warning signs for transportation and site Critical installation warnings Installation cautions Critical usage warnings Usage warning Usage cautions Cleaning cautions Critical disposal warnings Additional tips for proper usage Saving Energy Tips This appliance is intended to be used in household and similar applications such as Instructions about the WEEE Installation... -
Page 3: Safety Information
Safety information • Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently. • This appliance is not intended for use by persons... - Page 4 If you have any questions or concerns, contact your nearest service center or find help and information online at www.samsung.com. • In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.
- Page 5 - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
-
Page 6: Important Safety Symbols And Precautions
Safety information Important safety symbols and precautions: Please follow all safety instructions in this manual. This manual uses the following safety symbols. WARNING Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death. CAUTION Hazards or unsafe practices that may result in severe personal injury and/or property damage. -
Page 7: Severe Warning Signs For Transportation And Site
Severe warning signs for transportation and site WARNING • When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. - Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. - Page 8 Safety information • Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator’s rating plate. - This provides the best performance and also prevents overloading of house wiring circuits, which could cause a fire hazard from overheated wires.
- Page 9 - Deteriorated insulation of electrical parts may cause an electric shock or fire. • If any dust or water is in the refrigerator, pull out power plug and contact your Samsung Electronics service center. - Otherwise there is a risk of fire. English...
- Page 10 Safety information • Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in an electric shock, fire, problems with the product, or injury.
-
Page 11: Installation Cautions
• When positioning the appliance, ensure the supply cord is not trapped or damaged. • Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Installation cautions CAUTION • Allow sufficient space around the refrigerator and install it on a flat surface. -
Page 12: Critical Usage Warnings
Safety information Critical usage warnings WARNING • Do not insert the power plug into a wall socket with wet hands. - This may result in an electric shock. • Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage. - Page 13 • If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung Electronics service center. • If any dust or water is in Refrigerator, pull out power plug and contact your Samsung Electronics service center.
- Page 14 Safety information • Do not overfill the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage. • Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.
- Page 15 • Do not put shelf in upside down. Shelf stopper could not work. - It may cause a personal injury because of glass shelf drop. • Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.
-
Page 16: Usage Warning
• If the interior or exterior LED lamp has gone out, contact your nearest service center. • If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact your Samsung Electronics service center. - Failing to do so may result in an electric or fire hazards. -
Page 17: Usage Cautions
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Usage cautions CAUTION • Do not re-freeze frozen foods that have thawed completely. Do not place carbonated or fizzy drinks in the freezer compartment. - Page 18 • When the refrigerator got wet by water, pull out the power plug and contact your Samsung Electronics service center. • Do not strike or apply excessive force to any glass surface. - Broken glass may result in a personal injury and/or property damage.
-
Page 19: Cleaning Cautions
Cleaning cautions CAUTION • Do not spray water directly on the inside or outside the refrigerator. - There is a risk of fire or electric shock. • Do not use a hair dryer to dry the inside of the refrigerator. •... -
Page 20: Critical Disposal Warnings
Safety information Critical disposal warnings WARNING • Please dispose of the packaging material from this product in an environmentally friendly manner. • Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal. • R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the freezer/fridge to see which refrigerant is used for your refrigerator. -
Page 21: Additional Tips For Proper Usage
Additional tips for proper usage • In the event of a power failure, call the local office of your electric company and ask how long the failure is going to last. - Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. -
Page 22: Saving Energy Tips
Safety information Saving Energy Tips • Install the appliance in a cool, dry room with adequate ventilation. Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (a radiator, for example). •... -
Page 23: This Appliance Is Intended To Be Used In Household And Similar Applications Such As
This appliance is intended to be used in household and similar applications such as • staff kitchen areas in shops, offices and other working environments; • farm houses and by clients in hotels, motels and other residential type environments; • bed and breakfast type environments; •... -
Page 24: Instructions About The Weee
This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product regulatory obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.samsung.com... -
Page 25: Installation
Installation Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it. WARNING • Use the refrigerator only for its intended purpose as described in this manual. • Any servicing must be performed by a qualified technician. •... -
Page 26: Step-By-Step Installation
Installation Step-by-step installation STEP 1 Select a site Site requirements: • Solid, level surface without carpeting or flooring that may obstruct ventilation • Away from direct sunlight • Adequate room for opening and closing the door • Away from a heat source •... - Page 27 Clearance See the following figures and tables for space requirements for installation. Depth “A” Width “B” Overall Height “C” 1853 (unit : mm) English Untitled-1 27 2021-12-10 10:57:39...
- Page 28 Installation more than 50 mm recommended more than 12 mm recommended 105° 175.5 765.5 1194 (unit : mm) NOTE The measurements in the table may differ, depending on the measuring method. English Untitled-1 28 2021-12-10 10:57:39...
- Page 29 STEP 2 Spacing (applicable models only) 1. Open the door and locate the provided spacers (x2). 2. Unpack both spacers and attach them to the rear of the refrigerator as shown. They help ventilate air to the rear wall and save power consumption. STEP 3 Flooring •...
- Page 30 Installation STEP 4 Adjust the leveling legs CAUTION • The refrigerator must be leveled on a flat, solid floor. Failing to do so can cause damage to the refrigerator or physical injury. • Leveling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator.
- Page 31 STEP 5 Initial settings By completing the following steps, the refrigerator should be fully functioning. 1. Remove the PE foam sheet on each shelf corner, which is attached to protect the refrigerator during transportation. 2. Plug the power cord into the wall socket to turn the refrigerator on. 3.
-
Page 32: Operations
Operations Feature panel 01 Temp. / Mode select 02 Power Freeze 03 Door Alarm 04 Lock 01 Temp. / Mode select Press to set the desired temperature. • In Freezer mode, you can set the temperature between -15 °C and Temp. - Page 33 02 Power Freeze (3 sec) Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. • To activate Power Freeze, press and hold Power Freeze for 3 seconds.
-
Page 34: Special Features
Operations Special features The actual image and special functions of your refrigerator may differ depending on the model and the country. Slim Ice Maker (applicable models only) 01 Water bin 02 Ice maker lever 03 Ice bucket 04 Ice tray 05 Ice tray cover NOTE If you do not intend to make ice, remove the Slim Ice Maker to secure more room for... - Page 35 To dispense ice manually 1. Pull up the handle of the water bin to open, and then fill the bin with water up to the max line. Gently close the bin so that water does not drop or leak. CAUTION •...
- Page 36 Operations 3. To dispense ice, slightly lift up the ice bucket and tilt to the front. CAUTION • Do not tilt without lifting the ice bucket. The ice bucket may break. • Do not pour water directly into the ice bucket for ice making. The ice bucket may break. •...
- Page 37 To open the top shelf cover (applicable models only) 1. Fully pull up the front end of the top shelf cover. 2. Then, push the cover inwards to the end. NOTE • To remove or put an item from the top shelf, you must fold up the top shelf cover first. •...
-
Page 38: Maintenance
• You must wait for at least an hour after door reversal is complete. This is to prevent any electric shock that could occur. • Reversing the door must be performed by Samsung-approved servicing personnel at your own expense because this kind of servicing is not covered by the Warranty. - Page 39 Step-by-step instructions 1. Use a flat-head screwdriver to remove the top-left door hinge cover (A). NOTE Keep the removed part in a safe place for later use. 2. Use a socket wrench (8 mm) to remove the screws fastening the top-left door hinge (B).
- Page 40 Maintenance 4. Lift the door to remove it from the bottom hinge. CAUTION The door is heavy. To prevent damage or injury, use caution while removing the door. 5. Remove the top-right door cover (C) from the door. NOTE Keep the removed part in a safe place for later use.
- Page 41 7. On the bottom of the door, remove the door cam riser (E) and the door stopper (F) in that order. - Use a Phillips screwdriver to remove the screw fastening each part. 8. Fasten the door stopper (F) and the door cam riser (E), in that order, to the opposite side of the door.
- Page 42 Maintenance 20. Attach the bottom hinge (G) to the opposite side. - Use a socket wrench (8 mm) to fasten the bottom hinge (G) with the screws. 21. Attach the leveling leg (H) to the opposite side. 22. Carefully stand the refrigerator back up. 23.
- Page 43 26. Attach the screw cover (N) to the opposite side. 27. Put the door back on the bottom hinge. 28. Insert the provided top-right door hinge (P) into the door. 29. Use a socket wrench (8 mm) to fasten the top-right door hinge (P) with the screws.
- Page 44 Maintenance 30. Attach the provided top-right door hinge cover (Q). 31. Detach the door gasket. 32. Turn the door gasket 180°, and then reattach it to the door. English Untitled-1 44 2021-12-10 10:57:42...
- Page 45 Reversing the door handle position 1. Remove the handle covers. 2. Use a Phillips screwdriver to remove the screws and detach the handle. 3. Use a flat-head screwdriver to remove the hole caps from the opposite side of the door. 4.
- Page 46 Maintenance 5. Place the handle on the opposite side of the door, aligning the holes on the handle and the door. 6. Use a Phillips screwdriver to attach the handle with the screws. 7. Attach the handle covers. English Untitled-1 46 2021-12-10 10:57:43...
-
Page 47: Handle And Care
Handle and care Shelves Slightly lift up the rear side of the shelf to pull out. Door bins Slightly lift up and pull out the door bin. CAUTION To prevent accidents, empty the door bins before removing. Top shelf cover (applicable models only) 1. - Page 48 Maintenance Slim Ice Maker (applicable models only) NOTE • When cleaning the component parts of the Slim Ice Maker such as the water bin, ice bucket, and ice tray, make sure they are completely dry after cleaning. • When cleaning the Slim Ice Maker unit, make sure to completely dry the inner and outer parts of the unit after cleaning.
- Page 49 Slim Ice Maker 1. Remove the multipurpose bin first, which is immediately above the Slim Ice Maker. 2. While holding the marked area on either side of the Slim Ice Maker unit with both hands, lift up the unit and pull out to the front.
-
Page 50: Cleaning
Door panel You can select the door panel you prefer for your BESPOKE refrigerator. Purchase the door panel at a Samsung retail store and an authorized installer will install the panel for you. CAUTION • Disassembling or assembling the door panel on your own may result in product damage or personal injury. -
Page 51: Pair Installation
RZ or RR. NOTE Purchase the pair installation kit at a Samsung retail store and you can request an authorized installer for pair installation. more than 50 mm recommended 105°... - Page 52 Maintenance Pair installation kit accessories 01 Upper bracket 02 7 mm lower 03 15 mm lower 04 Guide rail (6) bracket (1) bracket (1) 05 7 mm trim (1) 06 15 mm trim (1) 07 A/S Jig-sheet 08 Level ref (4) adjustment pad 09 T4 LEX foam (8) 10 T7 LEX foam (8)
- Page 53 Step-by-step instruction NOTE The numbers on the figure and in the parenthesis are the same as those in the accessories list. 1. Check the level of the floor. - Use a level to check the level of the floor where the refrigerator’s two rear casters will be placed.
- Page 54 Maintenance 3. Attach the guide rails (04). - Align the guide rail (04) with the outermost imprints on the A/S jig- sheet ref (08). Then, peel off the double-sided tape on the guide rail (04) and attach it to the A/S jig-sheet ref (08).
- Page 55 5. Attach the T10 PE foam (11). - Attach the four T10 PE foam (11) pieces to maintain a gap between the refrigerator and the cabinet. - Attach four foam pieces on each side of the refrigerator which is adjacent to a cabinet.
- Page 56 Maintenance 9. Fasten the upper bracket (1). - Fasten the upper bracket (1) with the four M5 x L16 hex screws (12) to secure the top part of the refrigerators. NOTE Align the tops of the refrigerators before fastening the upper bracket. 10.
- Page 57 13. Insert the 7 mm trim (05) between the refrigerators. - Open the doors and insert the 7 mm trim (05) between the refrigerators. NOTE See the enlarged part of the trim in the figure to identify the trim’s top side. 14.
-
Page 58: Troubleshooting
Troubleshooting Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users. General Temperature Symptom Possible causes Solution • The power cord is not • Properly plug in the power plugged in properly. - Page 59 Odors Symptom Possible causes Solution • Clean the refrigerator and • Spoiled food. remove any spoiled food. The refrgierator has odors. • Make sure strong smelling • Food with strong odors. food is wrapped airtight. Frost Symptom Possible causes Solution Frost around the •...
-
Page 60: Do You Hear Abnormal Sounds From The Refrigerator
Troubleshooting Do you hear abnormal sounds from the refrigerator? Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user. These sounds are normal. • When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. - Page 61 • As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds. Bubbling! • As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.
- Page 62 Memo Untitled-1 62 2021-12-10 10:57:47...
- Page 63 Memo Untitled-1 63 2021-12-10 10:57:47...
- Page 64 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Country Contact Center Web Site 1800-22-8899 (HHP) MALAYSIA 1800-88-9999 (OTH) www.samsung.com/my/support +603-7713 7420 (Overseas contact) Only for HHP PRODUCT :...
