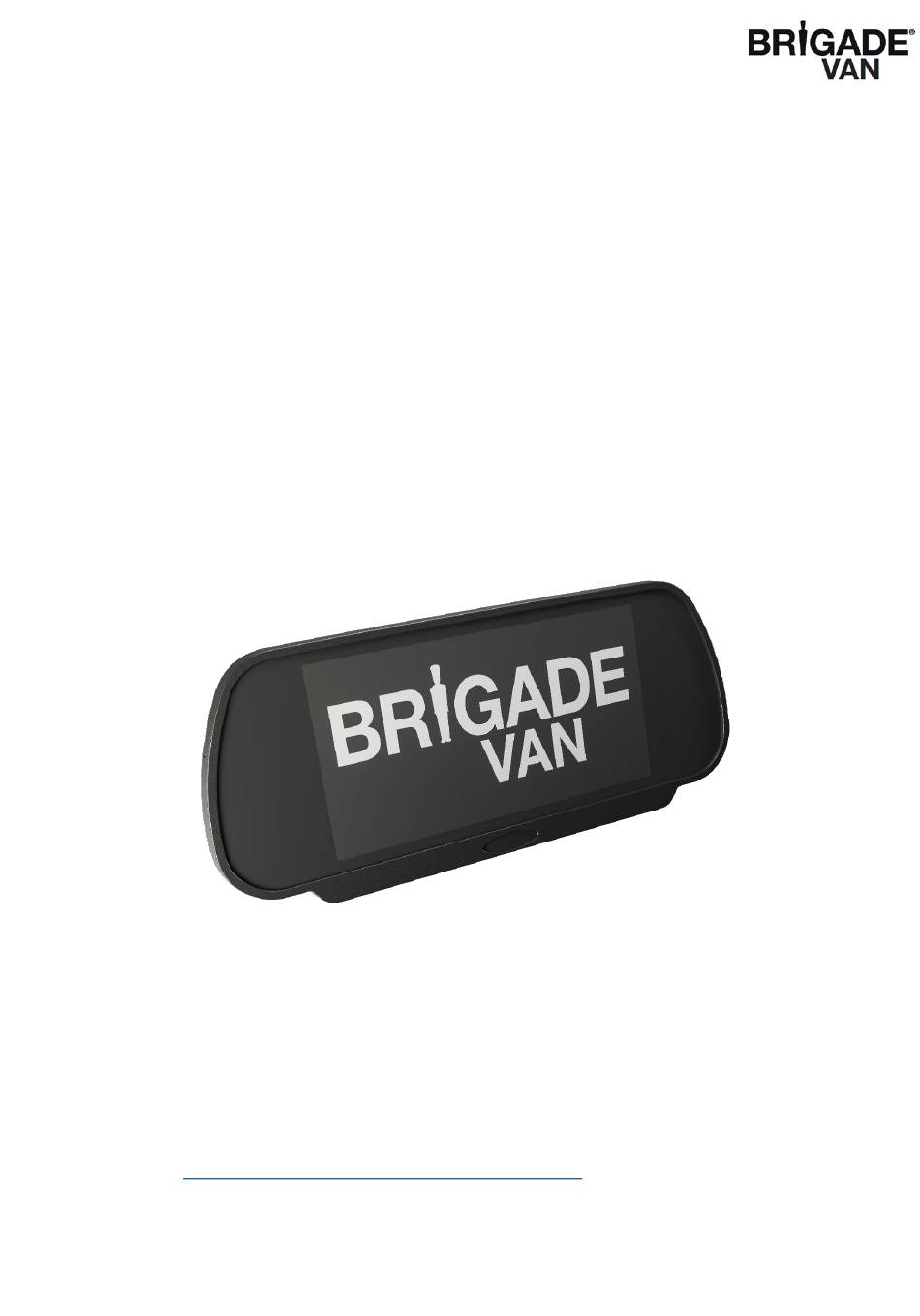

Page 1
BL-2730M Manual (Support CVBS/AHD 720P/AHD 1080P) Please refer to https://brigade-electronics.com/product-support-area/ for more information and technical documents...

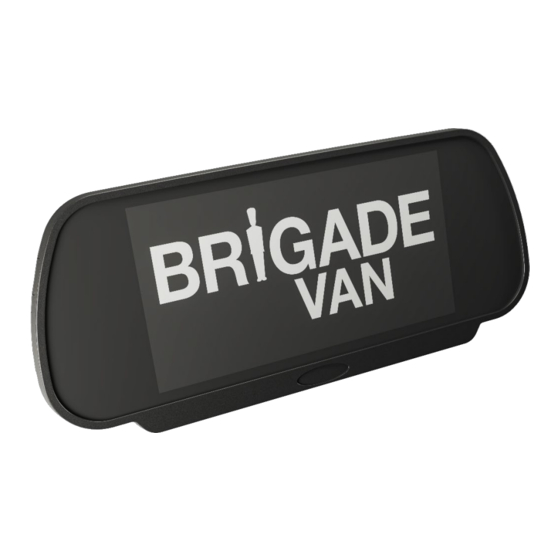

Mirror Monitor 1. Power 2. Up 3. Menu 4. Down 5. Channel 1/ Channel 2 6. IR Monitor Specification: . Screen size: 7-inch new TFT panel . Aspect Ratio: 10:9 image . Input: 2-channel video input with 2 trigger cable inputs .
Page 4
Cable Note: Channel 1 video has priority over Channel 2 video if these are triggered at the same time. Usual manual: 1. Power connected, GND to Negative;12-24V to positive。 2. AV1 - AV2 connect to camera 1 and camera 2。 3.
