- Page 1 BL-270HM Manual (Support CVBS/AHD 720P/AHD 1080P) Please refer to https://brigade-electronics.com/product-support-area/ for more information and technical documents...
-
Page 2: Kit Contents
Kit Contents BL-270HM BL-270HM-BKT 2 Channel Mirror Monitor Dash mount bracket BL-270HM-PC BL-270HM-RC 2CH Video Input, 2 x alarm trigger inputs, IR Remote control Power and GND... -
Page 3: Mirror Monitor

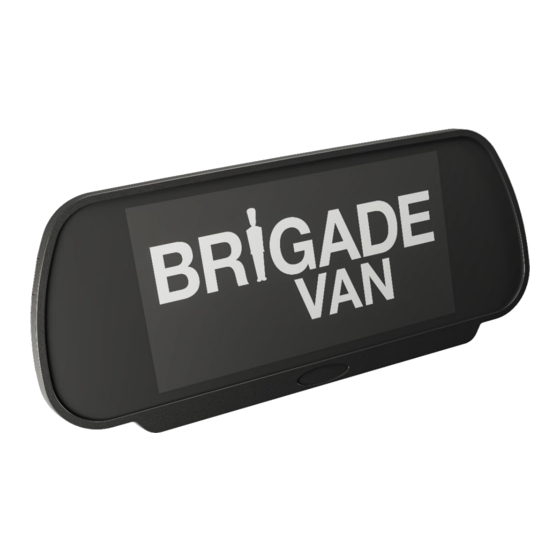

Mirror Monitor 1. Power 2. Up 3. Menu 4. Down 5. Channel 1/ Channel 2 6. IR Monitor Specification: . Screen size: 7-inch new TFT panel . Aspect Ratio: 10:9 image . Input: 2-channel video input with 2 trigger cable inputs . - Page 4 Cable Note: Channel 1 video has priority over Channel 2 video if these are triggered at the same time. Usual manual： 1. Power connected, GND to Negative；12-24V to positive。 2. AV1 - AV2 connect to camera 1 and camera 2。 3.
- Page 5 BL-270HM...
-
Page 6: Remote Control
Right and volume up Slider control Menu Menu Tree View System Brightness：0-100 Reversing Line ：MODE 1(2/3) Astern Delay ：3s/6s/9s Saturation：0-100 Language：English/Japanese/Chinese Contrast：0-100 Rotate：LU/RD Hue：0-100 Version：Shows installed O/S/ Firmware version Resolution：720P/1080P/CVBS PAL/CVBS N Audio Switch：OFF/ON Backlight Mode：OFF/ON Default Setting Image Mirror technical@brigade-electronics.com www.brigade-electronics.com...
