DALI PHANTOM subwoofer QUICK START GUIDE

6. Subwoofer connections

1 x Subwoofer (LFE .1)
PROCESSOR / Sub (LFE out)
AV Reciever
ANALOG INPUTS OUTPUTS
PHANTOM CI
CH4
CH2 CH1 CH2
AMP-2500 DSP CH3 + - + -
CH1
-
+
4 x Subwoofer (LFE .1)
Sub (LFE out)
PROCESSOR /
AV Reciever
ANALOG INPUTS
PHANTOM CI
CH2 CH4
AMP-2500 DSP CH3
CH1
+ - + -
Go to the
User Manual
by scanning
the QR code.
2 x Subwoofer (LFE .1)
PROCESSOR / Sub (LFE out)
AV Reciever
ANALOG INPUTS OUTPUTS
PHANTOM CI
CH4
CH2 CH1 CH2
AMP-2500 DSP CH3 + - + -
CH1
- -
+ +
OUTPUTS
CH1 CH2
+ - + -
+ - + -

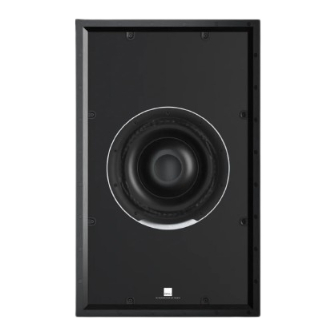

DALI PHANTOM IW SUB S-100
QUICK START GUIDE

1. Carton Contents

1 x DALI PHANTOM 1 x Grille (magnetic)
IW SUB S-100

2.A Installation - In-wall

Use cut-out template Connect cables from the
1 2
to prepare the wall for amplifier to the subwoofer.
installation.
370 mm
14.6 in
Minimum depth
102 mm
4.02 in
615 mm
24.2 in
4 Use a cross-head screwdriver or drill bit to
tighten the eight dogleg clamp screws.
x 8
10 - 70 mm
0.4 - 2.8 in
1 x Cut-out template 4 x Rubber pads
Place subwoofer in wall.
3
5 Place the grille.
