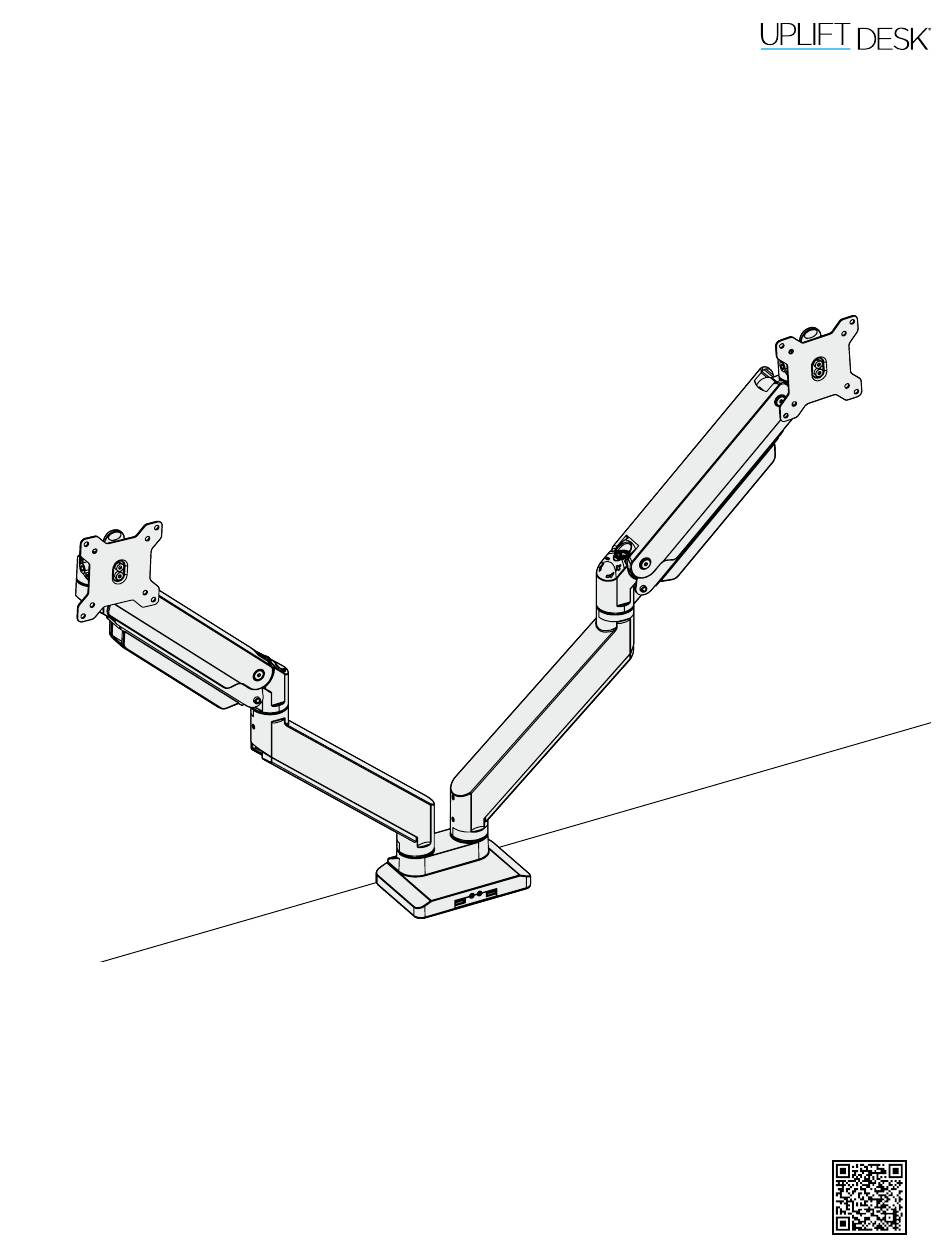

- Page 1 Crestview Dual Monitor Arm MON032 Scan QR code for product webpage For assembly assistance, visit upliftdesk.com/contact, call 800-349-3839, or email info@upliftdesk.com ©2023 UPLIFT Desk®. All Rights Reserved...
-
Page 2: Wire Cover
Base Vesa mount (x1) Base Safety and Warnings Lower arm 3mm Allen wrench 4mm Allen wrench 6mm Allen wrenc CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may result in damage or personal injury. Retain manual for future reference. Lower Clamp Upper Clamp Warning:... - Page 3 Pad and attach it to the bottom of the Base and Upper Clamp as shown. Align the pad with the front edge of the Base first, then work to the back. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 4 .25” Step 4 (Clamp Method) 0.24” 0.24” A. Use the 4mm Allen Wrench to adjust the four pre- installed screws on the back of the Lower Clamp so that there are about 0.25” of thread between the plate and screw heads. B.
- Page 5 3mm Allen Wrench (or a small flat head screwdriver). This will secure the Lower Arms to the Base and keep them from becoming separated during adjustment. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 6 B. With the lower set-screws tightened, each Lower Arms can swivel about 270° in total, depending on monitor size, monitor orientation, and the location of the other arm. ~270° Step 11 A. Slide the Upper Arms into the holes on the Lower Arms until they are fully seated B.
- Page 7 Your cables should run through each end of both the Upper and Lower Wire Covers. E. Reinstall the screws to secure each Upper Wire Cover. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 8: Height Adjustment
Step 17 A. If you have selected the Clamp Method, you can now snap the Wire Cover onto the back of the Upper Clamp as shown and insert your monitor cables through the two integrated clips. B. The Wire Cover adds 0.8” to the back of the Clamp assembly. - Page 9 Lower Arm Swivel Each Lower Arm rotates about 270° in total, depending on monitor size, monitor orientation, and the location of the other arm. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 10 Notes...
- Page 11 Notes © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 12 Study this manual carefully. If this product is sold, please provide this manual to the buyer, installers, or support personnel operating the product. Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a ©...
