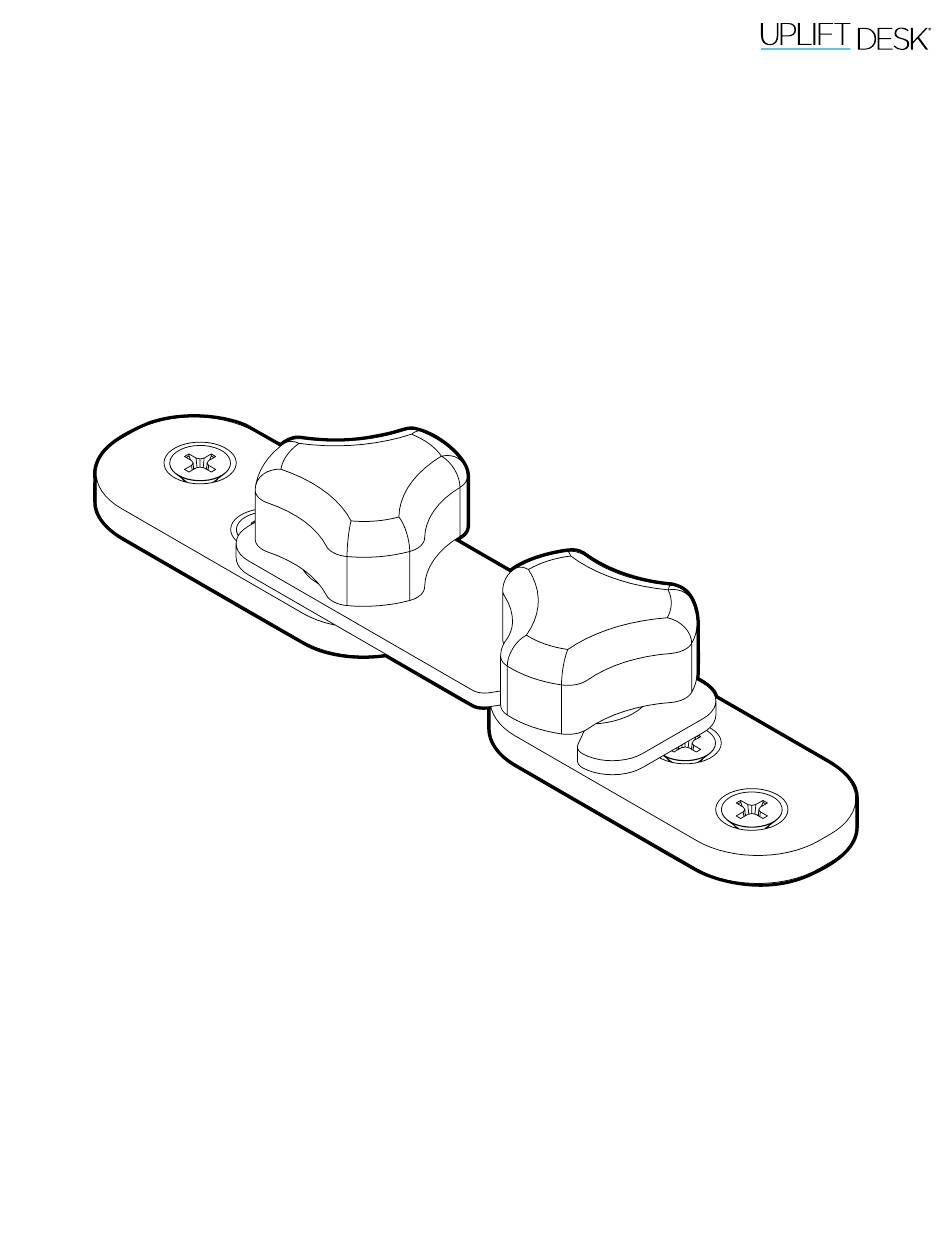

- Page 1 Table Ganging Brackets FRM069 For assembly assistance, visit upliftdesk.com/contact, or call 800-349-3839, or email info@upliftdesk.com ©2022 UPLIFT Desk®. All Rights Reserved...
- Page 2 Safety and Warnings CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may result in damage or personal injury. Retain manual for future reference. CAUTION: Assemble units as described herein only. To do otherwise may result in table instability. All screws must be tightened securely and checked periodically after assembly.
- Page 3 Ensure the bracket is oriented with the holes as shown. D. Use a pencil to mark the tabletop in the centers of the two 7.5mm countersunk holes of the Bracket Mount indicated by the Left side arrows. edge Back edge © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 4 Table 2 Front edge E. Repeat the same steps for Table 1 to attach two Bracket Mounts to the second table on the opposite/right side of the tabletop. IMPORTANT: Be sure to rotate the brackets on the second Right 7.5mm side tabletop 180°...
- Page 5 D. Readjust your grip and continue to rotate the table until it is upright. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 6 Step 6 - Ganging Tables Together A. If installing onto a Flip Top Table, ensure the latches on the table frames are engaged and the tabletops cannot be flipped up. B. Position the tables in one of the following orientations. Side to Side Orientation Back to Back Orientation Side to Back (Corner) Orientation...
- Page 7 D. Tighten all Threaded-Stud Knobs to prevent them from falling out and to lock the Connecting Bars in place. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 8 Copyright Notice: This guide is a component of this UPLIFT Desk product. This guide is a part of © the scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: upliftdesk.com. These specifications are subject to United States copyright law.
