Uplift Desk PDC005-PRV Quick Start Manual

Power & Data Rail: Privacy Panel Brackets
SKU: PDC005-PRV

Package Contents

Panel brackets
If assembling at the same time as the Power & Data Rail
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
M5x12 machine screw
(qty 2) (qty 4)
Lock washer
(qty 4)

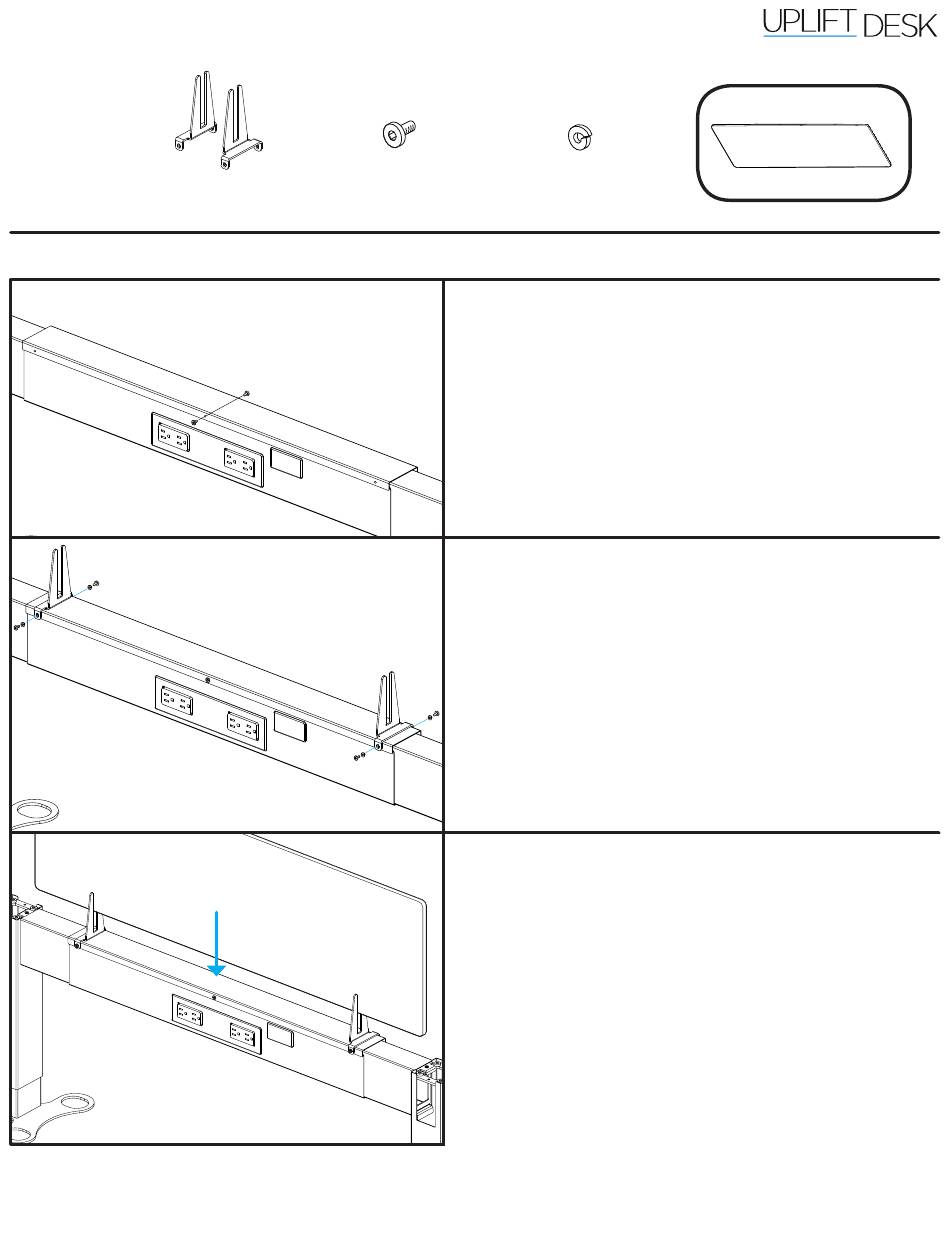

Step 1

Place rail cover on top of rail assembly, and connect the Cov-
er to the Rail using two M5x6 machine screws (provided with
Power & Data Rail) in the center holes on either side. Hand
tighten for a few turns - do not fully tighten yet.

Step 2

Place one Panel bracket on each end of the rail cover oriented
as shown. Connect Panel bracket to the Cover and the Rail us-
ing two M5x12 machine screws and two Lock washers on either
side. Hand tighten for a few turns - do not fully tighten yet.
Repeat on the other side with the second Panel bracket.
Once all screws are started, tighten completely using the 3mm
Allen wrench provided with the Power & Data Rail.

Step 3

Slide Privacy panel into both Panel brackets and ensure that it
is centered on the rail.
To be used with...
Acoustic Privacy Panels
