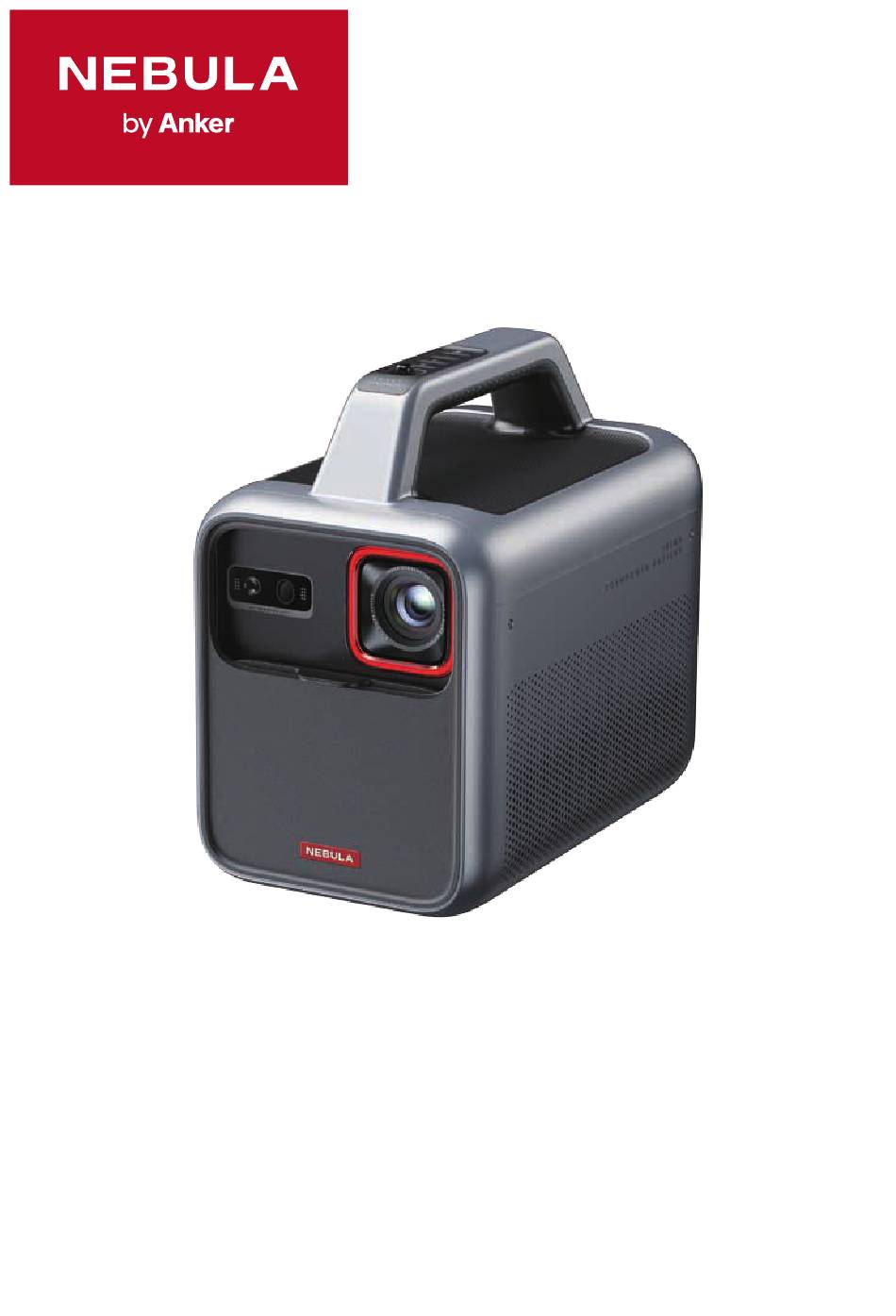

- Page 1 User Manual Nebula Mars 3 Model: D2333 Nebula Mars 3...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions What's Included At a Glance 1. Projector 2. Remote Control Charging 1. Charge Your Projector 2. Check Battery Level 3. Power Mode 4. Charge External Device Getting Started 1. Prepare the Remote 2. Position Your Projector 3. -
Page 3: Important Safety Instructions
Important Safety Instructions Read all instructions before you use this product. Do not make any changes or create settings that are not described in this manual. If physical injury, loss of data, or damage is caused by failure to follow instructions, the warranty does not apply. - Page 4 • Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Our company will not be responsible for any violators' legal liability under any circumstances.
- Page 5 Warning • Replacing a battery with an incorrect type may defeat safeguards and create danger; • Disposal of the battery/device in a fire or a hot oven or other source of significant heat, or mechanically crushing, or cutting of the battery/device, may result in an explosion;...
-
Page 6: What's Included
What's Included Nebula Mars 3 Remote Control AAA Battery × 2 Power Adapter Power Cord Note: The plug type varies by region. Quick Start Guide... -
Page 7: At A Glance
At a Glance 1. Projector Front View Sensors (for autofocus and auto keystone correction) Handle Lens Lens cover • Slide down to turn on and automatically adjust focus • Slide up to turn off Loudspeaker... - Page 8 Rear View LED screen • Indicates current battery level and power mode Power mode button • Press to switch power modes when the projector is on • Press once to check the battery level when the projector is off • Press and hold for 2 seconds to enable charge-out when the projector is off Ambient light button •...
- Page 9 DC IN port • Connect to power supply USB-C port • Connect to a USB drive • Charge an external device as a power bank USB-A port • Connect to a USB drive • Charge an external device as a power bank HDMI port •...
- Page 10 Top View Volume up / down buttons Return button Bluetooth speaker button • Press to enter or exit Bluetooth speaker mode Navigation / confirmation buttons Bottom View Adjustable stand Air ventilation (inlet)
- Page 11 Dimensions 250 (L) × 160 (W) × 250 (H) mm / 9.8 (L) × 6.3 (W) × 9.8 (H) in...
-
Page 12: Remote Control
2. Remote Control Adjust focus Navigation Return to the previous menu Power on / off or switch to standby mode Activate the Google Assistant Confirm a selection / Pause / Resume Access more options Access the home menu Volume up / down Nebula RC Model: D0413X... -
Page 13: Charging
Charging 1. Charge Your Projector Before using it for the first time, fully charge the built-in battery using the provided adapter and power cord. The LED screen will light up when the battery is being charged. 2. Check Battery Level The projector's LED ring indicates the current battery level. -
Page 14: Power Mode
3. Power Mode Press the power mode button to switch power modes when the projector is powered on. AI Mode: Adjusts the display brightness based on ambient brightness. Eco Mode: Lowers the display brightness to 300 lumens to extend playtime. Standard Mode: Sets the display brightness to the highest level. -
Page 15: Getting Started
Getting Started 1. Prepare the Remote ① Slide to open the battery compartment. ② Insert new batteries matching the polarity (+/-) and close the battery compartment. ③ For first-time use, follow the on-screen instructions to pair the remote with your projector. The distance between the remote and the projector should not exceed 10 m / 33 ft. - Page 16 • It is unnecessary to tilt the projector towards the projection surface. You can correct the projection image with the built-in autofocus and auto-keystone correction. • The distance between the projector and the projection surface determines the projection image size. For the best result, position the projector 0.8-5.3 m / 2.62-17.39 ft away from the projection surface to get a screen size of 30-200 inches.
-
Page 17: Power On / Off
3. Power On / Off Slide the lens cover down to turn on the projector, and slide up to turn it off. • You can also press and hold the power button on the remote for 3 seconds to power off. •... -
Page 18: Auto Image Correction
4. Auto Image Correction Autofocus Auto Keystone Correction... -
Page 19: Setup
Auto Screen Fit Auto image correction includes autofocus, auto keystone correction, and auto screen fit. These features can be enabled in three ways: by powering on the projector, by pressing on the remote, or by slightly moving the projector. To set your auto image correction preferences, go to >... -
Page 20: Nebula Connect App
Nebula Connect App To easily control the projector, we recommend you download the Nebula Connect app. ① Download the Nebula Connect app from the App Store (iOS devices) or Google Play (Android devices). ② Enable Bluetooth on your smartphone. ③ Open the Nebula Connect app and select [Mars 3 XXXXXX] as the device to be connected. -
Page 21: Projector
2. Projector On the home screen, select > [Projector Settings] and press AI Brightness: Automatically adjusts the display brightness based on the ambient brightness. Eco: Lowers the display brightness to 300 lumens to extend playtime. Standard: Sets the display brightness to the highest Brightness level by default. - Page 22 Auto Keystone Correction Settings: Trigger auto keystone correction by remote, at startup, or after movement. Manual Keystone Correction: Manually perform keystone correction by adjusting each corner. Auto Screen Fit Settings: Trigger auto screen fit Image Correction by remote, at startup, or after movement. One-Click Screen Fit: Automatically adjust the image size to your surface.
- Page 23 Speaker Delay: To synchronize the sound with the image, adjust the sound delay by 10 milliseconds for each operation. Expert Settings: Customize advanced settings to enhance audio quality. • Digital Output: Select an output audio format. • eARC: Allows TV to send audio backward to its source device via a single HDMI cable.
-
Page 24: Apps
Smart Solutions: Turn on / off auto-alerts when the projector detects an issue. • Projection Angle Alert: Shows an alert when the maximum projection angle is reached. • Fine Tuning Popup: Shows a prompt to access fine-tuning after auto keystone correction. •... -
Page 25: Other
Select HDMI as the input source, or change Consumer Electronic Control (CEC) settings. Input CEC allows your HDMI device and Android TV to control each other. Change the auto-sleep settings, turn off the current Power display, or set auto power-off time when no signal is available. -
Page 26: Using Your Projector
3. Wireless Casting You can wirelessly cast movies, games, music, and the entire screen from your iOS, macOS, Android, or Windows device to Nebula Mars 3. Make sure Nebula Mars 3 and your device are connected to the same wireless network. The network can be a Wi-Fi network or your phone's hotspot. -
Page 27: Play From Hdmi Playback Devices
Certain content cannot be cast on Nebula Mars 3 due to copyright restrictions. You can stream the content via the same app installed on your projector. 3.2 Cast Device Screen You can cast the entire screen from your device to the projector. -
Page 28: Play From A Usb Drive
② Press to access the settings menu, then select [Device Preferences] > [Input] > [HDMI]. The projector will automatically start HDMI playback once connected to an HDMI playback device for the first time. 5. Play from a USB Drive With this projector, you can enjoy music, video, and pictures, or install apps that are stored on a USB 2.0 drive. -
Page 29: Play Through External Sound Devices
6. Play Through External Sound Devices This projector can also be connected to external sound output devices, including headphones and speakers; when connected to external speakers, the built-in speaker system is disabled. ① Use a 3.5 mm audio cable or an adapter (not provided) to connect your headphones or external speakers. -
Page 30: Bluetooth Speaker Mode
B: On the home screen, select > [Projector Settings] > [Bluetooth Speaker Mode] and press ② Enable Bluetooth on your smartphone and select Nebula Mars 3 to connect. Flashing blue Ready to pair / Bluetooth pairing Steady blue... -
Page 31: Specifications
To update the firmware, go to [Projector Settings] > [Updates] > [Firmware Update]. Specifications Specifications are subject to change without notice. Input 9.47A Power Consumption 150W Standby Power < 1W Consumption Resolution 1920 × 1080p 480p (60 Hz), 576p (50 Hz), 720p (30 Hz), 720p (50 Hz), 720p (60 Hz), 1080p (24 Hz), 1080p (30 Hz), 1080p (50 Hz), 1080p (60 Compatible Resolutions... - Page 32 Light Source Focus Auto Keystone Correction Auto Speaker Output Power 40W max Noise 28 dB at 25°C Wi-Fi Wi-Fi 2.4 GHz/5.0 GHz 802.11 a/b/g/n/ac Bluetooth Version Bluetooth Range 25 m / 82 ft USB Format FAT, FAT32, NTFS Operating Temperature 0°C~35°C / 32°F~95°F Remote Control Batteries AAA ×...
-
Page 33: Troubleshooting
Troubleshooting ① Fails to Power On • The projector may be out of power. Charge the projector for 15-30 minutes and see if the LED screen lights up. ② Cannot Charge • Use the included adapter and power cord to charge the projector. •... - Page 34 • Adjust the HDMI playback device's output resolution / frequency to be the same as the projector's. ⑦ How to Install Netflix • On your projector, download and install the Nebula Play app from Google Play. Open Nebula Play and select [Tips] > [Netflix Installation].
-
Page 35: Notice
This product complies with the radio interference requirements of the European Community. Declaration of Conformity Hereby, Anker Innovations Limited. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the Declaration of Conformity, visit the Web site https://uk.seenebula.com/. - Page 36 Anker Innovations Deutschland GmbH | Georg-Muche-Strasse 3, 80807 Munich, Germany The following importer is the responsible party (contract for UK matters): Anker Technology (UK) Limited | GNR8, 49 Clarendon Road, Watford, Hertfordshire, WD17 1HP, United Kingdom Your product is designed and manufactured with high-quality...
- Page 37 This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health, and the environment. For more information on the disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.
- Page 38 Notice: Shielded Cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. The following importer is the responsible party. Company Name: Fantasia Trading LLC Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764 Telephone: 1-800-988-7973 5150~5350 MHz can be used indoors only.
-
Page 39: Trademarks
Trademarks The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Anker Innovations Limited is under license. Other trademarks and trade names are those of their respective owners. -
Page 40: Warranty
Warranty 30-Day Money-Back Guarantee for Any Reason You may return your undamaged product and packaging within 30 days of purchase to receive a FULL REFUND for any reason. If the reason for the return isn't quality-related, the customer must pay for the return shipping.
