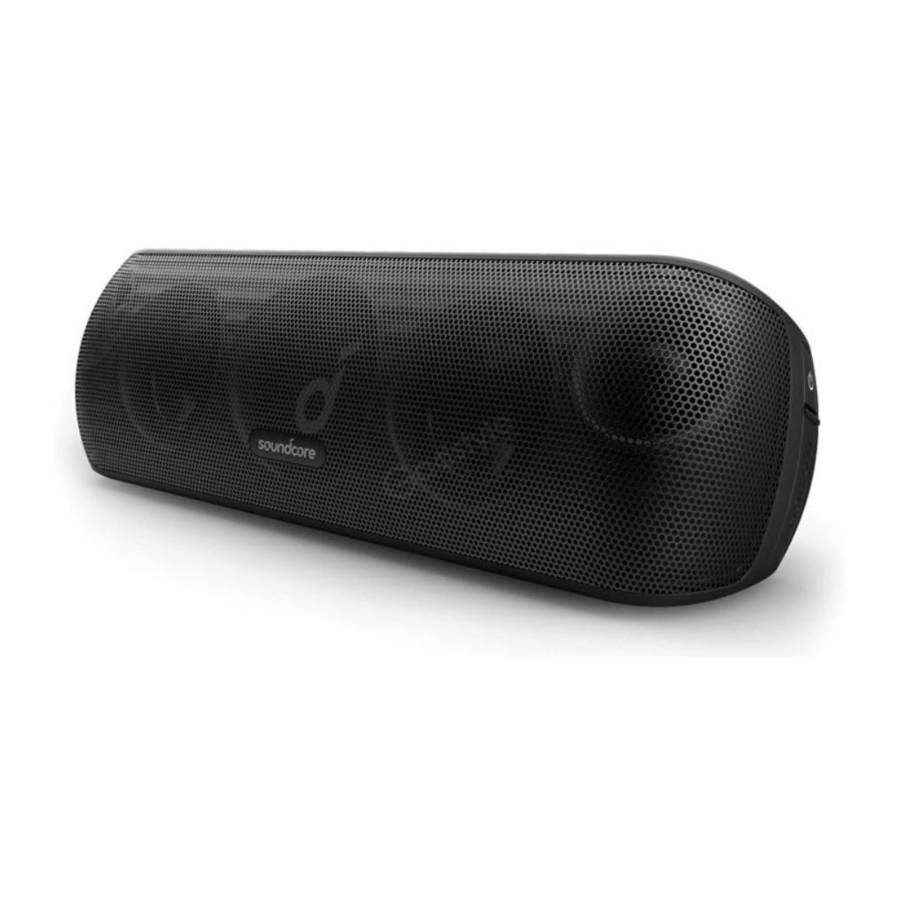

Anker Soundcore Motion Plus Manual

Safety Instructions

• Avoid dropping.
• Do not disassemble.
• Soundcore Motion+ can be immersed in water up to 1m for up to 30 minutes.
• Avoid extreme temperatures.
• Do not use the device outdoors during thunderstorms.
• Do not use any corrosive cleaner / oil to clean.

What's Included

At a Glance

1. Bass Indicator
   (Bass indicator color: White)
2. Bass Button
3. Volume - Button
4. Multi-function Button
5. Volume + Button
6. Bluetooth Button
7. Bluetooth Indicator
   (Bluetooth indicator color: Blue / White)
8. Power Button / Power Indicator
   (Power indicator color: Red / White)
9. USB Type C Port
10. 3.5mm Audio Input Port

Using Your Soundcore Motion+

1. Turn On / Off


   ON	Press once
   OFF	Press and hold for 2 seconds

   Soundcore Motion+ is equipped with High-Resolution Audio. This specialty gives the speaker a better sound quality by referring to digital processes that allow playback of music using higher sampling rates.
   Note: Soundcore Motion+ supports Qualcomm^® aptX™.
   1. Bluetooth mode


      Slowly Flashing Blue (Fade in and out)	Bluetooth Pairing Mode Note: starts to connect to previous connected mobile device when speaker is turned on.
      Solid Blue	Connected to a device




      	Enter True Wireless Stereo	Stereo Group Mode / Disconnect True Wireless
      	Slow Flashing White	True Wireless Stereo Group Mode
      	Solid White (Secondary speaker)	Connected to True Wireless Stereo
      	Solid Blue (Primary speaker)


      With True Wireless Stereo technology, you can pair your Soundcore Motion+ with another Soundcore Motion+ to explore the best sound effects with left and right sound channels separated on both speakers.
      Music

      	Play / Pause
      	Play Next Song
      	Play Previous Song
      	Press to turn Bass on
      	Press once to activate bass Note: Press again to switch back to Normal Equalizer.
      	Activate Siri / Other Voice Control Software
      	Volume Up / Down

      Mobile phone

      	Answer Call / End Call
      	Reject Call / Switch between a call on hold and an active call
      	End current call and answer incoming call / End current call and switch to call on hold
      	Switch audio source between Speaker and Phone
      	Solid Blue	On a Call
      	Flashing Blue	Incoming Call


      When turned on, Soundcore Motion+ will automatically connect to the last connected device if available. If not, press the Bluetooth button to activate pairing mode.
      To pair a different device, press the Bluetooth button to re-enter pairing mode. Then repeat the pairing steps.
      Having connection problems? Remove Soundcore Motion+ from your device's Bluetooth history and ensure it's less than 3 feet away. Then try pairing again. To get the best sound quality, make sure there is a clear line of sight between the connected device and your speaker.
   2. AUX-In mode


      Plugging in an audio cable will automatically switch to AUX mode. When using AUX mode, control audio playback via the connected device.

Charging your Soundcore Motion+

	Slow Flashing Red	Low Battery
	Solid Red	Charging
		Fully Charged

Use the included USB cable to charge your Soundcore Motion+ and make sure it is fully charged before its first use.

USB type C cable only supports charge in, it does not support charge out.

Disconnect your speaker from the charger when fully charged. Do not charge your speaker for extended periods.

When not in use, store your speaker in a cool place.

Specifications

Specifications are subject to change without notice.

Input: 5 V 2 A
Audio output: 30 W
Battery capacity: max.6700mAh
Charging time: Approximately 4 hours(When power is off and the adapter must be at least 5V/2A)
Playtime (varies by volume level and music content): 12 hours
Size: 257 x 79 x 81 mm / 10.1 x 3.1 x 3.2 inch
Weight (without packaging): 1050 g / 37 oz
Bluetooth version: V 5.0
Bluetooth range: 30m/99ft
Sound Frequency Range: 50Hz~40kHz

Soundcore App

Apple and the Apple logo are trademarks of Apple Inc.

Google Play and the Google Play logo are trademarks of Google Inc.

Videos

Soundcore Motion+ REVIEW VIDEO

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Anker Soundcore Motion Plus Manual
