Evolve EV1 Installation Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Evolve Series
Water Softeners and Conditioners
®
For Models:
• EV1
• EVT
• EV2
• EVT1
• EVR
• EVRC
• EVRS
• EVRCS
For Cabinet Models:
• EVC
• EVCS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Evolve EV1

Summary of Contents for Evolve EV1

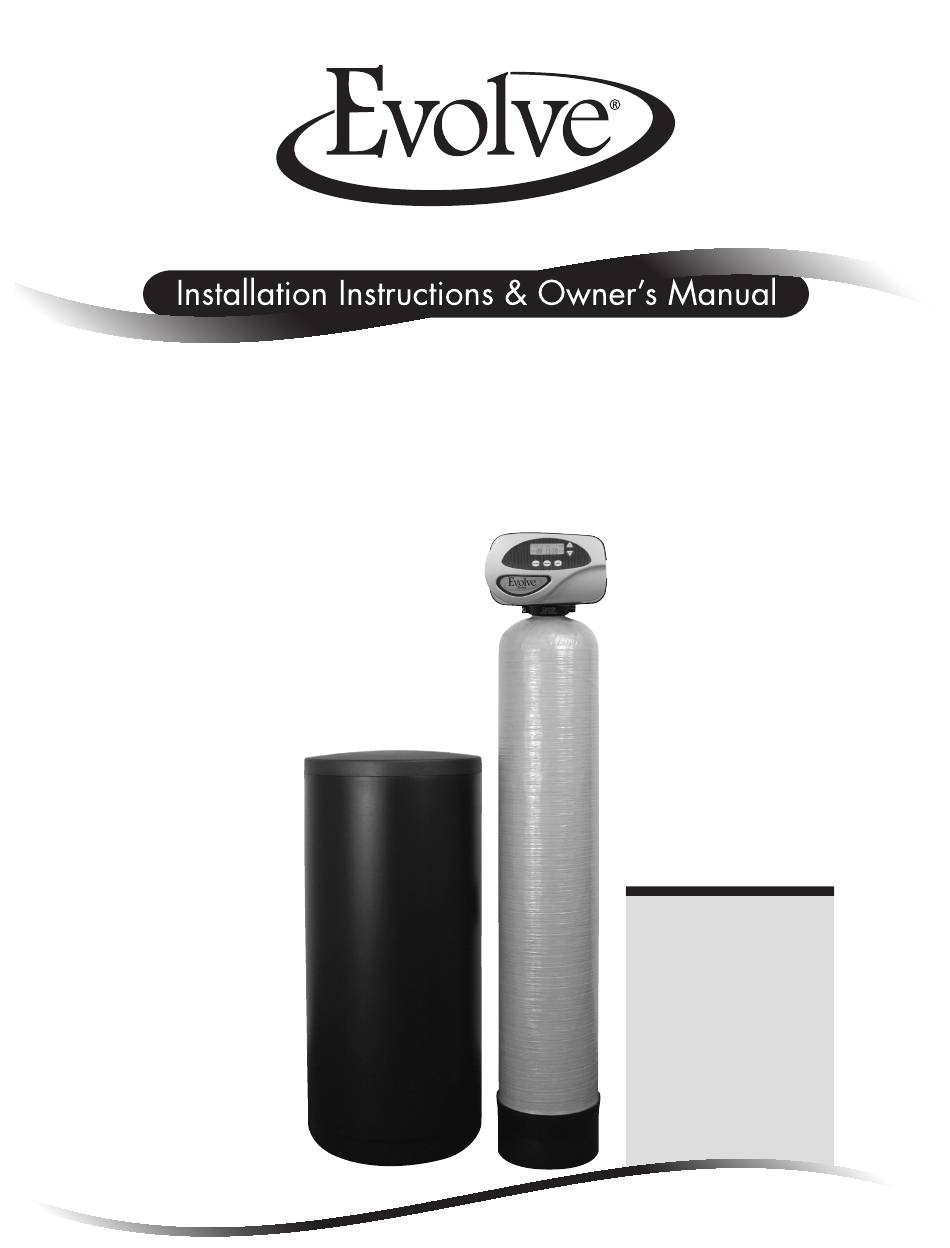

  • Page 1 Evolve Series ® Water Softeners and Conditioners For Models: • EV1 • EVT • EV2 • EVT1 • EVR • EVRC • EVRS • EVRCS For Cabinet Models: • EVC • EVCS...

  • Page 2: Table Of Contents

    . Your Evolve Series water softeners and conditioners are precision built, high quality products . These units will deliver conditioned water for many years to come, when installed and operated properly . Please study this manual carefully and understand the cautions and notes before installing .

  • Page 3: Pre-Installation Instructions For Dealers

    PRE-INSTALLATION INSTRUCTIONS FOR DEALERS The manufacturer has preset the water treatment unit’s sequence of cycles, cycle times, salt dose, exchange capacity and salt dose refill time . The dealer should read this page and guide the installer regarding hardness, day override, time of regeneration, service alarm and buzzer alarm settings before installation.

  • Page 4: Bypass Valve

    BYPASS VALVE The bypass valve is typically used to isolate the control valve from the plumbing system’s water pressure in order to perform control valve repairs or maintenance . The 1” full flow bypass valve incorporates four positions, including a diagnostic position that allows a service technician to have pressure to test a system while providing untreated bypass water to the building .

  • Page 5: Installation

    INSTALLATION GENERAL INSTALLATION & SERVICE WARNINGS The control valve, fittings and/or bypass are designed to accommodate minor plumbing misalignments . There is a small amount of “give” to properly connect the piping, but the water softener is not designed to support the weight of the plumbing . Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere .
  • Page 6 INSTALLATION should be set before installing the nut, split ring and “O” Ring . Avoid getting solder flux, primer, and solvent cement on any part of the “O” Rings, split rings, bypass valve or control valve . If the building’s electrical system is grounded to the plumbing, install a copper grounding strap from the inlet to the outlet pipe .
  • Page 7 INSTALLATION 9 . SAFETY BRINE TANK CONNECTION: Install the 3/8” O .D . polyethylene tube from the Refill Elbow to the Brine Safety Float valve in the brine tank . Connection at Refi ll Elbow on the control valve Connection at Brine Safety Float in brine tank 10 .

  • Page 8: Programming Procedures

    STEP 3 – DAYS BETWEEN REGENERATION (DAY OVERRIDE): The manufacturer has factory set 6 DAYS as the default for EV1 and EV2 models . Default days override for EVR models is 12 DAYS . This is the maximum number of days between regenerations .
  • Page 9 PROGRAMMING PROCEDURES: STEP 4 – REGENERATION HOUR: The manufacturer has factory set 2:00 A .M . as the REGEN TIME HOUR 2:00 default . This is the hour of day for regeneration and can be reset by using + or — buttons .

  • Page 10: Startup Instructions

    FOR DOWNFLOW REGENERATING UNITS STARTUP INSTRUCTIONS FLUSHING OF SYSTEM: To flush the system of any debris and air after installation is complete, please perform the following steps: 1 . Rotate bypass handles to the bypass mode (Fig. 2 on page 4) . 2 .
  • Page 11 FOR UPFLOW REGENERATING UNITS STARTUP INSTRUCTIONS FLUSHING OF SYSTEM: To flush the system of any debris and air after installation is complete, please perform the following steps: 1 . Rotate bypass handles to the bypass mode (see Fig. 2 of page 4) . 2 .

  • Page 12: Operating Displays And Maintenance

    OPERATING DISPLAYS AND MAINTENANCE: 1 . GENERAL OPERATION: When the system is operating, one of six displays may be shown and will alternate with the installing dealer’s name and phone number for future service . Pressing will alternate between the displays . NEXT 1 .
  • Page 13 OPERATING DISPLAYS AND MAINTENANCE: 3 . REGENERATION MODE: Typically a system is set to regenerate at a time of no REGENERATION MODE water usage . If there is a demand for water when the system is regenerating, untreated water will be delivered . When the system begins to regenerate, the display will include BACKWASH 8:22 information about the step of the regeneration process and the time remaining for that...
  • Page 14 OPERATING DISPLAYS AND MAINTENANCE: 6 . ERROR MESSAGE: If the word “ERROR” appears and flashes alternately with ERROR the dealer name and phone number, record the ERROR number and your contact CALL FOR SERVICE servicing dealer promptly . This indicates that the control valve was not able to function ERROR properly .
  • Page 15 This page left intentionally blank.

  • Page 16: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION A . Depleted battery A . See Operating Display and Maintenance section B . Control valve power adapter not plugged into B . Plug power adapter into outlet or connect outlet or power cord end not connected to PC power cord end to PC board connection board connection 1.
  • Page 17 TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION A . Turn bypass handles to place bypass in A . Bypass valve in bypass position service position 7. Control valve does not B . Meter is not connected to meter connection on B . Connect meter to three pin connection labeled regenerate automatically PC board METER on PC board...
  • Page 18 TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION A . Injector is plugged A . Remove injector and clean or replace B . Faulty regenerant piston B . Replace regenerant piston C . Regenerant line connection leak C . Inspect regenerant line for air leak 12.
  • Page 19 TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION A . Check motor connections then Press NEXT and REGEN buttons for 3 seconds to resynchronize A . Motor failure during a regeneration software with piston position or disconnect power supply from PC board for 5 seconds and then reconnect .
  • Page 20 TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION 20. Err – 109 A . Invalid motor state detected A . Replace PC board 21. Err – 201 A . Invalid regeneration cycle step detected A . Replace PC board A . Check for low flow leak . Press NEXT and A .

  • Page 21: Replacement Parts

    Black cover CV3367- 01-WR-A Gray cover CV3107-1 Motor CV3002A Drive assembly (Includes #5 and #6) CV3502WE Evolve PC board (used on chlorine generator models) CV4022WU Evolve PC board (standard) CV3110 Drive gear, 12 x 36 CV3109 Drive gear cover CV3526...
  • Page 22 REPLACEMENT PARTS: PISTON ASSEMBLY Item No. Part No. Description Qty. CV3005 1” spacer stack assembly CV3430 1 .25” spacer stack assembly CV3004 Drive cap assembly CV3135 O-ring 228 CV3011 1” piston assembly downflow CV3011-01 1” piston assembly upflow CV3407 1 .25” piston assembly downflow CV3174 Regenerant piston NOTE: Not available on...
  • Page 23 REPLACEMENT PARTS BYPASS VALVE Item No. Part No. Description Qty. CV3006 Bypass assembly CV3147 Bypass handles REFILL PORT ASSEMBLY Item No. Part No. Description Qty. CV4144 3/8” Elbow, Parker fitting CV3163 O-ring 019 CV3195-01 Refill port plug assembly CH4615 Elbow locking clip CV3395 Chlorine Generator (Black) CV3395-G...
  • Page 24 REPLACEMENT PARTS INJECTOR ASSEMBLIES Item No. Part No. Description Qty. CV3176 Injector cap CV3152 O-ring 135 CV3177-01 Injector screen CV3010-1Z Injector assembly plug CV3010-1A A injector assembly, BLACK CV3010-1B B injector assembly, BROWN C injector assembly, CV3010-1C VIOLET CV3010-1D D injector assembly, E injector assembly, CV3010-1E WHITE...
  • Page 25 REPLACEMENT PARTS DRAIN LINE ASSEMBLY 3/4” DRAIN LINE ASSEMBLY 1” Item No. Part No. Description Qty. Item No. Part No. Description Qty. CH4615 Elbow locking clip CH4615 Elbow locking clip CPKP10TS8-BULK Optional insert, 5/8” tube CV3166 Drain FTG body 1 CV3192 Optional nut, 3/4”...
  • Page 26 REPLACEMENT PARTS BRINE TANK ASSEMBLY Item No. Part No. Description Qty. CG2191-84 Brine tank cover, injection molded WR CG2180 Brine tank cover, standard CH1095-01 Optional 18” diameter salt grid CH1080 Optional 24” diameter salt grid CG21833CB1C00 18” x 33” brine tank, black CG21840CB1C00 18”...
  • Page 27 REPLACEMENT PARTS LOW PROFILE CABINET AND BRINE TANK Item No. Part No. Description Qty. CJ2TCWSLP-C Top Assembly Black CJ2B35E Bottom Assembly Light Gray with 474 Brine Assembly Not shown CH4850-34 .625 Brine Well with Brine Well 474 Assembly 34 ” HIGH PROFILE CABINET AND BRINE TANK Item No.

  • Page 28: Installation Fitting Assemblies

    INSTALLATION FITTING ASSEMBLIES NOTE: Not all available fi ttings are displayed below. Contact manufacturer for optional fi ttings. 1” PVC MALE NPT ELBOW 3/4” & 1” PVC SOLVENT ELBOW Item Item Part No. Description Qty. Part No. Description Qty. CV3007 1”...
  • Page 29 INSTALLATION FITTING ASSEMBLIES NOTE: Not all available fi ttings are displayed below. Contact manufacturer for optional fi ttings. 1-1/4” & 1-1/2” BRASS SWEAT 1-1/4” & 1-1/2” PVC SOLVENT Item Item Part No. Description Qty. Part No. Description Qty. CV3007- 09 1-1/4 &...

  • Page 30: Specifications

    The above sequence takes place prior to regeneration; therefore, minutes are not included in totals. Backwash Brine and Rinse Rinse Total Manufactured for Evolve • 1900 Prospect Court • Appleton, WI 54914 • Phone: 920-739-9401 • Fax: 920-739-9406 SPE-EV SOFT RevA0119...
  • Page 31 18”W x 40”H All Evolve water conditioners are pre-factory set at medium salting . Note: influent waters must be at least 3 GPG hardness and 80 TDS . A calcite or corosex unit may be needed for correct operation .

  • Page 32: Warranty

    Water Conditioner and Softener Limited Warranty ® Congratulations. You have purchased one of the nest water treatment systems available. In the unlikely event of a problem due to defects in material and workmanship, Water-Right proudly warrants our Evolve Series water ® ®...
  • Page 33 This page left intentionally blank.

  • Page 34: Quick Reference Guide

    QUICK REFERENCE GUIDE: GENERAL OPERATION MANUAL REGENERATION NOTE: For softeners, if brine tank does When the system is operating, one of six displays will be shown: REGEN TODAY and TIME OF DAY will flash alternately if a regeneration not contain salt, fill with salt and wait 1 .

  • Page 35: Hardness

    QUICK REFERENCE GUIDE: ADJUST HARDNESS, DAYS BETWEEN REGENERATION, TIME OF REGENERATION AND ALARM BUZZER For initial set-up or to make adjustments, please complete the following steps . 1 . Accessed by pressing and + button simultaneously NEXT SERVICE ALARM 2 . Adjust hardness using + and — buttons 3 .
  • Page 36 Manufactured exclusively for Evolve Series Dealers at: 1900 Prospect Court • Appleton, WI 54914 Phone: 920-739-9401 • Fax: 920-739-9406 © 2019 Evolve Series All rights reserved. MAN-EV COND RevB0119...
