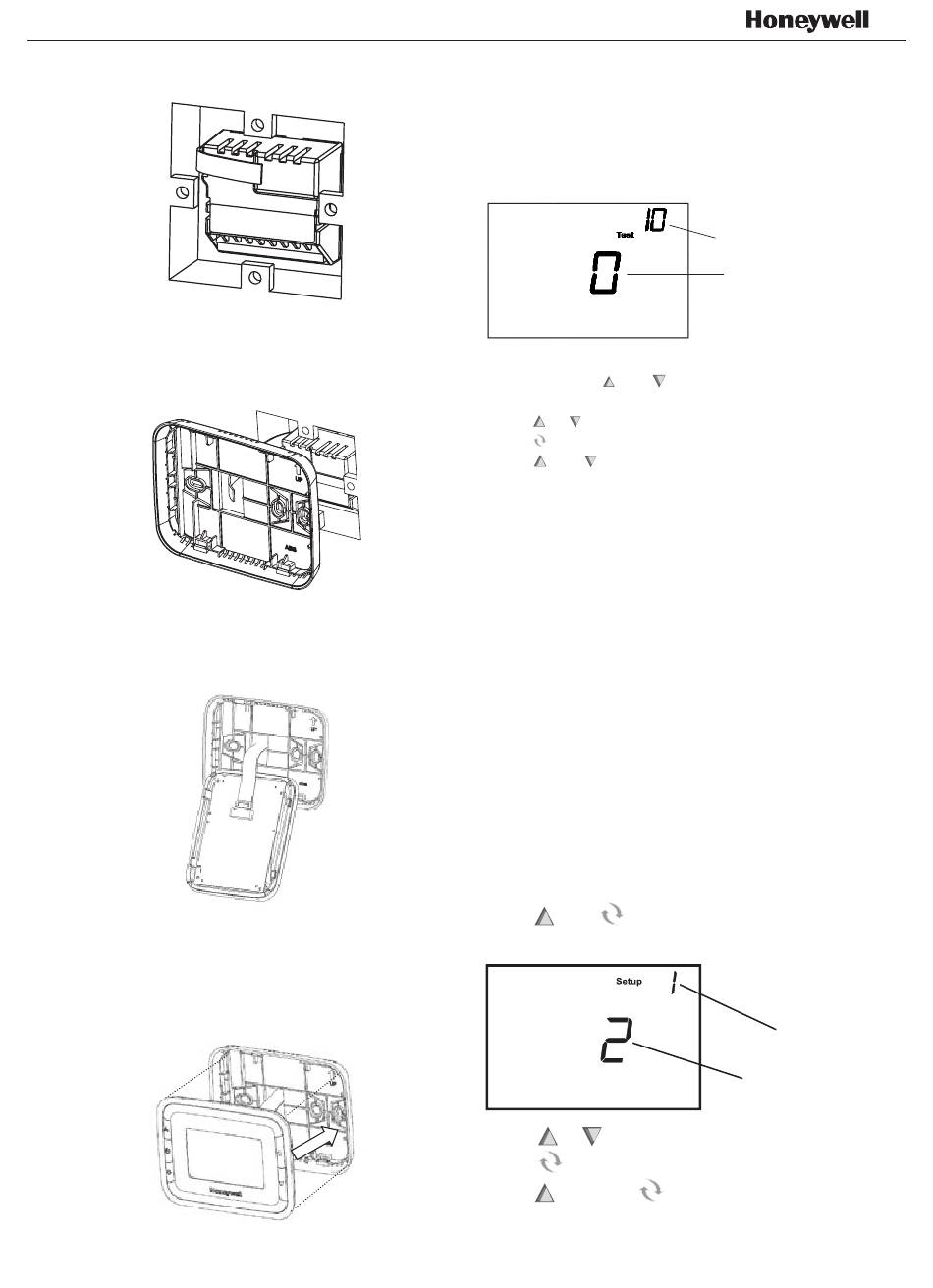

2 Push the Power box into the junction box.
3 Place Back cover over junction box, insert and
tighten mounting screws.
4 Insert the cable into connector on circuit board of
thermostat.
5 Align the 4 tabs on the Back cover with corresponding
slots on the back of the thermostat, and then push it
until the thermostat snaps in place.
Installer system test
After completing the installer setup above, press the
button again to begin a system test
Follow the procedure below to test the heating and
cooling and fan system.
Press and hold
and
test mode.
Press
or
button to change system status.
Press
button to advance to next test number.
Press
and
button hold to terminate system test
at any time.
System Test System Status
10 Valve open degree
0 Stop
1 Open
2 Close
40 Fan 0 Fan off
1 Low speed Fan on
2 Medium speed Fan on
3 High speed Fan on
70 Thermostat information (for reference only)
71 Software revision number (major revisions)
72 Software revision number (minor revisions)
73 Configuration identification code (major)
74 Configuration identification code (minor)
75 Production configuration date code (week)
76 Production configuration date code (year)
Installer Set-Up (ISU) setting
Press
and
simultaneously for 3 seconds to
enter ISU as below:
Press
or
to change settings
Press
to advance to next function
Press
and hold
exit and save settings
System test No.
System
buttons 3 seconds to enter
Number
Setting
and buttons 3 seconds to
5
