Page 1

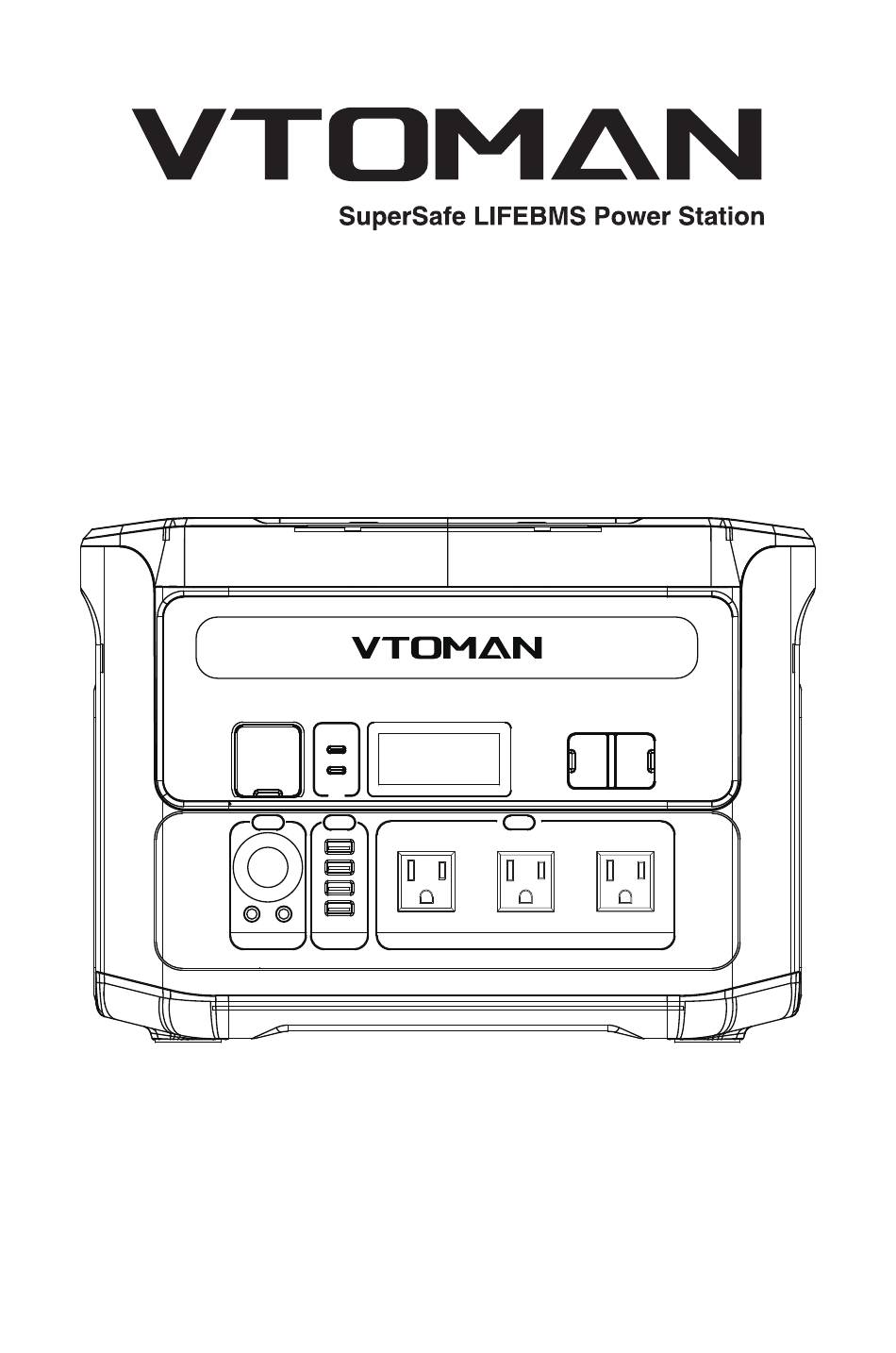

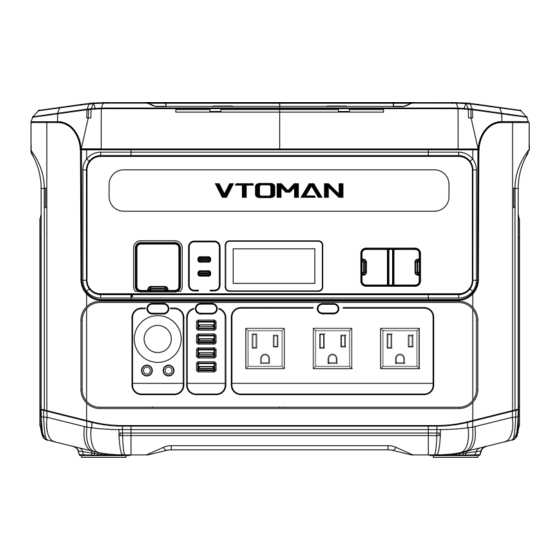

FlashSpeed 1500 Portable Power Station User Manual Thank you for choosing Vtoman portable power station. ● Please read the user manual carefully and follow the instructions ● in the manual to use the product correctly. Model No.: PB-58...
1.Specifications General Info Product Name FlashSpeed 1500 Power Station Net Weight 18.8KG(41.4 lbs) Dimensions 393*280*270mm(15.5x11x10.6 inch) Certification FCC, RoHS, UN38.3, CE Battery Info Capacity 1548Wh Battery Type LiFePO4 Cycle Life 3000 cycles to 80% Output Ports AC Output(x3) 1500W(Peak 3000W) in total,...
Car Charger Cable User Manual English version Please kindly check all accessories are complete. If any parts missing, please feel free to contact us at service.us@vtoman.com. 3.Safety Instructions 3.1 Usage When using this product, basic precautions should always be followed, including the following: 1.Read all the instructions before using the product.
3.Do not put fingers or hands into the product. 4.Use of an attachment not recommended or sold by power pack manufacturer may result in a risk of fire, electric shock, or injury to persons. 5.To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the power pack.
Liquid ejected from the battery may cause irritation or burns. 8.Do not expose a power pack to fire or excessive temperature. Exposure to fire or temperature above 265°F(130°C) may cause explosion. 9.Have servicing performed by a qualified repair person using only identical replacement parts.
4.Product Features 4.1 Product Details USB-C Output 100W Max per port LCD Display Anderson Input 400W Max AC Input 1500W Max Extra Battery Port DC Input 200W Max AC Output 110V/1500W DC Output 12V/10A USB-A Output 12W Max USB-A Output 12W Max USB-A Output 12W Max USB-A Quick Charge 18W Max 4.2 LCD Screen Introduction...
V-Beyond Technology: It allows you to run devices over 1500 watts but no more than 3000 watts on FlashSpeed 1500 power station. It would lower the output voltage to bring the power back down without tripping the overload protection, so that yo can continue to run those devices.
1 Hours 12-14 Hours 4-8 Hours Warm Tips: Before use, please plug your FlashSpeed 1500 power station into the wall until it is fully charged. 2.Recharge by AC Outlet You can use the AC charging cable through the AC Input Port to recharge the FlashSpeed 1500 power station.
The CP3500 cable will get hot during work,please DO NOT touch the CP3500 cable in avoid of scalding! 5.4 Use of LED Flashlight The FlashSpeed 1500 Power Station features a LED flashlight with 5 mode. Please follow the instructions below to enter different modes:...
1500 can normally power devices with rated power no more than 1500W. Besides, with Vtoman's V-Beyond Technology, FlashSpeed 1500 can run resistive loads over 1500 watts but no more than 3000 watts such as lights, space heaters, toasters, ovens, and coffee makers, etc.
Page 12
MC4 interface, then you just need to use an MC4 to Anderson adapter cable to convert. Warm Tip: It's recommended to use our Vtoman VS400 400W solar panel to recharge FlashSpeed 1500 power station for better charging experience. 7. Does FlashSpeed 1500 has MPPT feature? Yes, all Vtoman power stations are built-in MPPT feature.
AC outlet. Product doesn't get a charge by AC Input. Connection is well, but Please contact with the display doesn't Vtoman customer service show charging watts. at service.us@vtoman.com. Please place the solar Solar panels are not panel under direct...
"Warranty Period" section below, subject to the "Exclusions" clause below. Warranty Period The warranty period of the VTOMAN portable power station is 24 months. Consumers need to provide a sales receipt for the first purchase or other reasonable documentary proof to determine the start date of the warranty period.
Refund VTOMAN provides a 30-day money-back guarantee for products purchased directly from VTOMAN. If you are not satisfied for any reason, just let us know within 30 days. Once we receive the product and confirm its validity, we will refund the full amount.
Need help?
Do you have a question about the FlashSpeed 1500 and is the answer not in the manual?
Questions and answers
My solar panel is in the sun, it charged my flashspeed 1500 yesterday, but today why doesn't it charge it anymore?
