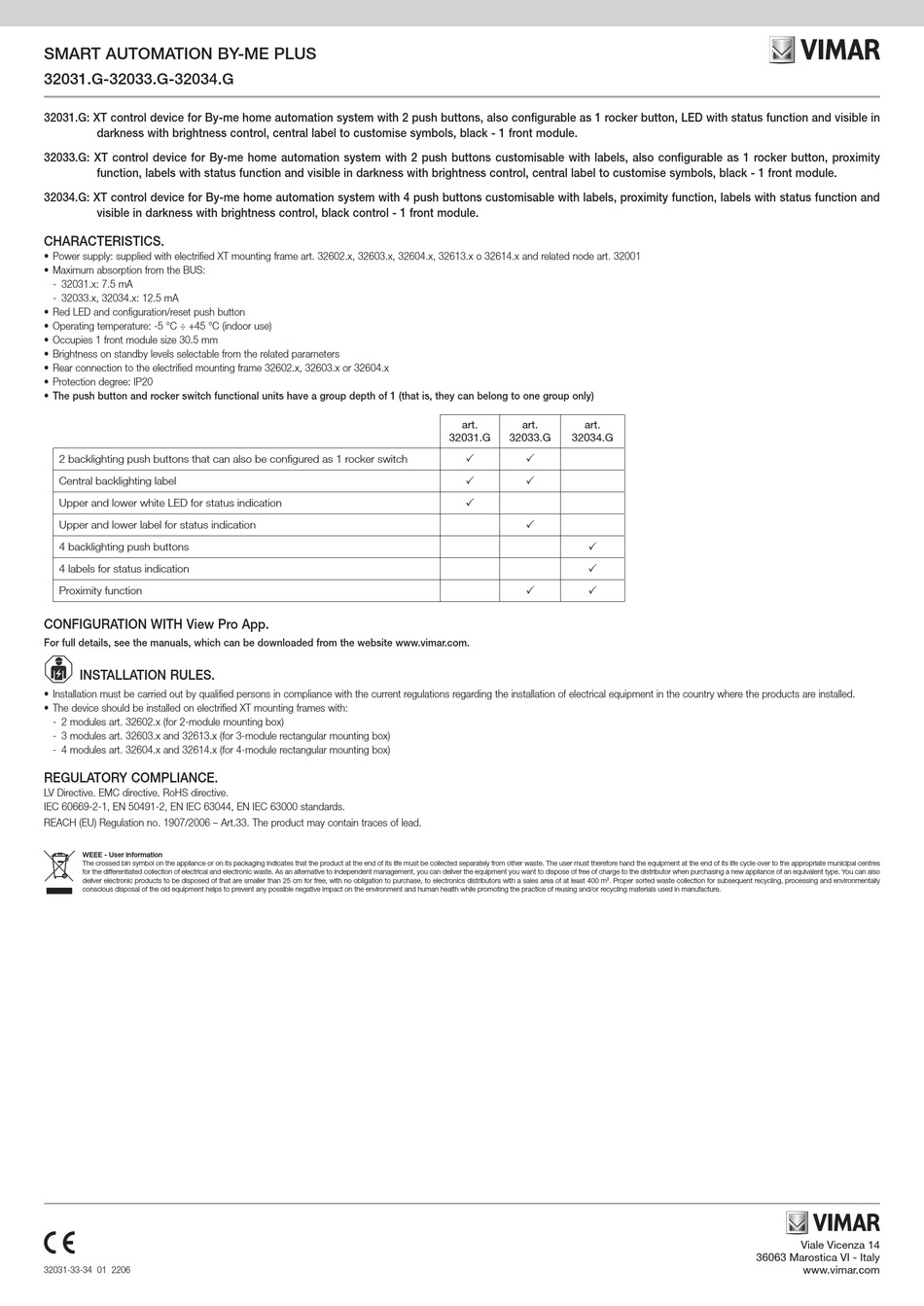

SMART AUTOMATION BY-ME PLUS
32031.G-32033.G-32034.G

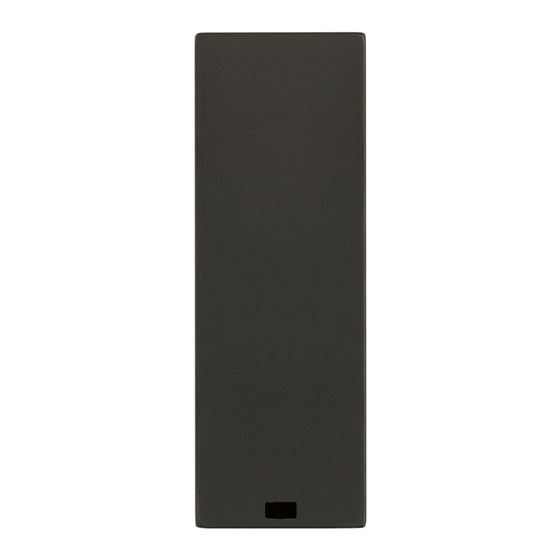

32031.G: XT control device for By-me home automation system with 2 push buttons, also configurable as 1 rocker button, LED with status function and visible in
darkness with brightness control, central label to customise symbols, black - 1 front module.
32033.G: XT control device for By-me home automation system with 2 push buttons customisable with labels, also configurable as 1 rocker button, proximity
function, labels with status function and visible in darkness with brightness control, central label to customise symbols, black - 1 front module.
32034.G: XT control device for By-me home automation system with 4 push buttons customisable with labels, proximity function, labels with status function and
visible in darkness with brightness control, black control - 1 front module.

CHARACTERISTICS.

• Power supply: supplied with electrified XT mounting frame art. 32602.x, 32603.x, 32604.x, 32613.x o 32614.x and related node art. 32001
• Maximum absorption from the BUS:
- 32031.x: 7.5 mA
- 32033.x, 32034.x: 12.5 mA
• Red LED and configuration/reset push button
• Operating temperature: -5 °C ÷ +45 °C (indoor use)
• Occupies 1 front module size 30.5 mm
• Brightness on standby levels selectable from the related parameters
• Rear connection to the electrified mounting frame 32602.x, 32603.x or 32604.x
• Protection degree: IP20
• The push button and rocker switch functional units have a group depth of 1 (that is, they can belong to one group only)
2 backlighting push buttons that can also be configured as 1 rocker switch
Central backlighting label
Upper and lower white LED for status indication
Upper and lower label for status indication
4 backlighting push buttons
4 labels for status indication
Proximity function

CONFIGURATION WITH View Pro App.

For full details, see the manuals, which can be downloaded from the website www.vimar.com.

INSTALLATION RULES.

• Installation must be carried out by qualified persons in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed.
• The device should be installed on electrified XT mounting frames with:
- 2 modules art. 32602.x (for 2-module mounting box)
- 3 modules art. 32603.x and 32613.x (for 3-module rectangular mounting box)
- 4 modules art. 32604.x and 32614.x (for 4-module rectangular mounting box)

REGULATORY COMPLIANCE.

LV Directive. EMC directive. RoHS directive.
IEC 60669-2-1, EN 50491-2, EN IEC 63044, EN IEC 63000 standards.
REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.

WEEE - User information

The crossed bin symbol on the appliance or on its packaging indicates that the product at the end of its life must be collected separately from other waste. The user must therefore hand the equipment at the end of its life cycle over to the appropriate municipal centres
for the differentiated collection of electrical and electronic waste. As an alternative to independent management, you can deliver the equipment you want to dispose of free of charge to the distributor when purchasing a new appliance of an equivalent type. You can also
deliver electronic products to be disposed of that are smaller than 25 cm for free, with no obligation to purchase, to electronics distributors with a sales area of at least 400 m
conscious disposal of the old equipment helps to prevent any possible negative impact on the environment and human health while promoting the practice of reusing and/or recycling materials used in manufacture.
32031-33-34 01 2206
art. art. art.
32031.G 32033.G 32034.G
 
 




 
. Proper sorted waste collection for subsequent recycling, processing and environmentally
