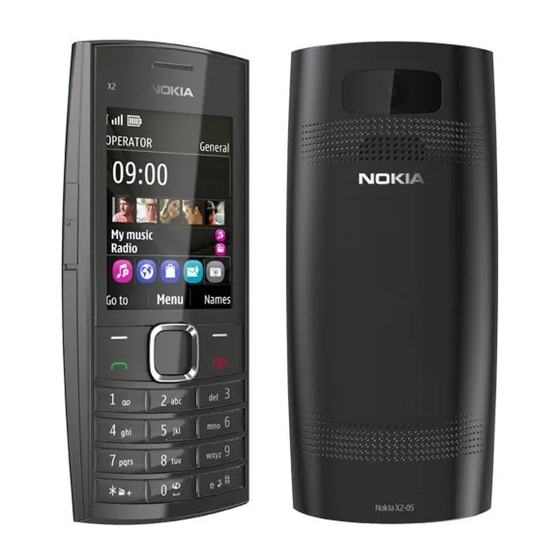

Nokia X2-05 Service Schematics

Service
schematics
IMPORTANT
This document is intended for use by authorized Nokia servi-
ce centers only. Please use the document together with other
documents such as the Service Manual and Service Bulletins.
Version information
While every effort has been made to ensure that the docu-
ment is accurate, some errors may exist. Please always check
for the latest published version for this document.
If you find any errors in the document please
send email to: service.manuals@nokia.com
1.0 First approved version.
2.0 B2150, R2162, R2163 component code corrected.
VSS_VIB connection added.
Confidential Copyright © 2011 Nokia Only for training and service purposes
Page 1 (7) | Front page | X2-05 RM-772 | Board: 3qw_30a | v2.0 | 14.11.2011
WWW.ALISALER.COM
WWW.AliFixit.COM
Nokia X2-05
Contents
Front page
X-GOLD , Power, HS USB, Camera, SIM
X-GOLD , Memory, MMC, Audio
X-GOLD , Display, Keymat
X-GOLD , RF part, RF power, BTH
Component finder top
Component finder bottom
RM-772
1
2
3
4
5
6
7
