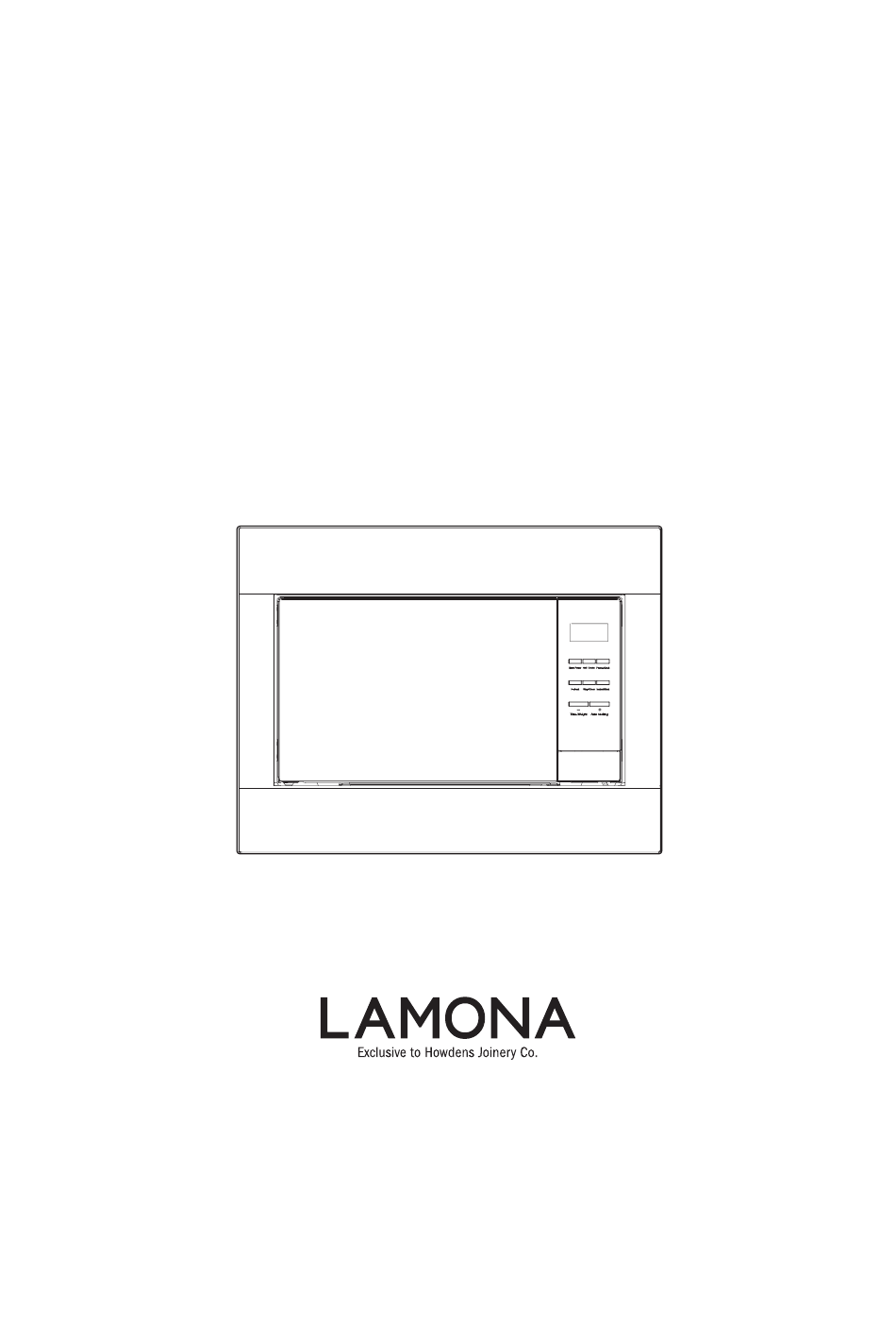

- Page 1 Built-in Microwave Oven With Grill HJA7040 HJA7040 with Trim Kit HJA7041 Installation & User Instructions...
-
Page 3: Table Of Contents
CONTENTS Environmental note Safety information 5 – 7 Specifications 8 - 10 Product dimensions Aperture dimensions Product specifications Description of the appliance Control panel The turntable Using your microwave 11 - 22 Setting the clock Before first use Cooking food (microwave mode) 11 - 12 Cooking food (grill/grill combi mode) Automatic defrost programmes... -
Page 4: Environmental Note
The packaging materials that Lamona uses are environmentally friendly and can be recycled Please discard all packaging material with due regard for the environment. -
Page 5: Safety Information
Installation IMPORTANT: Only the built in installation sanctioned by Lamona and outlined in this manual should be followed. A separate building in kit will be supplied with the microwave, to allow you to complete a built in installation. - Page 6 If you notice that the door seal, door surfaces, power cord and plug are damaged. You should stop using the appliance, disconnect it from the mains supply and contact the Lamona Customer Care Department.
- Page 7 This appliance must be correctly installed by a suitably qualified person, strictly in accordance with the manufacturer’s instructions. Lamona declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
SPECIFICATIONS Product dimensions Height: 265.2 mm Width: 485.0 mm Depth: 369.2 mm Facia dimensions Height: 458.5 mm Width: 593.5 mm Depth: 18.0 mm Aperture dimensions Height: 460 mm Width: 514 mm Depth: 550 mm * Please refer to the installation instructions contained in this user manual, to see the ventilation gaps you will need to leave around the appliance. -
Page 9: Description Of The Appliance
Description of the appliance Oven door Oven foot Door interlock Grill rack Oven cavity Microwave housing Glass turntable Door open button Rotating axis Control buttons Rotating ring LED Display Page 9 www.howdens.com... -
Page 10: Control Panel
All food and food containers must ALWAYS be placed on the rotating plate during cooking. If the rotating plate or rotating base cracks or breaks, it must be replaced immediately. Genuine Lamona parts can be obtained from the Lamona Spares Department. www.howdens.com... -
Page 11: Using Your Microwave
USING YOUR MICROWAVE Setting the clock When your microwave is connected to the power supply, you can set the clock to the correct time of day. Press the clock button (9) to enter the time setting mode. The hour digits will flash. Use the plus (2) and minus (5 buttons to set the current hour. - Page 12 After initially supplying power to the appliance, the colon on the LCD display will flash, Press the stop / clear button (3) to enter manual mode. Press the micro power button (6) repeatedly to select the required cooking power from the following options: 100P>80P>60P>40P>20P.
-
Page 13: Cooking Food (Grill/Grill Combi Mode)
Grill/grill combi mode IMPORTANT: When using the grill and/or grill combi mode, the inside of the oven, grill rack and cooking containers may become extremely hot. YOU MUST use an oven glove when removing items from the cavity. Check that the rotating plate and rotating base are correctly assembled in the cavity. Place whatever you are grilling in the centre of the microwave cavity on the grill rack and then close the microwave door. -
Page 14: Automatic Defrost Programmes
Automatic defrost Check that the rotating plate and rotating base are correctly assembled in the cavity. Place whatever you are grilling in the centre of the microwave cavity on the grill rack and then close the microwave door. IMPORTANT: You should make sure that the door of the microwave is shut securely. -
Page 15: Defrosting Guidelines
Defrosting guidelines Only use microwave-safe dishes for defrosting (porcelain, glass, suitable plastic). The defrosting time depends on the quantity and weight of the food that you are defrosting. When freezing, you should split the food into quantities that are suitable for defrosting in the microwave. Distribute the food as evenly as possible within the microwave cavity. -
Page 16: Defrosting Table
Defrosting Table Food Defrosting guidance Shield the thin end of the chops or steak with foil. Position the food with thinner parts in the centre in a single layer on a shallow dish. If pieces are stuck together, try to separate as soon as possible. - Page 17 The oven has a default cooking menu for simple operation. Choose the appropriate menu according to the food type and weight and strictly observe the directions of the table below, otherwise the cooking effect may be largely influenced. The automatic cooking times are suitable for food that is stored at room temperature. The temperature, weight and shape of the food will all influence the final cooking results.
- Page 18 Display Category Directions Suitable for popping a bag of corn which is available on the market weighing 85g. During Popcorn the cooking process, if the popping speed has decreased to 1 time per 1-2 seconds you should press the stop / clear button to end the process. Same as A.1 except with a weight of 100g.
-
Page 19: Setting Multiple Cooking Phases
Setting multiple cooking phases It is possible to set the microwave to cook at different power levels within a single cooking time. A maximum of 4 cooking phases can be programmed for one cycle. Press the micro power button (6) or the grill, combi button (7) to select the first cooking phase function required. -
Page 20: Materials You Can Use In A Microwave Oven
Materials you can use in a microwave oven Material Remarks To be used for shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to the Aluminium foil cavity walls. -
Page 21: Materials Not To Be Placed In A Microwave Oven
Materials not to be placed in a microwave oven Material Remarks May cause arcing. Transfer food into a microwave-safe dish. Aluminium tray May cause arcing. Transfer food into a microwave-safe dish. Food carton with metal handle Metal shields the food from microwave energy. The metal trim Metal or metal-trimmed utensils may cause arcing. -
Page 22: Safety Lock
Safety lock When the microwave is not heating, it is possible to switch on the safety lock. Press and hold the stop / clear button (3) for 3 seconds until the LCD display shows the word “OFF”. Until the safety lock is switched off, all control buttons on the microwave will be disabled. To switch off the safety lock, press and hold down the stop / clear button until the colon reappears on the LCD display. -
Page 23: Cleaning & Maintenance
Any damage that is caused to the appliance by a cleaning product will not be fixed by Lamona free of charge, even if the appliance is within the guarantee period. -
Page 24: Installation
INSTALLATION IMPORTANT: This installation must be completed by a suitably qualified person. Lamona only sanction the installation given in this instruction manual. Before beginning to install your appliance, check that there is no sign of damage (on the inside or the outside of the microwave), and that there are no packing materials or accessories inside the cavity. -
Page 25: Aperture And Ventilation Requirements
Aperture and ventilation requirements 50mm Exhaust Port 50mm 560mm 550mm 424mm 460mm 460mm 560mm 72mm Intake 72mm 100mm 272mm The diagrams above show the aperture and ventilation requirements that you require to build the appliance into a housing unit. Ensure that the rear panel of the furniture housing unit has been removed. This oven may be installed without any additional ventilation cut outs being made in the housing unit. -
Page 26: Installing The Microwave Into The Housing Unit
Installation Connect feet extensions to the microwave To fit the top air guide, align the guide with by placing them over the existing fitted feet. the holes in the top panel and screw into Ensure pips on the extension feet align with position. - Page 27 Installation Slide the microwave into the tower unit, Once the microwave is fully secure, the facia remembering to connect to a power supply trim can be clipped into position. Finally before securing in position with the x8 make any adjustments necessary to align the wood screws provided.
-
Page 28: Troubleshooting
Isolate the microwave from your mains supply and then contact Lamona Customer Care . The interior light bulb is not working. Call the Lamona Customer Care Department. The interior light bulb can only be replaced by a trained service technician. -
Page 29: Your Guarantee
What to do if you need to report a problem- Please ensure you have ready: - The product’s model & serial numbers - Howdens Proof of Purchase document - Your full contact details. Call the Lamona Service Line on 0845 00 60 006 Page 29 www.howdens.com... - Page 30 NOTES ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 31 ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
-
Page 32: Contact Details
CONTACT DETAILS Lamona Customer Care Telephone number (0845) 006 0006. Lamona operates a policy of continuous improvement and reserves the right to adjust and modify its products without prior notification.
