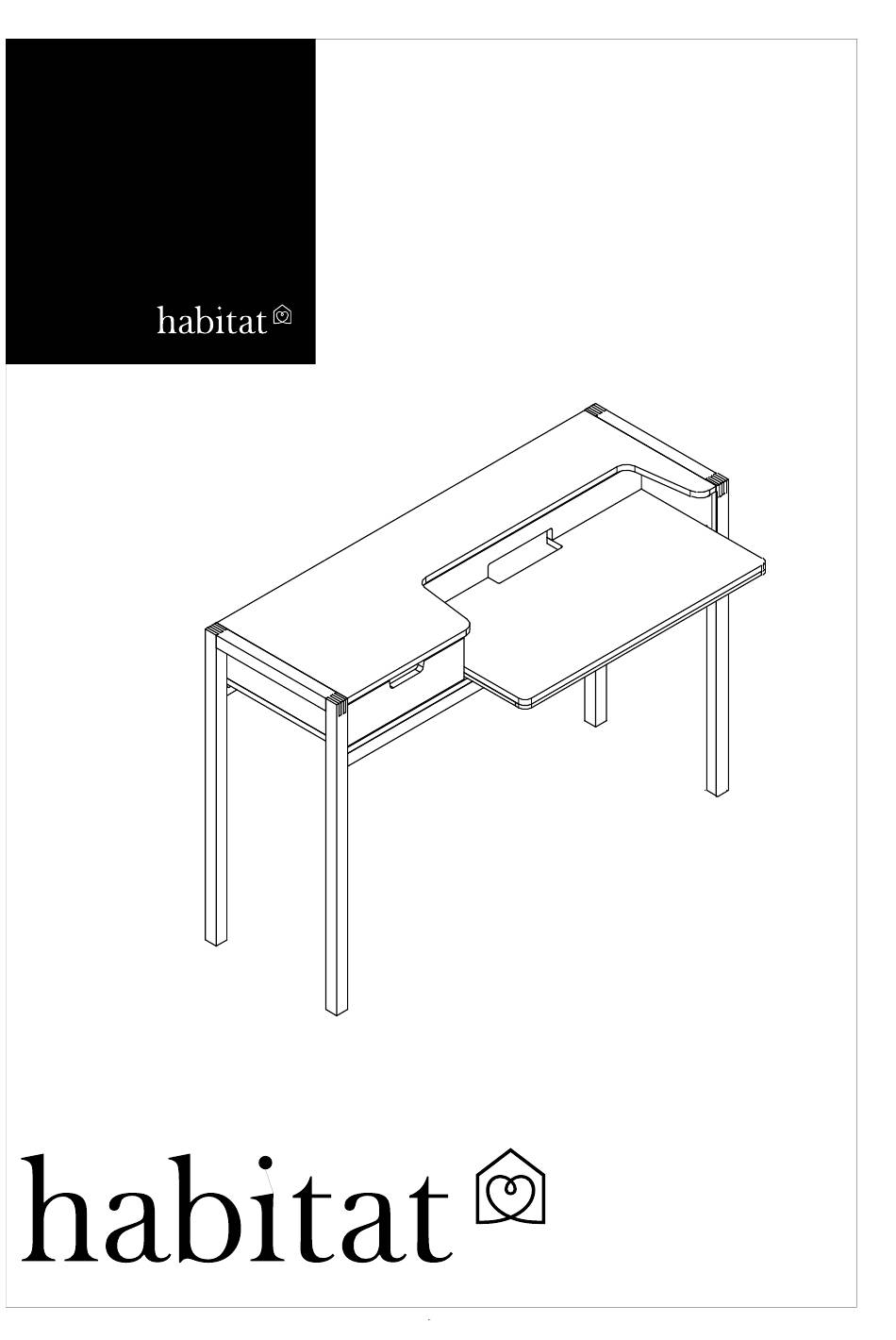

- Page 1 Quint Quint Laptop Desk 204215 QUIN-1D-S13-A...
- Page 2 Components Please check you have all the parts listed below Leg Frame Left Leg Frame Right Body Crossbar Worktop Retain batch code label...
- Page 3 Components -Fittings Please check you have all the fittings listed below Wooden dowel x12 Cam bolt x12 Cam lock x2 Screws x3 Screws caps x1 Connectors caps x2 Hex key x1 (3mm) Hex key x1 (4mm) Wall strap x1 Tools required IMPORTANT - PLEASE READ THESE INSTRUCTIONS FULLY BEFORE STARTING ASSEMBLY Before assembling the furniture please identify all component parts.
- Page 4 Assembly Instructions Please keep safe for future reference Step 1 a: Insert wooden dowels A into Crossbar 4 b: Push cam locks C into Crossbar 4 c: Screw cam bolts B into Leg Frames 1 Step 2 a: Insert wooden dowels A into Body 3 b: Take the drawer out.
- Page 5 Assembly Instructions Step 3 a: Attach Body 3 to Crossbar 4 with screws D. To do this, use hex key G . b: Turn the table gently onto the backside. Step 4 a: Attach Body and Legs frames.
- Page 6 Assembly Instructions Step 5 a: Tighten cam locks (12 pieces) as shown using hex key H Step 6 a: Gently lift the table on its legs. b: Use the hex key G to attach screw D to the right side of the table.
-
Page 7: Assembley Instructions
Assembley Instructions Step 7 a: Attach Caps E , F on the screws and cam locks. b: Put the drawer back on the rails and close it. Step 8 a: Align worktop 5 with runners on body 3 and close . - Page 8 Maintenance- To remove the Worktop Step 1 a: Push spring clip down with suitable flat tools eg. ruler Step 2 a: Pull out the worktop until the end, push 2 black nobs to the side and pull it out. Step 3 a: Refit the worktop as per step 8.
- Page 9 It is recommended that the product is fitted with the anti-topple wall strap provided. Warning! The wall fixings are not supplied with this product. For fixing please seek the advice of a professional builder. Before you drill, check to ensure there are no hidden pipes or service cables in the wall.
-
Page 10: Care Instructions
Use place mats to protect the surface from moisture and heat. If for any reason you should have problems with your Habitat product, pleace contact the store from which you purchased it. Please retain your receipt as proof of purchase.
