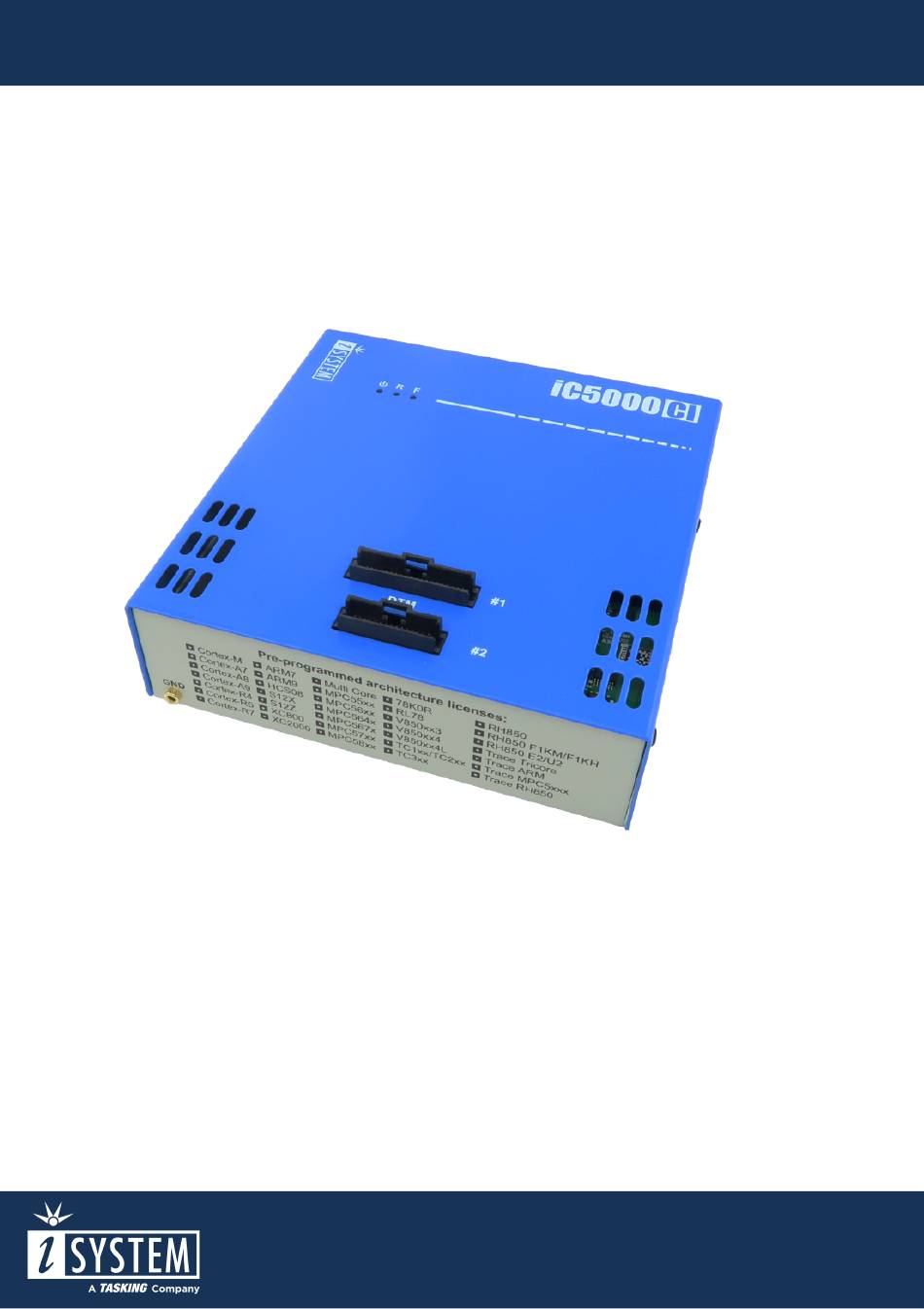

- Page 1 CI BlueBox User Manual V1.3, August 2023 isystem.com/start...
- Page 2 Use included power cord and power supply The enclosed power supply has been approved for use by iSYSTEM. Please contact iSYSTEM if you need to consider an alternative power.
-
Page 3: Table Of Contents
Contents Package content ..........................4 Specifications ............................5 Operation ............................... 6 Device description ........................... 7 Hardware Setup and Configuration ..................... 9 Accessories ............................10 Declarations ............................11... -
Page 4: Package Content

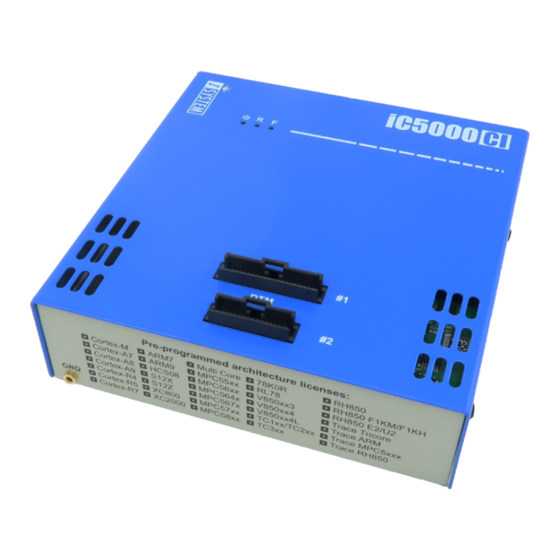

Package content iC5000 CI BlueBox On-Chip Analyzer is a hardware platform which allows hardware debugging and testing a wide range of embedded microcontroller platforms that are based on a variety of processor architectures and is implemented into Continuous Integration (CI) infrastructures. -
Page 5: Specifications
Specifications GENERAL Operating temperature 10°C to 40°C Storage temperature -10°C to 60°C Humidity 5% to 80% RH MECHANICAL Size 122 x 127 x 45 mm (W x D x H) Weight approx. 500g OPERATION Communication USB 2.0, 10/100 Mbps Ethernet interfaces to PC Supply voltage 10V to 24V DC... -
Page 6: Operation
Operation Device overview... -
Page 7: Device Description
Device description A – Two connectors, marked #1 and #2. These connectors are the interface to the target microcontroller. Depending on the target microcontroller debug features, the supplied ribbon- cables will need to be connected to either connector #1 only or connectors #1 and #2. B –... - Page 8 When powering down the system, power off the Target before powering off the BlueBox unit! FBridge port is not Ethernet port! Use only original iSYSTEM accessories for powering and connecting with the BlueBox unit. Consult with iSYSTEM before attempting to use any other accessory. Differences between BlueBox CI and BlueBox...
-
Page 9: Hardware Setup And Configuration
For a detailed visual presentation of the hardware setup and configuration, refer to Getting started tutorial. Use short link isystem.com/start. 1. Connect the power supply cable. BlueBox should be switched off. 2. First connect via USB. Later you can configure TCP/IP connection to work remotely. -
Page 10: Accessories
Accessories Various debug adapters are available to connect the iC5000 CI to a wide range target debug connector as commonly found on microcontroller development boards. More information about our products on www.isystem.com or via sales@isystem.com. -
Page 11: Declarations
· Signed for and on behalf of: Schwabhausen, 21. March 2017 iSYSTEM AG f. Informatiksysteme - Carl-Zeiss-Str. 1 - 85247 Schwabhausen - USt-IdNr. DE128231221 Vorstand: Erol Simsek, Werner Fischer, Martin Gröstenberger - AG: München HRB 148751 - St-Nr.: 115/120/30027 Bank: Sparkasse Dachau BLZ 70051540 Account 904045 - IBAN: DE82700515400000904045 - BIC:... - Page 12 Visit our website for: Support - isystem.com/support · Tutorials - isystem.com/getting-started · Knowledge Base - kb.isystem.com · www.isystem.com...
