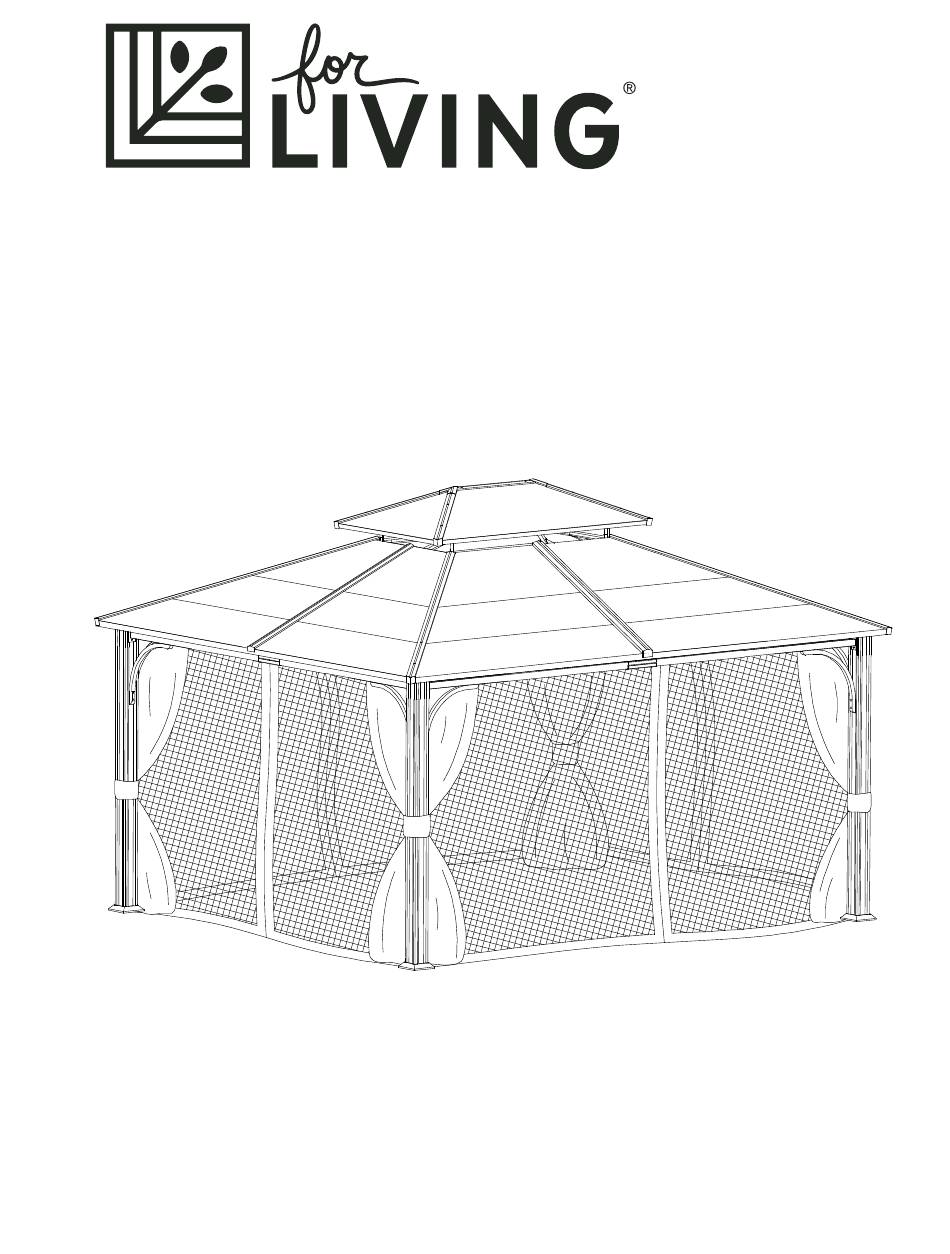

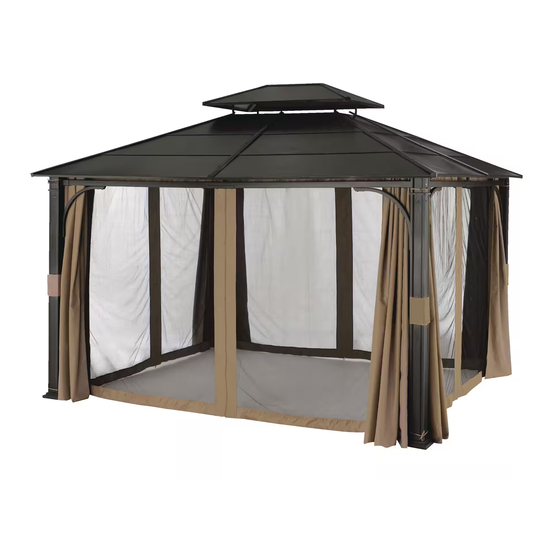

Essex Gazebo
Walls and Netting
Product No. 088-1053-0
Model No. A111700200
Assembly Instructions
Toll-free: 1-877-483-6759
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
Production Number: xxxxxxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Essex A111700200 and is the answer not in the manual?

Questions and answers

Summary of Contents for for Living Essex A111700200

  • Page 1 Essex Gazebo Walls and Netting Product No. 088-1053-0 Model No. A111700200 Assembly Instructions Toll-free: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production Number: xxxxxxxx...
  • Page 2 Imported for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
  • Page 3 P005100264 Walls – 1 (made of 4 panels ) Plastic Ring – 104 + 5 Spare Netting – 1 (made of 4 panels) IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY...
  • Page 4 Product No. 088-1053-0 Model No. A111700200 • STEP 1: Open the walls and unzip to separate the 4 panels Attach plastic rings to the netting grommets. Divide Zipper rings on each Zipper quadrant so 7 are on the longer side of gazebo, and 6 are on the shorter side of gazebo.
  • Page 5 STEP 2: Assembly of walls Opened panels of part Install the walls on the outer track of the curtain rail To correctly attach panels, please be sure to match up the small numbers at top of walls (1 + 1; 2 + 2;...
  • Page 6 Product No. 088-1053-0 Model No. A111700200 • STEP 3: Open the netting and unzip to separate the 4 panels Attach plastic rings to the netting Zipper Zipper grommets. Divide rings on each quadrant so 7 are on the longer side of gazebo, and 6 are on the shorter side of gazebo.
  • Page 7 STEP 4: Assembly of netting Rings Opened panels of part Rings Install the walls on the outer track of the curtain rail To correctly attach panels, please be sure to match up the small numbers at top of walls (1 + 1; 2 + 2; 3 + 3; 4 + 4) where the zipper seam is located.
  • Page 8 Product No. 088-1053-0 Model No. A111700200 • Dimensions (L x W x H) Wall 128.34'' x 83.85'' Netting 128.93" x 85.43" Wall 326 x 213 cm Netting 327.5 x 217 cm Product weight 3 lb This product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
