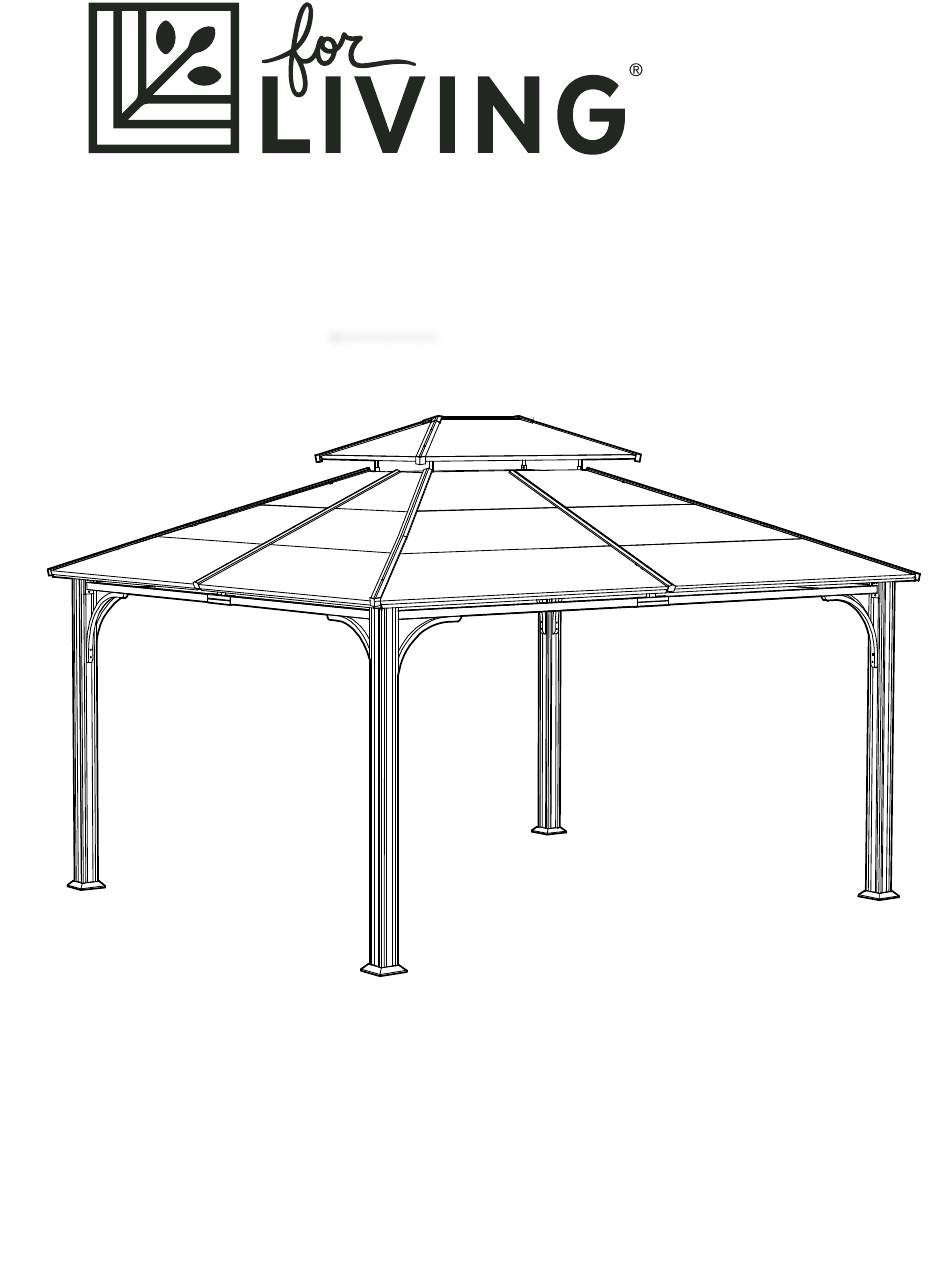

Essex Gazebo
Product No. 088-1336-8
Model No. L-GZ340PST-3
Assembly Instructions
Toll-free: 1-877-483-6759
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Production Number: xxxxxxxx

Advertisement

loading

Related Manuals for for Living Essex

Summary of Contents for for Living Essex

  • Page 1 Essex Gazebo Product No. 088-1336-8 Model No. L-GZ340PST-3 Assembly Instructions Toll-free: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Production Number: xxxxxxxx...
  • Page 2 Imported for Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
  • Page 3 Table of Contents Important Safety Instructions Part List Assembly 6-54 Cleaning and Maintenance Technical Data Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the gazebo. Caution! Always keep children under close supervision while they are using or around this product. Never leave children unattended.
  • Page 4 Product No. 088-1336-8 Model No. L-GZ340PST-3 • P10161A01131 P11078D01131 Short Beam - 4 Big Top Frame - 2 P11079D01131 P10162A01131 Long Beam - 4 Big Top Bar - 2 P11833B05131 P10227A01131 Arc Support - 8 Small Top Support Beam - 4 P10183B01131 P12136A01131 Long Pipe 1 - 2...
  • Page 5 P11977C05131 H19001C11 Short Side Roof Panel 1 - 2 Flat Washer M6（Large）- 318 + 16 P11975C05131 H02055C1 Short Side Left Roof Panel 2 - 2 Bolt M6*55 - 14 + 1 P11976C05131 H14001C11 Short Side Left Roof Panel 3- 2 Nut M6 - 28 + 2 P11973C05131 H02065C11...
  • Page 6 Product No. 088-1336-8 Model No. L-GZ340PST-3 • Caution! • Proper placement of your gazebo is essential. Do not place the product underneath electrical lines. • Keep children away during assembly. This product contains small parts which can be swallowed by children. •...
  • Page 7 Step 1 - requires E, F, I, G, H, P...
  • Page 8 Product No. 088-1336-8 Model No. L-GZ340PST-3 • Step 2 - requires C, W, X Step 3 - requires D, W, X Step 1 - requires E, F, I, G, H, P Step 4 - requires J, W, X Step 2 - requires C, W, X...
  • Page 9 Step 2 - requires C, W, X equires D, W, X Step 3 - requires D, W, X Step 4 - requires J, W, X Step 4 - requires J, W, X...
  • Page 10 Step 2 - requires C, W, X Product No. 088-1336-8 Model No. L-GZ340PST-3 • Step 5 - requires K, L, W, X Step 9 - requires Step 5 - requires K, L, W, X Step 3 - requires D, W, X Step 6 - requires A, B, Y, Z, CC Step 4 - requires J, W, X tep 6 - requires A, B, Y, Z, CC...
  • Page 11 Step 6 - requires A, B, Y, Z, CC Step 7 Step 8 - requires Q, R, S, W, X...
  • Page 12 Step 12 Product No. 088-1336-8 Model No. L-GZ340PST-3 • Step 9 - requires W, X Step 9 - requires W, X Step 10 - requires M, V Step 10 - requires M, V Step 11 - requires O, X, AA Step 11 - requires O, X, AA...
  • Page 13 Step 11 - requires O, X, AA Step 15 - Step 12 - requires N, Z, CC Step 13...
  • Page 14 Product No. 088-1336-8 Model No. L-GZ340PST-3 • Step 13 Step 13 Step 14 - requires BB Step 14 - requires BB Step 15 - requires T, U Step 15 - requires T, U...
  • Page 15 Step 15 - requires T, U...
  • Page 16 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 18 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 20 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 22 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 24 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 26 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 28 Product No. 088-1336-8 Model No.L-GZ340PST-3 •...
  • Page 30 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 32 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 34 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 36 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 38 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 40 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 42 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 44 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 46 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 48 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 50 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 52 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 54 Product No. 088-1336-8 Model No. L-GZ340PST-3 •...
  • Page 55 Caution! • Check all screws and nuts periodically for tightness, fastening them again as required. • Disassemble the gazebo in the reverse order of the assembly steps. Always disassemble the gazebo completely. A partially disassembled gazebo is not stable enough to resist wind and bad weather, and therefore can be damaged and/or cause damage.
