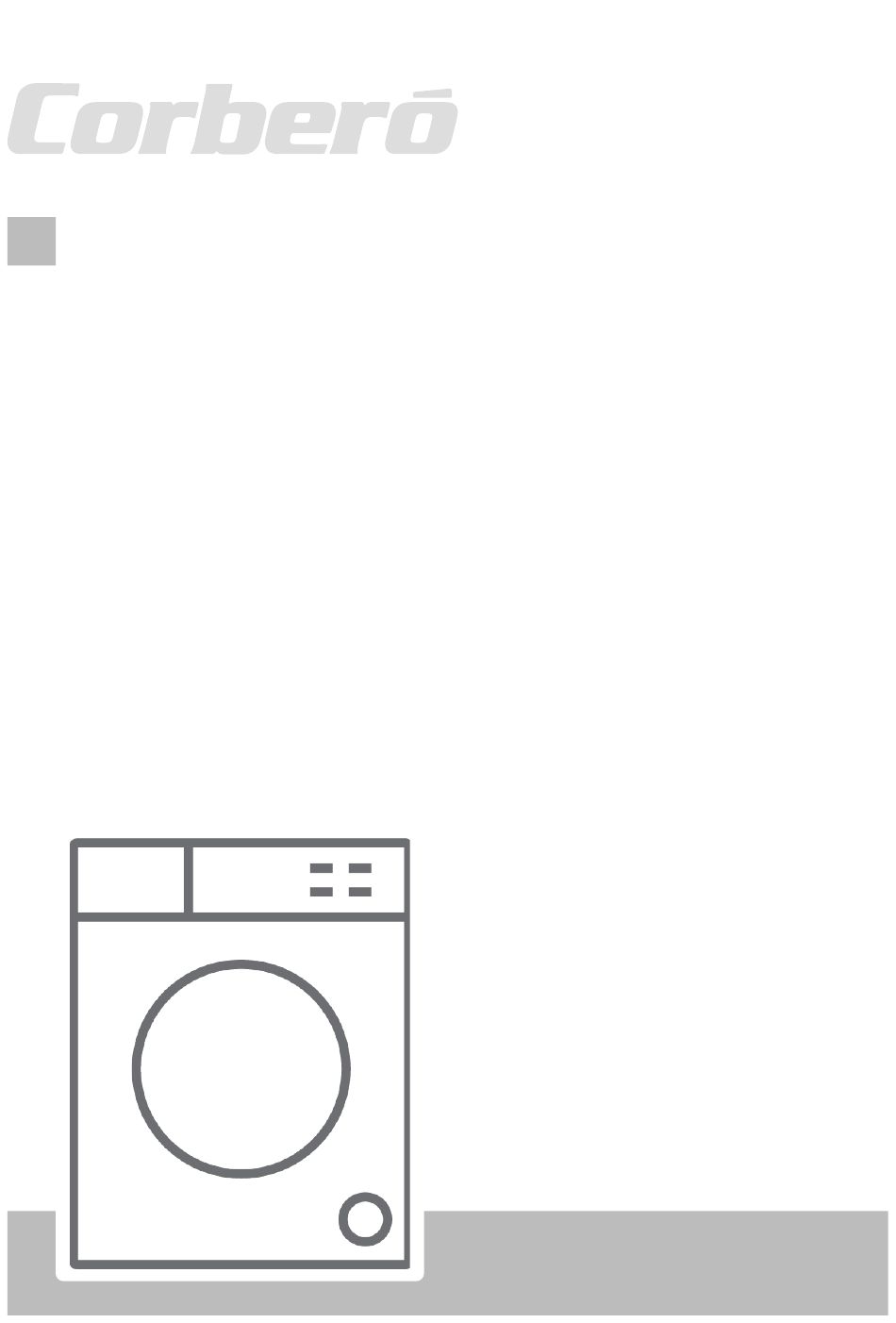

- Page 1 Washing Machine / User Manual CLAV22814VPINV CLAV2284VPINVX...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1 General Safety Warnings ....................2 1.2 During Use ........................6 1.3 Packaging and Environment...................7 1.4 Savings Information ......................8 2. TECHNICAL SPECIFICATIONS ..................9 2.1 General Appearance.......................9 2.2 Technical Specifications ....................9 3. INSTALLATION .......................10 3.1 Removing the Transit Bolts...................10 3.2 Adjusting the Feet / Adjusting Adjustable Stays............10 3.3 Electrical Connection ....................10 3.4 Water Inlet Hose Connection .................. -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS Operating voltage / frequency (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2100 Maximum washing capacity (dry laundry) (kg) • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base. -
Page 5: General Safety Warnings
NOTE: For a softcopy of this user manual, please contact the following address: “washingmachine@standardtest. info”. In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door. Read this user manual carefully. Your machine is for domestic use only. - Page 6 • Residue may build up on detergent and softeners exposed to air for a long period of time. Only put softener or detergent in the drawer at the beginning of each wash. • Unplug your Washing Machine and switch off the water supply if the Washing Machine is left unused for a long time.
- Page 7 • Washing laundry containing flour may damage your machine. • Please follow the manufacturers’ instructions regarding the use of fabric conditioner or any similar products that you intend to use in your Washing Machine. • Make sure that the door of your Washing Machine is not restricted and can be opened fully.
- Page 8 or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel. Risk of flooding • Check the speed of water flow before placing the drain hose in a sink. • Take necessary measures to prevent the hose from slipping.
-
Page 9: During Use
The machine must be carried by at least 2 people. Child safety • Do not leave children unattended near the machine. Children might lock themselves in the machine resulting in risk of death. • Do not allow children to touch the glass door during operation. -
Page 10: Packaging And Environment
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. • Only use your machine for laundry that is labelled as suitable for washing by the manufacturer. • Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. -
Page 11: Savings Information
1.4 Savings Information Some important information to get the most efficient use out of your machine: • Do not exceed the maximum load for the washing programme you have chosen. This will allow your machine to run in energy saving mode. •... -
Page 12: Technical Specifications
2. TECHNICAL SPECIFICATIONS 2.2 Technical Specifications Operating voltage / (220-240) frequency V~/50Hz (V/Hz) Total current Maximum: Water 1 Mpa pressure Minimum : (Mpa) 0.1 Mpa Total power 2100 Maximum dry laundry capacity (kg) Spinning revolution 1400 (rev / min) Programme number 2.1 General Appearance Dimensions... -
Page 13: Installation
3. INSTALLATION 3.2 Adjusting the Feet / Adjusting Adjustable Stays 3.1 Removing the Transit Bolts 1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface. -
Page 14: Water Inlet Hose Connection
• The mains cord of your washing should be connected to cold water inlet machine is equipped with an earthed and red capped hose to the hot water plug. This plug should always be inlet (if applicable). inserted to an earthed socket of 10 •... -
Page 15: Water Discharge Connection
3.5 Water Discharge Connection 4.1 Detergent Drawer (*) • Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment. • Never attempt to extend the water drain hose. • Do not put the water drain hose from your machine into a container, bucket or bathtub. -
Page 16: Sections
4.2 Sections 4.3 Program Dial Main wash detergent compartment: This compartment is for liquid or powder • To select the desired programme, turn detergents or limescale remover. The fluid the programme dial either clockwise or detergent level plate will be supplied inside anti-clockwise until the marker on the your machine. -
Page 17: Using Your Washing Machine
5. USING YOUR curtains or place them in a washing net or bag. WASHING MACHINE 6. Reverse textiles such as pants, knitwear, t-shirts and sweat shirts. 5.1 Preparing Your Laundry 7. Wash socks, handkerchiefs and other small items in a washing net. Can be Normal Do not bleach... -
Page 18: Adding Detergent To The Machine
The following table shows approximate • Put softener in the middle compartment weights of typical laundry items: of the detergent drawer. Do not exceed the MAX level. LAUNDRY TYPE WEIGHT (gr) • Thick softeners may cause clogging of Towel the drawer and should be diluted. Linen •... -
Page 19: Additional Functions
3. Delay Timer (*)Machinery specifications may vary depending on the product purchased. 5.7 Additional Functions 1. Temperature Selection Use the washing water temperature adjustment button to alter the automatically programmed washing water temperature. You can use this auxiliary function to delay the start time of the washing cycle for 1 to 23 hours . - Page 20 4. Steam Assist(*) 7. Pre-Wash(*) Auxiliary function button 4 or 5 Pre-Wash Auxiliary function button 4 or 5 Steam Assist Owing to the steam system ironing has This additional function allows you to give become quick and as easy. The steam used heavily soiled laundry a pre-wash before dream washing penetrates and loosens the the main washing programme takes place.
-
Page 21: Child Lock
Start/Pause button NOTE: If you put less than half the maximum load of laundry into your machine the half-load function will be automatically set, regardless of the programme you selected. This means that the selected programme will take less time to complete and will use less water and energy. -
Page 22: Cancelling The Programme
5.9 Cancelling the Programme To cancel a running programme at any time: 1. Turn the programme dial to the “STOP” position. 2. Your machine will stop the washing operation and the programme will be cancelled. 3. Turn the programme dial to any other programme to drain the machine. -
Page 23: Programme Table
6. PROGRAMME TABLE Programme Laundry type / Descriptions Very dirty, cotton and flax textiles. COTTON *60-90-80-70-40 (Underwear, linen, tablecloth, towel (maximum 4,0 kg), bedclothes, etc.) Dirty cotton and flax textiles. ECO 40-60 *40 - 60 (Underwear, linen, tablecloth, towel (maximum 4,0 kg), bedclothes, etc.) Dirty cotton and flax textiles. - Page 24 NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. (*) Washing water temperature of the programme is the factory default. (**) If your machine has the rapid wash auxiliary function, you can enable the quick wash option on the display panel and load the machine with 2 kg or less laundry to wash it in 30 minutes.
- Page 25 • The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. • Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
-
Page 26: Important Informations
6.1 Important Informations • Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage. • We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme. -
Page 27: Cleaning And Maintenance
7. CLEANING AND 7.2 Water Inlet Filters Water inlet filters prevent dirt and foreign MAINTENANCE materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 7.1 Warning sufficient water, although your water supply is on and the tap is open. -
Page 28: Pump Filter
7.3 Pump Filter meet the holes on the front panel side. 6. Close the filter cover. WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance. (*) Specifications may vary depending on the machine purchased. -
Page 29: Body / Drum
8. Body / Drum any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 1. Body Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth. 2. -
Page 30: Troubleshooting
9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. •... -
Page 31: Automatic Fault Warnings And What To Do
FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height. - Page 32 WWW.CORBERO.ES Servicruz SL Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona Telf. 911 08 08 08 servicruz.sat@servicruz.es The minimum period which must supply the spare parts for the household washing machine is 10 years. 52395265...
- Page 33 Sevicio Técnico O cial: Horario de atención Lunes a Viernes de 9h00 a 19h00. Teléfono de contacto_ 911 08 08 08 Mail de contacto_ info@corbero.es web_ www.corbero.es Dirección de Servicio técnico oficial_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona...
- Page 34 Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is “RD 7/2021” 911 08 08 08 Official Technical Service: Hours of operation Monday to Friday from9h00 a 19h00. Telephone contact_ 911 08 08 08 Contact email_ info@corbero.es web_ www.corbero.es Official Technical Service Address_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona...
