Radio receiver RMD
Radio receiver RMD
Order-No. : 9405 01 00
Operation- and
Assembly Instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
To ensure adequate contact protection, operate device only with the slide in use.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.

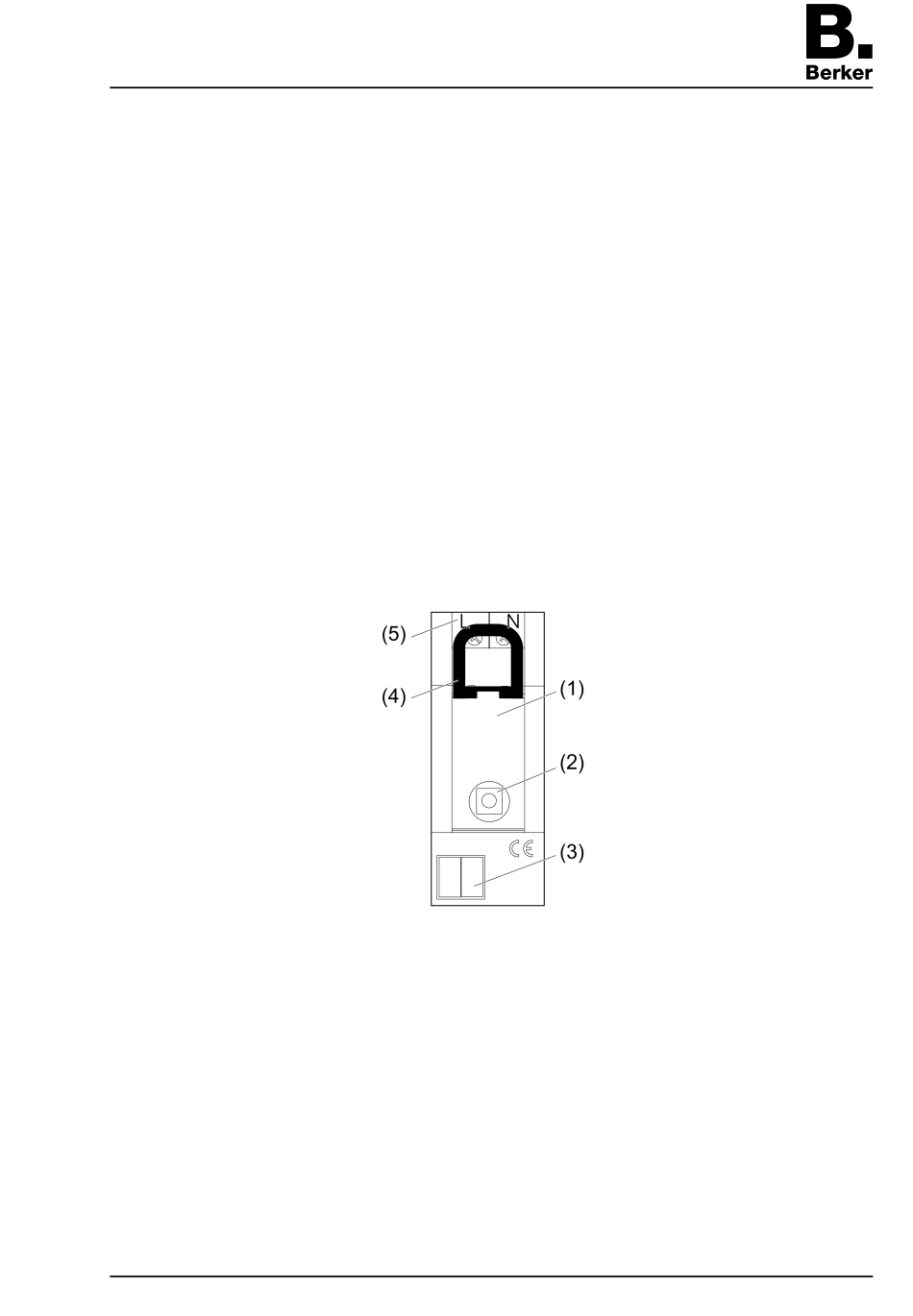

2 Device components
(1) Radio receiver
(2) SMB socket for optional connection of an external antenna
(3) Connection terminal for bus cable
(4) Slide for cable fixing and as contact protection
(5) Screw terminals for mains connection
3 Function
System information
By statute, the reception characteristics and the antenna cannot be changed.
The device may be operated in all EU and EFTA countries.
The declaration of conformity can be viewed on our website.
82549811
97-09566-000
picture 1
Seite 1/5
03.08.2010
