DHP 4146619N Instruction Booklet

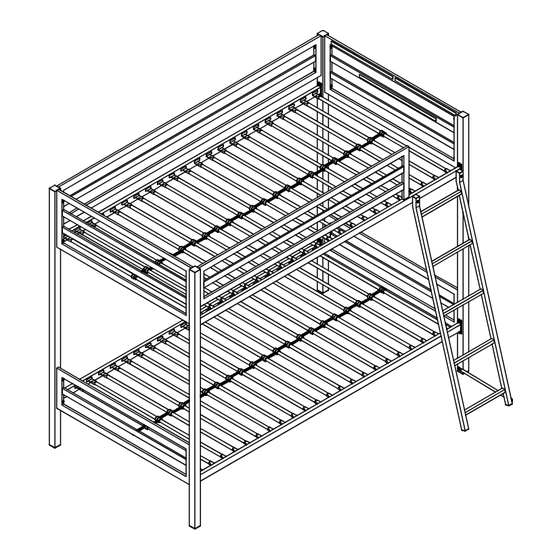

Metal bunk bed twin/twin blue
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
TM
Weight Limit:
200 Lb / 91 Kgs for upper bed
225 Lb / 102 Kgs for lower bed
J.Z. - 2017/8/16
2014 Dorel Home Products All Rights Reserved
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4146619N
Metal Bunk Bed
Twin/Twin
Lot Number
B3444146619N00 - 10125-M
Blue
1

Advertisement

Table of Contents
loading

Related Manuals for DHP 4146619N

Summary of Contents for DHP 4146619N

  • Page 1 Metal Bunk Bed Twin/Twin Blue Weight Limit: Thank you for purchasing from DHP! 200 Lb / 91 Kgs for upper bed 225 Lb / 102 Kgs for lower bed DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
  • Page 4 Parts Replacement Parts, Visit www.dhpfurniture.com/eng/support-home All in 1 big box! There are inner box(es) that include components required to complete this assembly. Post Post Guard Rail Guard Rail Before you throw the package, please use the Post End Guard Rail T952580 T952400 T952410...

  • Page 5: Hardware Pack

    Hardware Pack Hardware Pack #: T4146619N-00 1/4" 1/4" X 3/4" 5/16" X 1" X 16 1/4" X 2 3/16" 1/4" X 2 3/8" X 24 Spring Washer X 16 Metal Washer X 16 Wrench Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Step 1 Attach I and T to C and B with...
  • Page 7 Step 2 Attach I1 and T to C and D with Warning label on part I1 should be oriented on the same side as side rail holes! For your safety, please ensure that the warning on I1 is oriented towards upside and inside of the bed.
  • Page 8 Step 3 Wide side of the slot should be facing up ! Attach J X 2 to B/C with Attach H & J to C/D with X 16 X 16 X 16...
  • Page 9 Step 4 Attach E to B/C with...
  • Page 10 Step 5 Insert O into J/H as illustrated, then lock O into place with Y.
  • Page 11 Step 6 6.1 Press W onto O approximately in the middle of O as illustrated. 6.2 Press Q onto W alternating left and right as illustrated.
  • Page 12 Step 7 7.1 Attach F to C with 7.2 Attach F to H with...
  • Page 13 Step 8 Attach Z to H with...
  • Page 14 Step 9 9.1 Attach L to D with 9.2 Attach L to Z with...

  • Page 15: Helpful Hints

    Move your new furniture carefully, with two people lifting and carrying the unit to its new location. Your DHP furniture can be disassembled and reassembled to move. Clean the product with your favorite furniture polish and soft cloth. DO NOT use harsh chemicals or abrasive cleaners.
  • Page 16 Do not use substitute parts. Contact the manufacturer or dealer for replacement parts. Replacements parts, including additional guardrails, may be obtained from DHP. Use of a night light may provide added safety precaution for a child using the upper bunk.
  • Page 17 Garant a Gracias por su compra DHP! DHP garantiza que este producto est libre de defectos de material y de fabricaci n, comprometi ndose a corregirlos en caso de ser hallados. Esta garant a es valida por Registra tu producto y participa para ganar! un a o a partir de la fecha de compra original.
  • Page 18 Lea antes de comenzar a ensamblar Partes Llame a nuestro n mero gratuito si necesita asistencia. Piezas de reemplazo, visite www.dhpfurniture.com/spa/support-home Trabaje en un rea espaciosa y cerca de donde su producto ser utilizado, preferiblemente sobre una alfombra o utilice el cart n del empaque para proteger su piso y su producto.
  • Page 19 Utilice siempre la escalera para subir y bajar de la cama superior. 7.1 Una F con C usando Proh ba a m s de una persona en la cama superior. No utilice piezas sustitutas. Entre en contacto con DHP para las piezas de 7.2 Una F con H usando reemplazo.

  • Page 20: Garantie

    S'IL VOUS PLA T LIRE ET CONSERVER POUR R F RENCE ULT RIEURE. Garantie Merci d'avoir achet un produit de DHP ! DHP garantit que ce produit est exempt de tout vice de mat riaux et de fabrication et Enregistrez votre produit et s'engage rem dier un tel d faut.

  • Page 21: Avant De Commencer L'assemblage

    Avant de commencer l'assemblage Pi ces Si vous avez besoin d'aide, appelez notre service la client le sans frais. Pi ces de rechange, visitez www.dhpfurniture/fre/support-home Travailler dans un endroit spacieux et pr s du lieu o l'unit sera utilis e, pr f rablement sur un tapis, ou sur un morceau de l'emballage pour prot ger le Tout dans 1 grosse bo te! plancher et le produit.

  • Page 22: Conseils Utiles

    Interdire d'avoir plus de 2 personnes sur le lit sup rieur. Utilisez toujours l' chelle pour monter ou descendre au lit du haut. 7.1 Attacher F C avec Ne substituez pas de pi ces. Communiquez avec DHP pour obtenir des pi ces de 7.2 Attacher F H avec rechange.
