Installing and Replacing Desktop Board Components

Installing DIMMs

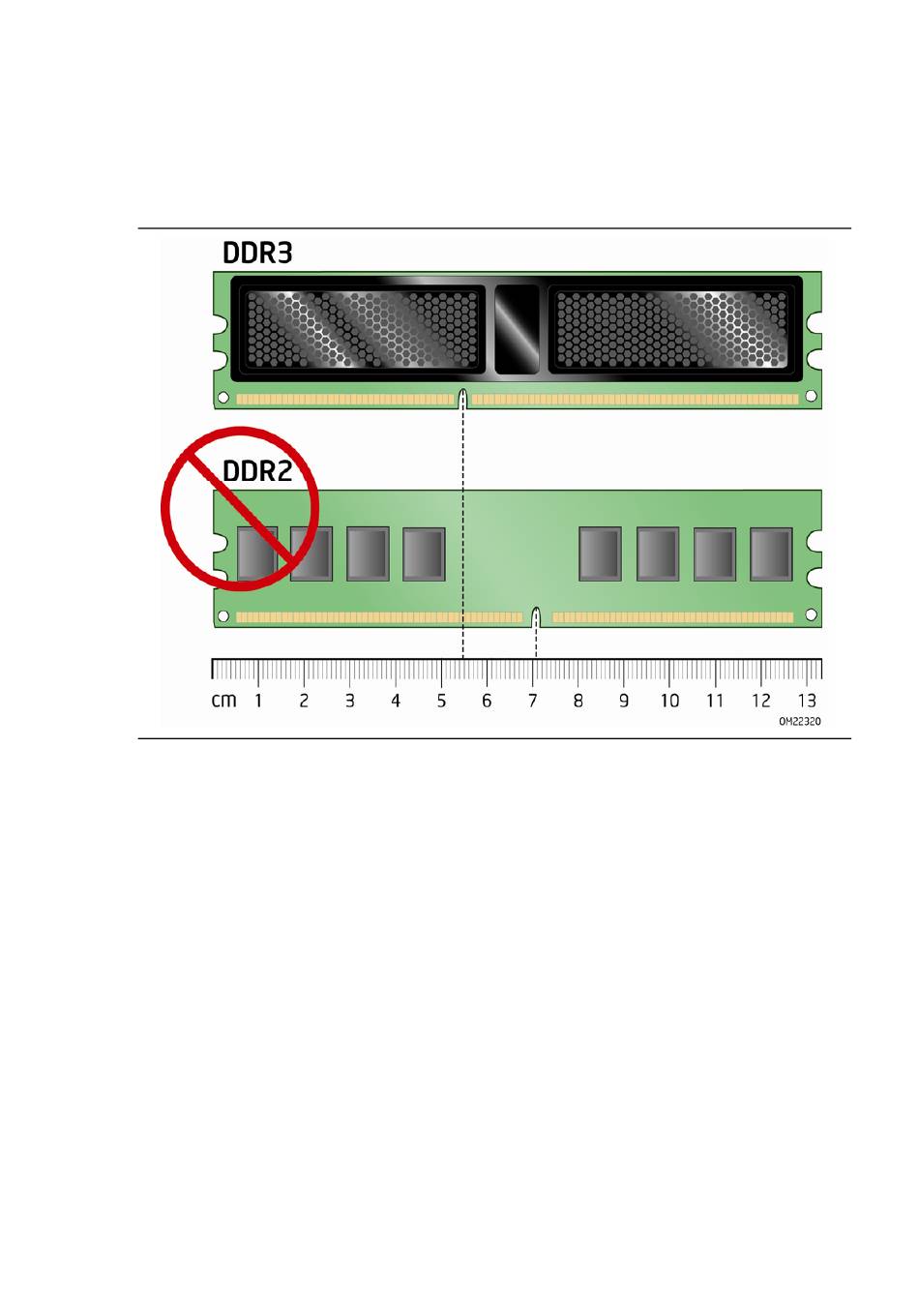

To make sure you have the correct DIMM, place it on the illustration of the DDR3
DIMM in Figure 19. All the notches should match with the DDR3 DIMM.
Figure 19. Use DDR3 DIMMs
47
